How to use Xhorse VVDI MB BGA TOOL?

Good news!!!Original Xhorse VVDI MB TOOL Mercedes-Benz key programmer is available in now.

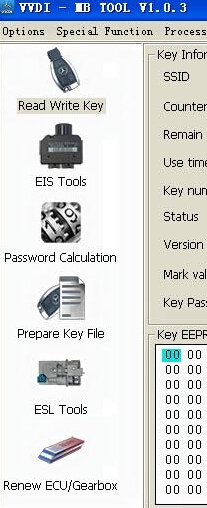

Here is the instruction on Xhorse VVDI MB BGA TOOL operation, including how to read and write keys, how to calculate password, how to prepare key file, how to use EIS/ESL Tools with VVDI Mercedes Benz key programmer 1.0.3.

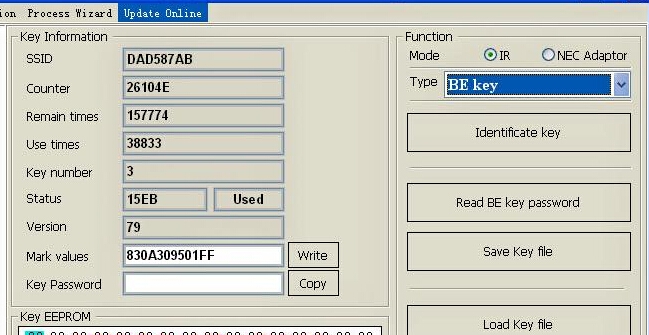

Read and write a key by vvdi mb  tool:

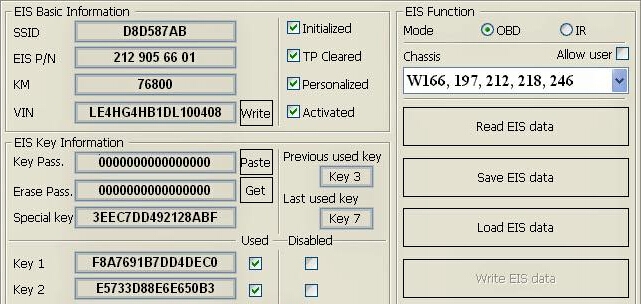

EIS Tools:


Prepare key file (File make key) by vvdi mb tool

Step 1

Load EIS file with password

-Supported (Auto detect)

  1. VVDI -MB
  2. HC05


Step 2

Select key position for key file

Select key file format

Press button “Prepare Key File”


Calculate BGA code/password by original vvdi mb bga tool

Step 1

Select communicate mode and chassis

Attention: connect device OBD line to car

Step 2

Press “Data Acquisition” to start with following steps

1 insert working key to ignition, waiting 15 seconds

2 insert working key to device IR reader, verify key and car

3 data acquisition

4 insert working key to ignition, waiting 30 seconds

5 insert working key to device IR reader, wait end…

Save acquisition data

Step 3

Press “Upload Data” to send acquisition data

Step 4

Press “Query result” to get result


ESL Tools:
