Here is the little tutorial on programming BMW CAS3+ system key by using CGDI Prog BMW MSV80 key programmer via OBD.


Video Guide:

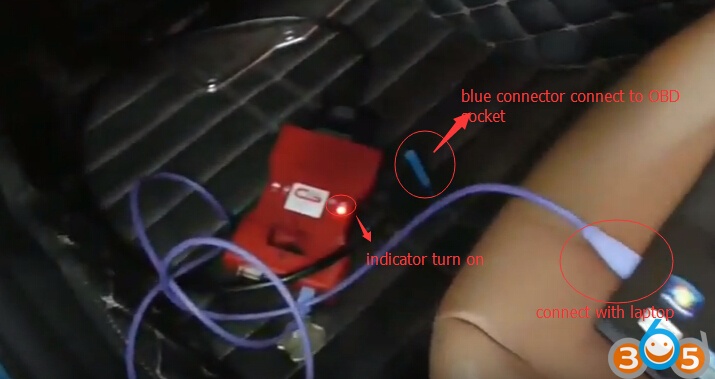

Connect CGDI Prog one end with laptop and the other Blue adapter with OBD socket

The right indicator on CGDI pro turns on indicates that well communication between device and laptop is built

Insert key into ignition

Open CGDI software on desktop

Turn ignition on

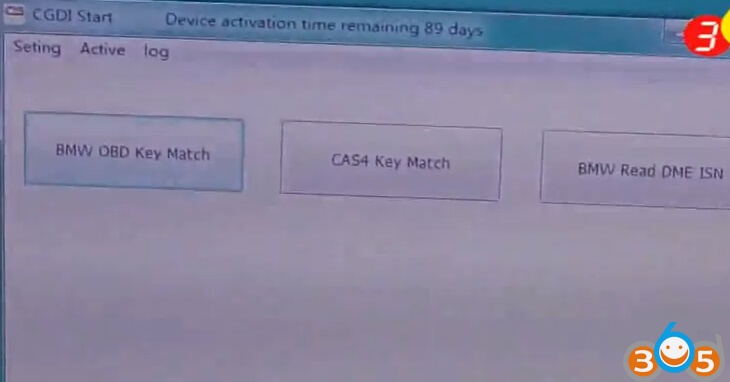

Select BMW CAS OBD Macth

CGDI Prog key programmer will detect vehicle information, VIN, CAS, number, CAS version, remote frequency, key number etc

check connection stratus on the bottom

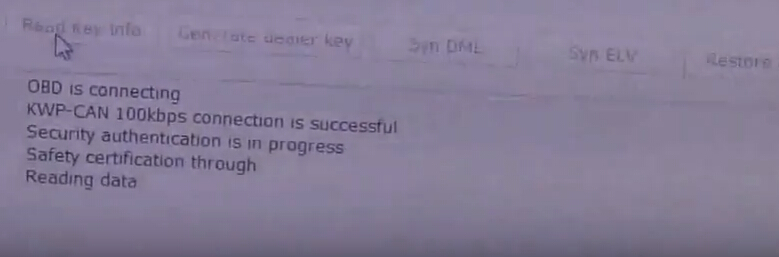

select Read key info

The left indicator on CGDI programmer flashes

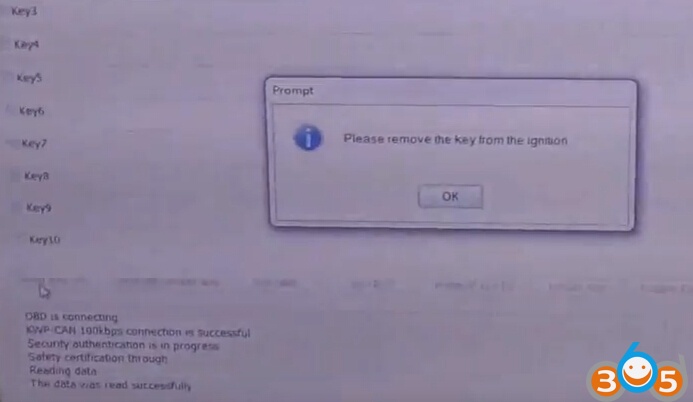

Please remove the key from the ignition

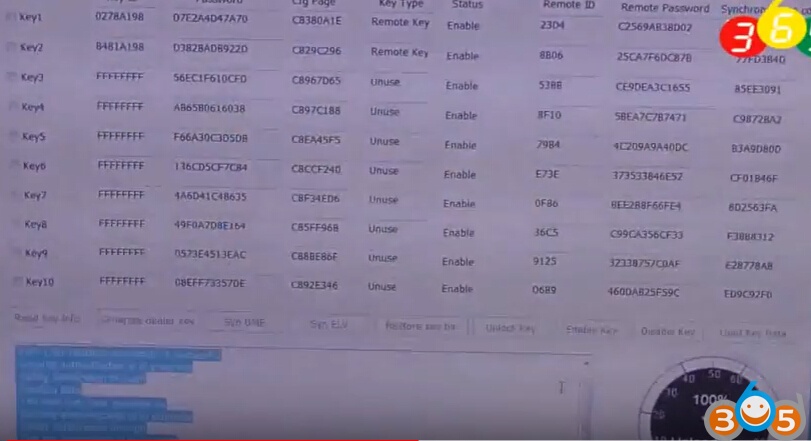

Reading key data success

the car has 2 remote keys

Save eeprom data

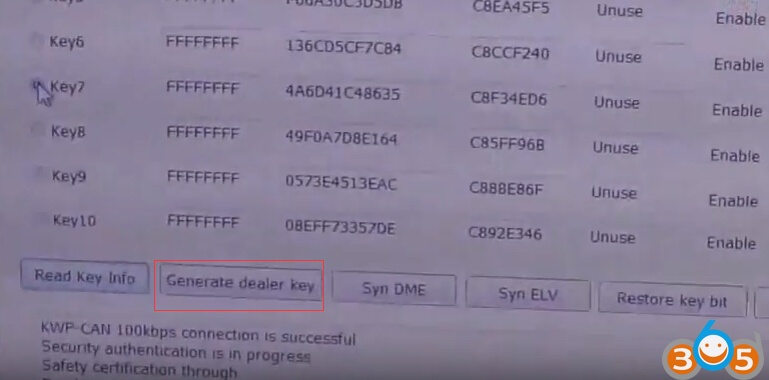

select a key position unused: Key7

click on Generate dealer key

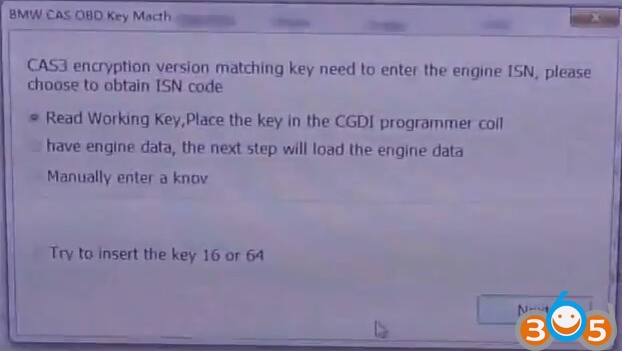

CAS3 encryption version macthing key need to enter the engine ISN, please choose to
obtain ISN code

select first option: Read Working Key, Place the key into the CGDI programmer coil

try to insert the key 16 or 84, press Next

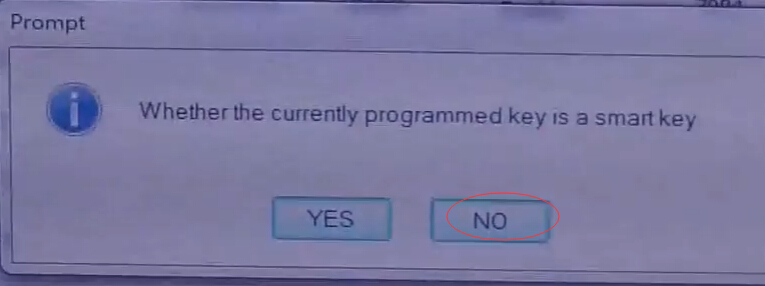

Whether the currently programmed key is a smart key, select NO

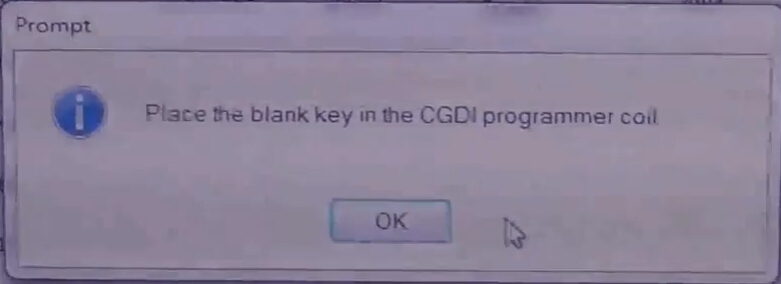

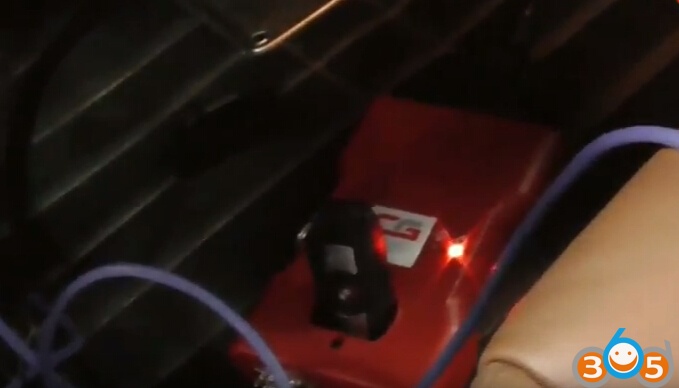

place the blank key into the CGDI Prog BMW key programmer coil

the key is being programmed

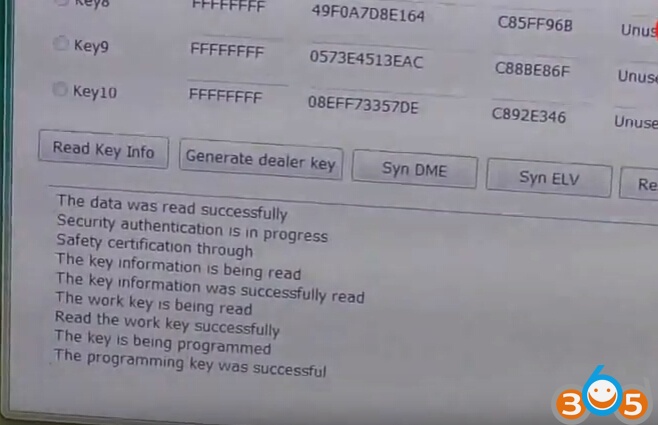

Programming key success

Learn key and program remote

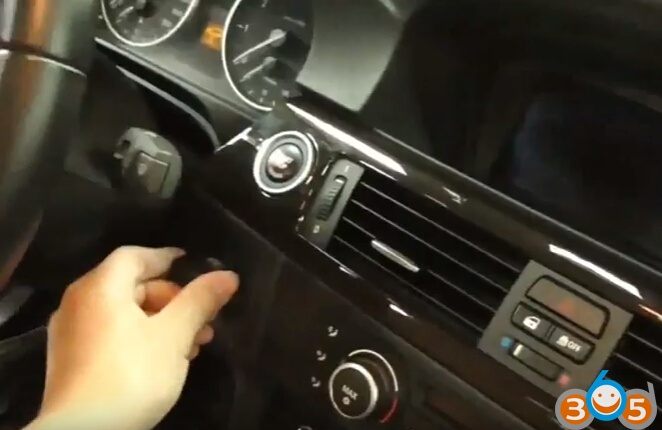

Place the working key into the card slot

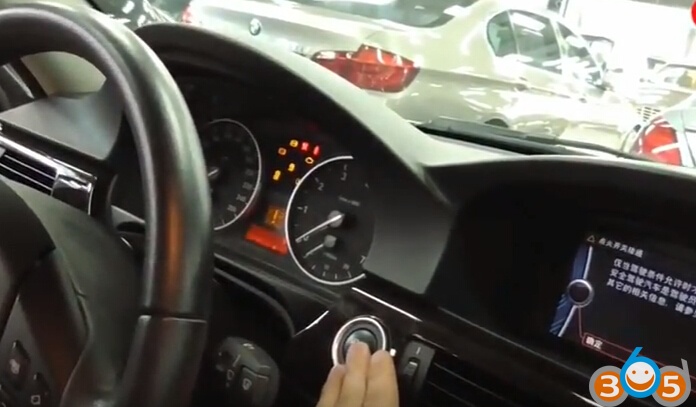

Press on Start buttton

Dashboard indicators turn on
Remove the working key

Insert the new key into slot
press on the Start button

dashboard indicator turns on

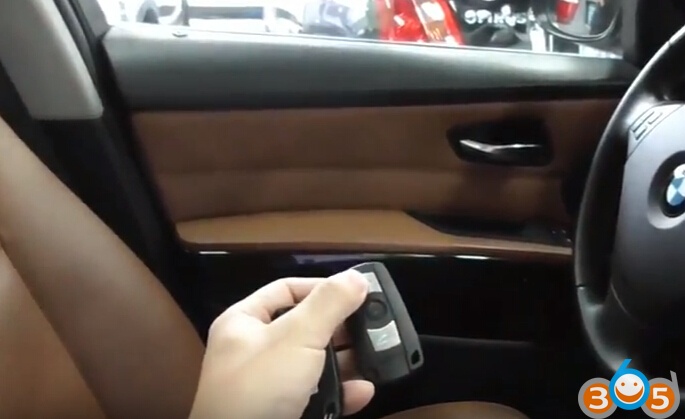

Test the remote
