Program Renault Megane III 09-15 Key Card with Autel MaxiIM IM608

How-to: add a spare remote key card to Renault Megane III year 2009 to 2015 by using Autel MaxiIM IM608 key programmer. No doubt the smartest investment for your workshop.

Tools needed:

IM608 tablet

2 key cards, original key card and blank key card

Enable network connection (required when reading password)

Original key can start engine

New blank key cannot start engine

Procedure:

Insert original key card into card slot and turn on ignition switch

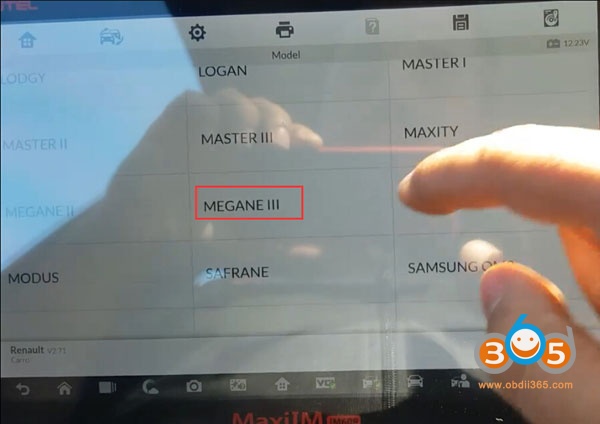

In Autel IM608, Select IMMO function->Manual selection->Renault->Megane III->2009-2015-> Keyless System (CAN)->Key learning->Learn the key

Both 2 keys need to be learnt

Remove key card from slot and turn off ignition

Push START/STOP button to wake up car activity if in sleep mode.
Press OK to start key programming

Reading password in progress

Make sure network is enabled

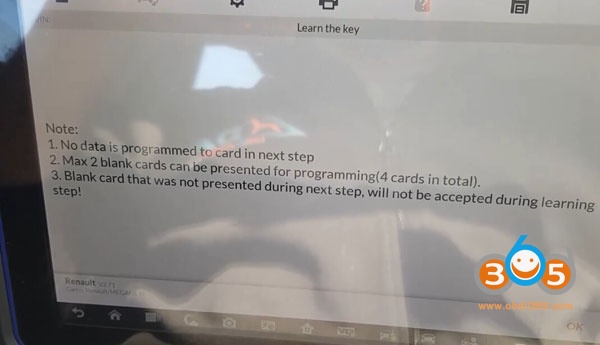

Note:

1.No data is programmed to card in next step

2. Max 2 blank card can be presented for programming (4 cards in total)

3.Blank card that was not presented during next step, will not be accepted during learning step.

Insert next key card and press READ button to read card information

Press Next to continue

Remove card

Insert card (original key card) fully to the card reader slot and then press OK

Programming card in process

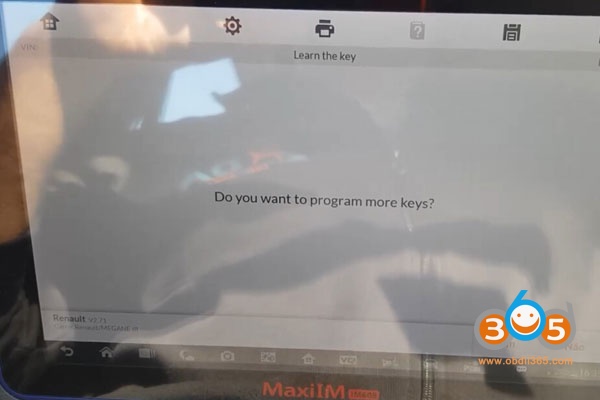

Program key card success. Press Yes to program next key card

Remove 1st key card and insert 2nd one

Follow same steps to program 2nd key card until success

Remove card and disconnect Autel MaxiIM IM608 key programmer

Test remote control and start engine with the new key card.

Both key works.
