Autel IM608 Adds 2024 Toyota 4Runner Smart Key

This is a 2024 Toyota 4Runner. We are going to add a smart key to the model with Autel MaxiIM IM608 programmer.

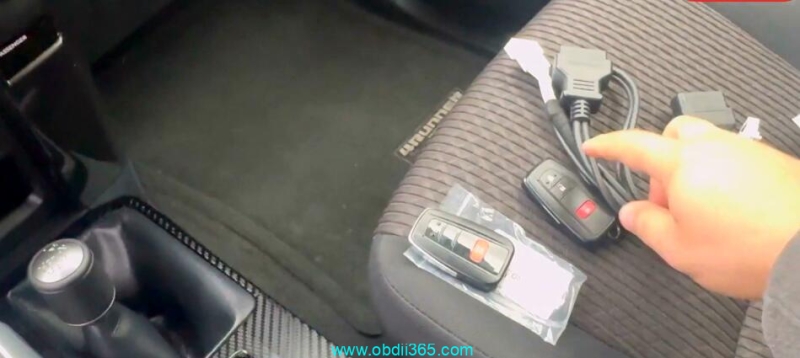

We have the customer key, a new key and a 30-pin cable in case we will need it.

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

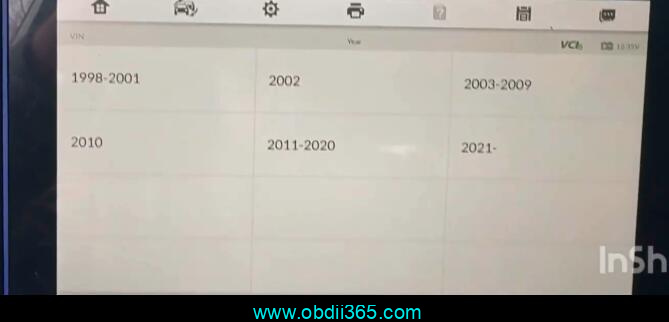

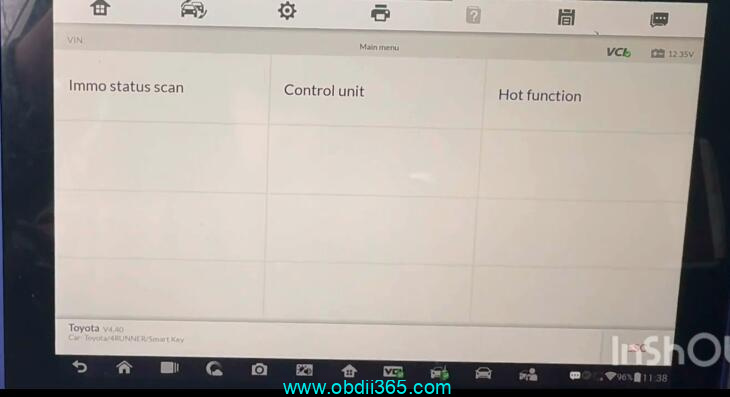

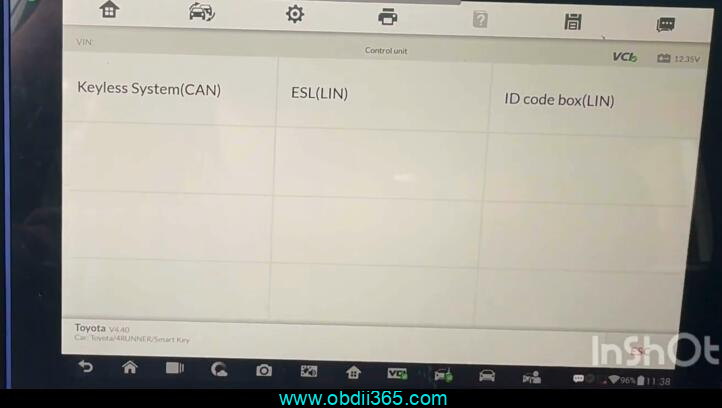

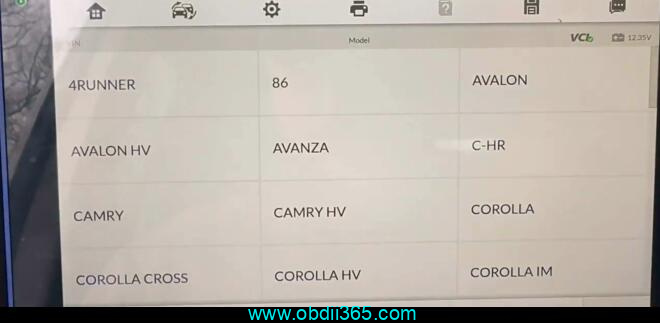

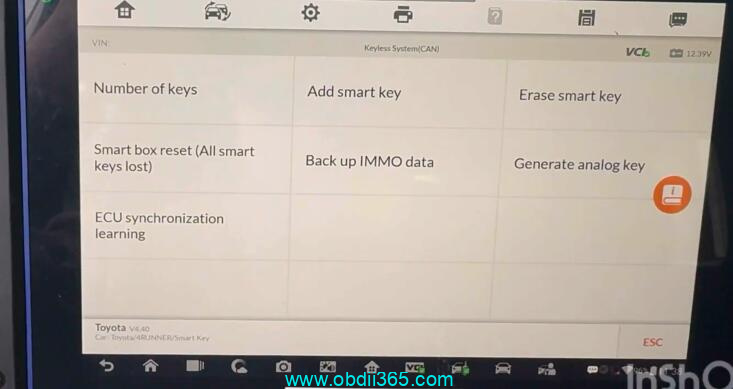

Select Toyota->Manual selection->USA->4Runner->2021 onwards ->Control Unit->Keyless System (CAN)

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

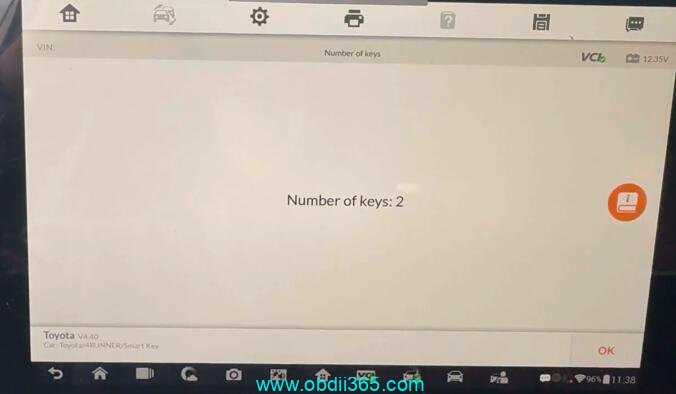

Read key numbers. Let’s check how many keys on the system.

It has two keys.

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

We’re going to add a smart key.

Turn the ignition on and we will get the VIN.

Going to press okay to confirm the VIN.

We’re going to press okay okay make sure the hazard on and the ignition off.

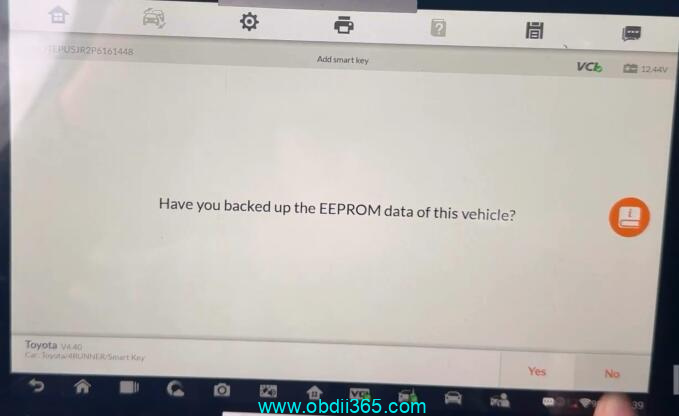

If IM608 asks if you back up the eeprom data, select No we have the rolling code.

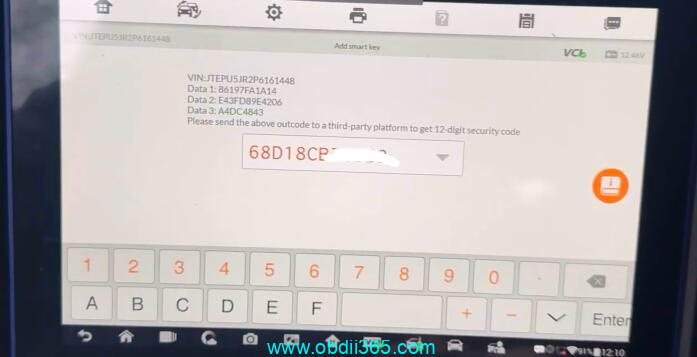

Enter the 12-digit rolling code.

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

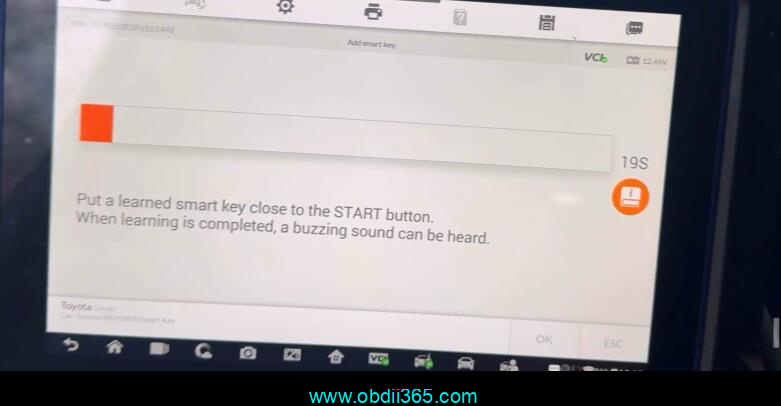

We’re going to place the first key, the original key to the start button. you can hear 1 beep.

See also
How to Solve VW Amarok Caddy 2018+ Car Starts Remote Not Working?

Then we’re going to bring the second key. It is going to be two beeps.

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

Autel IM608 Adds 2024 Toyota 4Runner Smart Key

Program successful.
