Anybody done a 2024 Mazda CX-5 Add key using Autel IM508? Does it need any additional equipment?
Here is the clue.
For CX-5 before 01/2022, Autel will add key without pin code.
For example:
2021 Mazda CX-30 new key added with autel im508s. It took around 15-20mins. Used aftermarket OEM looking key – no key error on cluster. Battery support required.
For 06/2022+, it depends if the software on the vehicle has been updated if car has been to dealer recently. Still 50/50.
If not have been updated, it will require outcode.
You should get a pin from NASTF and it would/may still leave the security light on.
When you use an Autel/Xhorse universal key will have the immo light on unless you copy the key ID from the working key. A cheap aftermarket key will cause the light also. Use OEM only. Also make sure you maintain the battery while programming.
Better do it with MDRS dealer software and pin with NASTF.
According to Silca SmartPro can do it. smart pro bypass the incode on 2023. They have listed it up to 2024. 2024 model you still need to get the pin code.
Smart pro bypass the incode on 2023.

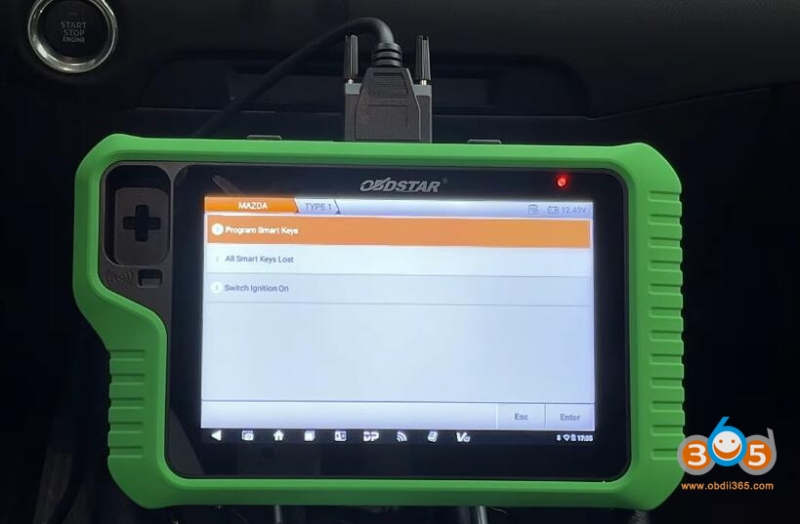

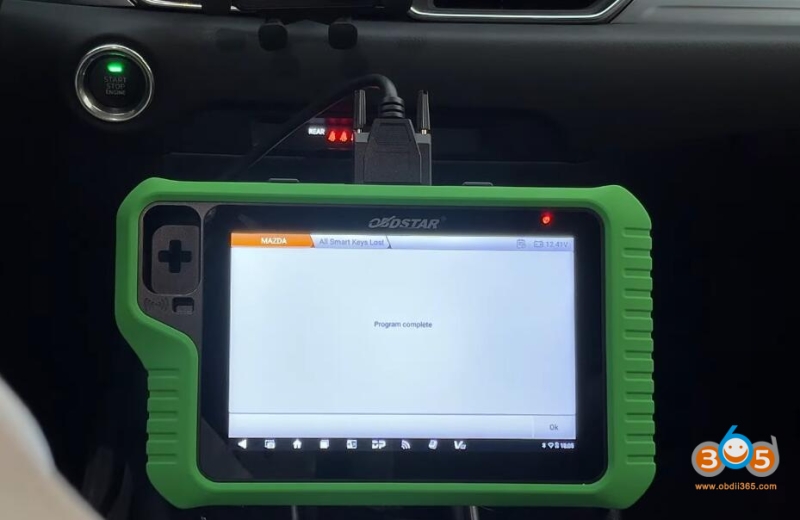

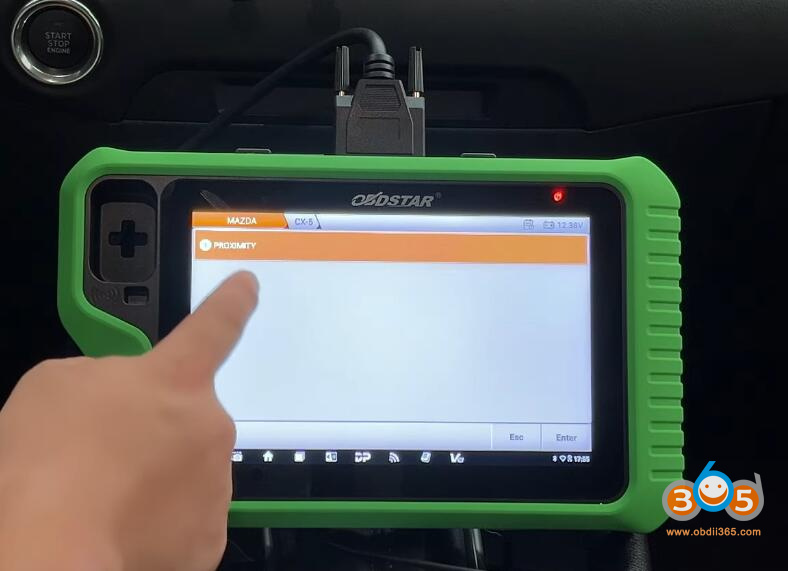

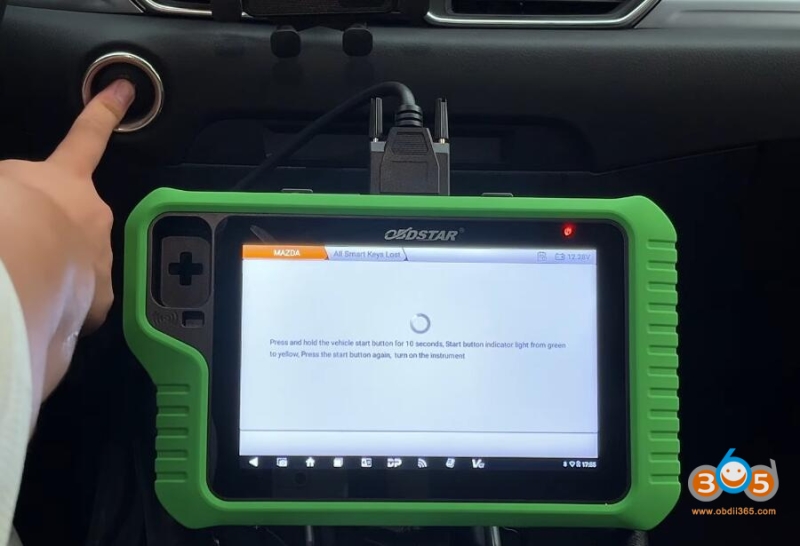

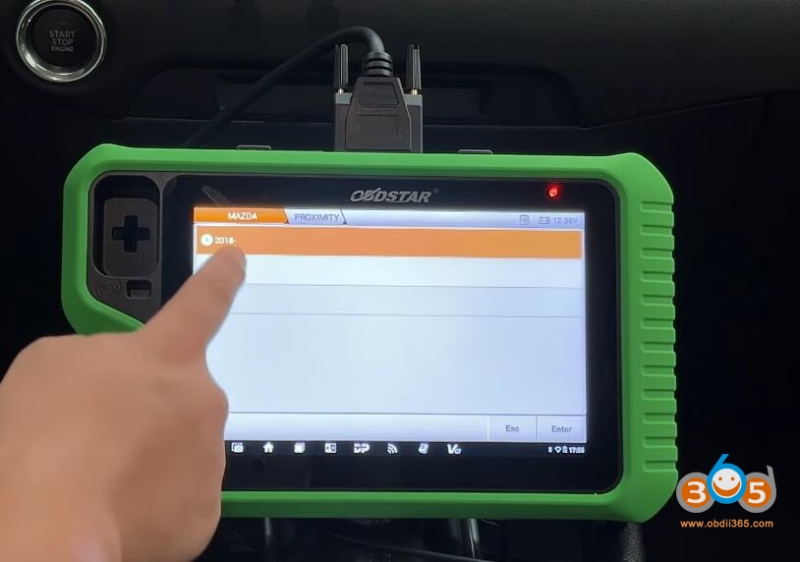

OBDSTAR G3 now supports both add key and all keys lost on 2024 CX-5 without pin code.
If it is 2024 Mazda CX-90, it is similar to CX-30. It should be done via MDRS with pin code.

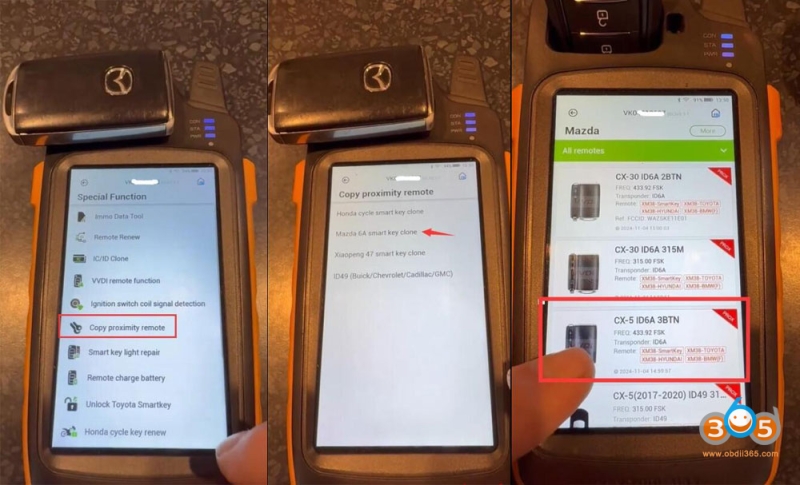

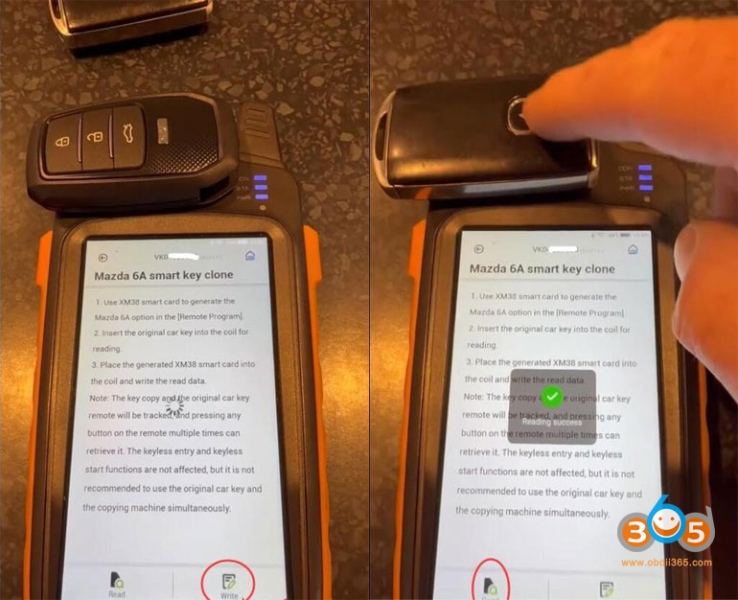

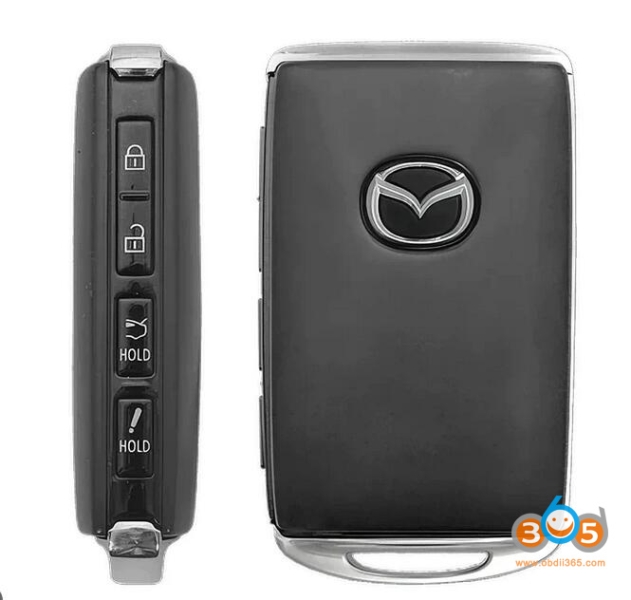

There is another way to make a new key to CX-5 if it has ID6A proximity key. You can clone 6A smart key using Xhorse key tool max.
It works. but the safe way is to clone an aftermarket key to xhorse XM38 smart key, not clone original key to xhorse key.
