Skoda MQB49 5C Key Wiring Not The Same as That in Keydiy KD-X4 Solution

Problem:

I can’t find the right shema for a 5c Skoda key in Keydiy KD-X4 App. Do you have the wiring for this key?

Here is the clue.

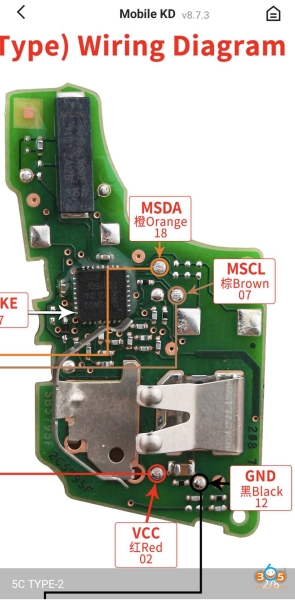

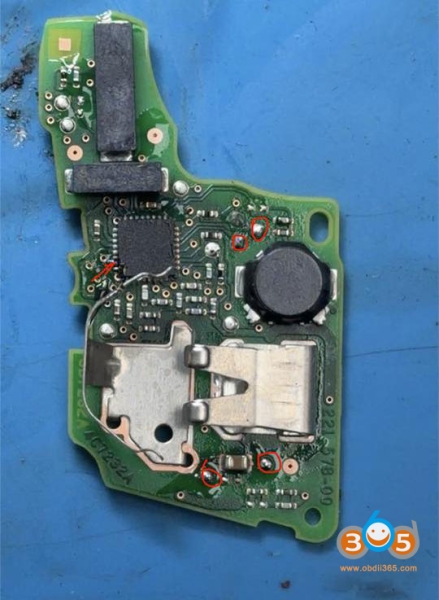

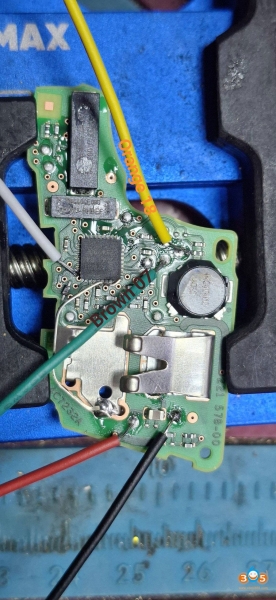

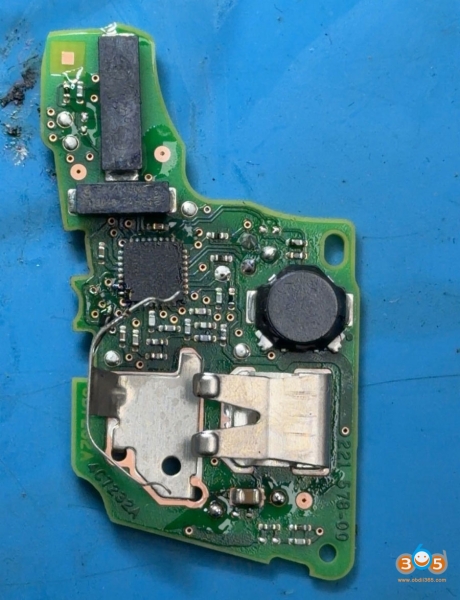

If your Skoda MQB49 5C key wiring is different from the ones in the diagrams,  here’s the wiring diagram in case you encounter the same one.
