Program Mazda 3 2015 All Smart Keys Lost via OBDSTAR Key Master

Programming Mazda 3 SkyActive 2015 smart remote keys when all keys lost by using OBDSTAR X300 Pro3 Key Master in action.

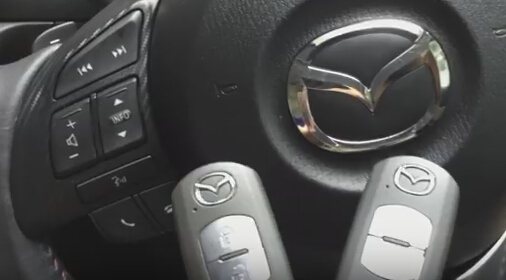

You need at least 2 remotes to be programmed.

key-master-mazda-3-smart-remote-1

Connect X300 pro3 with vehicle via OBD socket

Select Mazda

Select Mazda 3->Type 3 (2013+)->With Smart

key master mazda 3 smart remote 1-1

key master mazda 3 smart remote 2-2

key master mazda 3 smart remote 3-3

Select All smart keys lost

key master mazda 3 smart remote 4-4

minimum 2pcs keys are required. All smart keys will be erased.

key master mazda 3 smart remote 5-5

switch ignition on, press Start button for twice

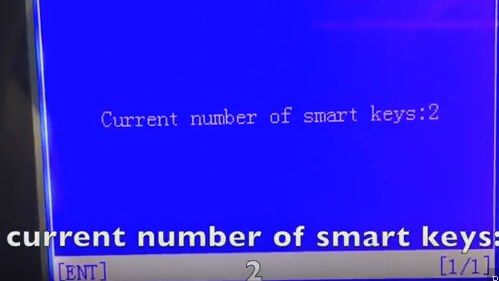

Current number of smart keys: 2

key master mazda 3 smart remote 6-6

OBDSTAR Key Master reading vehicle information

Current number of smart keys: 0

key master mazda 3 smart remote 7-7
Erase keys complete

switch ignition OFF

switch ignition on

Use a new smart key to contact Start button, pres ENTER to continue

key master mazda 3 smart remote 8-8

Security light stop fashing
First remote programm OK
Current number of smart keys:1

key master mazda 3 smart remote 9-9
X300 pro3 prompt whether to program next one? Press Yes to continue
Switch ignition OFF

Switch ignition on

Again use a new smart key to contact Start button, pres ENTER to continue
Program success press enter to program next of not press ESC

key master mazda 3 smart remote 10-10
You have to complete the following procedure to start engine:
1. Switch ignition off
2.Put on the brakes, turn all the matched keys to the start button to start the engine for 3 seconds, then switch ignition off
In short, use all keys to start engine for 3 seconds

key master mazda 3 smart remote 11-11

Test all remote function

key master mazda 3 smart remote 12-12
Success!
