Program Toyota 72G All Keys Lost by ND900 Mini and TOYO Key OBDII

Here is the instruction on programming Toyota key with 72G chip when all keys lost by using ND900 Mini (MINI900) or CN900 Mini and TOYO Key OBDII Bluetooth adapter.

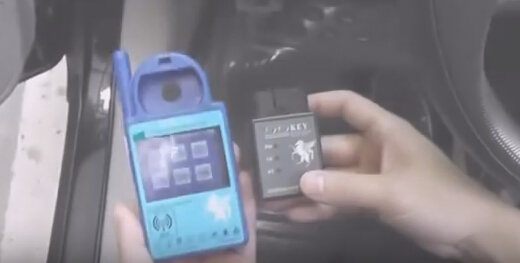

You need:

CN900 Mini/ND900 Mini

TOYO Key OBDII

3 keys, 2 master keys and 1 vice key

nd900-mini-obd-toyota-g-key-1

Procedure:

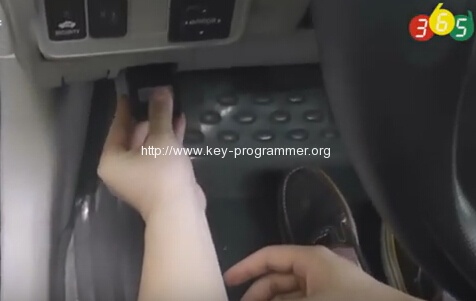

Connect TOYO Key OBD to vehicle’s diagnostic socket

nd900 mini obd toyota g key 1-1

Select OBDII Comm

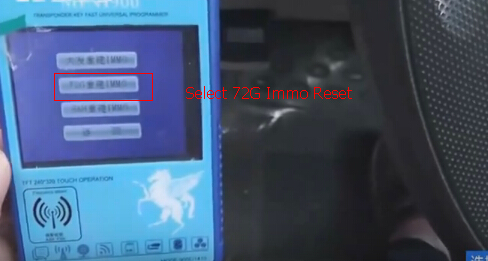

Select 72G IMMO Reset

nd900 mini obd toyota g key 2-2

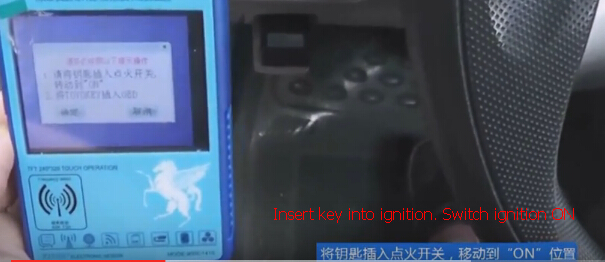

Insert key into switch. Turn ignition to ON

nd900 mini obd toyota g key 3-3

Click Yes on ND900 Mini after insert the key

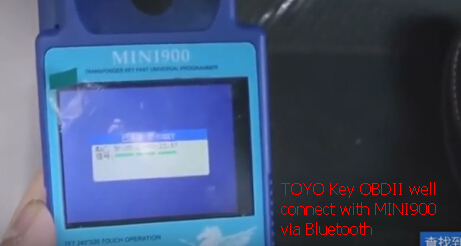

Searching OBD…Toyo OBDII connected well with ND900 mini via Bluetooth

nd900 mini obd toyota g key 4-4
Remove key
Click Yes

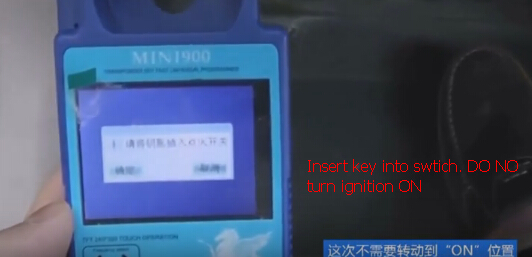

Insert second key into switch. This time DO NOT  turn ignition ON

nd900 mini obd toyota g key 5-5

Click Yes
Start resetting immo

Remove key, click Yes

Insert 3rd key into switch,do not turn ignition ON
click Yes
Resetting
Success

nd900 mini obd toyota g key 6-6
security light turn on

nd900 mini obd toyota g key 7-7
start programming G key

Insert the programmed key

Change next key
security light flashes and you’ll hear one beep sound then insert next key

Program G key success
Test the new key

CN900 Mini + TOYO Key OBDII
