    How to Copy Mazda 4D63 Chip via CN900 Mini

    car-key-copy-machine
    — (0)

    CN900 Mini transponder key copy machine can directly program 4D, 4C, 46, G chips no need any other box, this blog will show you how to copy Mazda 4D63 Chip.



    Tool used: Mini CN900 Key Programmer

    Vehicle model: Mazda 3



    Step 1.

    Start CN900 Mini

    Insert the original transponder key into the slot

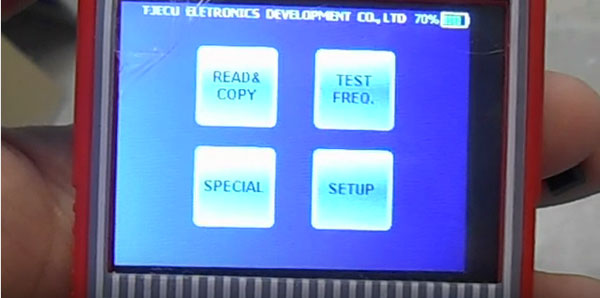

    Press ‘READ&COPY’ button on the menu.

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-1

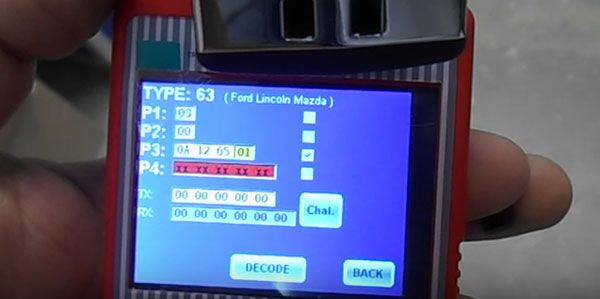

    CN900 Mini key programmer will automatically read out the key code and the key type is 63.

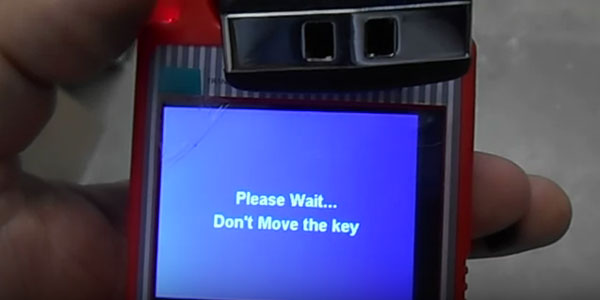

    Notice: Don’t move the key away

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-2

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-3

    Step 2.

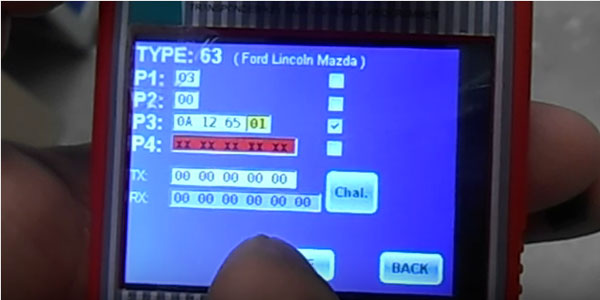

    Press the ‘DECODE’ button (Do not move the key)

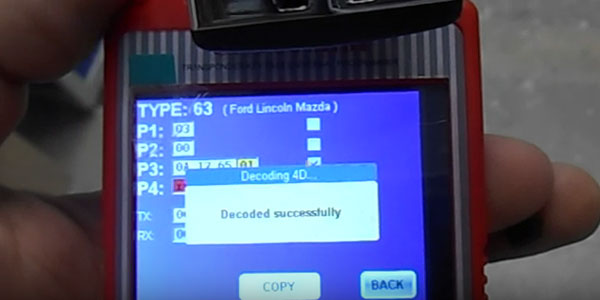

    Waiting… decoded successfully.

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-4

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-5

    Step 3.

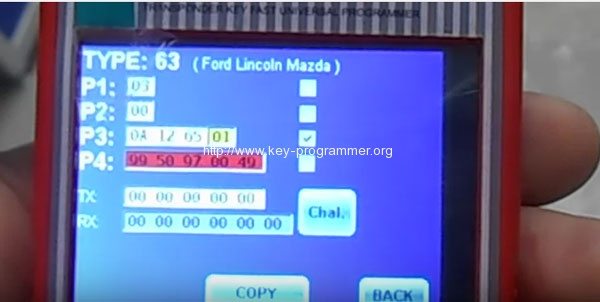

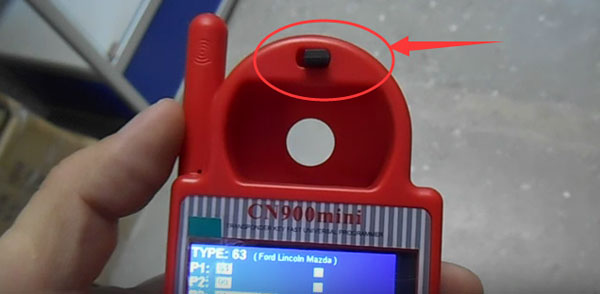

    Remove the original key and put the new 4D63 chip into the upper small slot and press the “COPY” button.

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-6

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-7

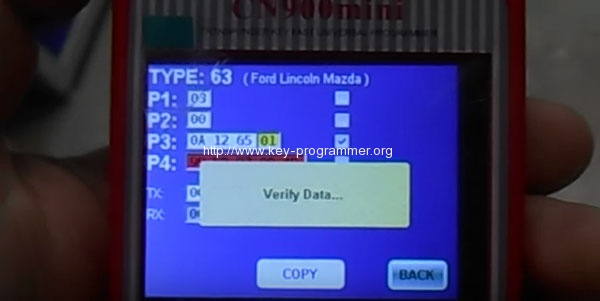

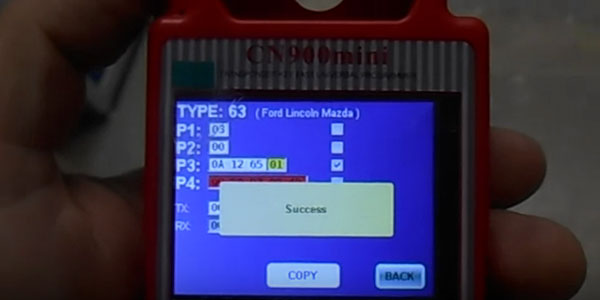

    Verify Data and then “success”.

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-8

    CN900-MINI-COPY-MAZDA3-4D63-CHIP-9

    Done! Mini CN900 copy 4D63 chip for Mazda 3 successfully only in 3 steps!
