    How to Program Fiat Siena ID48 Chip Key by SKP1000 via OBD

    universal-car-key-programmer
    — (0)

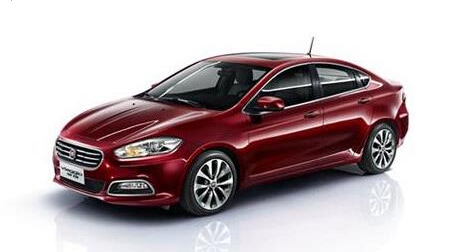

    Older Fiat Siena or Palio required to remove ECU or write key to start to make new key. Here is revolutionary solution on getting Fiat ECU ISO code and programming special ID48 chip key by using LONSDOR key programmer via OBD directly. LONSDOR tablet=SKP900+ Lonsdor CI600 Plus. fiat-siena
    Instruction:

    Step 1: Read ECU ISO code (security pin code)

    Select car brand: Fiat

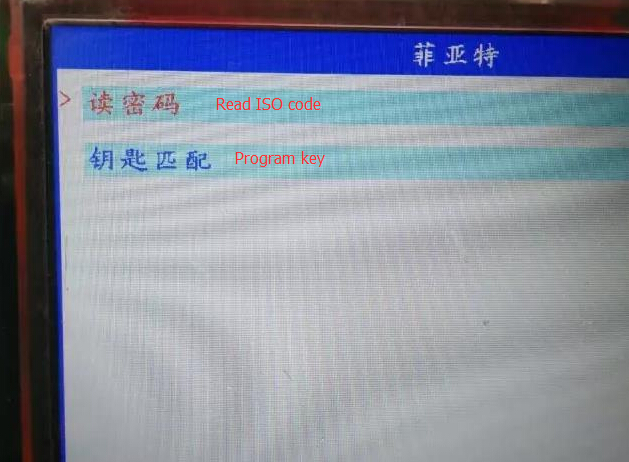

    select-read-iso-code
    Select read iso code

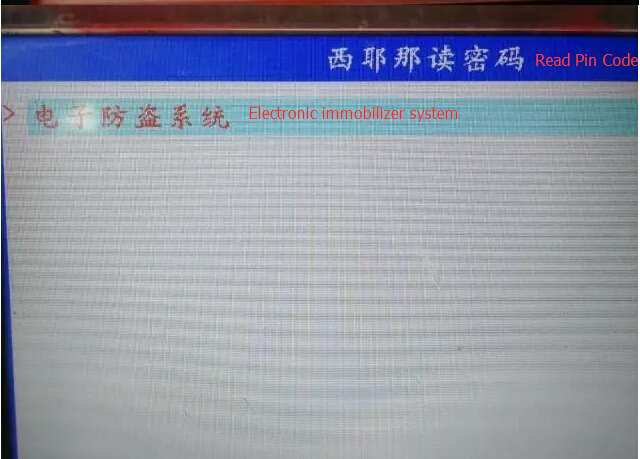

    select-immo-system
    Select Electronic immobilizer system

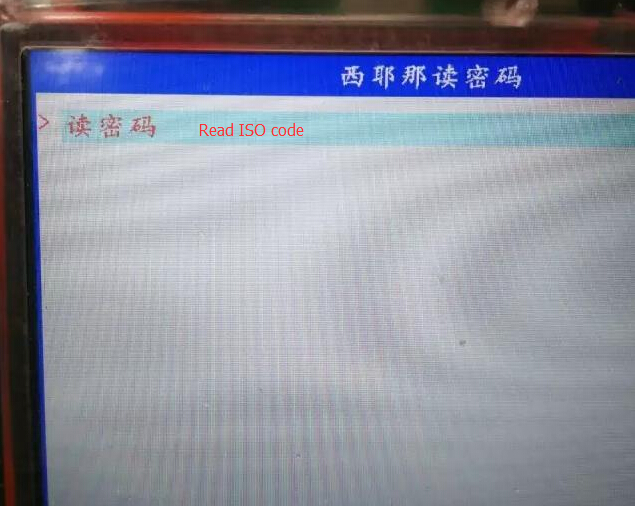

    read-iso-code
    Select read iso code

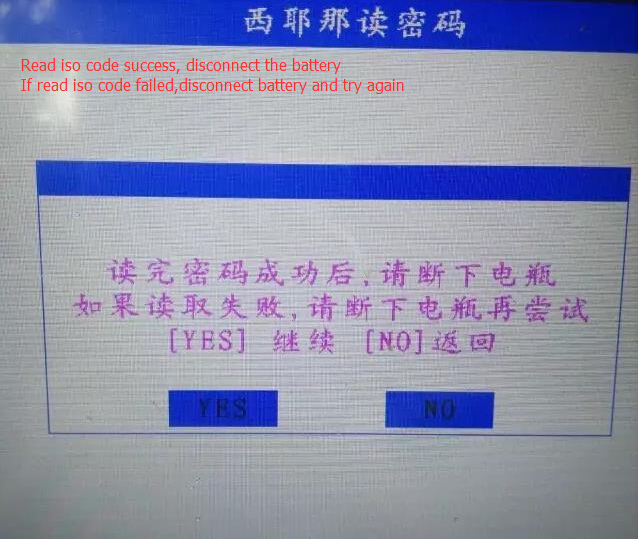

    disconnect-battery
    After read ecu iso code success, disconnect the battery.
    If read iso code failed,please disconnect the battery and try again
    (Anyway, disconnect the battery)

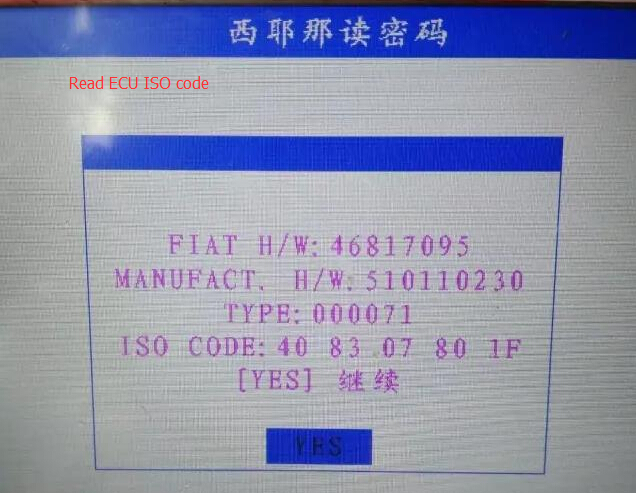

    read-car-info
    SKP-1000 read Fiat info and fiat iso code
    Press YES to continue

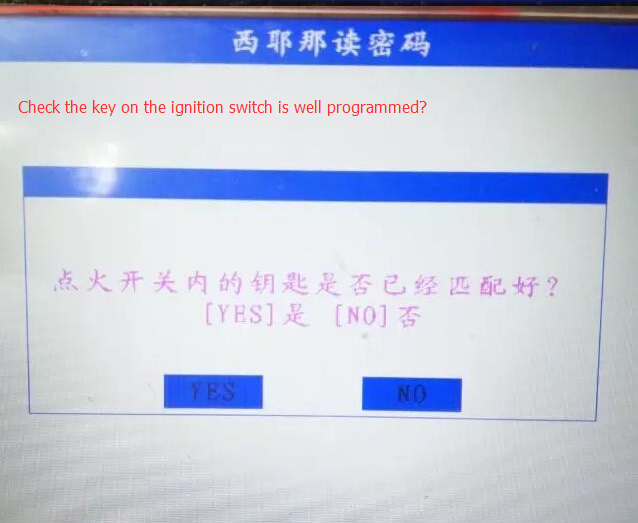

    working-key
    Check if you have a working key
    If yes, Press YES button to continue

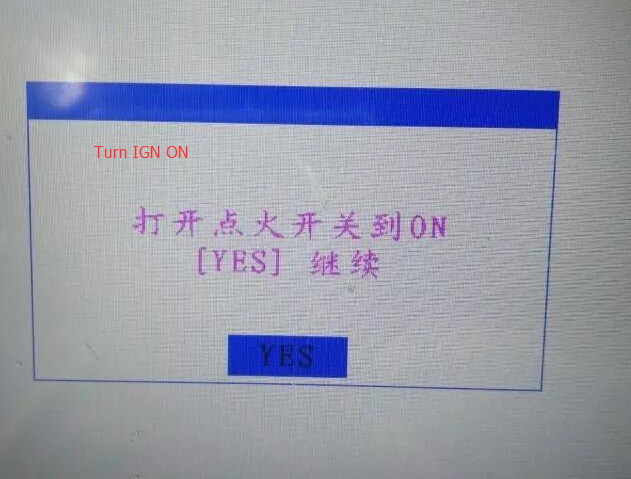

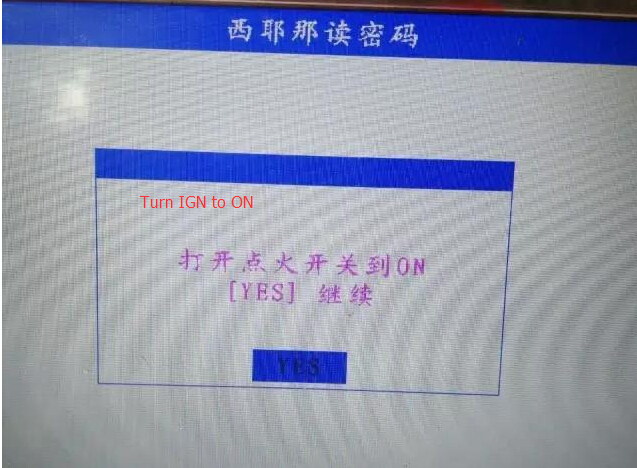

    turn-ignition-on
    Turn ignition to ON position

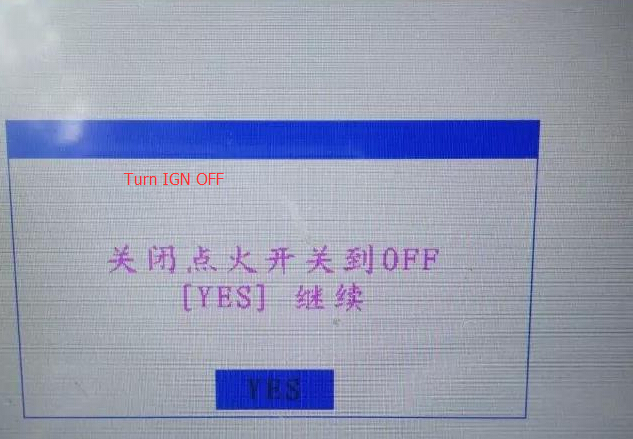

    turn-ignition-off
    Turn ignition to OFF position
    turn-ignition-on
    Turn Ignition ON

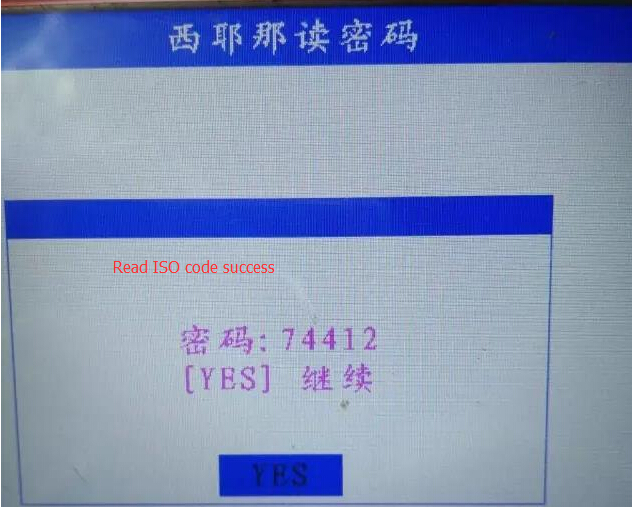

    read-iso-code-success
    Read iso code success

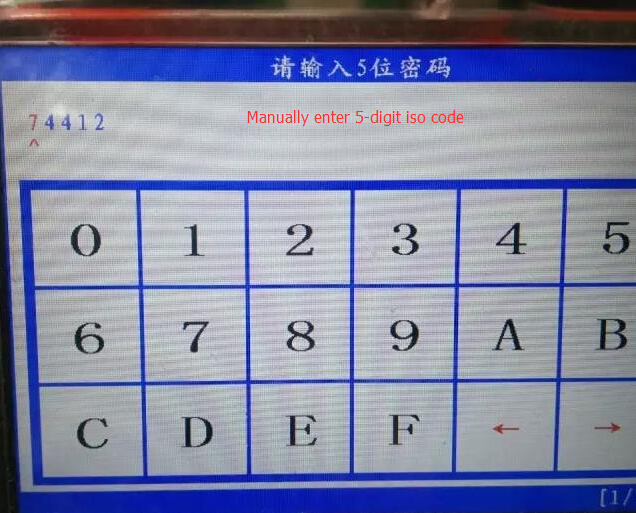

    enter-iso-code
    manually enter 5-digit iso code

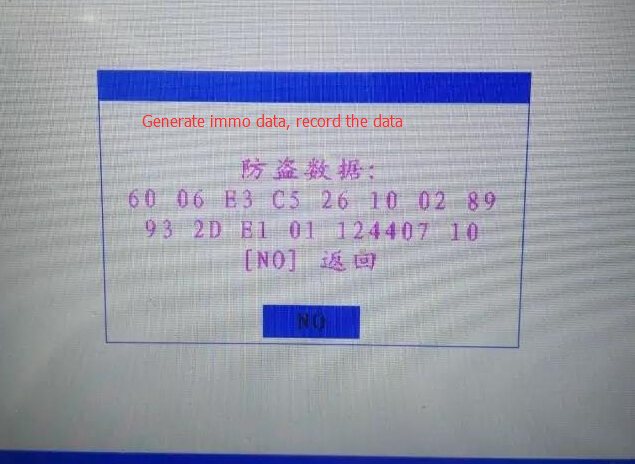

    skp1000-read-immo-data
    LONSDOR will read the immo data, please write download the numbers (will be used to generate chip)

    Step 2. Generate Fiat special ID48 chip

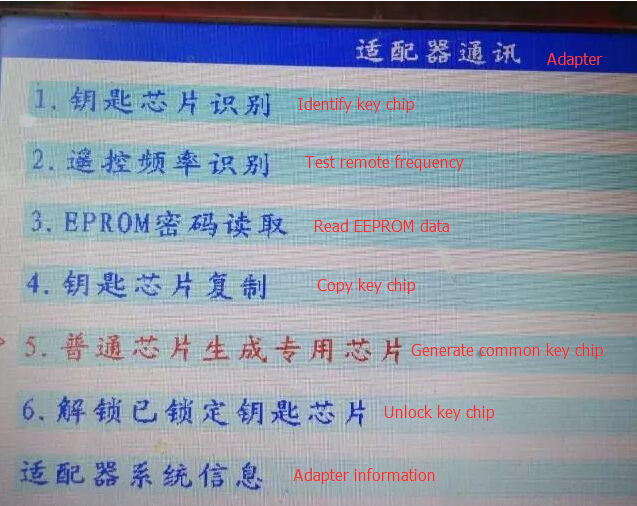

    generate-special-chip

    Select Fiat common chip to generate special chip

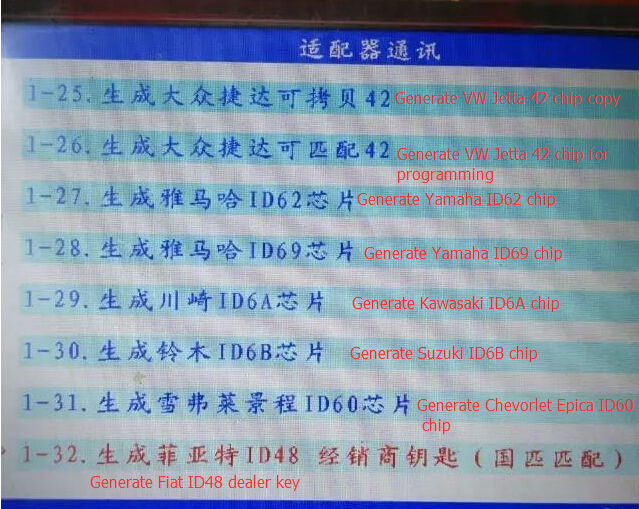

    generate-fiat-id48-special-dealer-key
    select generate Fiat ID48 special dealer key
    immo-adpater
    Insert the immo adapter into the LONSDOR car key programmer, select Special function and select Generate Fiat chip

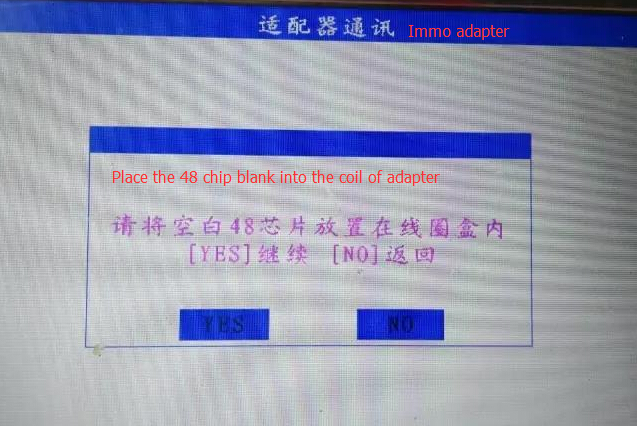

    insert-id48-chip
    Insert the blank ID48 chip into the coil of the adapter

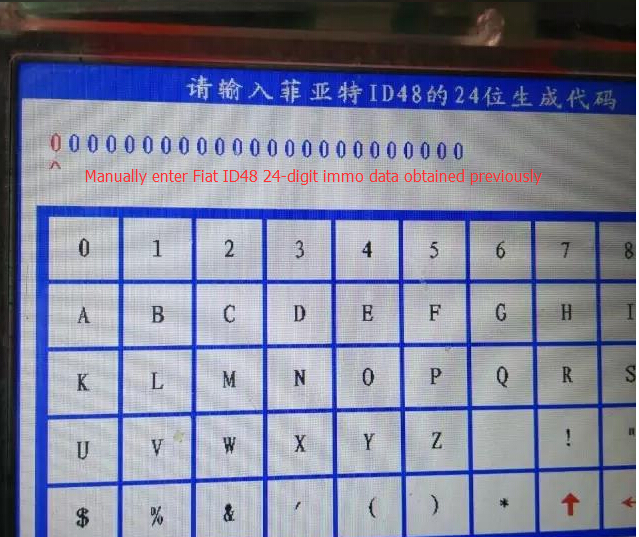

    enter-immo-code
    Manually enter 24-digit immo code (read previously)

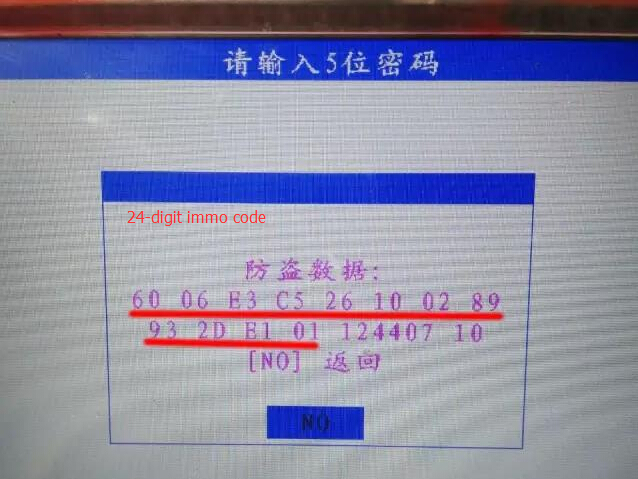

    immo-code-marked-red
    Enter 24-digit code marked red

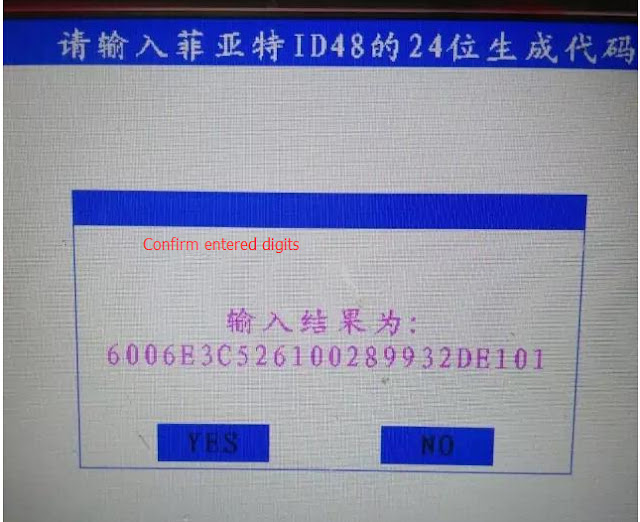

    confirm-immo-code
    confirm the entered digits

    Step 3: Program chip key

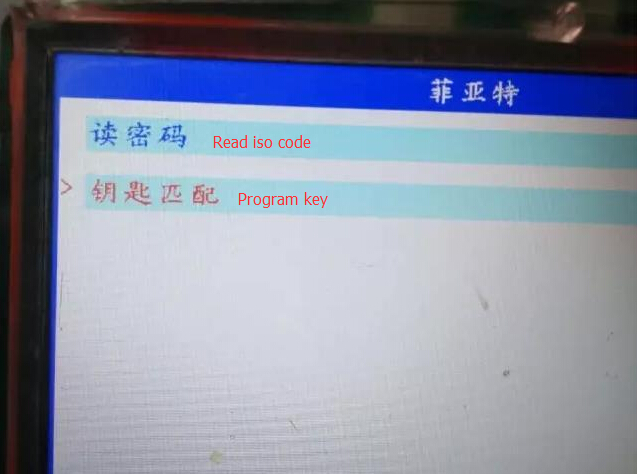

    select-program-key

    select Program key

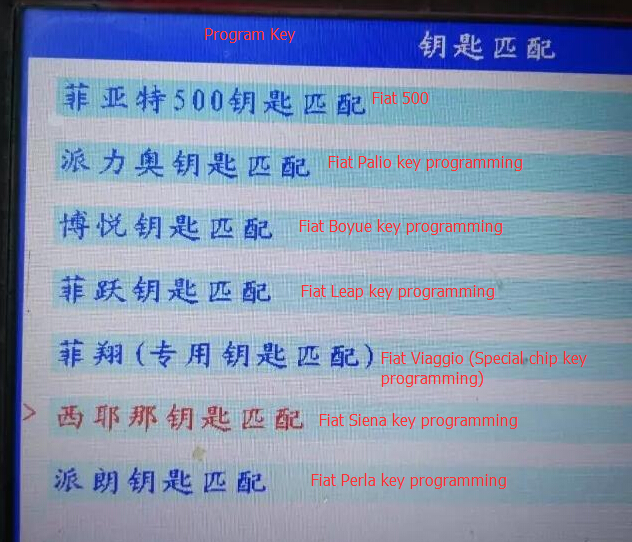

    select-siena-key-programming
    Select Siena key programming,
    LONSDOR will also program key for Fiat 500, Boyue,Palio,Leap,viaggio and Perla

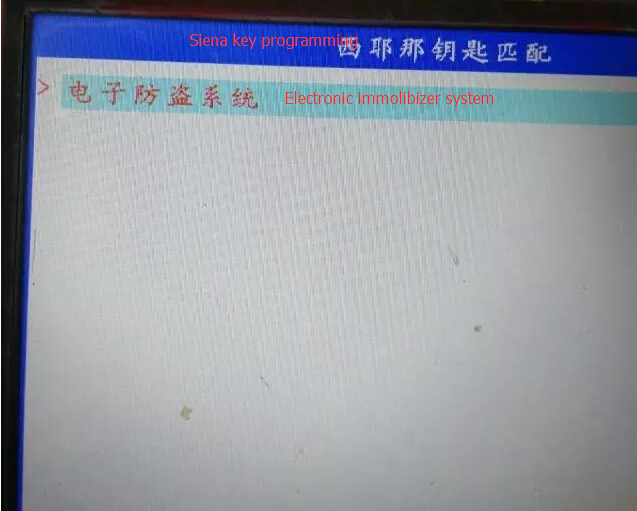

    select-immo-system
    Select Electronic immobilizer system

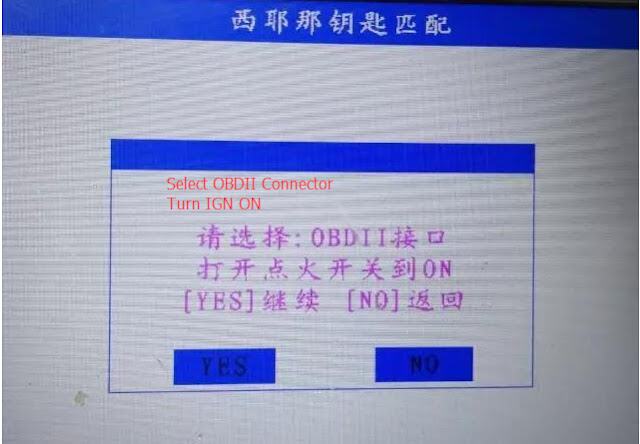

    select-obdii-connector
    Select OBDII connector
    turn ignition to ON position

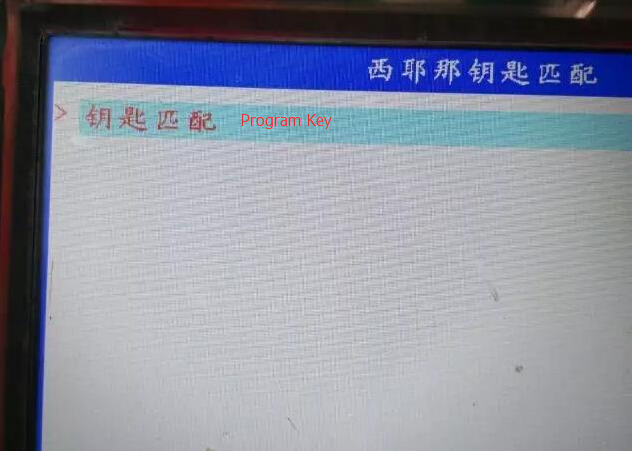

    select-program-keys
    select Program key

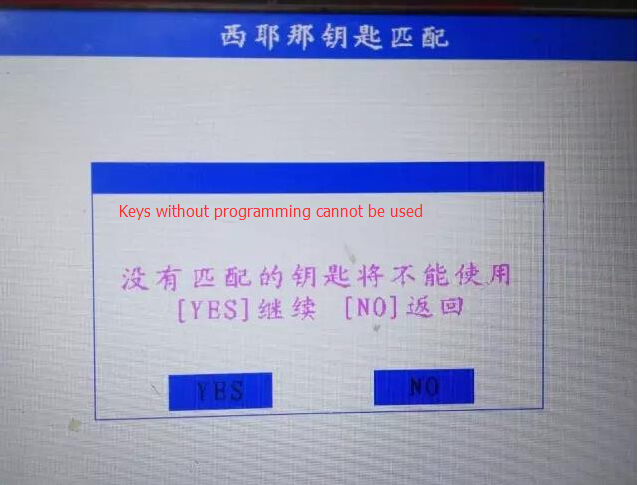

    Key without programming cannot be used
    Press YES to continue

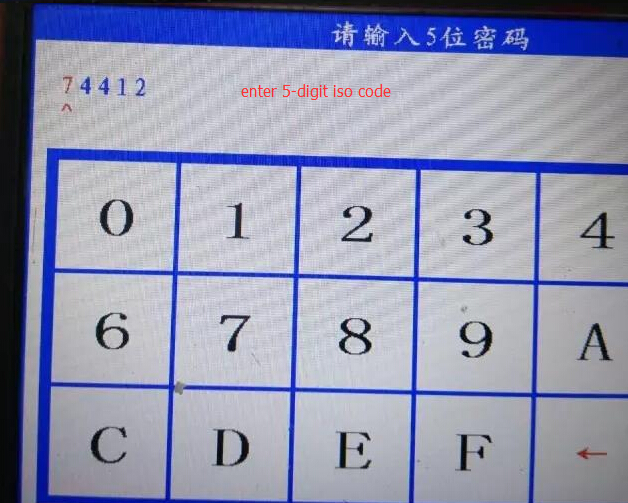

    enter-iso-code
    enter 5 digits iso code
    confirm

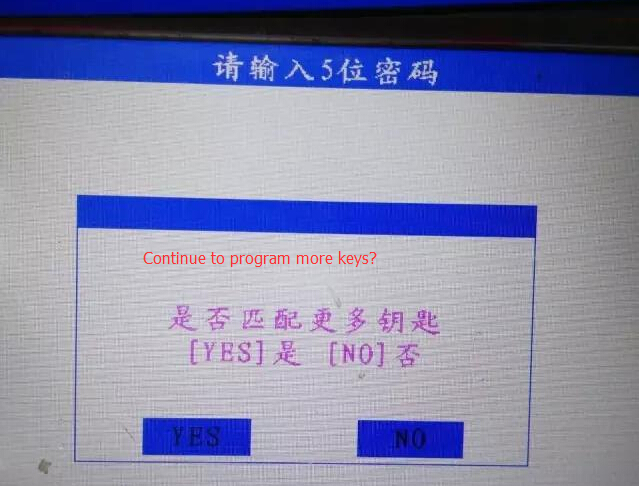

    program-more-key
    continue to program more keys
    Press YES to continue

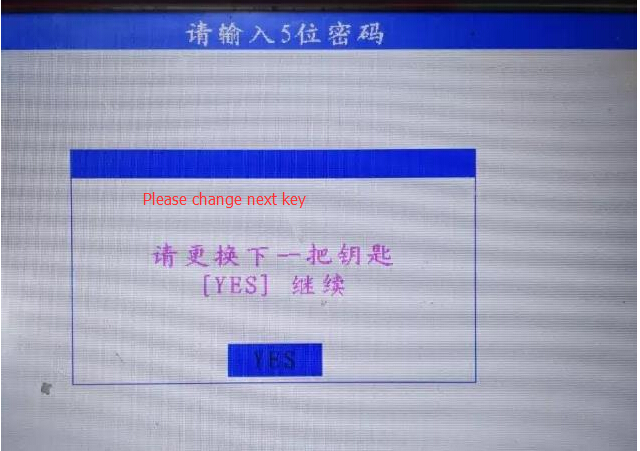

    change-next-key
    please change next key

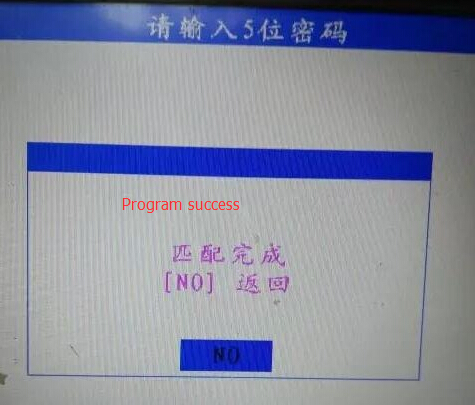

    program-success
    If the dashboard indicator goes off, program success.
    Disconnect SKP 1000 and test the new key.
