2 Ways to Program Audi Q7 2007 Key with VVDI2 by OBD
Here vvdishop introduces 2 ways to program remote smart key on a Audi Q7 year 2007 with Xhorse VVDI2 key programmer by OBD.
Connect Xhorse VVDI2 VAG key programmer with vehicle through OBD connector

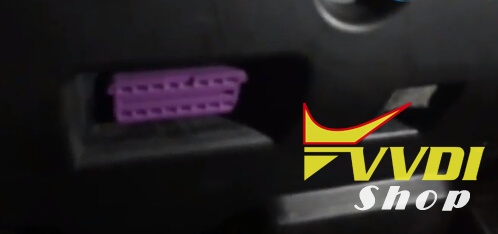

Audi Q7 OBD diagnostic connector location

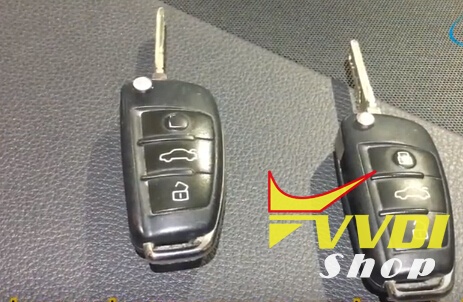

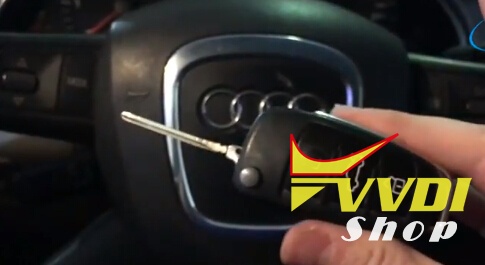

The remotes to be programmed use ID8E transponder
First, we show how one of the two remotes is deprogrammed

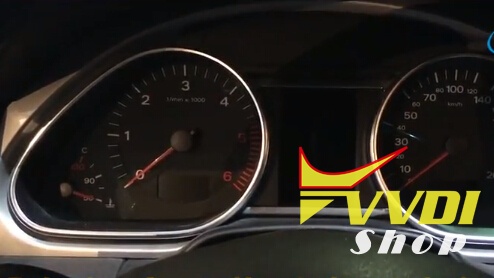

Original key can turn on the switch, remote key to be programmed cannot.
Method 1:

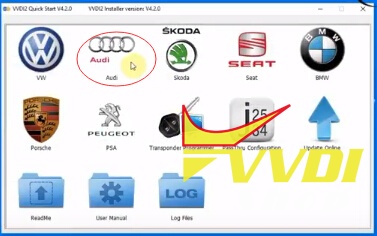

Open VVDI2 software

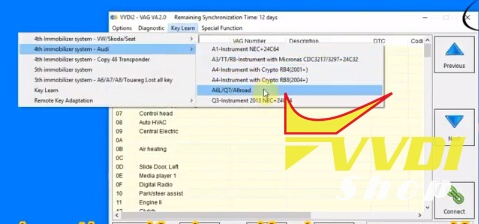

Select Audi->Key Learn-> 4th Immobilizer system-Audi-> A6L/Q7/Allroad
Turn ignition ON
We extract the necessary information (Pin Code and Security Code) of the vehicle to access and be able to perform the final process of programming (Key Learn)
Select Autodetect from engine (ECU)
Reading data, please wait

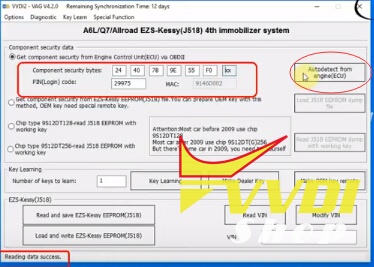

Reading data success
We observe on the above screen the information of security codes (Pin Code and Security Cop) extracted correctly
Let’s go to the final programming process (Key Learning)

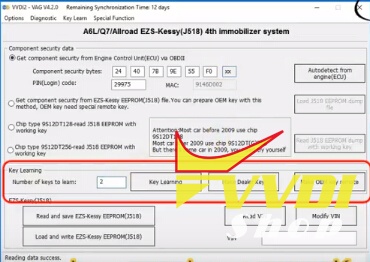

Enter number of keys to learn: 2
and press Key Learning button

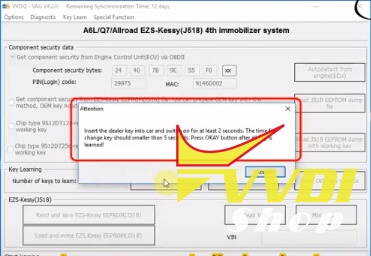

Insert the dealer key into car and switch on for at least 2 seconds. The time for change key should within 5 seconds. Press OKAY button after all key is learned.

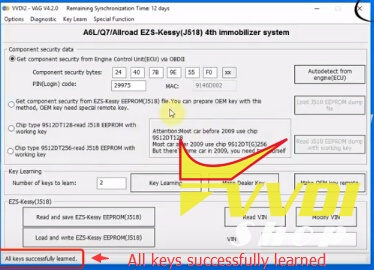

All keys successfully learned.
Method 2:
Next, we will see another method of programming.
In this case, more direct and automatic.
And with information on the status of immobilizer and possible vehicle lock by incorrect Pin Code or transponder to
real-time on-screen.
In VVDI2 Audi Menu

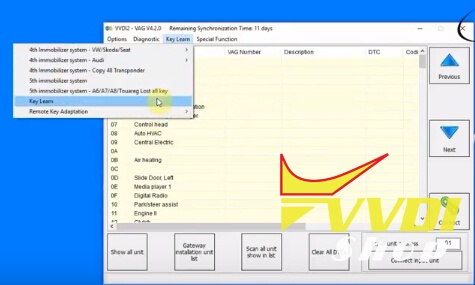

Select Key Learn->Key Learn
Auto detect vehicle: A6L/Q7/Allroad 2005+, CAN

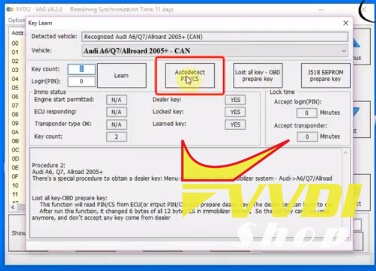

Select Autodetect PIN/CS
Automatic detection / extraction of the security codes (Pin Code and Comp. Of Security)

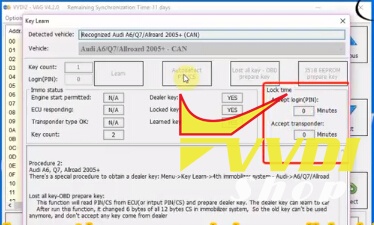

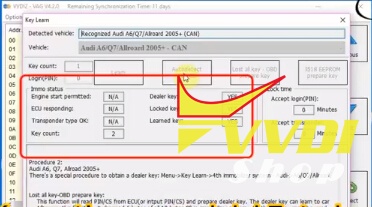

Real-time status information of the Immobilizer: type of key / transponder and its status, access to units, number of keys programmed
Real-time information on possible vehicle lockout and remaining time for leaving it

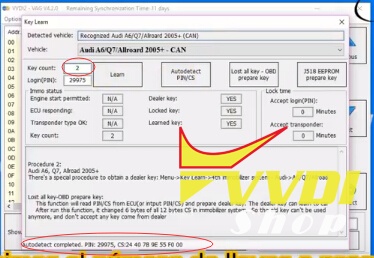

PIN and CS Security codes successfully extracted
Enter key number in marked red area: 2
Press Learn button
Insert entry key and switch on ignition
We accept OK to finish the process once the steps are done correctly

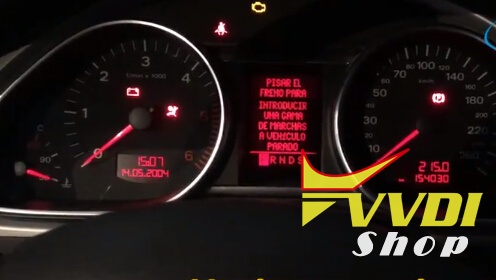

Test the new programmed remote key.
Working.
Done!
