BMW FEM BDC Test Platform is a powerful tool for key programming, ecu and gearbox coding. It’s necessary for automotive locksmith, car electronics technician, auto repair shop.

How to use BMW FEM/BDC Test Platform

Function:

with your FEM/BDC keys, FEM BDC Module Testing Platform is easy to detect FEM BDC Control Module in good condition. No need start-stop button.

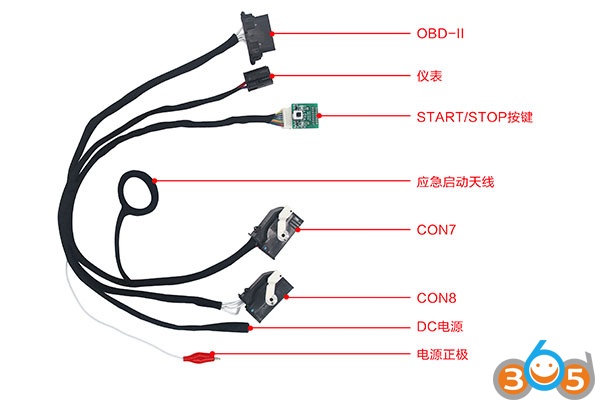

Designed with 4 interfaces. It is used for making FEM and BDC keys, suitable for connecting the dashboard, keys, FEM, ECU and Gearbox.



Fits model:

BMW F20 F30 F35 X5 X6 I3 etc



Feature:

No need to test them on the car, very convenient and efficient.



Compatible device:

Can works alone or works with BMW FEM key programmers, i.e Yanhua BMW-FEM,BMW Explorer, VVDI2 BMW,  CGDI Prog and BMW F-series FEM Blade key etc





How to use BMW FEM BDC Test Platform?

How to use BMW FEM/BDC Test Platform

Pic. 1: the adapters are insert into the test platform.

How to use BMW FEM/BDC Test Platform

Pic. 2: Connect well the harness and the ignition switch is in the OFF status,make sure the voltage is 12V.

How to use BMW FEM/BDC Test Platform

Pic.3: Put the FEM/BDC key into the sensing area, press the “Enter” button and the red LED  flashes.

How to use BMW FEM/BDC Test Platform

Press the “Enter” button, the screen displays FEM BDC TESTS:11.2V, the battery icon on the screen turns up, means it starts OK.
Again press the “ENTER” button and ACC OK
Again press the “ENTER” OFF OK
Then FEM BDC test OK, if no connect to FEM BDC.

If the key is not pass test, the test platform displays: NO FIND FEM BDC HOST.
