    OBDSTAR X300 Pro3 Program Toyota H Chip All Keys Lost by OBD

    japantoyota-key-programmer
    — (0)

    OBDSTAR X300 DP/X300 Pro3 key master can do all keys lost for Toyota H chip via OBDII within 3 minutes, fast and easy. (mainly for Toyota with America and middle east standard).



    Here’s the demo guide on programming Toyota H chip all keys lost with X300 Pro3 step-by-step:

    Connect OBDSTAR X300 pro3 host with vehicle via OBD socket

    Turn ignition switch to ON position

    obdstar-x300-pro3-h-key-1

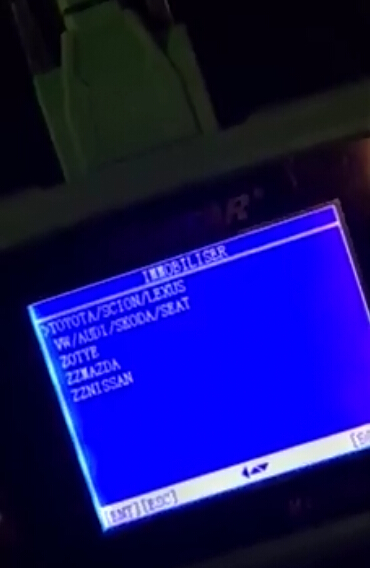

    Select Toyota/Scion/Lexus->Toyota/Scion/Lexus V32.17

    Initializing

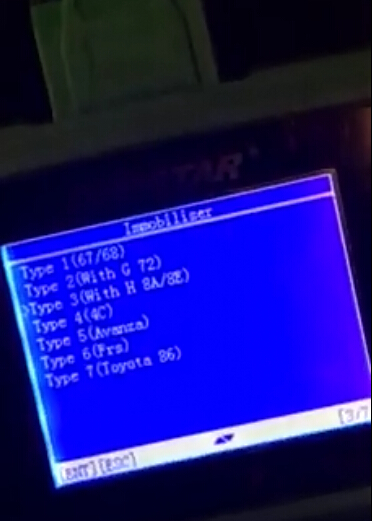

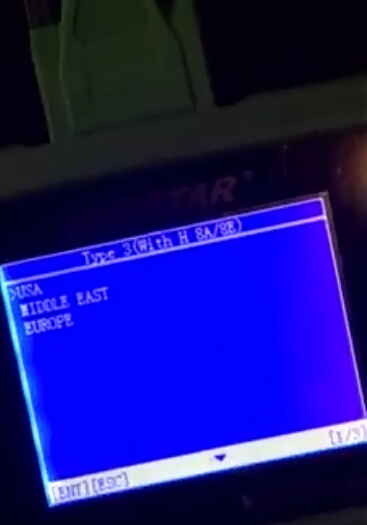

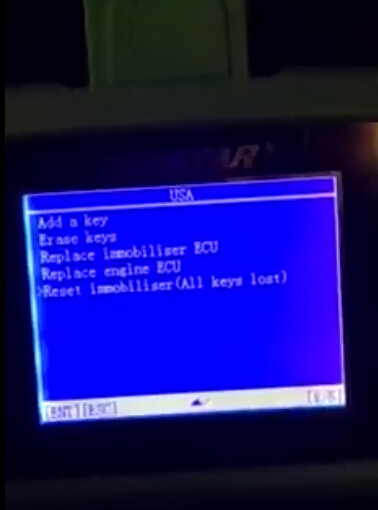

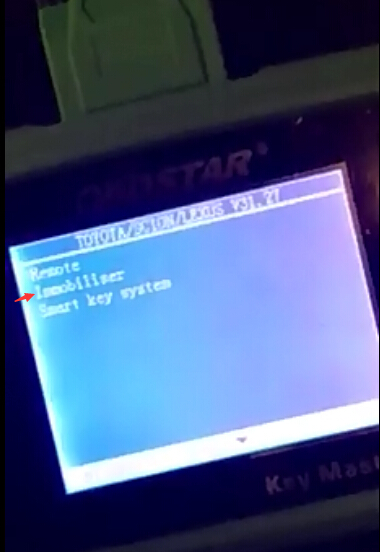

    Select Immobilizer->Type 3 (With H 8A/8E)->select region USA/Middle East->Reset Immobilizer (All key lost)

    obdstar-x300-pro3-h-key-2

    obdstar-x300-pro3-h-key-3

    obdstar-x300-pro3-h-key-4

    obdstar-x300-pro3-h-key-5

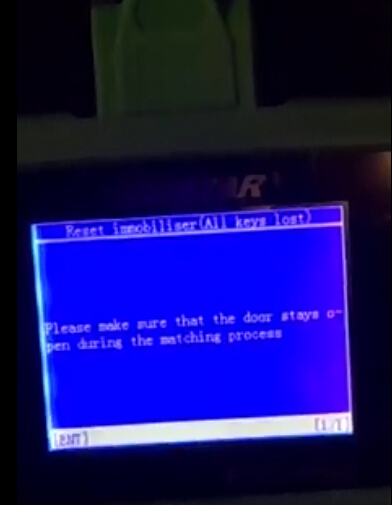

    Please make sure the doors stay open during the programming procedure

    obdstar-x300-pro3-h-key-6

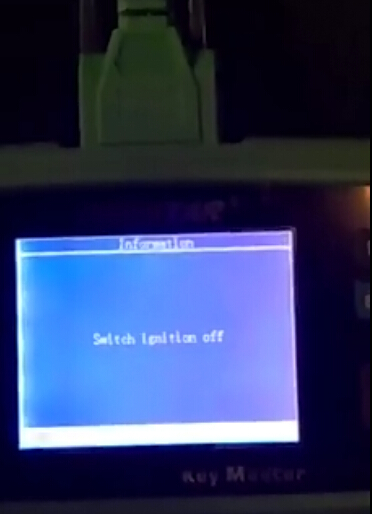

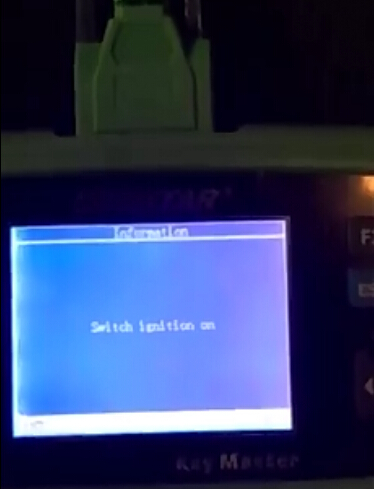

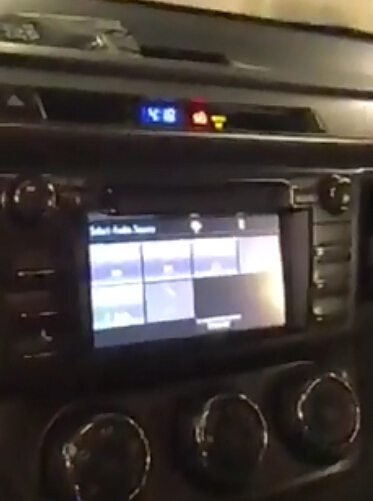

    Turn ignition off and turn it on again

    obdstar-x300-pro3-h-key-7

    obdstar-x300-pro3-h-key-8

    obdstar-x300-pro3-h-key-15

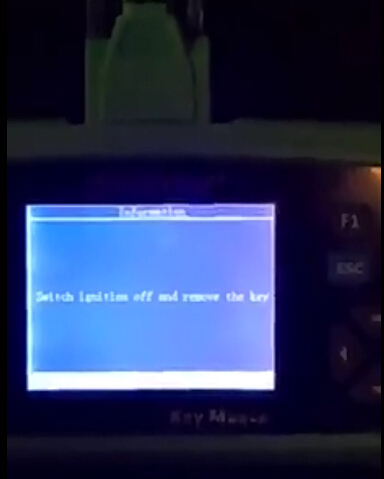

    Turn ignition off and remove the key

    obdstar-x300-pro3-h-key-9

    Configuring the system…

    Switch ignition on

    program key in progress

    Turn ignition off and remove key

    obdstar-x300-pro3-h-key-17

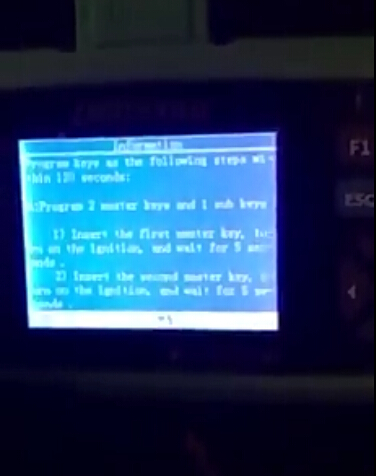

    Program keys as the following steps:

    Program 2 master keys and 1 sub keys

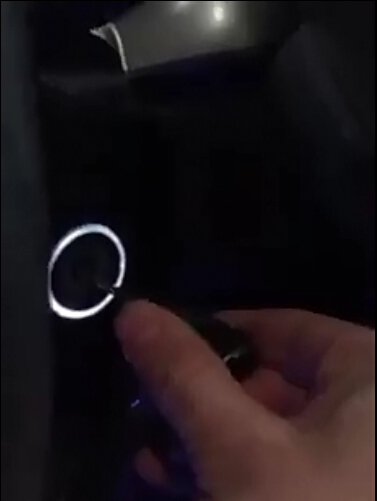

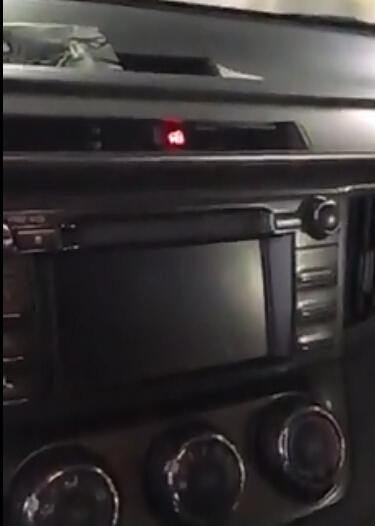

    1)Insert the first master key,  turn on the ignition and wait for 5 seconds
    2)Insert the second master key, turn ignition on and wait for 5 seconds

    obdstar-x300-pro3-h-key-11

    obdstar-x300-pro3-h-key-10

    obdstar-x300-pro3-h-key-16

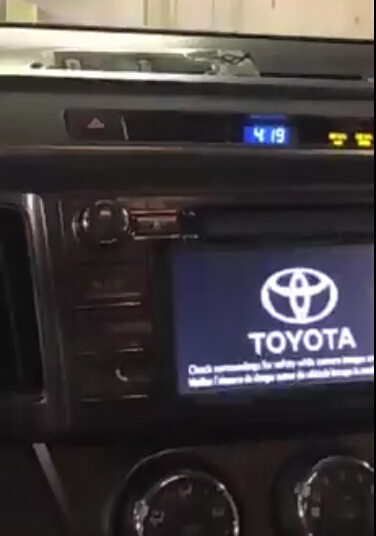

    Program H chip key success

    obdstar-x300-pro3-h-key-14
