How to Add VW Golf 2011 UDS Type 48 Chip Key with OBDSTAR X300 DP

Here’s the guide on programming a smart remote key on a VW Golf year 2011 UDS protocol with ID48 chip using OBDSTAR X300 DP (key master dp) via OBD.



Tools required:

OBDSTAR X300 DP tablet auto key programmer

OBDSTAR RFID adapter for VW AUDI SKODA SEAT 4 & 5 generation immobilizer

ID48 Chip/ ID48 key to be programmed

Procedure:

Connect Key Master DP with vehicle via OBD diagnostic socket

Turn on X300 DP and turn car ignition switch on

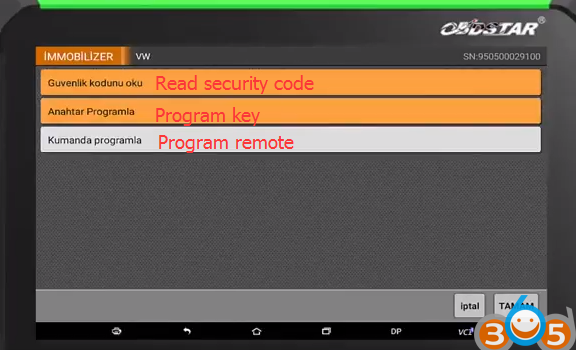

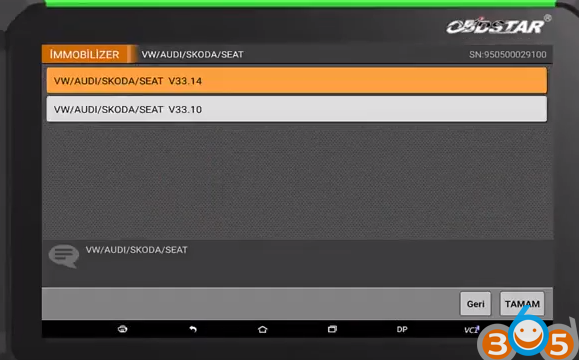

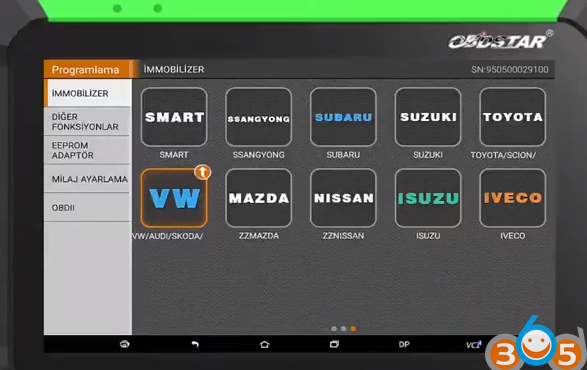

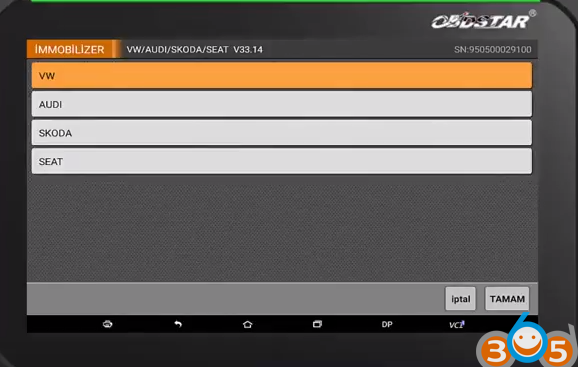

Select Diag Program->Immobilizer->VW/Audi/Skoda/Seat/VW->Program Key

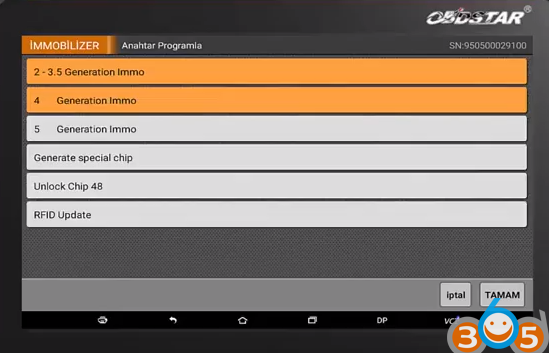

Select 4th Generation Immo

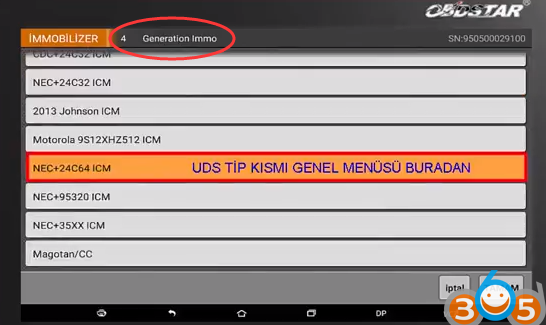

Select Immo type: NEC 24C64 ICM

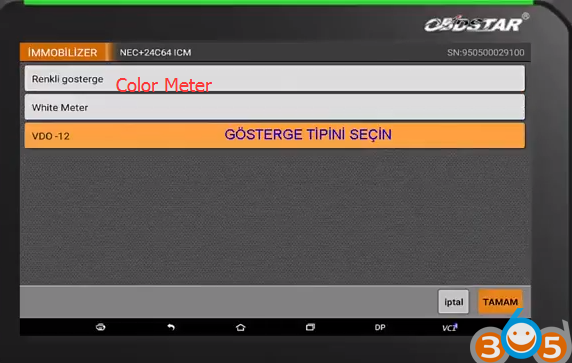

Select dash type: VDO-12

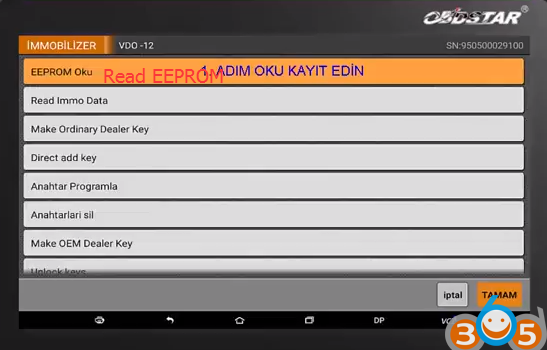

Step 1: Read EEPROM

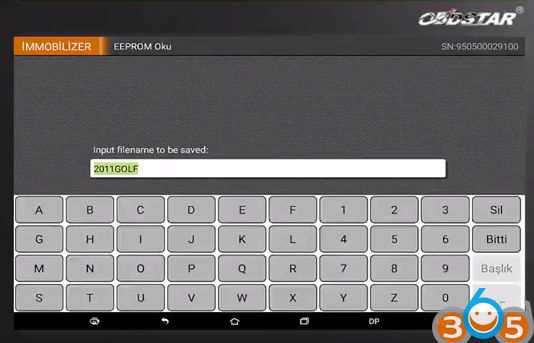

save eeprom data

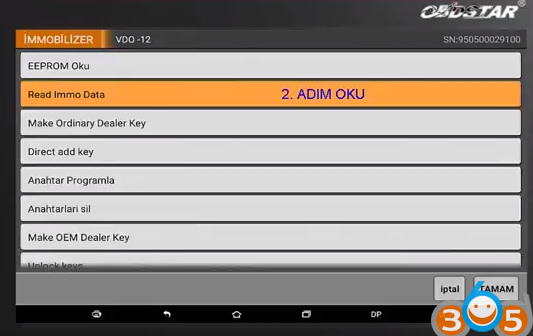

Step 2: Read Immo Data

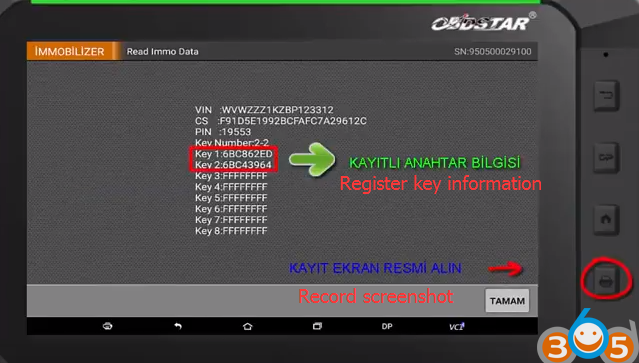

OBDSTAR X300 DP tablet display registered key information

Make a record of the current screenshot

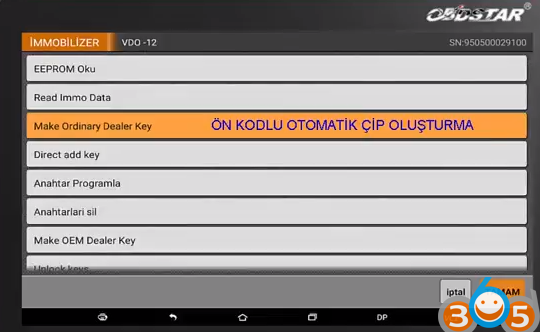

Step 3: Make Ordinary Dealer Key

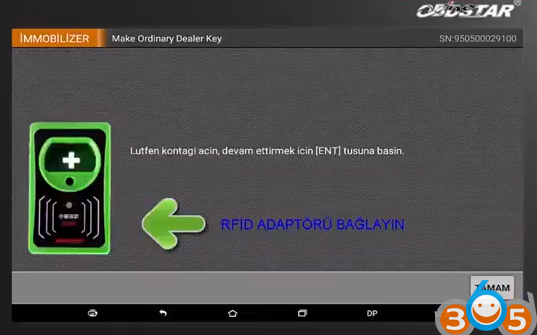

You need to use RFID Immo adapter

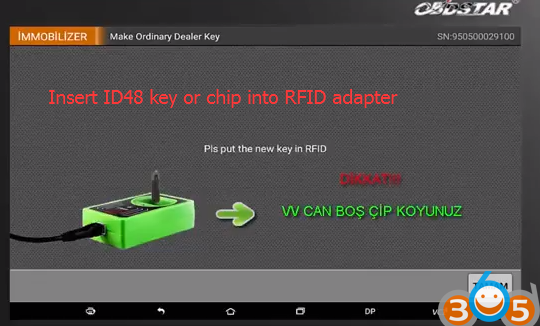

Insert new ID48 key or ID48 chip into RFID adapter

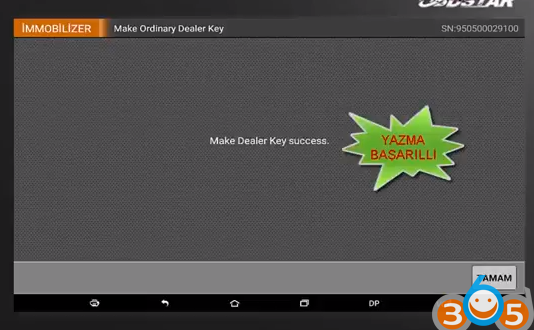

Generate dealer key success

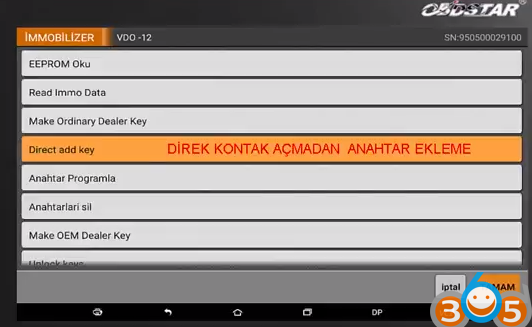

Step 4: Direct Add Key

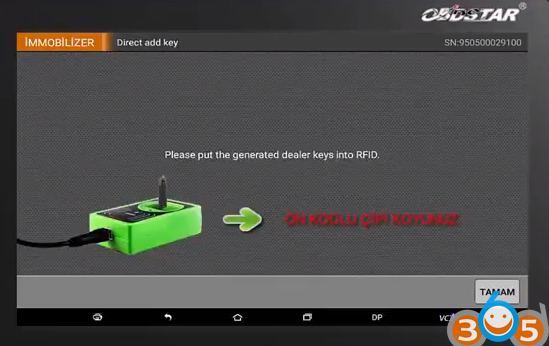

Put the generated dealer key into RFID adapter

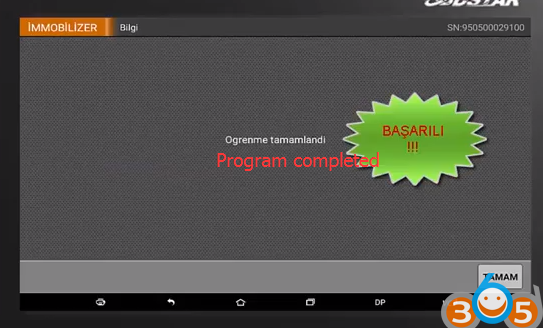

Add key success

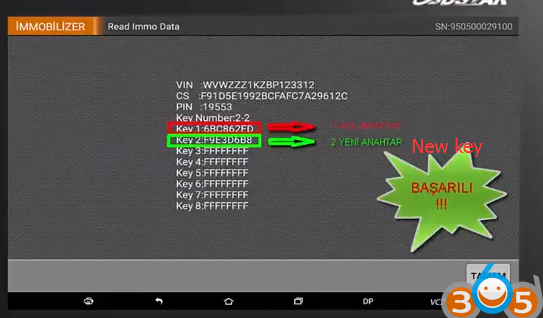

Back to Immobilizer menu, select Read Immo Data to check the new key information

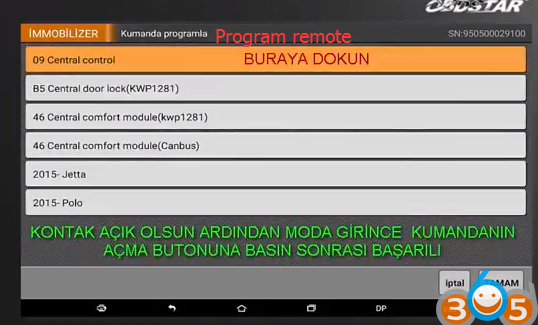

Select Program Remote->09-Central control

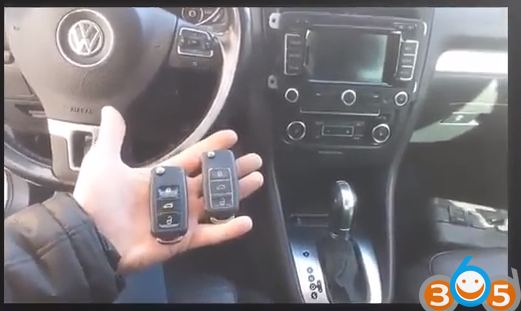

Test the new remote key

Success.
