OBDSTAR X300 DP Key Master DP Key Renew Wiring Diagram
OBDSTAR X300 DP tablet key programmer can do immo, mileage,diagnostic and many special functions for a lot of cars brands, and recently they made an update to be able to renew remote keys of cars like Peugeot, BMW, Chevrolet, Chrysler, Renault, Hyundai…etc
Here’s the bin file from the root directory of the apk and pictures and the zip file.

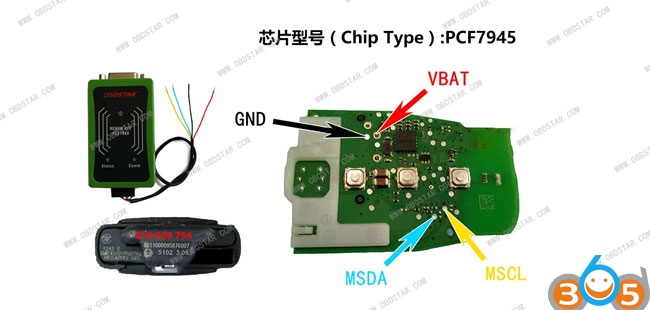

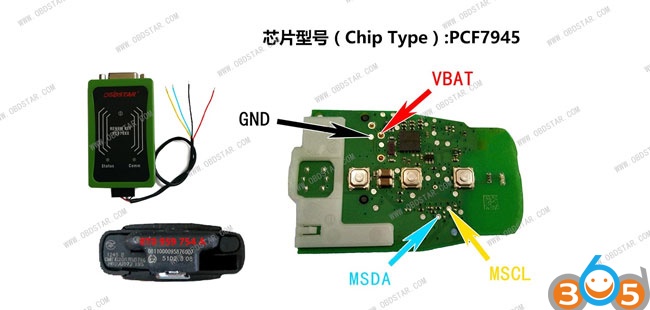

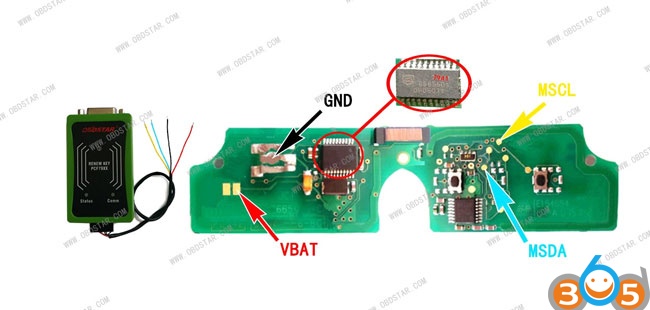

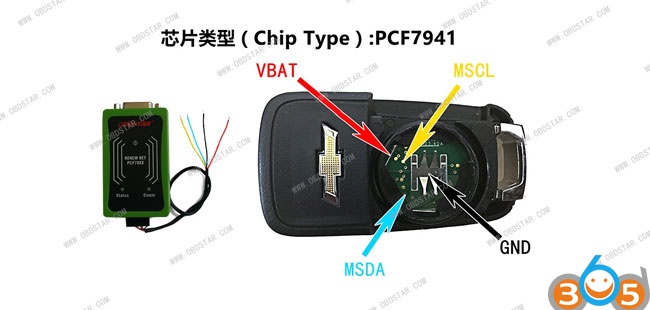

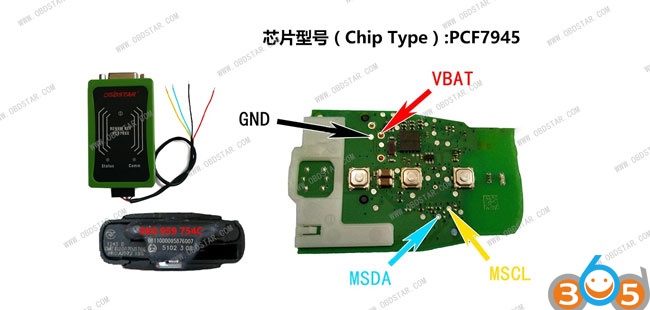

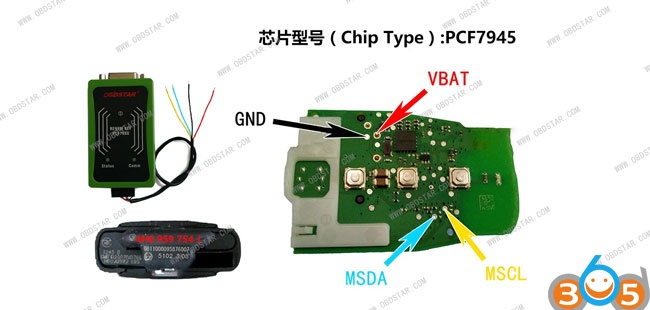

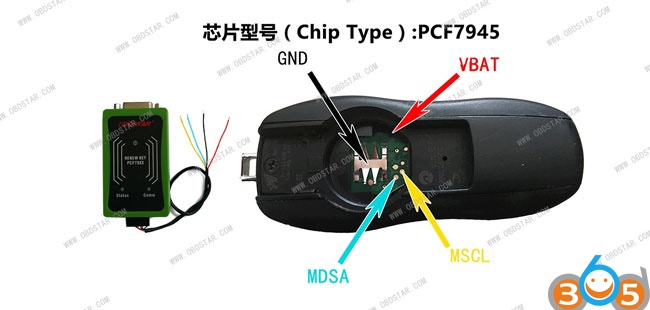

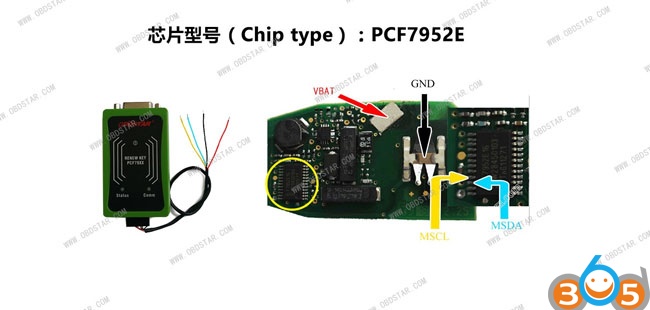

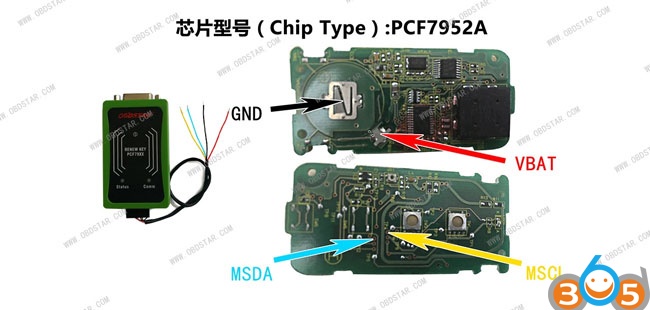

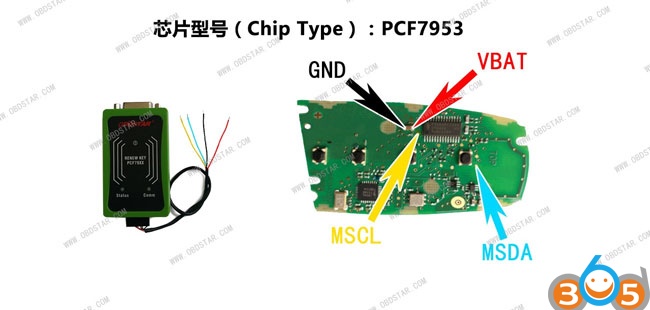

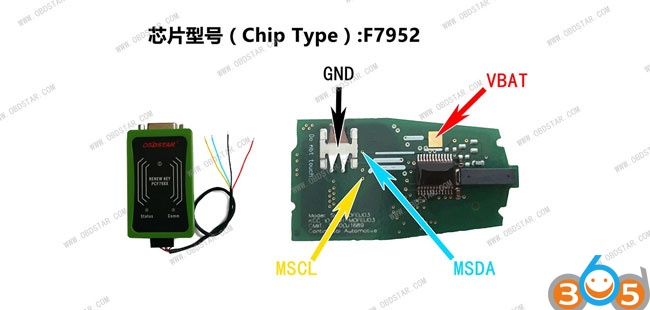

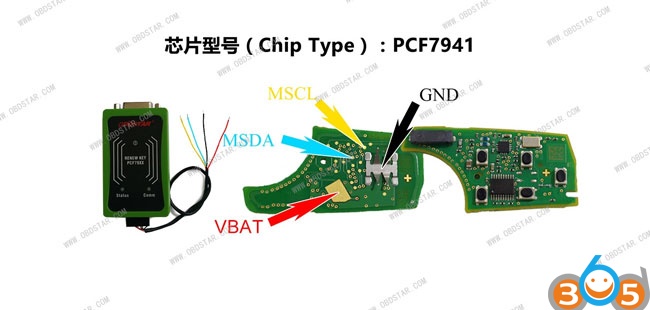

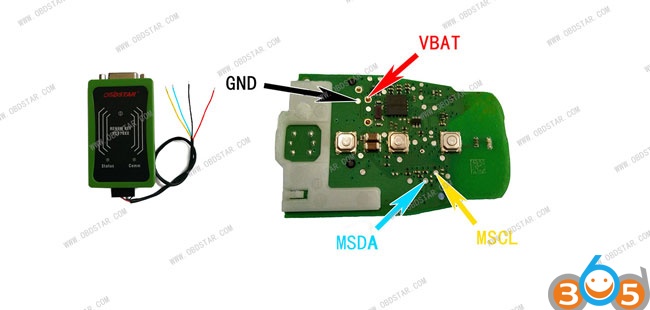

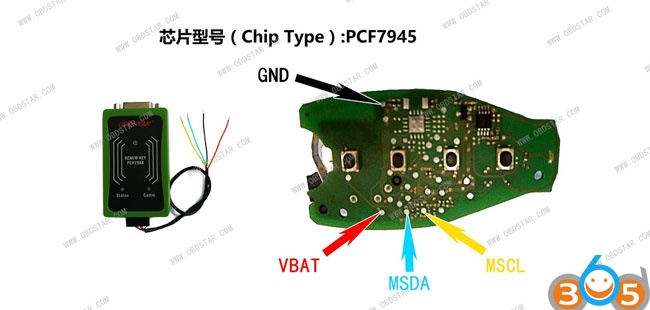

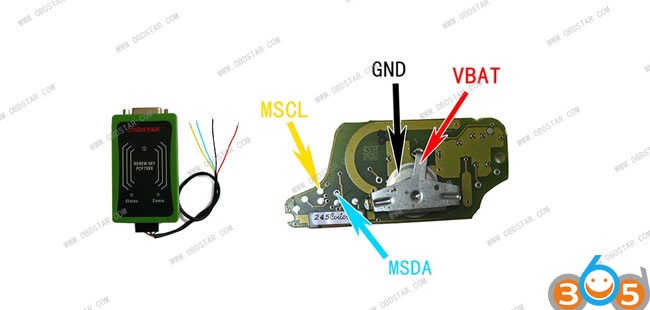

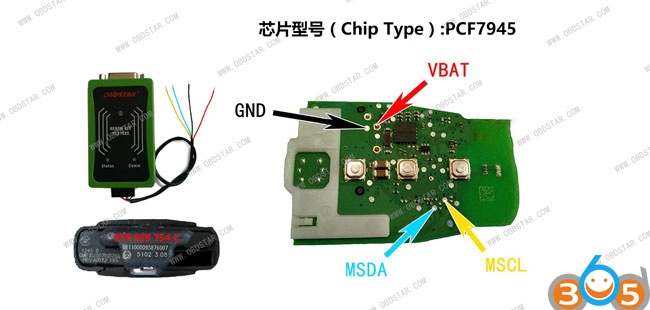

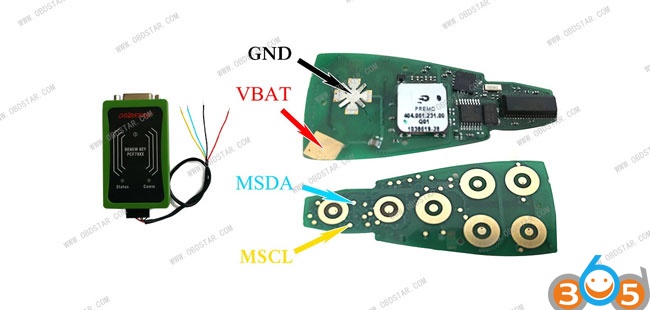

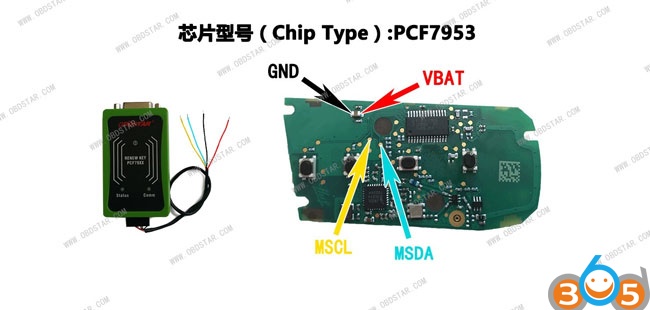

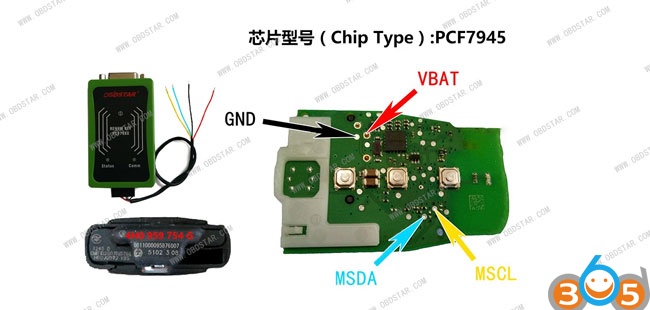

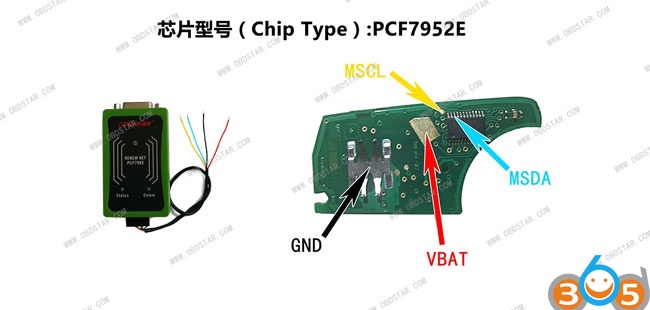

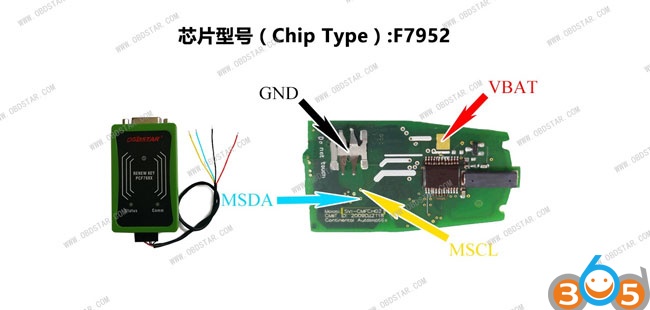

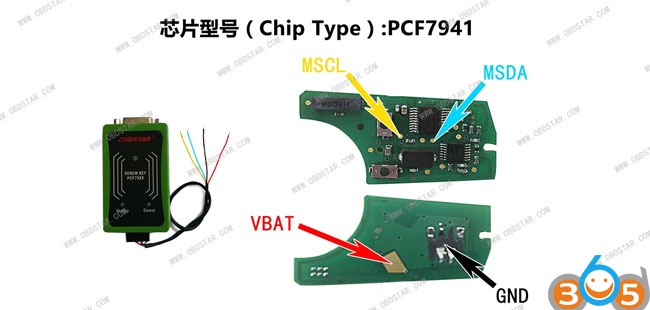

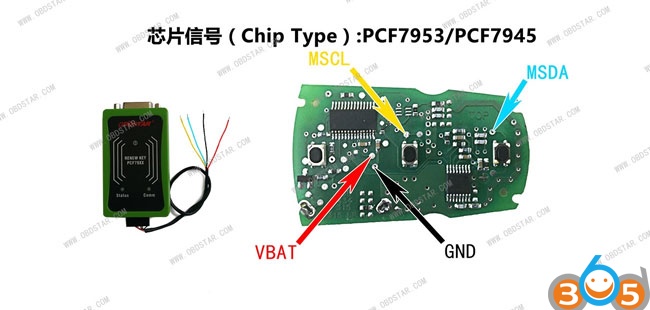

X300 DP PCF79XX Adapter key renew wiring diagrams
OBDSTAR-X300-DP-Key-renew-wiring-diagram.docx
OBDSTAR X300 DP key renew bin files
Here are some the flash files and pictures of pcf79XX
Reference:
1) X300 DP renew key list

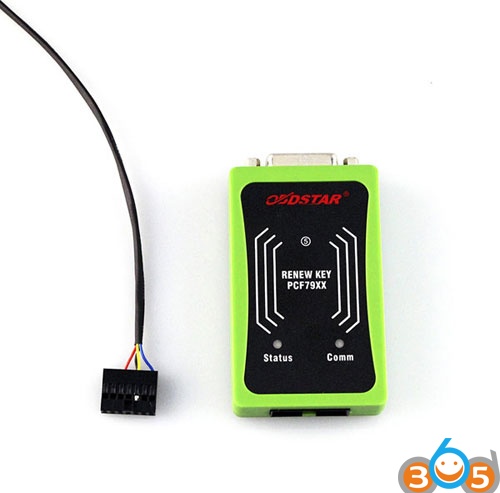

OBDSTAR RENEW KEY PCF79XX for OBDSTAR X300 DP
Audi
5th generation immo
Board 233.453.111-02
315MHZ 8T0959754A
315MHZ 8T0959754C
315MHZ 8T0959754J
Board 233.453.111-05/06
315MHZ 4G0959754G
315MHZ 4G0959754J
315MHZ 4H0959754G
315MHZ 4H0959754J
315MHZ 8T0959754A
315MHZ 8T0959754C
315MHZ 8T0959754G
315MHZ 8T0959754J
433MHZ 8T0959754
868MHZ 4G0959754K
868MHZ 4H0959754K
868MHZ 8T0959754D
Board 233.453.211-01/02
315MHZ 4G0959754J
315MHZ 8H0959754DB
315MHZ 8K0959754
315MHZ 8K0959754C
315MHZ 8K0959754G
BMW
E chassis
ono-original key_OEM_KEY
original key_315MHZ
original key_868MHZ
F chassis
315MHZ
IN-Circuit-5WK49663
IN-Circuit-HUF5662
434MHZ
IN-Circuit-5WK49662
IN-Circuit-HUF5663
IN-Circuit-HUF5767
868MHZ
IN-Circuit-5WK49661
IN-Circuit-HUF5661
Porshe
315MHZ
7PP959753BM
7PP959753BQ
433MHZ
7PP959753BN
7PP959753BS
7PP959753AJ
Peugeot
21676652
E25CI009
E28CI01B
E33CI002
VW
Touareg
433MHZ 7P6959754AO
868MHZ 7P6959754L
868MHZ 7P6959754AT
Volvo
smart card
900MHZ
5WK49266
Chrysler
1YZ-C01C-ChipMarking
567_738_031
Keylessgo 567_373_061
IN-Circuit-0HT692427AA
IN-Circuit-0HT692713AA
IN-Circuit-K0B0T04A
IN-Circuit-M3N5WY72XX
IN-Circuit-M3N5WY783X
Renault
double button 433MHZ ChipMarking 2244706
remote control 433MHZ ChipMarking F7945MC2200
smart card 433MHZ ChipMarking F7953MC2200
smart card 433MHZ ChipMarking 049621C03
Land rover
315MHZ YWX000061
315MHZ YWX000071
smart key 434MHZ 5E0U40247
Opel
double button 433MHZ 13500235
triple button 433MHZ 13500234
Corsa double button 433MHZ 13188281
Corsa triple button 433MHZ 13188284
Astra/Zafira double button 433MHZ 13149645
Astra/Zafira double button 433MHZ 13149658
Kia
Keylessgo_ChipMarking 049620C03
7952CMFCH02
CMFEU03
HMFEU04
HMFKR04
HMFNA04
Mitsubishi
434MHZ G8D_644M_KEY_434MHZ_F7952A
GM
Buick smart key 315MHZ
Keylessgo_13500224_13584825_5keys
Keylessgo_13500225_13584825_4keys
Cadillac smart key 315MHZ
Keylessgo_NBG009768T
GM samrt key
433MHZ Keylessgo_3keys
433MHZ Keylessgo_4keys
433MHZ Keylessgo_5keys
Chevrolet
double button 433MHZ 13500218
four button 315MHZ 13500222
five button 315MHZ 13500221
smart card 315MHZ
Keylessgo_13500318_13584828_4keys
Keylessgo_13500319_13584829_5keys
Hyundai
Keylessgo_ChipMarking 049620C03
7952CMFCH02
CMFEU03
HMFEU04
HMFKR04
HMFNA04
Citroen
21676652
E25CI009
E28CI01B
E33CI002
2) Example
How to renew Audi PCF7935 remote with OBDSTAR X300 DP and renew adapter
