Program Peugeot Partner 2017 Remote Key with Mini KD900 and VVDI2
How to: Peugeot partner 2017 remote key programming with Mini KD and VVDI2 key programmer.
Tools used:
Mini KD (KD900) Keydiy Key Remote Maker Generator
Xhorse VVDI2 key programmer

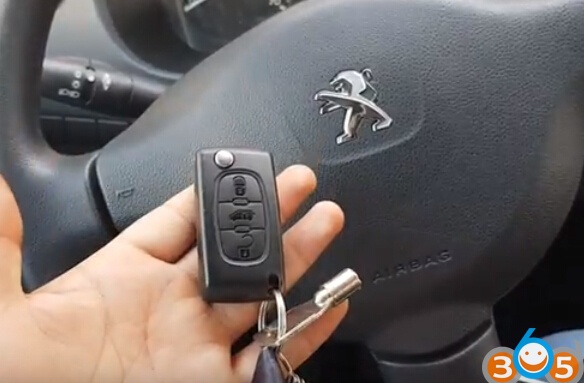

Original key
Blank remote key
Main steps:
Step 1: Program remote with Mini KD
Step 2: Key Learn with VVDI2
Step 1: Program remote with Mini KD

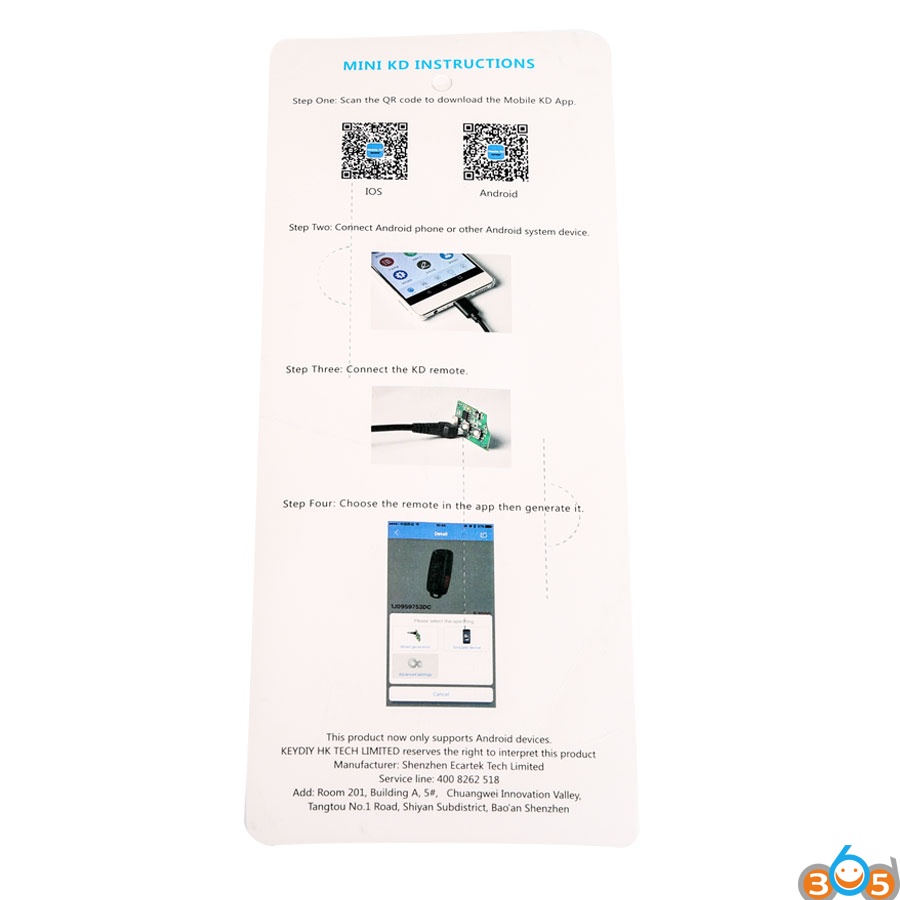

Scan the Android or iOS QR code to download the Mobile KD App

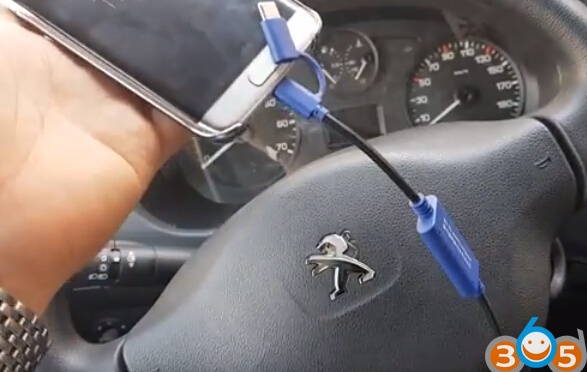

Connect Android or iOS devices to Mini KD900

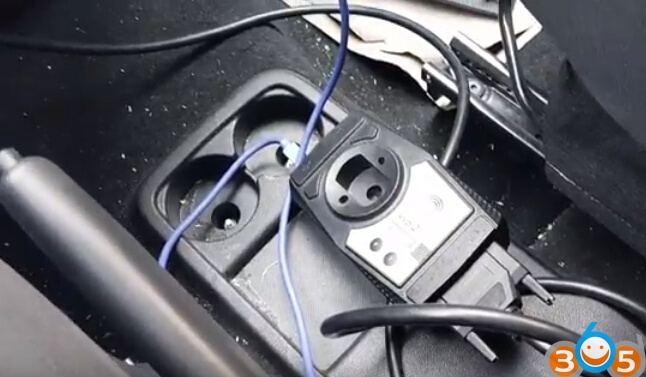

Connect VVDI2 with vehicle via OBD diagnostic socket
Connect to KD remote

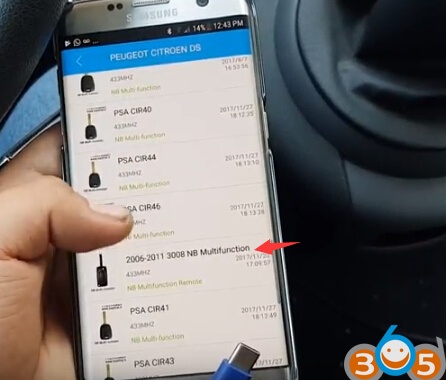

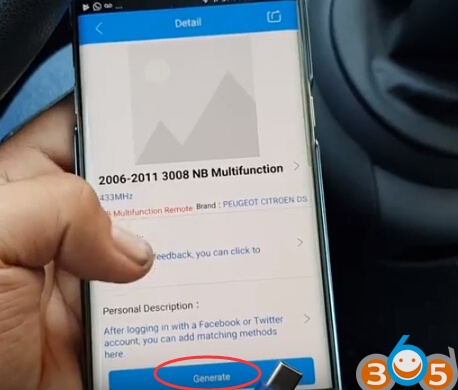

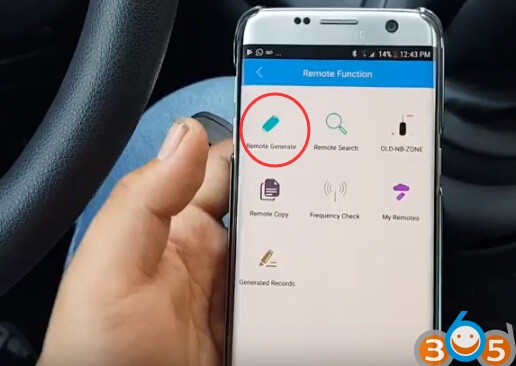

Open Mobile KD App->Remote Function->Remote Generate->Select proper remote type->Generate remote

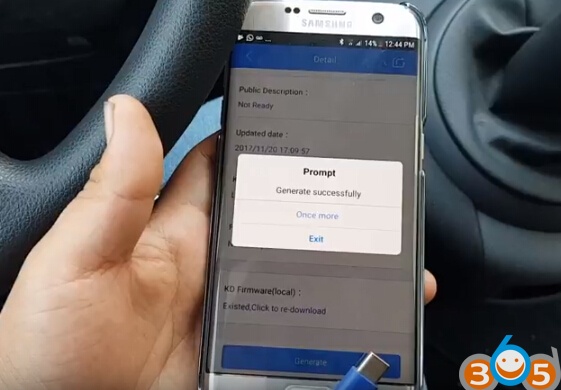

Generate remote with KD900 mini success.

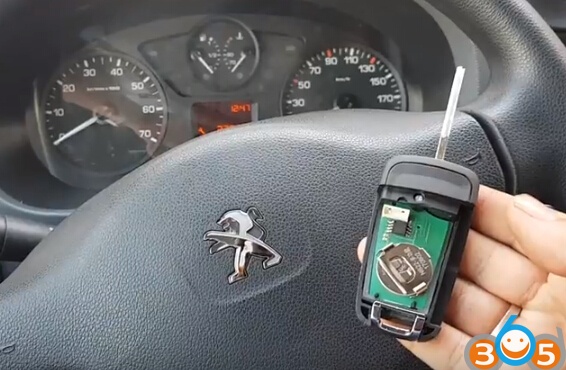

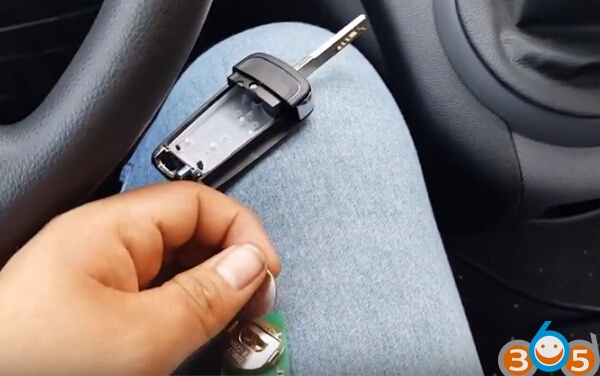

Insert battery to the remote and install remote to key shell
Step 2: Learn key with VVDI2

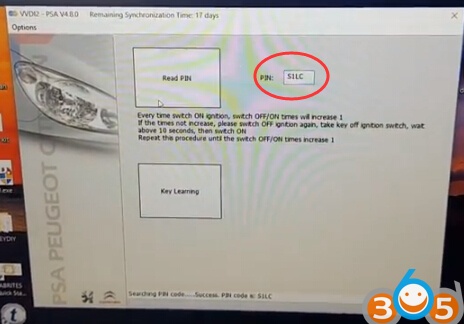

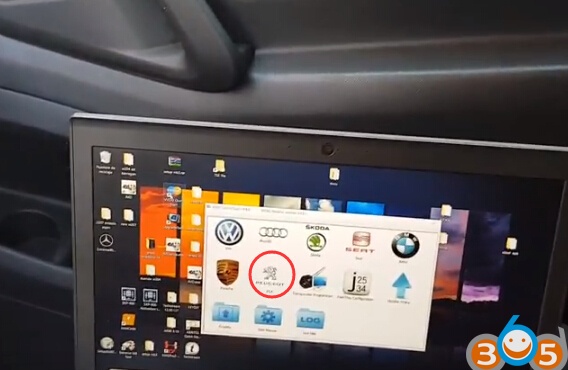

Open VVDI2 Quick Loader->Select Peugeot->Read Pin Code
Read 4-digit pin code success
Press Get Immo data, enter key learn number and PIN code
Click on Key Learning

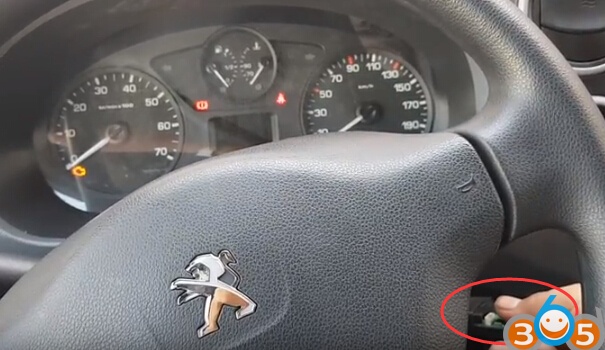

Inert original key and turn ignition on
Remove original key.
Insert new remote key and turn ignition on
Remove new key
Inert original key and turn ignition on again

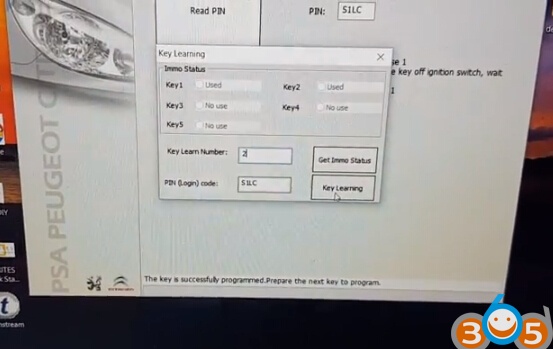

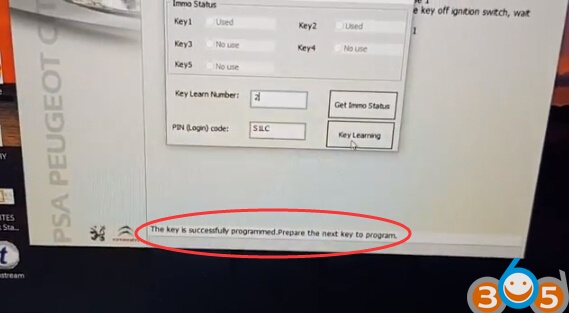

The key is successfully programmed. Prepare the next key to program

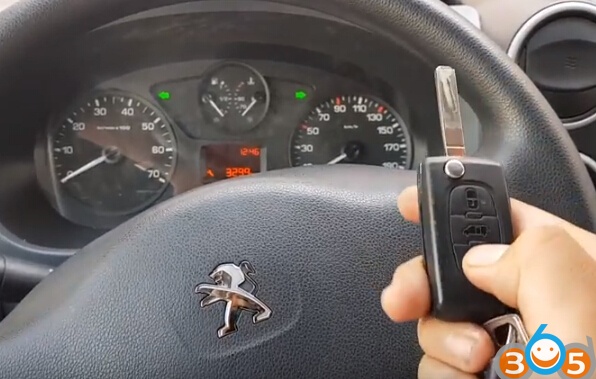

Test both 2 keys
Original key, press Lock and Unlock button
Insert new remote key and turn ignition on
Remove key

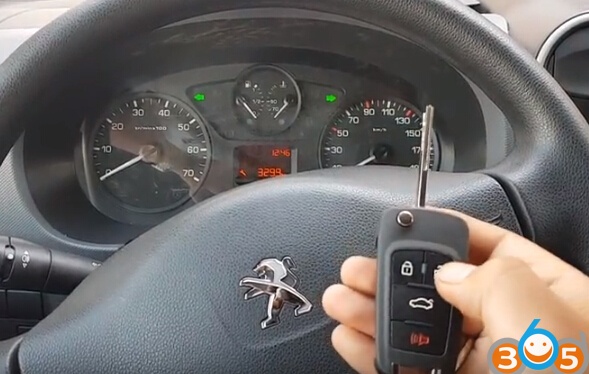

Press Lock and Unlock button on the remote
New key programming success.
