Program 2018 Nissan Altima Smart Key by Auro OtoSys IM100



Here’s the guide of Auro OtoSys IM100 programming a 2018 Nissan Altima 5-button Smart Key bypassing the security. This functionality is available on the both IM100 and the OtoSys IM600.

Connect IM100/IM600 tablet with vehicle

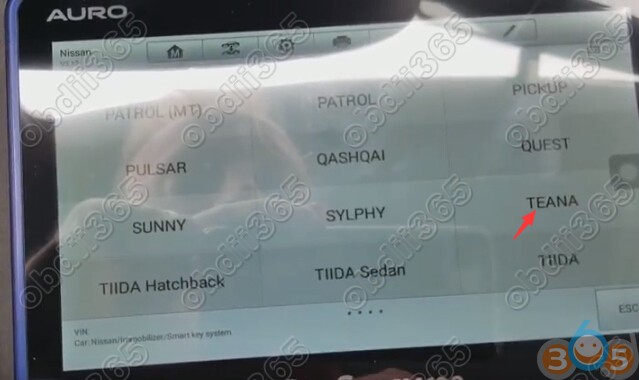

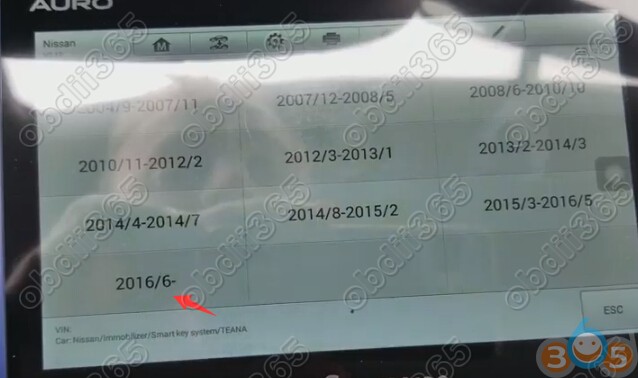

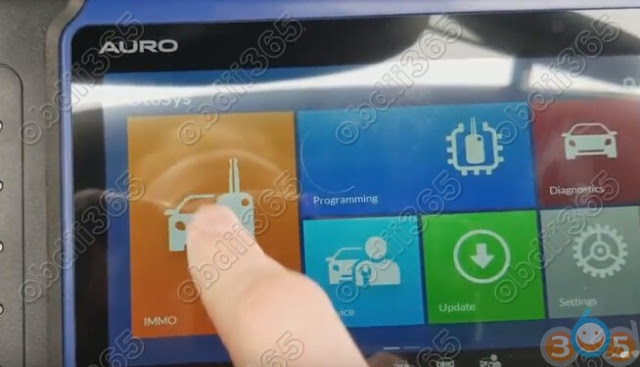

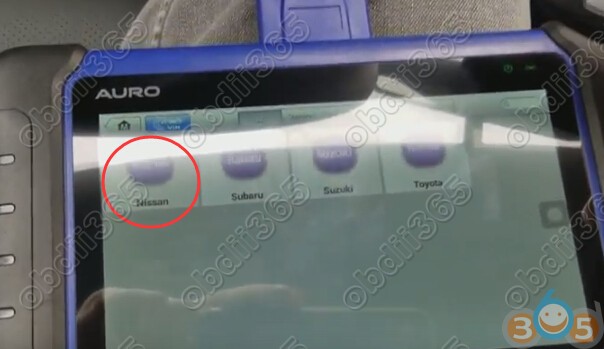

Select IMMO function->Nissan->Immobilizer smart key programming->TEANA->2016/06 up

Establish communication
Scanning vehicle system
Select Immobilizer information registration->Register key

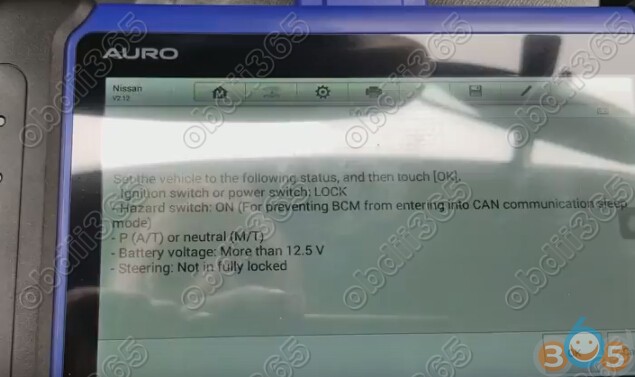

Set the vehicle to the following status, and then press OK
-Ignition switch or power switch: LOCK
-Hazard switch: ON (For preventing BCM from entering into CAN cummunication sleep)
-P(A/T) or neutral (M/T)
-Battery voltage: More than 12.5V
-Steering: Not in fully locked

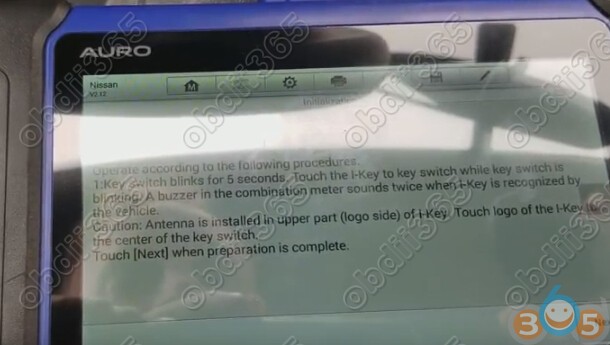

Operate according to the following procedure:

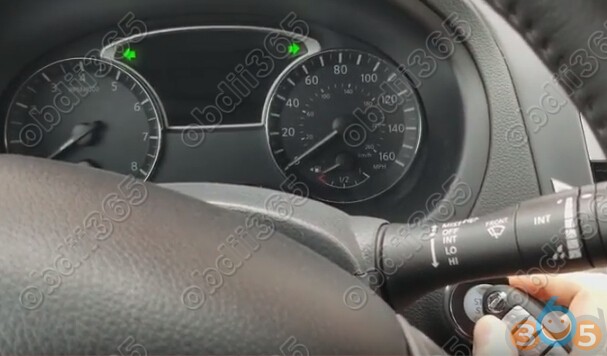

1.Key switch blinks for 5 seconds. Touch the i-Key to key switch while key switch is blinking. A buzzer in the combination meter sounds twice when I-Key is recognized by the vehicle.

Caution: Antenna is installed in upper part (logo side) of I-Key. Touch logo of the l-Key the center of the key switch.  Touch [Next] when preparation is complete.

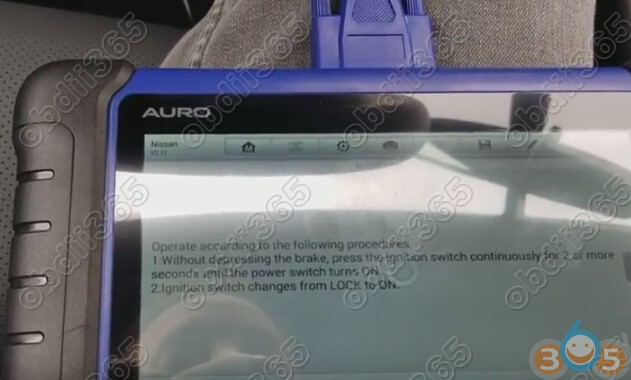

Operate according to the following procedure:


1:Without depressing the brake, press the ignition switch continuously for 2 or more seconds until the power switch turns ON.

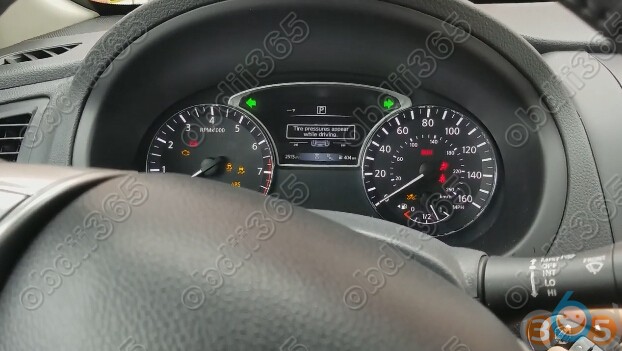

2:Ignition switch changes from LOCK to ON.

http://auro-otosys.blogspot.com/2018/04/auro-otosys-im100-im600-program-2018-nissan-altima-smart-key.html
