How to add VW GOLF 6 NEC+24C32 key with OBDSTAR X300 DP
—
(0)
How to add key for VW GOLF 6 NEC+24C32 by using OBDSTAR X300 DP/Key Master DP via OBD.
Procedure:
Connect Key Master DP with VCI and vehicle via OBD diagnostic socket

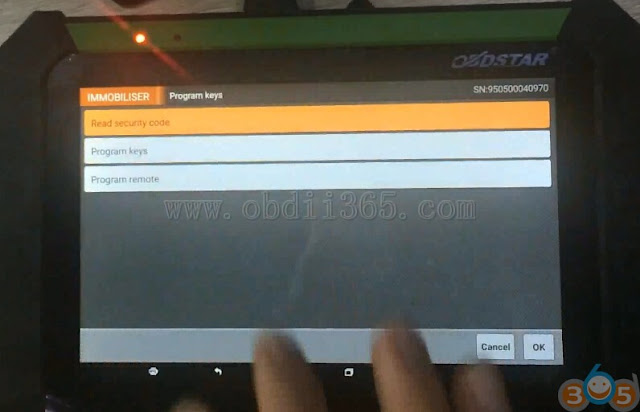

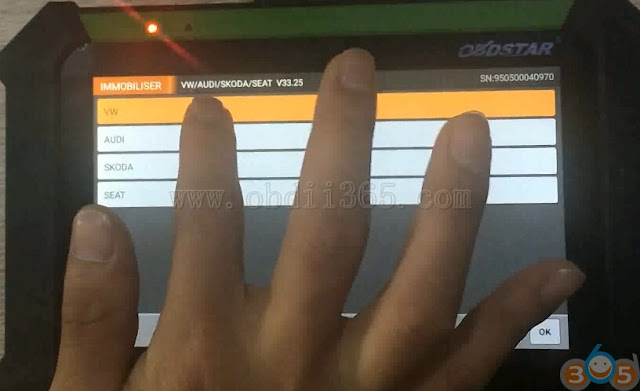

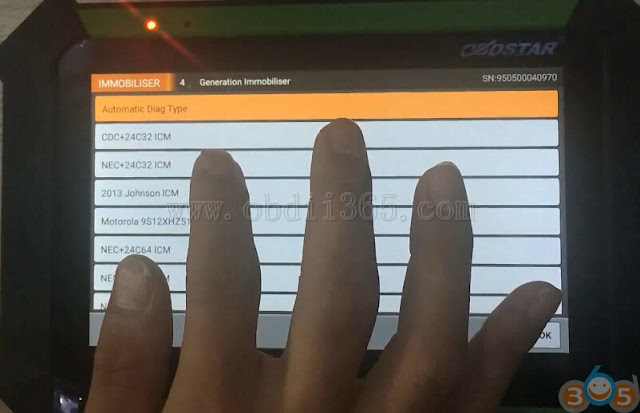

Select Immobilizer function->VW/Audi/Skoda/Seat->VW->Program Keys->4th generation Immobilizer->NEC+24C32 ICM

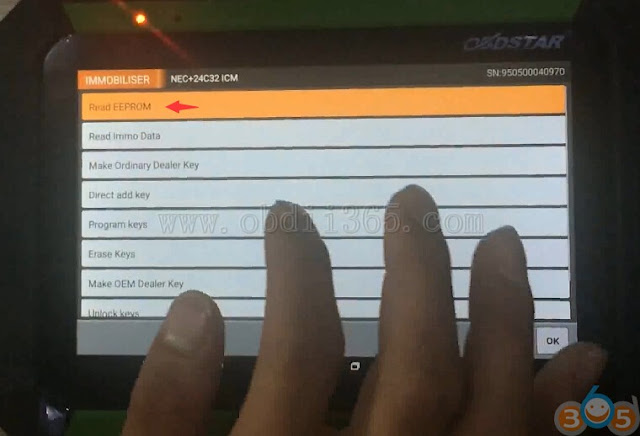

Read EEPROM data
Turn ignition to ON position
Reading data

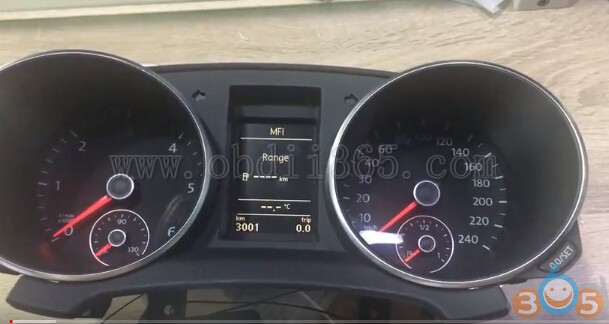

Immo indicator will flash during this procedure

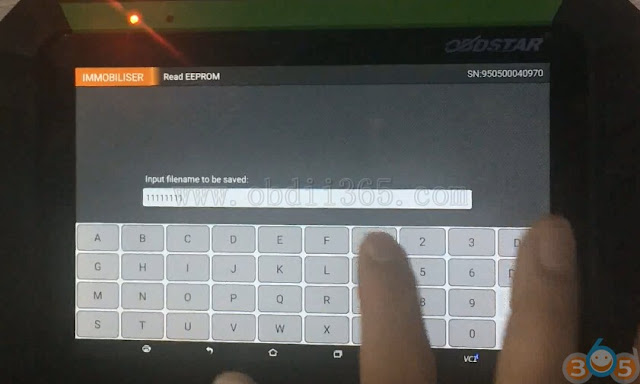

Save eeprom data

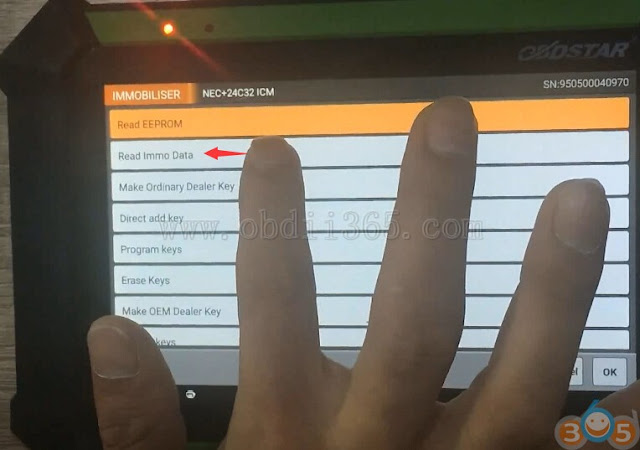

Read IMMO data
Switch ignition on
Reading data
Immo indicator will flash during this procedure

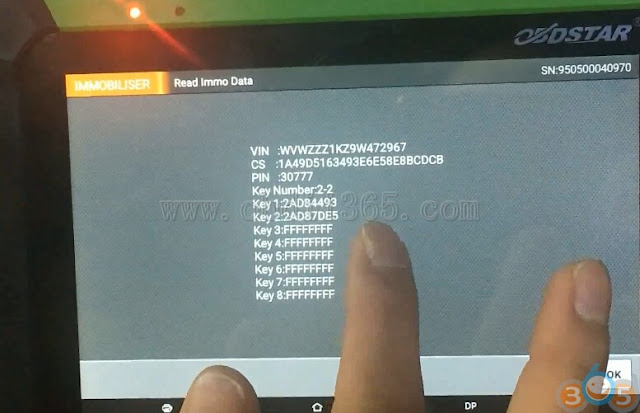

X300 DP read immo data success
Current number of keys: 2
Select Direct add key
Turn ignition on
You must read eeprom data before perform this operation

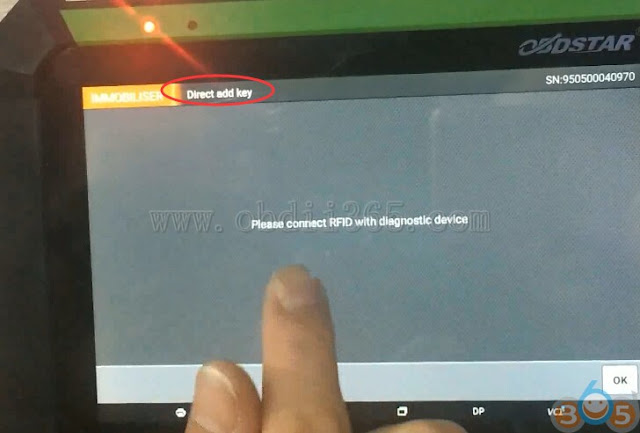

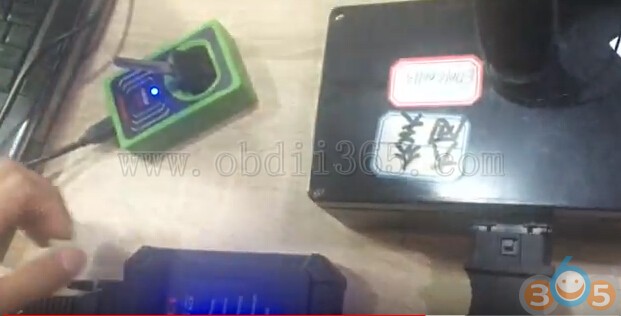

Connect OBDSTAR RFID adapter with key master dp
Reading data
Writing data

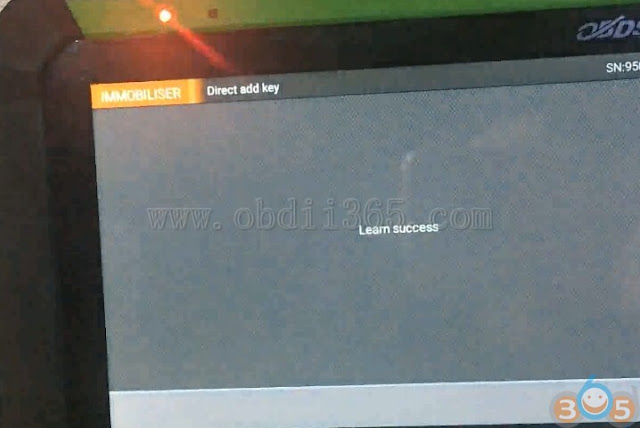

Key learning success.

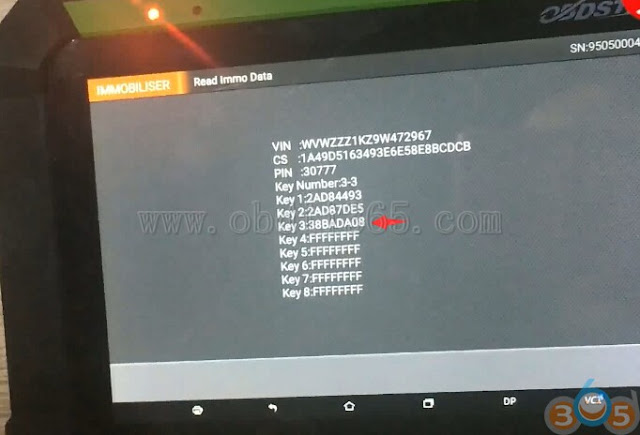

Go back and read Immo data
You can see the 3rd key has been successfully programmed.
Start vehicle with the new key.
