SEC-E9 key cutter + Lishi 2 in 1 tool program TOY43 key
Important notes for you all:
How to program Toyota TOY43 key using a SEC-E9 key cutting machine and Lishi 2 in 1 set

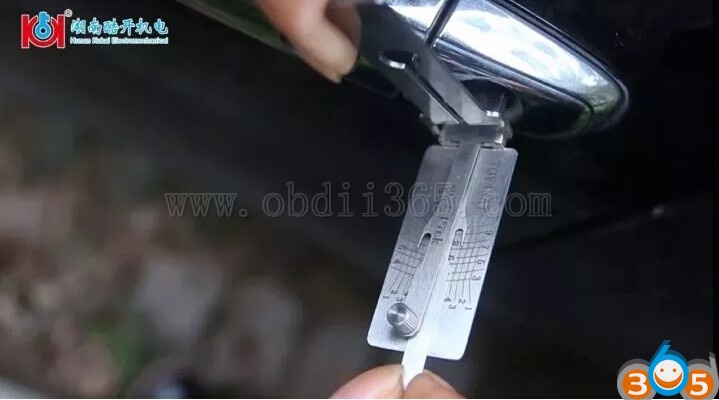

Pick the lock using a Lishi 2 in 1 locksmith tool
Toyota TOY43 door lock: 8 blades, ignition lock: 10 blades;

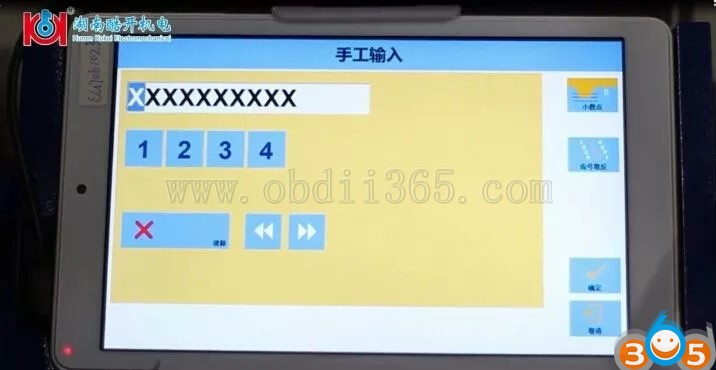

Enter the “data search” – “key blank search” – “manual input”
Enter the key codes decoding by the Lishi tool
Start at Position 3 on the left

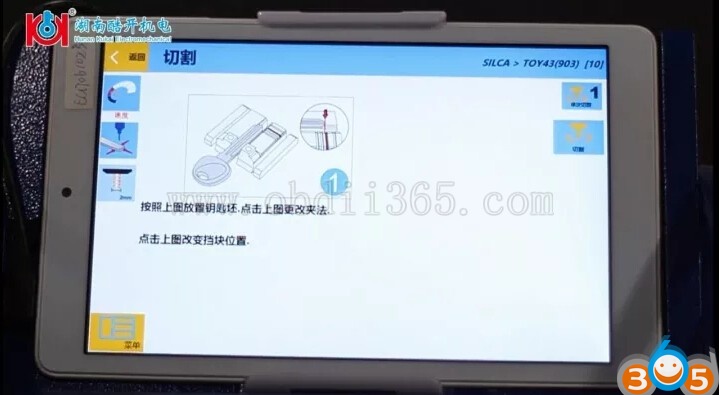

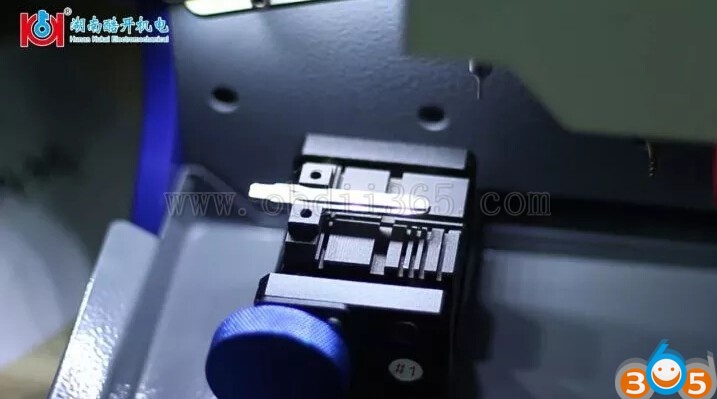

Fix the key with help of the SEC-E9 clamp as the pic displayed
Select “middle speed” and “three end positioning”
Clean the lamp and cutter before cutting the key
The key is cut successfully
Remove the key
Clean the clamp again

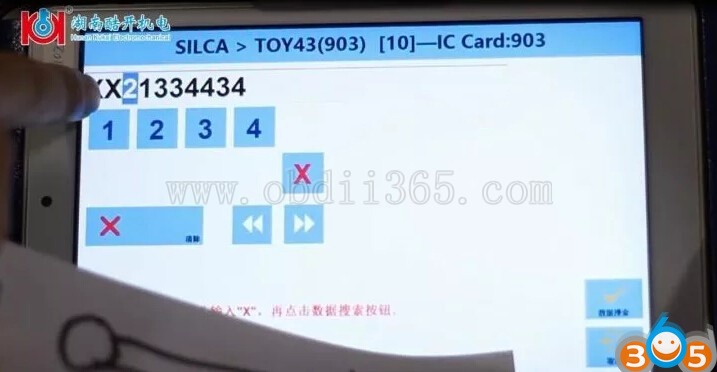

Missing teeth query – find out the specific tooth depth of the ignition lock:

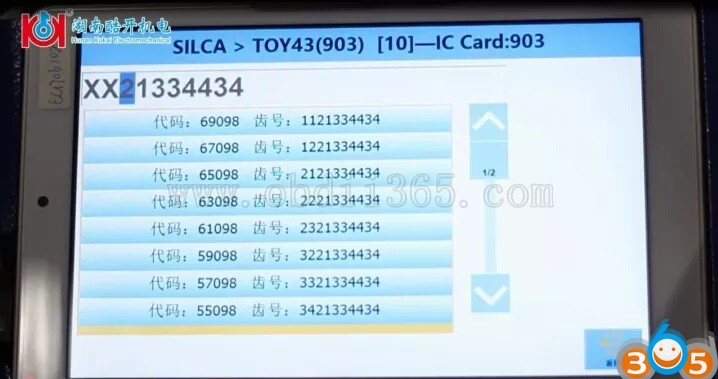

empty the first two digits, and input the known 8 digits, click on “Query”;
try one by one from the detected tooth number;
turn on the ignition lock and do the remote control matching
Done!
