    How to Read and Write Porsche Key with CG-Pro 9S12 Programmer

    porsche-key-programmer
    — (0)

    CG-Pro 9S12 freescale programmer newly updated Porsche key read& write function.



    How to Program Porsche key with CG-Pro programmer?

    Select Model-> IMMO Key Programming

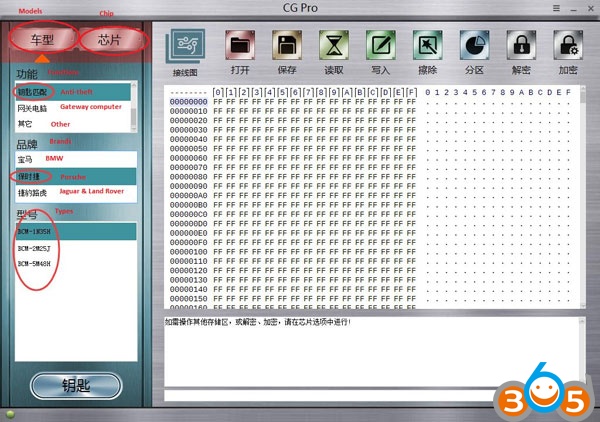

    cgdi-pro-write-porsche-key-01

    Click on “Open folder” and load eeprom data
    Insert a blank key into CG-Pro programmer coil, click on “Read key”
    Choose key position, then click “Write Key”

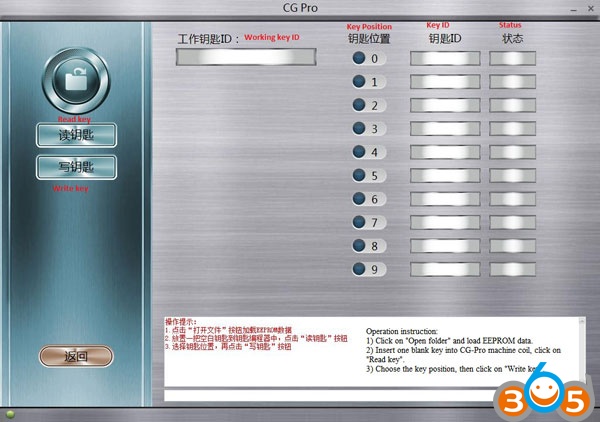

    cgdi-pro-write-porsche-key-02



    Select from chip

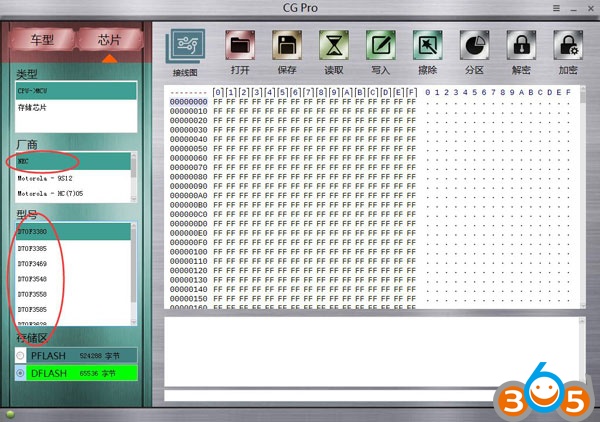

    cgdi-pro-write-porsche-key-03

    2. NEC

    D70F3548

    D70F3558

    D70F3585

    D70F3385

    D70F3469

    D70F3628





    3. Motorola -9S12

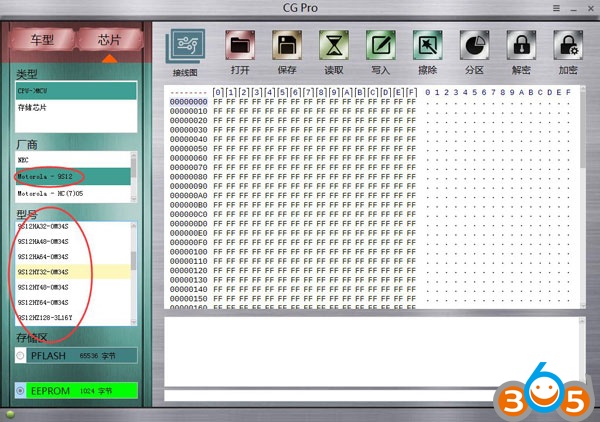

    cgdi-pro-write-porsche-key-04

    9S12HA32-0M34S

    9S12HY32-0M34S

    9S12HA48-0M34S

    9S12HY48-0M34S

    9S12HA64-0M34S

    9S12HY64-0M34S

    9S12XHY128-0M23Y

    9S12XHY256-0M23Y

    9S12HZ128-3L16Y

    9S12HZ256-3L16Y

    9S12XEP768-4M48H



    4. Models->IMMO->Jaguar & Land rover

    BCM-XEP768

    BCM-XEP100

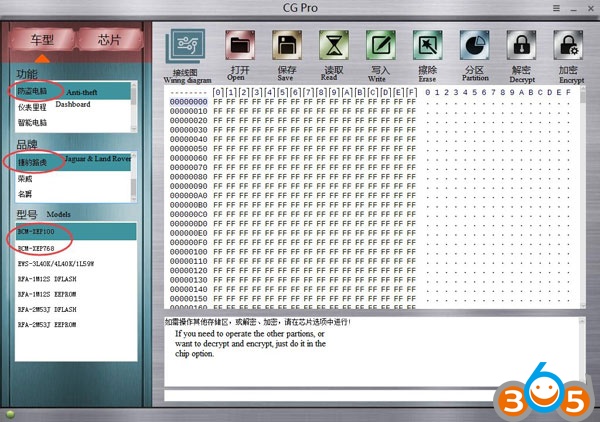

    cgdi-pro-write-porsche-key-05
