    CG Pro 9S12 Adds Key BMW 525Li CAS4+ 5m48h No Need Other Tool

    bmw-key-programmer
    — (0)

    CG Pro 9S12 is not only an eeprom/ecu programmer, but also mileage and key programmer.  Here’s is the new test report on BMW 525Li CAS4+ smart key programming using CG-Pro stand-alone.



    Remove CAS4+

    cg-pro-bmw-525-2

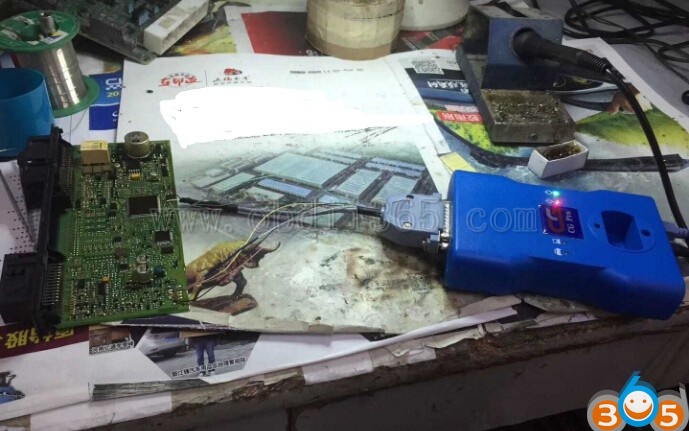

    Connect CG Pro with CAS4+ via DB25 connector

    cg-pro-bmw-525-3

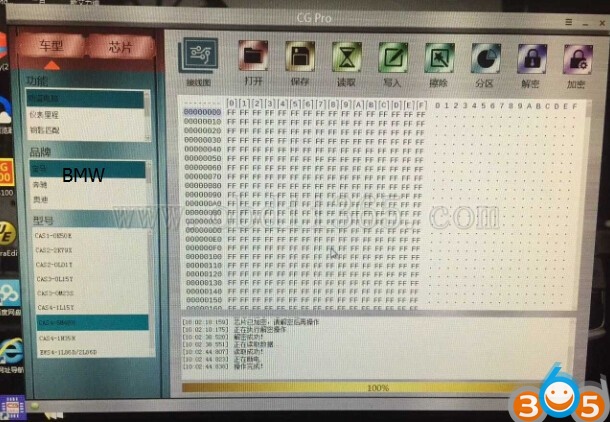

    Open CG Pro software

    Select Vehicle->Anti-theft->BMW ->CAS4-5M48H

    cg-pro-bmw-525-4

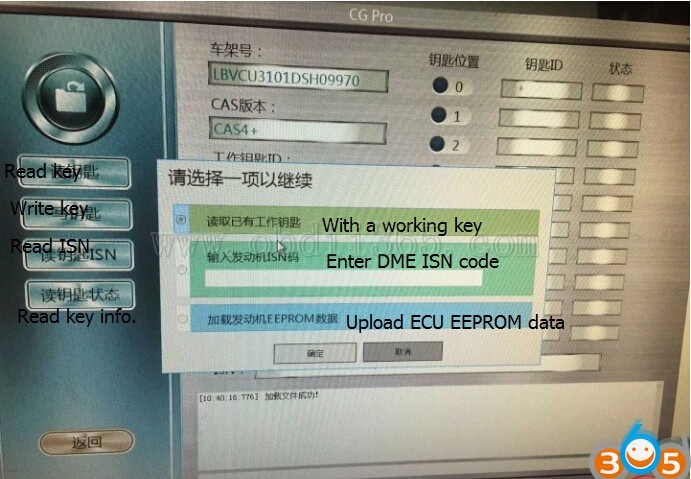

    Click on Read Key

    Insert a working key into CG Pro

    CG Pro will read vehicle VIN, CAS version etc

    Select first option “Have a working key” to add key

    cg-pro-bmw-525-5

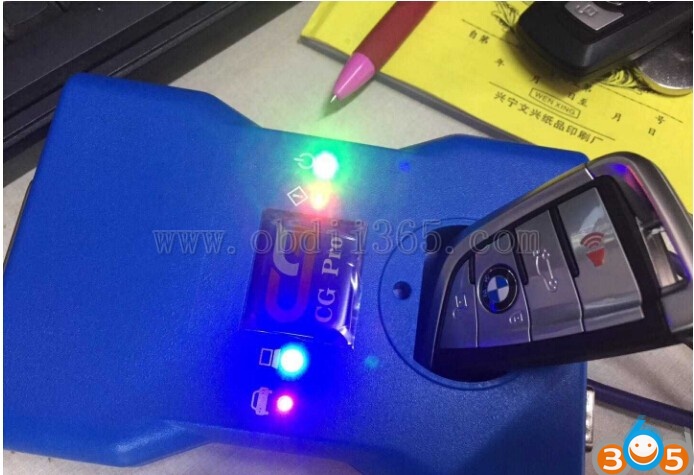

    Then insert a new key to be programmed into CG-Pro programmer

    cg-pro-bmw-525-6

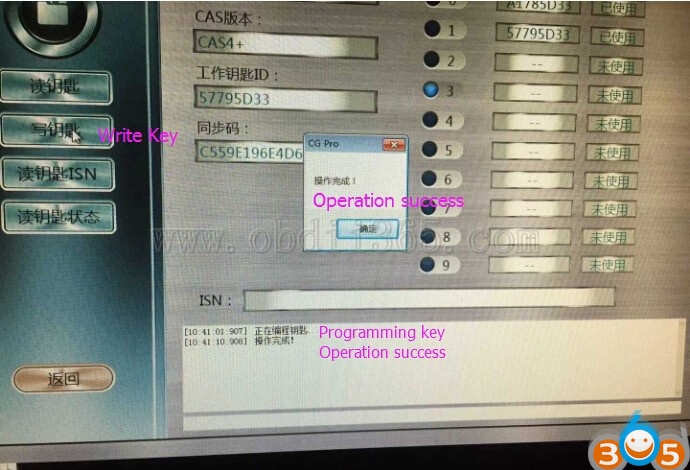

    Write key

    cg-pro-bmw-525-7

    cg-pro-bmw-525-8

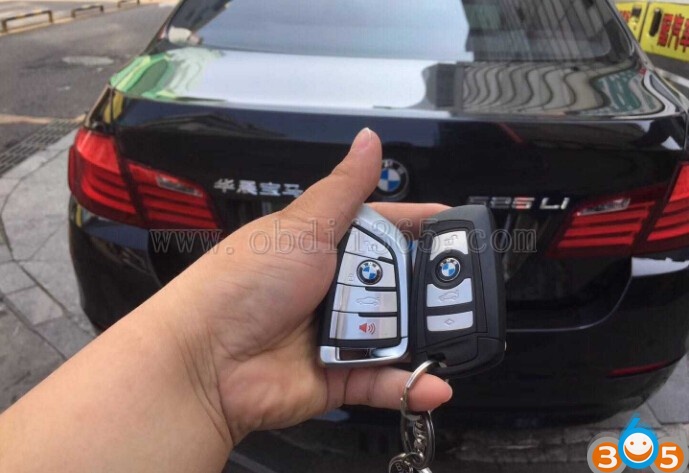

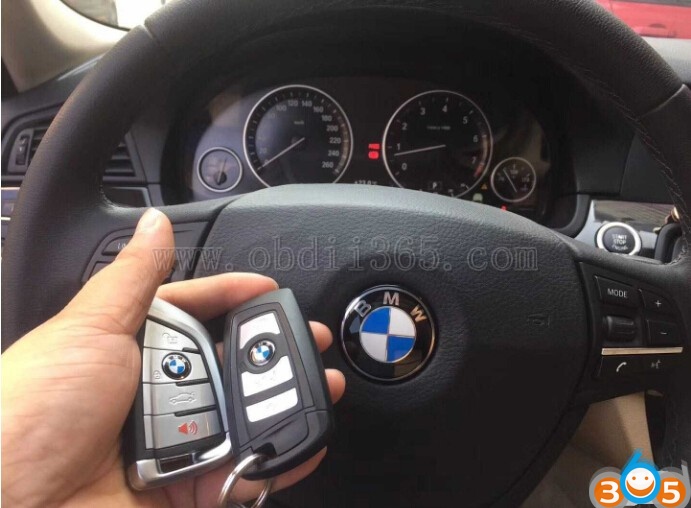

    CG Pro adds BMW CAS4+ key success.





    CG Pro Supported BMW Key Programming Car List:

    BMW             CAS3             YES
    BMW            CAS3+           YES
    BMW        CAS4            YES
    BMW         CAS4+           YES
    BMW            EWS4
    BMW          EWS3
    BMW          EWS2
    (Program key via eeprom data）



    CG Pro can adds Benz and Porsche keys after getting eeprom data as well.
