How to Program Range Rover 2015 KVM Smart Key with Mart Tool

Confirmed! *MART TOOL for Jaguar and Land Rover key programming is verified working perfectly!

How to: Program smart key Range rover 2015 KF72-19H440 KVM when all keys lost on bench.
Tested by professionals working for obdii365.com! BIG THANKS!!



Steps:

Step 1: connect the KVM to VVDI-Prog

Step 2: read D-flash & EEE data with VVDI Prog

Step 3: generate a dealer key with MART TOOL

Step 4: write key data back to KVM

Step 5: Reinstall the KVM

Step 6: Test the new dealer key



Tutorial with video & images in detail…look here:

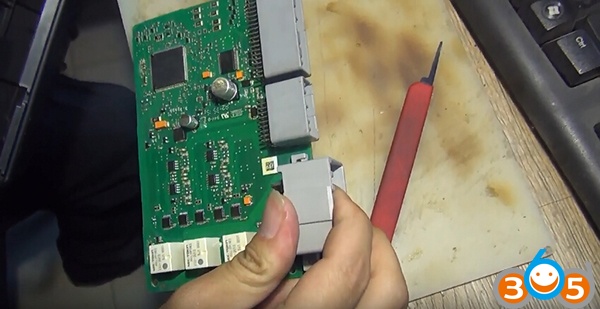

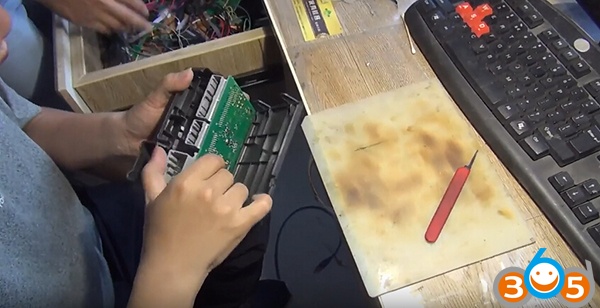

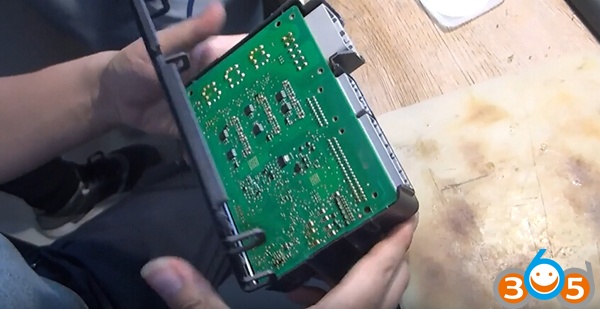

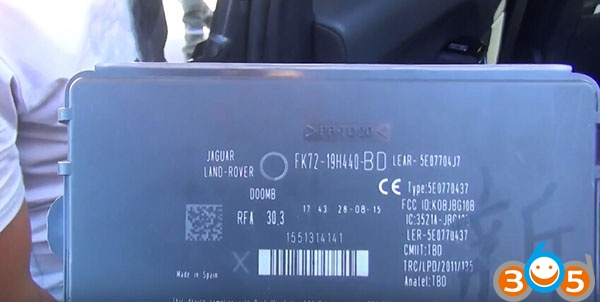

Step 1: Disassemble the KVM immo box

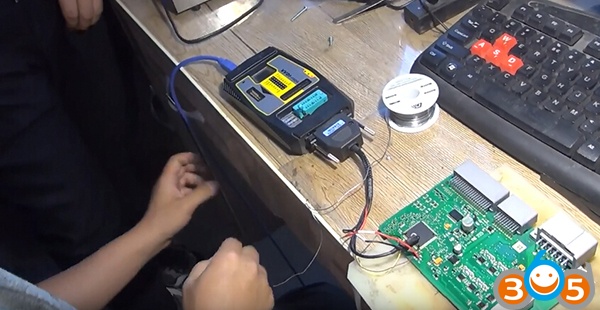

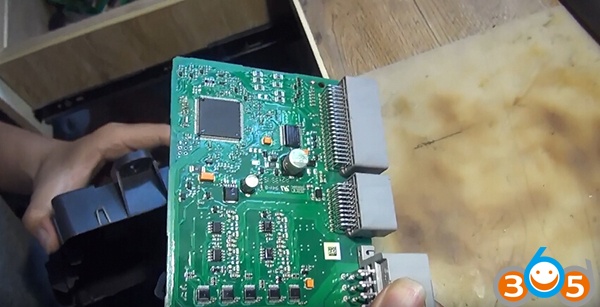

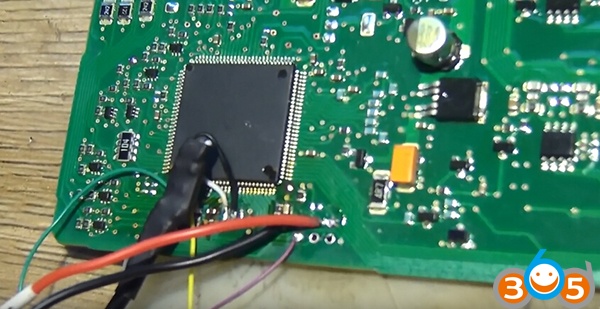

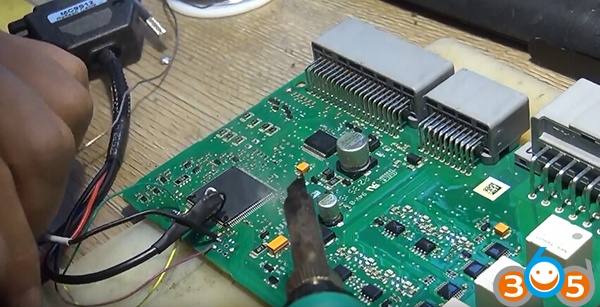

remove components inside and do diagram connection

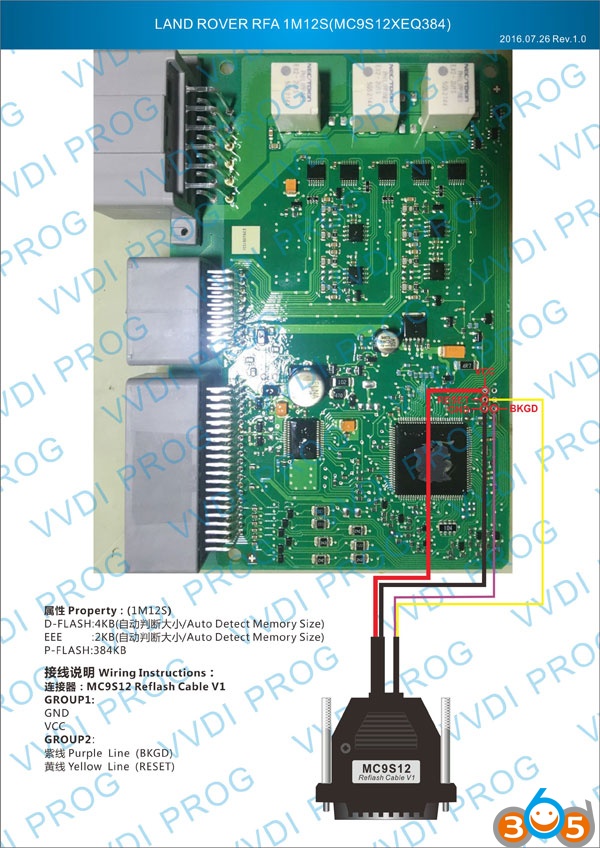

LAND ROVER RFA 1M12S (MC9S12XEQ384)  pinouts to Xhorse VVDI Prog programmer

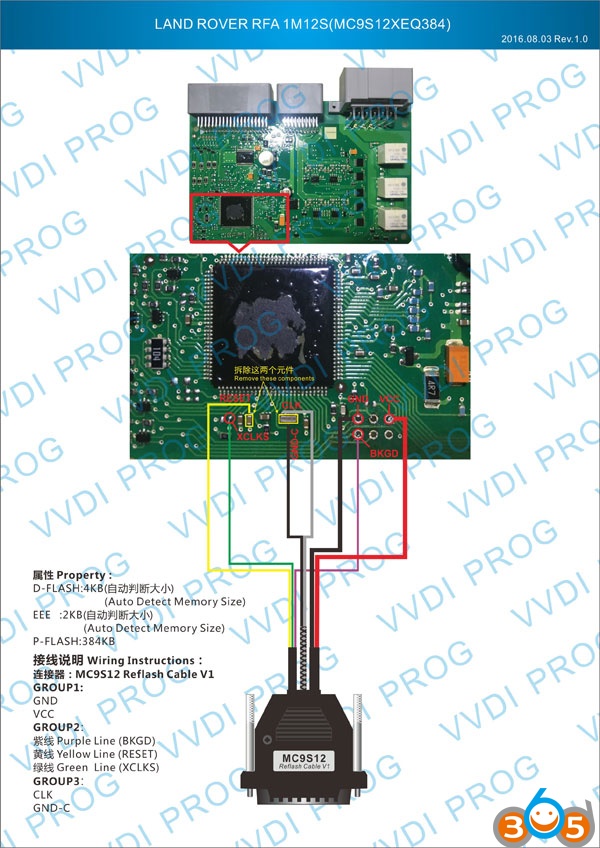

Follow wiring diagram to make a connection

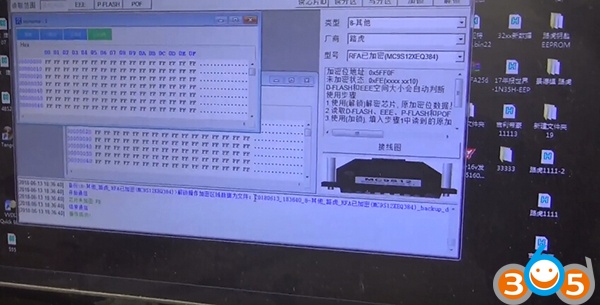

Step 2: Read D-Flash and EEE data in the KVM with VVDI Prog

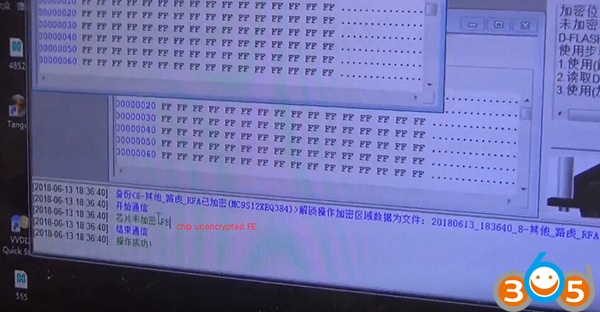

Select Land rover->RFA secured MC9S12XEQ384

Step 3: Use Mart tool to generate new key and data

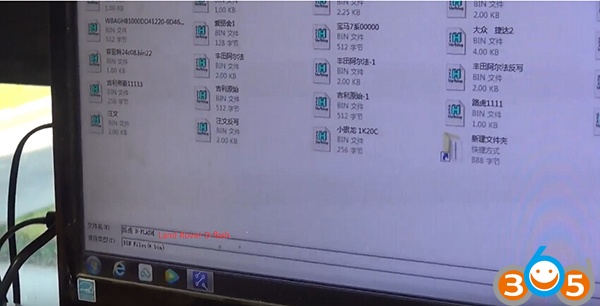

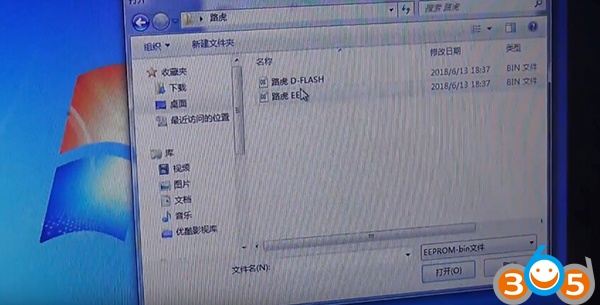

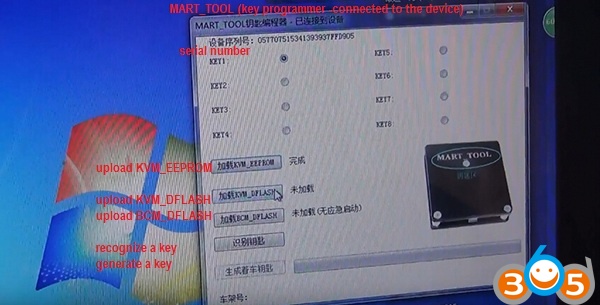

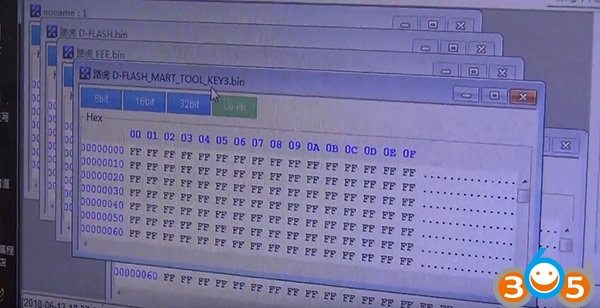

upload bin files (KVM_EEPROM, KVM_DFLASH) to MART TOOL key programmer

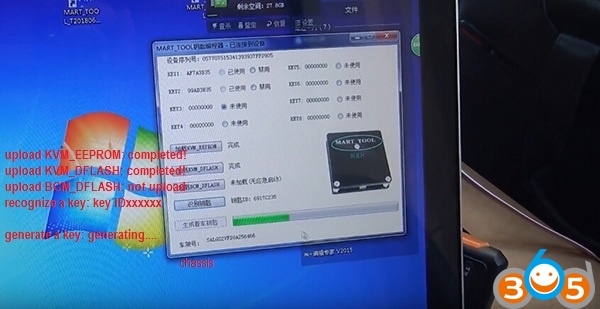

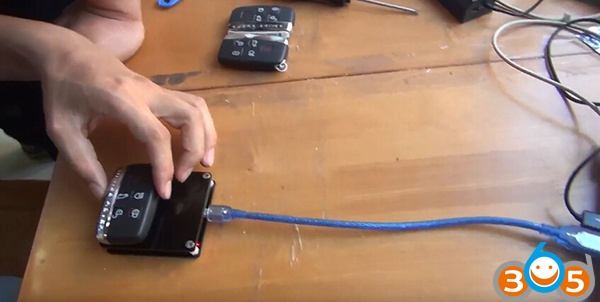

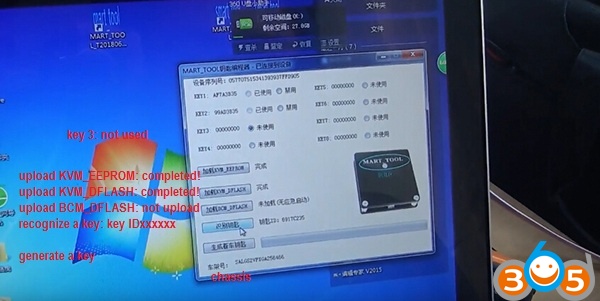

and recognize the key, generate a dealer key

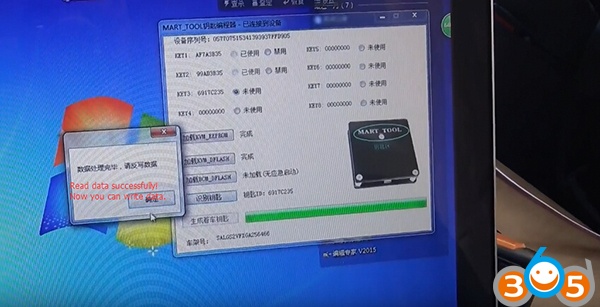

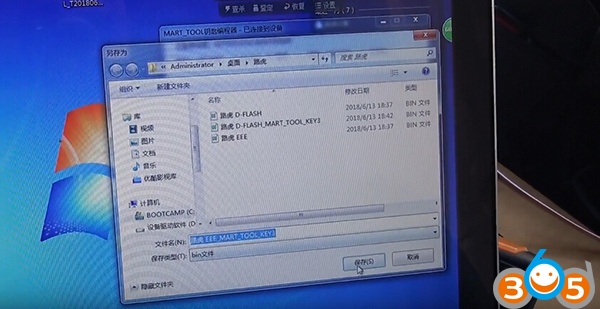

then save key data

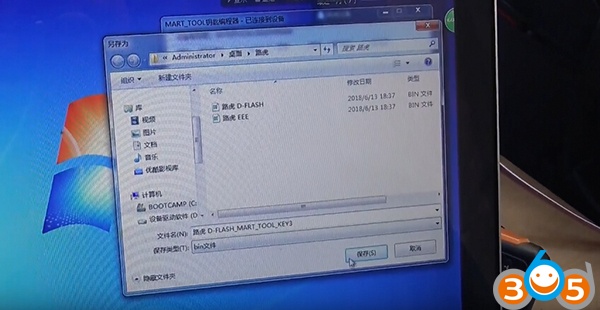

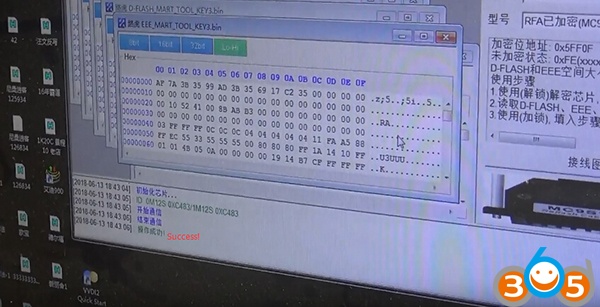

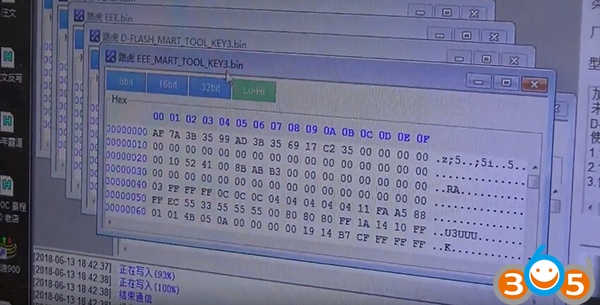

Mart tool generated new key file: Land rover D-FLASH_MART_TOOL_KEY3 and Land rover EEE_MART_TOOL_KEY3

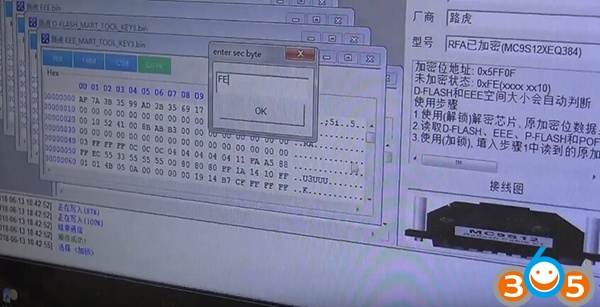

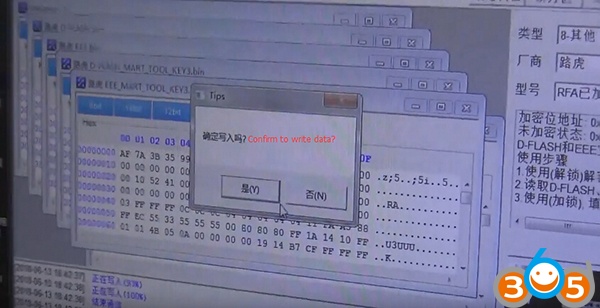

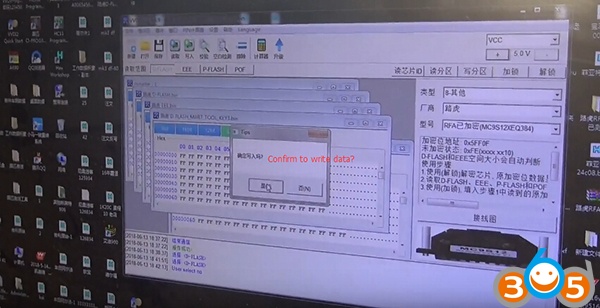

Step 4: write key data back to KVM with vvdi prog (sec key: FE)

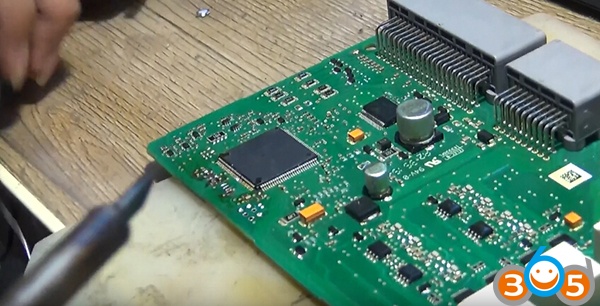

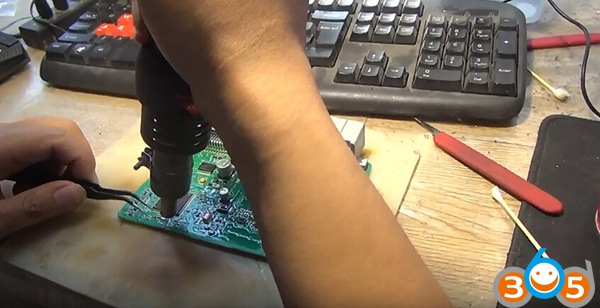

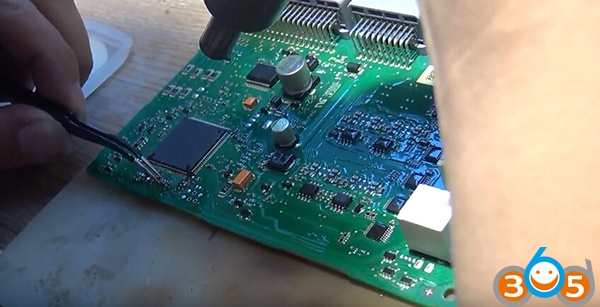

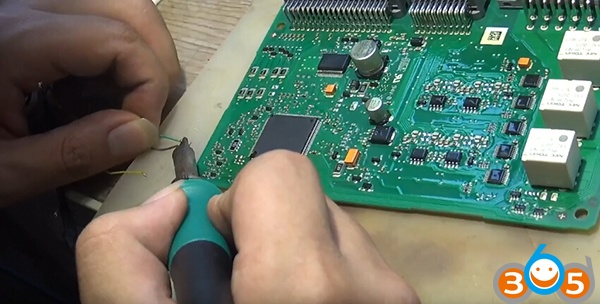

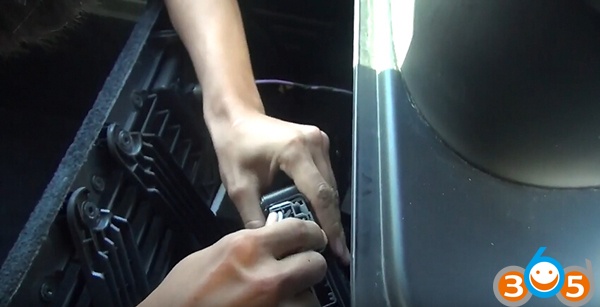

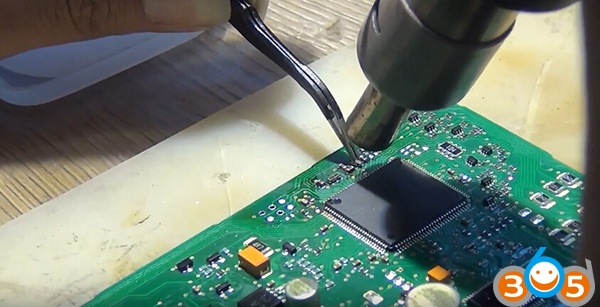

Step 5:  Desolder and Reinstall KVM

and solder the component as the original, then install KVM

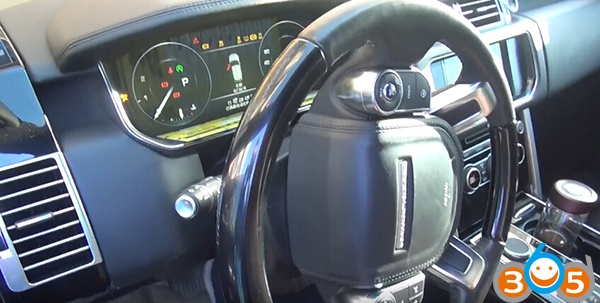

Step 6: test the new key programmed by MART TOOL

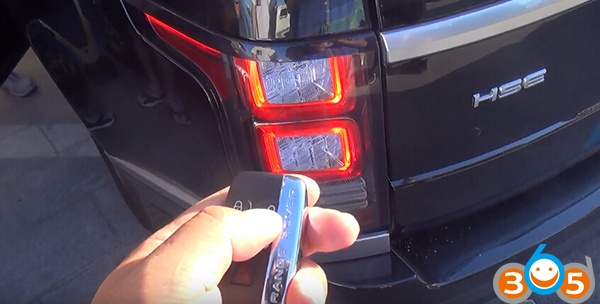

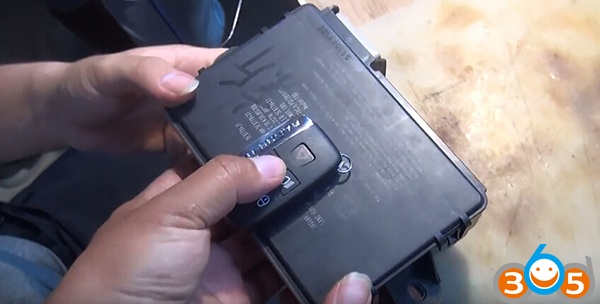

The new key works like a charm!

Job’s done!





MART TOOL:

Mart tool is designed to add new keys and program new keys when all keys lost for Land rover and Jaguar KVM keys with Number FK72 HPLA.

Firstly You need to use other devices to read out the D-Flash and EEE data in the KVM, then use Mart tool to generate new key and data, finally write back to KVM.

Supports 2015-2018 new Land Rover Freelander.
