OBDSTAR X300 DP PAD2 vs. X300 DP, What’s New



Why OBDSTAR X300 DP PLUS  (X300 DP Pad2) prices so high? Here we’ll explain you all.



First of all, let’s see a table comparison between 2nd generation and 1st generation X300 DP/Key Master DP:

S/N Features & Functions Obdstar X300  DP Plus Obdstar X300  DP

  Hardware & Design
1 Screen size and industrial design Better (8″) Good
2 Back holder ×
3 Work separately without VCI(no battery/disconnection issue) ×
4 Charged by OBDII ×
5 4 Toyota emulators ×
6 P001 programmer ×
7 Wiring harness for new functions, such as ECU cloning and switch activation ×
Software/Update
1 Immobilizer
2 Mileage
3 EEPROM
4 ECU Clone ×
5 Switch activation function ×
6 “Help” function – covers built-in support car list, upgrade announcement,help  notes and wiring diagrams ×
7 No need pay for software update for FREE during the valid time (one year) ×

Then come into detail of OBDSTAR X300 DP PLUS:

There are a lot of new things in Obdstar X300 DP Plus, compared with X300 DP.

Here, I will list something important except hardware improvement.

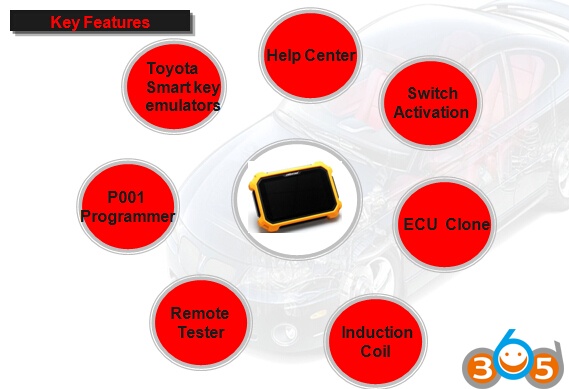

Obdstar X300 DP Plus new features… Here you go.



1: Toyota emulator card

2: 3-in-1 adapter: P001 adapter

3: Remote frequency tester

4: Induction Coil

5: ECU Programming/Cloning

6: Switch activation function

7: “Help” center



In detail…

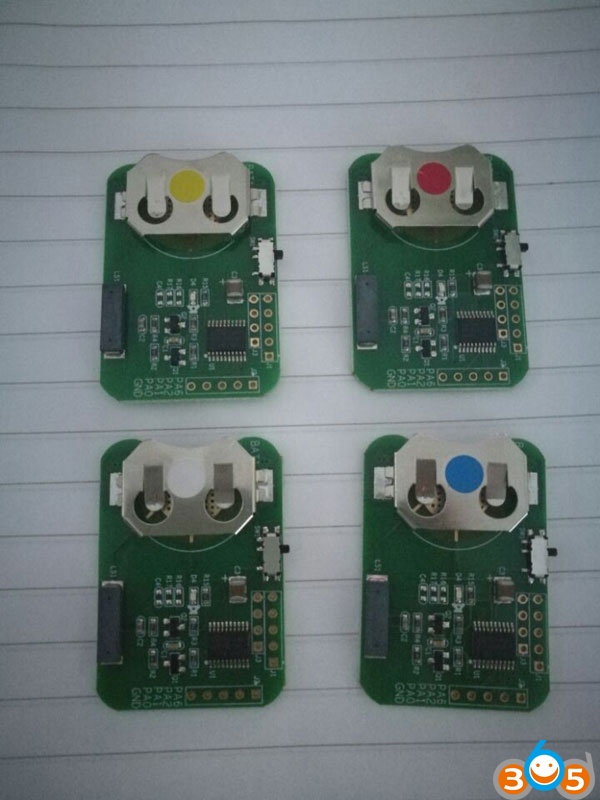

New feature 1: Toyota emulator card:


The four emulators here are used to program new keys to Toyota when all keys are lost.

– Why do you use a Toyota simulated smart key?

It will help save a lot when all keys are lost for the Toyota/Lexus 2007-2016 models, coz the instrument table must be removed and the ECU must be replaced.

This Toyota simulated smart key is used to add a new Toyota key so that the ignition switch can be turned on, and then a new smart key can be added and programmed with X300 DP PLUS.



– How many types of Toyota simulated smart keys in total?

There are 4 types at present, and the 5th one is in development.



– Which type of smart keys can be simulated?

Here are emulators:

Used for 94/D4 smart cards

Used for 98 smart cards

Used for 88/A8 smart cards

Used for A9 smart cards

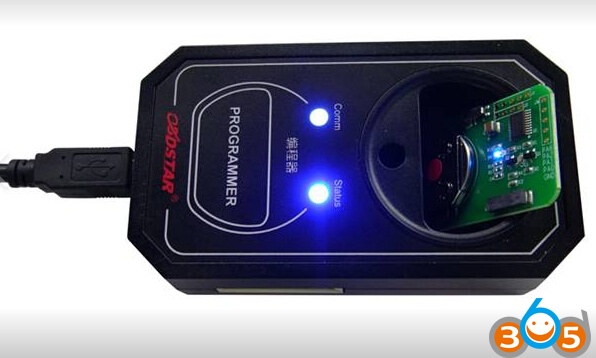

New feature 2: 3-in-1 adapter: P001 programmer



If you buy this obdstar x300 dp plus, it is no necessary to buy obdstar P001 programmer. It is included in the package.

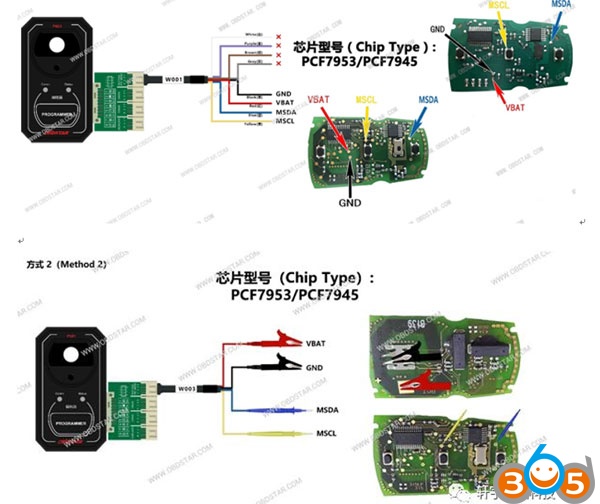

X300 PAD2 P001 programmer covers: EEPROM /PIC 2-in-1 adapter, RFID adapter (VW Audi 4th / 5th IMMO programming and other cars e.g Porsche, BMW, Fiat etc.) and Renew Key PCF79XX adapter.

And it uses dual coils with stronger signal, supporting a wider range of RFID.  It’s required in recent model upgrades, as follow:



  • Ferrari 458/F12/F149;
  • Maserati mechanical key;
  • Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo, etc.
  • Iveco;
  • Alfa Romeo;
  • Volkswagen MQB;
  • Toyota 5 simulated cards;
  • BMW;
  • Porsche;



New feature 3: Remote frequency tester:

It can test remote frequency incl.

300Mhz-320Mhz

300Mhz-320Mhz

300Mhz-320Mhz

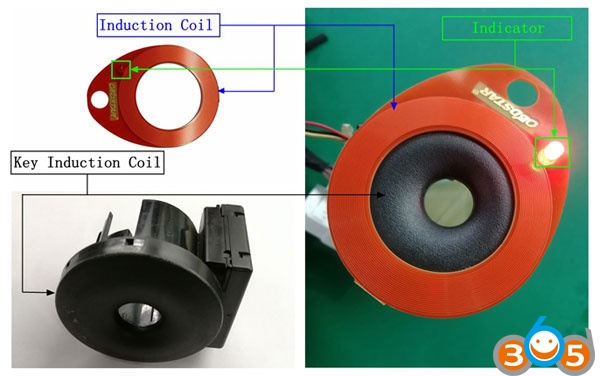

New feature 4: Induction Coil:

It’s used to detect the key induction coil failure of the vehicle.

Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.

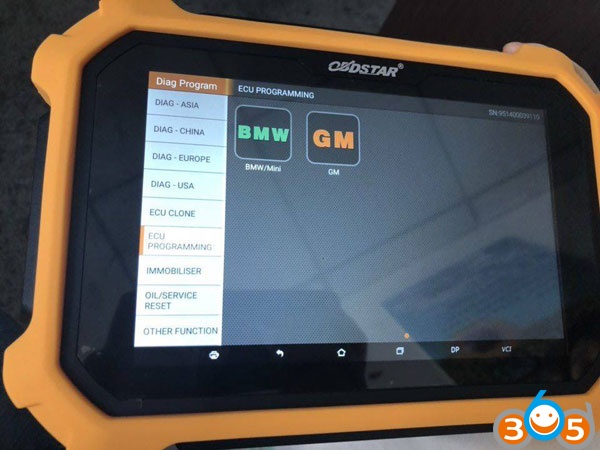

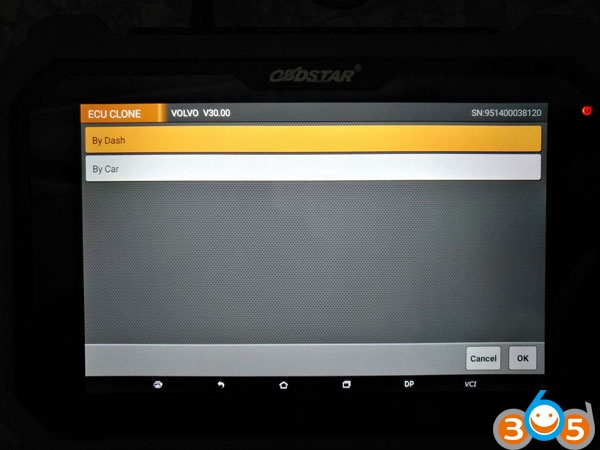

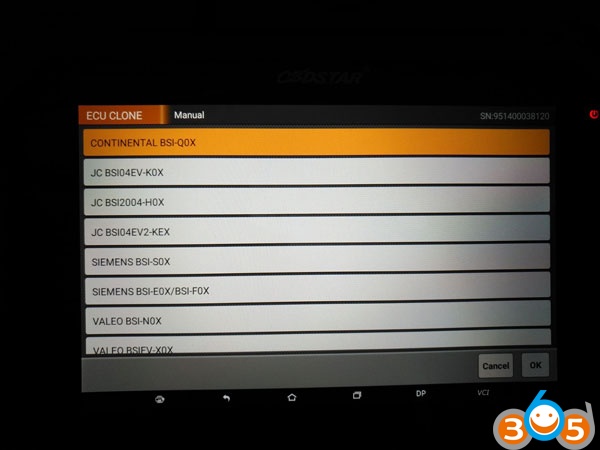

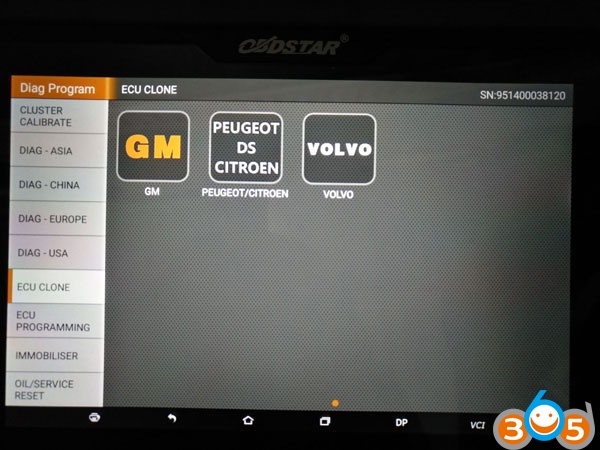

New feature 5: ECU Programming/Cloning  :

ECU cloning means copy ECU, that is the OBDSTAR X300 DP Plus copies the data from the original car ECU, then write it into another same ECU hardware, so that it can achieve the same function as the original ECU.

When you want to change the new ECU or the second ECU, if you use X300 DP Plus to clone via OBD, you won’t need to go to the 4s store to do the online programming or dismantle ECU to weld, read & write.



Note: Why you need clone ECU yourself :

– Free of 4S online: break monopoly from 4S, benefiting automobile maintenance industry

– Simplified operation procedures: realize foolproof operation

– Non-dismantling with zero risks: read and write data without dismantling ECU

More and more ECUs will be added.

New feature 6: Switch activation function:

Nowadays, many car models’ accessory power supply of the dashboard or audio equipment needs to be activated to enter the boot status through the related module CAN.


However, when the car technician maintains the dashboard / audio equipment, the main unit is out of the CANBUS network so it maybe won’t boot. X300 DP Plus ” switch activation function” can emulate the CANBUS communication to active the power supply of dashboard / Audio so that it can enter the boot status, then it will test and verify the dashboard and the Audio, also the technician can save money avoiding to purchase many the boot platform and cables of kinds of car models.

New feature 7: “Help” function:

It has the testable car models, update notice, special features, help instruction, wiring diagram etc.

Testable car models: The user can read the testable car models and year.

Update notice: The user can read all of the update content.

Features: The user can read all of the special features and the functions that only X300 DP Plus supports.

Help instruction: Built-in the guide and instruction for each car model or function.

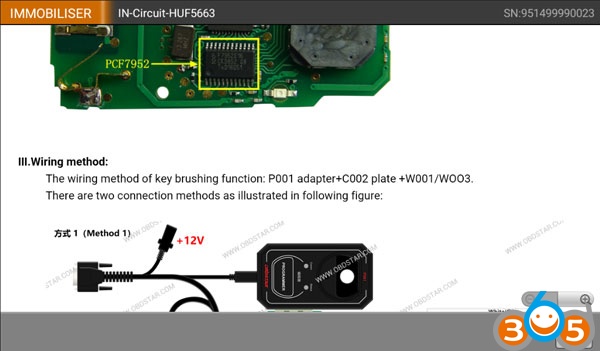

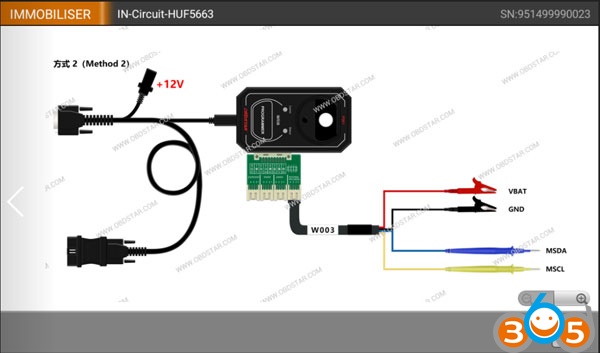

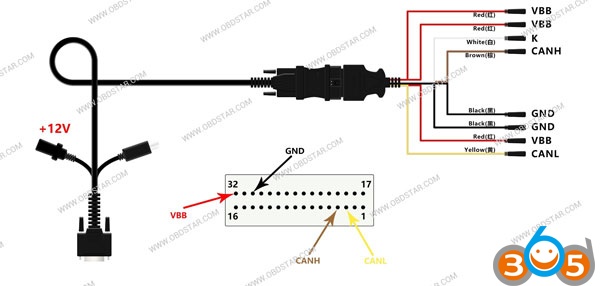

Wiring diagram: Built-in ECU wiring diagram, more intuitive and convenient.

Tech support from
