Smart 454 Key Tech-in Key Programming with Super MB Star C3



The new released 2018.09 Super MB Star software adds lots of special functions, including  Password Free & OFFLINE key teach-in program transponder key on Smart SAM451 & ETACS454 2016-12 UP.



Note: Only Super MB Star software 2018.09 up  & Super MB Star C3 multiplexer will do. Normal 2018.09 mb star software does not have this feature.




Example: Smart 454 key programming


Development data: Diagnosis to plant specifications

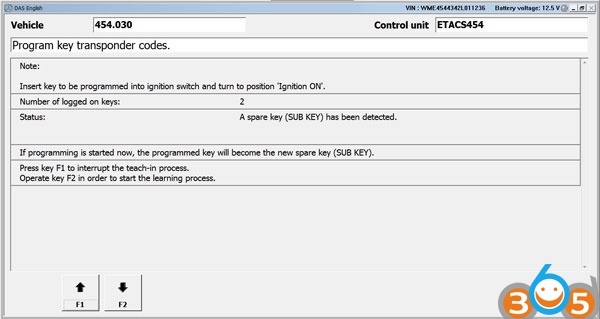

Program key transponder codes
Insert key to be programmed into ignition switch and turn to ON position
Number of logged on keys: 2
Status:
A spare key (SUB) kley has been detected.
If programming is started now, the programmed key will become the new spare key (SUB key)
Press key F1 to interrupt the tech-in process.
Press key F2 in order to start the learning process.

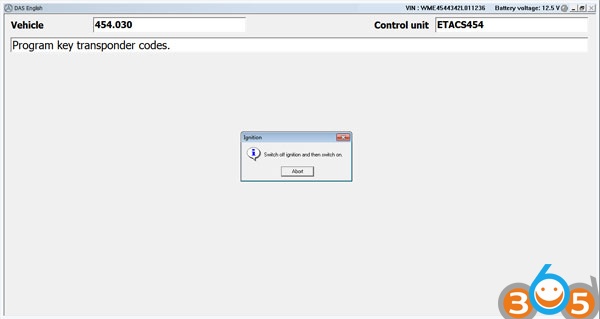

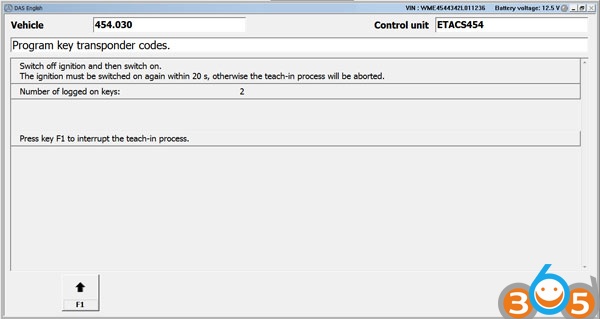

Switch off ignition and then switch on.
Press key F1 to interrupt the tech-in process

The ignition must be switched on again within 20s, otherwise the teach-in process will be aborted.

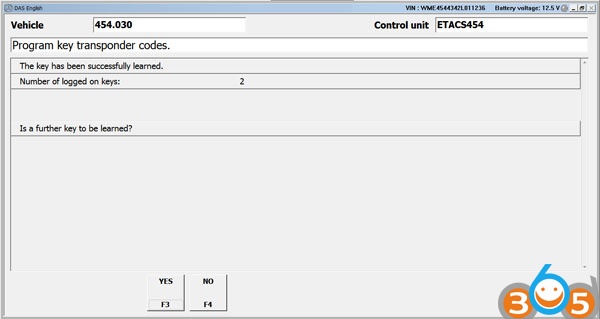

The key has been successfully learned.

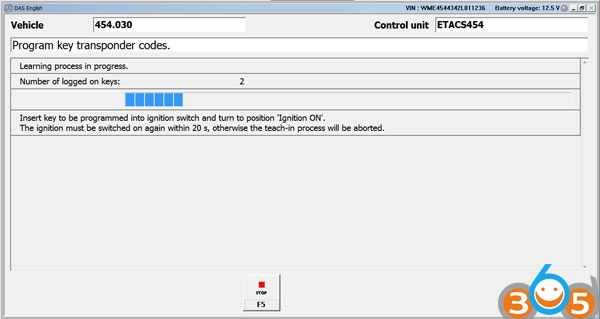

Insert key to be programmed into ignition switch and turn to ON position
The ignition must be switched on again within 20s, otherwise the teach-in process will be aborted.

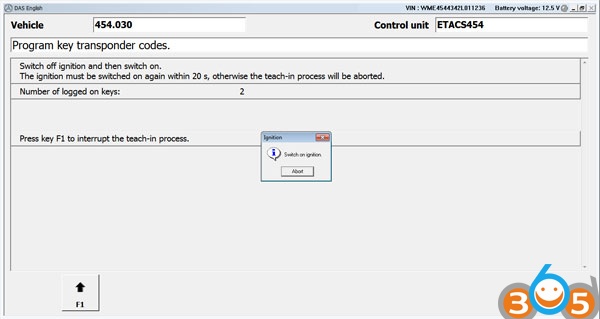

Switch off ignition and then switch on.

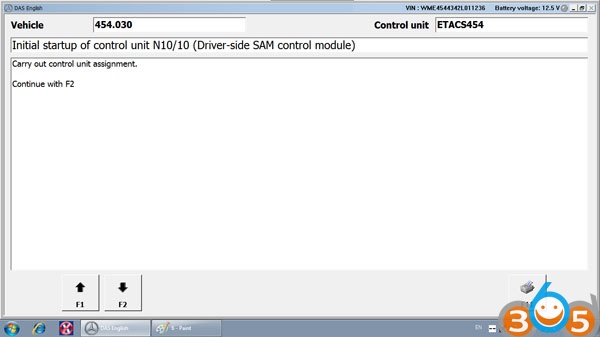

Carry out control unit assignment

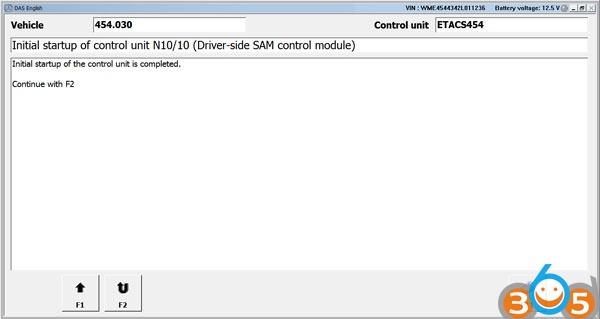

Initial startup of the control unit is completed



FLY:

What’s new in 2018.09 Super MB Star and what’s the different between new super mb star and normal mb star software?

Please check detail guide here:
