Program Chevrolet Equinox 2010 Blade Key with Auro OtoSys IM600



How to add blade key to Chevrolet Equinox 2010 using Auro OtoSys IM100/IM600 tablet key programmer.

Easy steps goes below:

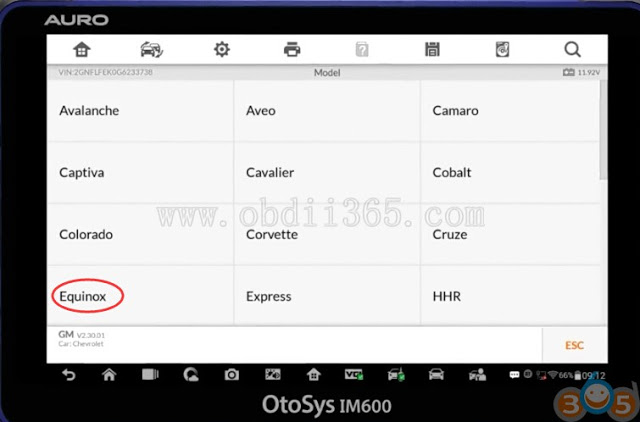

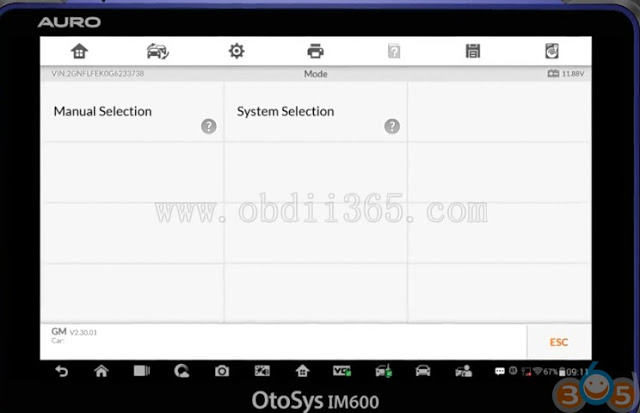

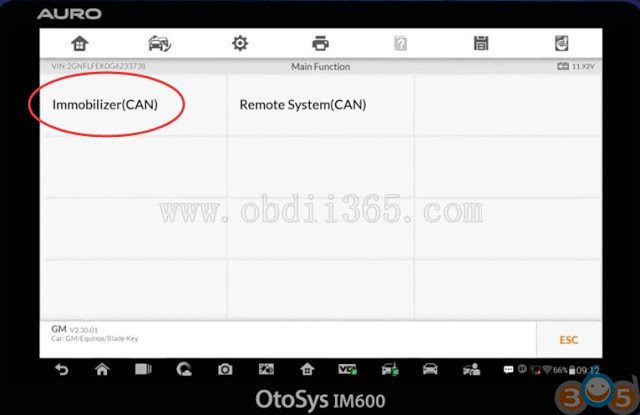

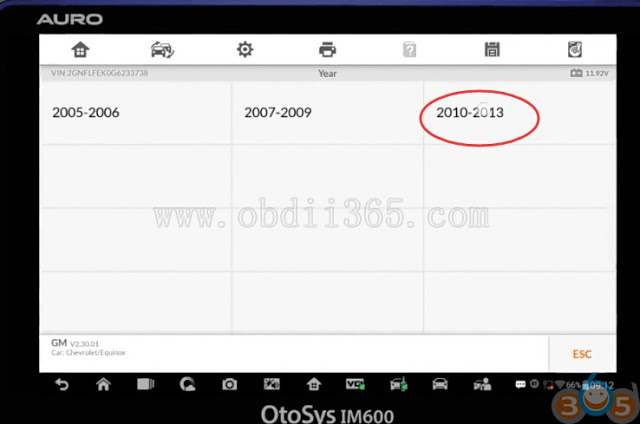

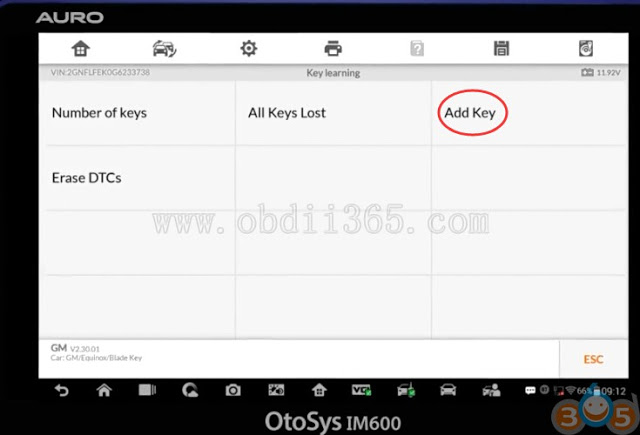

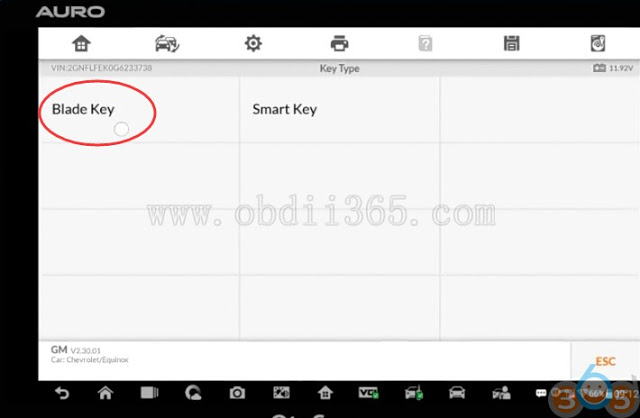

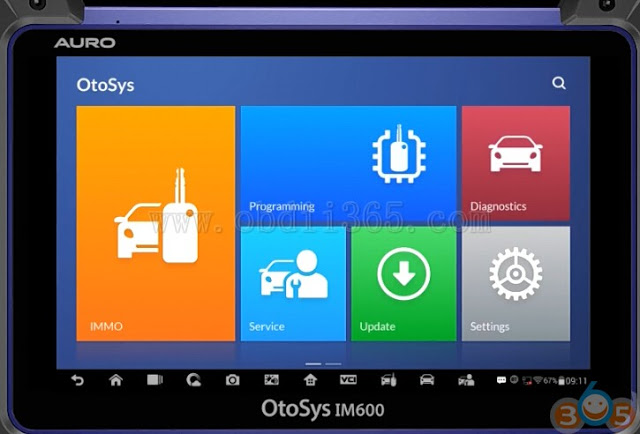

Select Immo function->Auto Detect->Manual selection-> Chevrolet->Equinox->2010-2013->Blade key->Immobilizer (CAN)->Add key
















Close all doors and turn on ignition

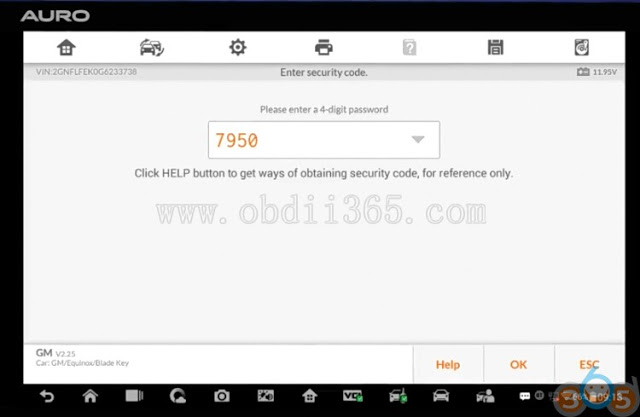

OtoSys IM100 will require enter 4-digit security pin code to access and confirm

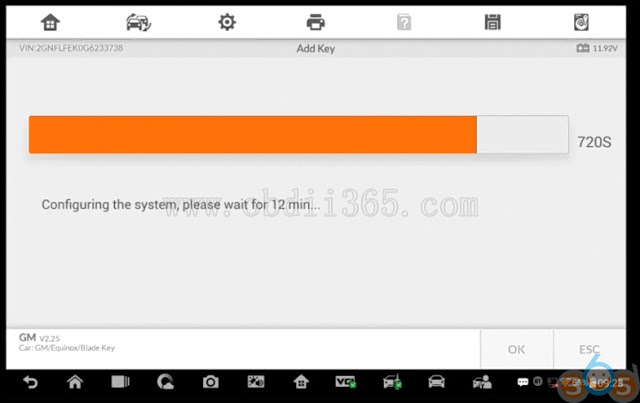

Configuring the system, wait for 12 minutes




Turn ignition off and remove the key

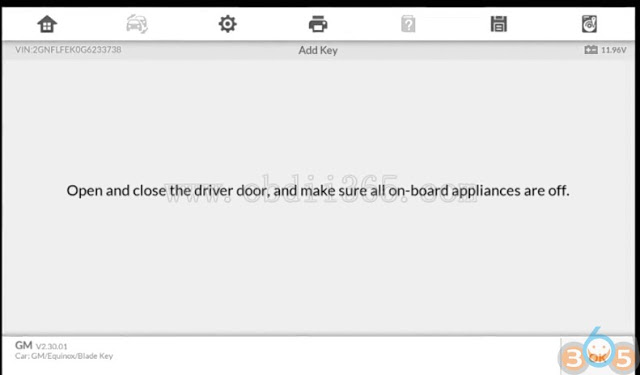

Open and close the driver door and make sure all on-board appliances are off

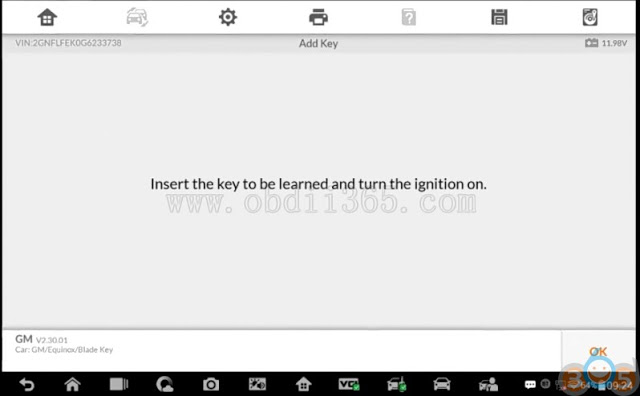

Insert key to be learned and turn on ignition

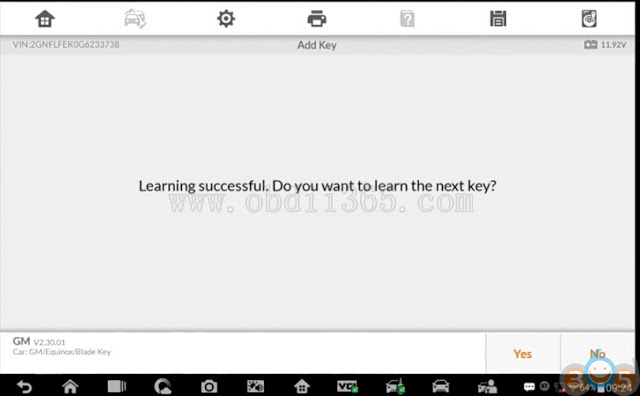

Learning successful. Repeat steps above to learn more keys.
Turn ignition off and remove the key
Open and close the driver door and make sure all on-board appliances are off
Configuring the system, wait for 45s
Turn on ignition
Turn ignition off. Then turn it on 5s later.

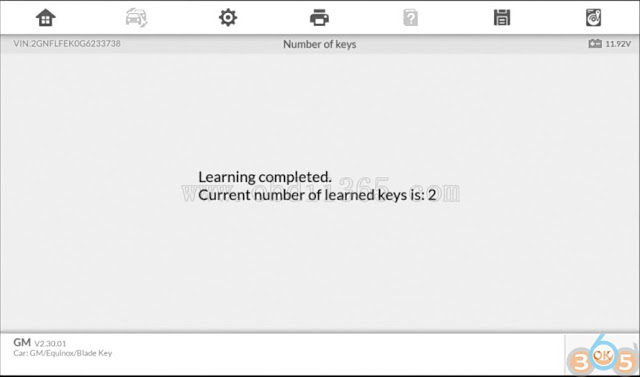

Key Learning completed.
Current number of learned keys: 2
