Program VW Caravelle 2010 Remote Key with VVDI Key Tool & OBDSTAR X300 DP Plus
How to: Generate remote and program remote on a VW Caravelle 2010 with VVDI Key Tool and OBDSTAR X300 DP Plus/Key master dp plus.
Device used:
Original remote key
Xhorse vvdi key tool to generate remote
OBDSTAR X300 DP plus to program remote
new remote key 2-button

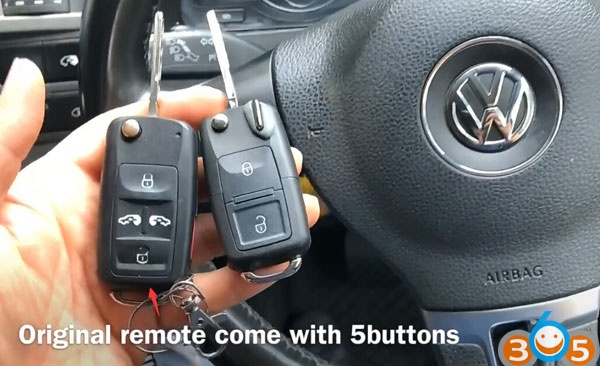

Original remote comes with 5 buttons
The new remote here only 2 buttons to be generated
Step 1: Generate Remote with VVDI Key Tool

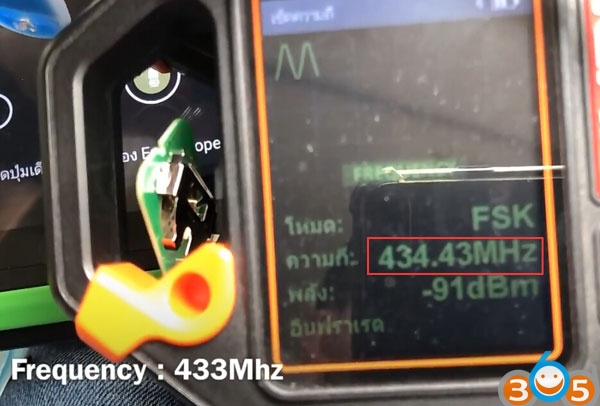

First test the original remote frequency: 433MHz

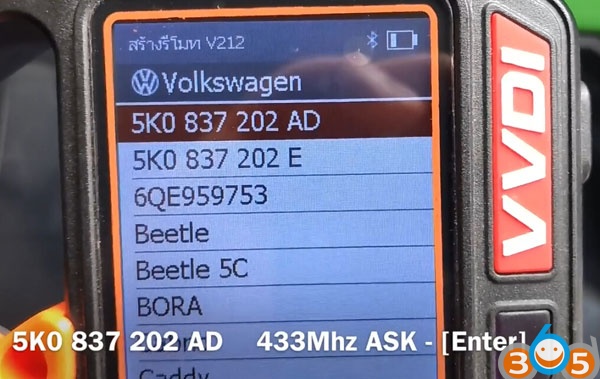

In VVDI keytool, select Remote/Smart Program->Europe->Volkswagen->5K0 837 202 AD 433MHz ASK

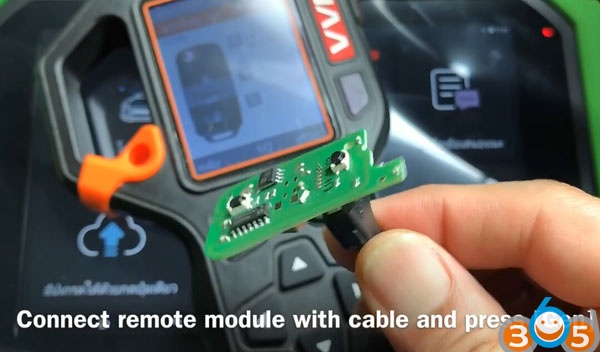

Connect remote module with cable and press GEN button

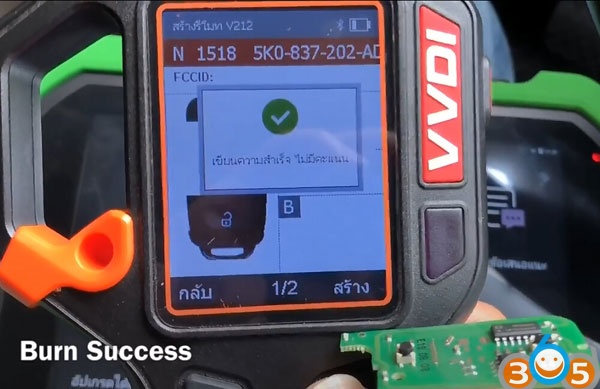

Burn success. Generate remote succeed.

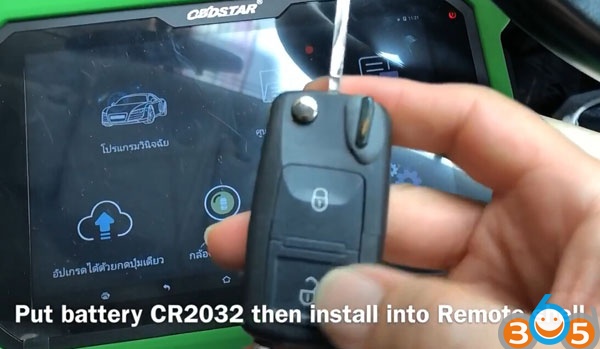

Put battery CR2032 then install into remote shell.
Step 2: Program remote with OBDSTAR X300 DP Plus
Turn on ignition switch with original key

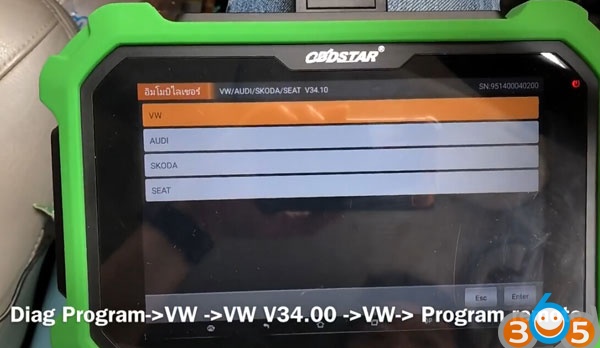

In X300 DP plus, select Diag Program->VW->VW V34.00->VW->Program remote

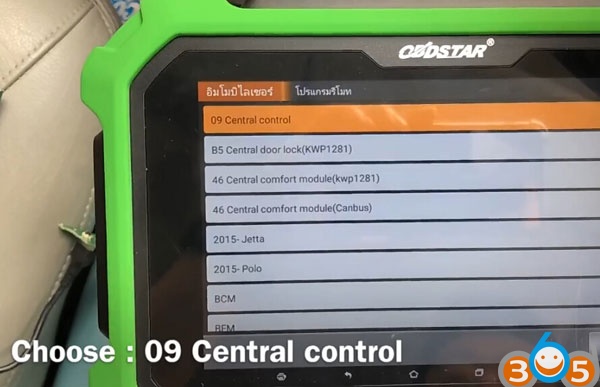

Choose 09-Central Control->Program remote

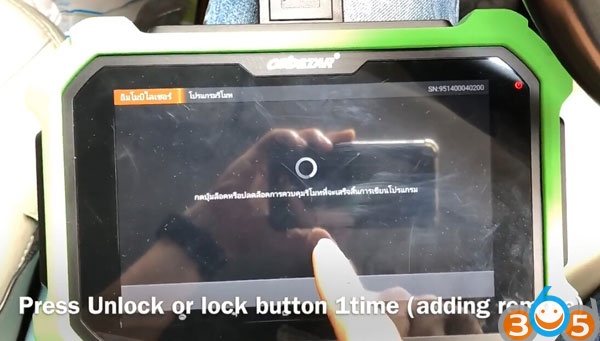

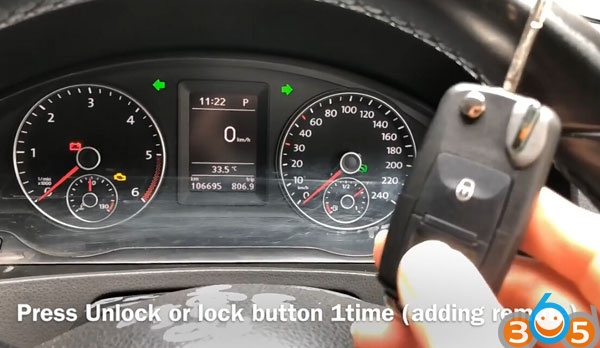

Press UNLOCK or LOCK button 1 time to add remote
Program success.

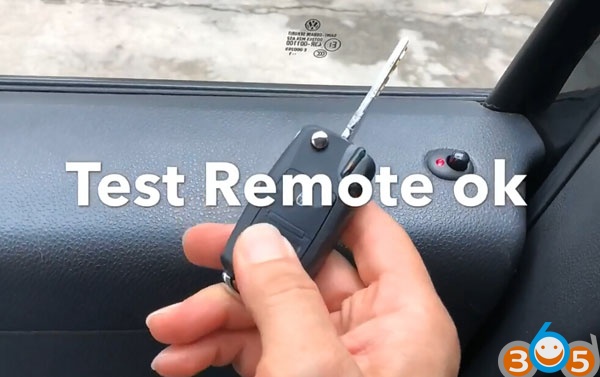

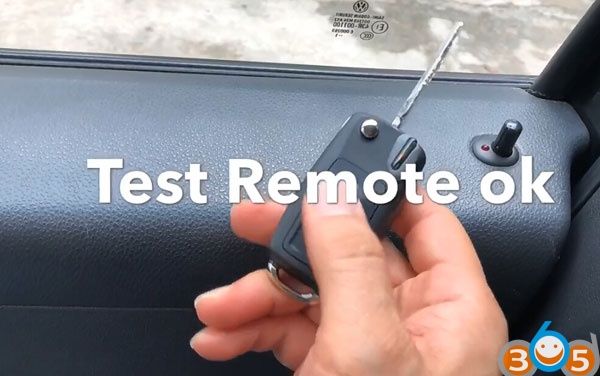

Test the remote
Done.
