How to Program 2016 Land Rover Discovery Sport Key with SDD VCI

So far, in 2015 and 2016 Land Rover, safer method to make a new key is to remove the RFA smart computer to refresh the data, and then use the original JLR device to program the key.

Here’s the example using SDD VCI:

Step 1.  Read RFA data

initialize the RFA smart computer

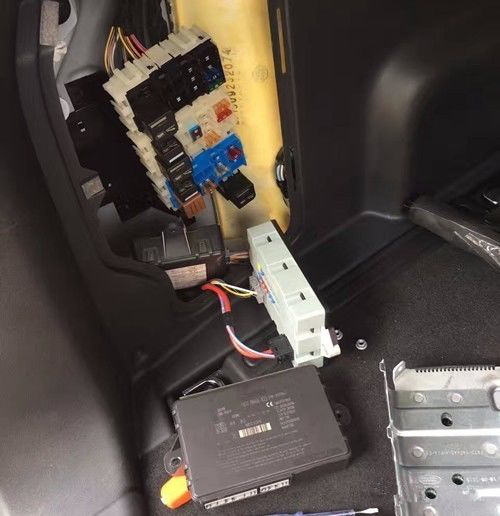

Left rear in the car, open the instrument, see the fuse box, remove the fuse box to see the RAF smart computer.


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI

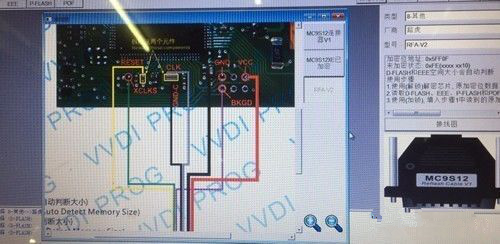

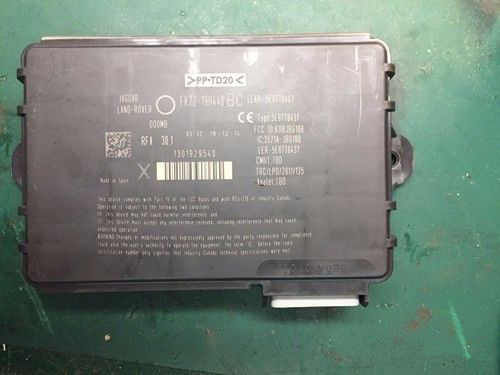

Open the RFA smart computer, using VVDI Prog programmer, wire read data. Read out the original car data EEprom, P-FLASH, D-FLASH, backup is good.


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI

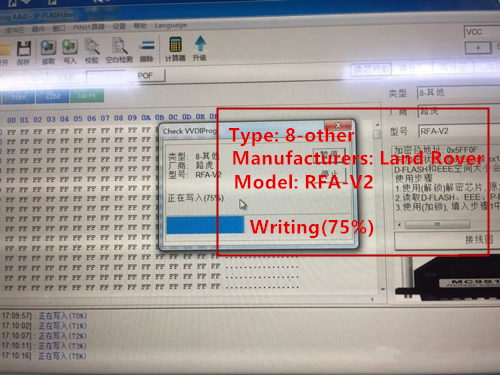

Then brush into a new set of data, EEprom, P-FLASH, D-FLAS data, please contact us you want this set of data .


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI

Brush the data, everything back to the original loading.

Step 2. Key programming/learning

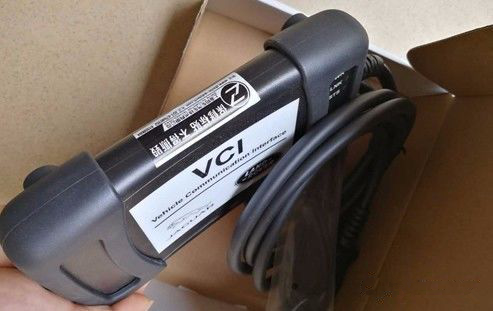

Connect JLR VCI interface (JLR VCI, JLR SDD2, JLR DoIP VCI, VXDIAG JLR) with the vehicle via OBD.


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI

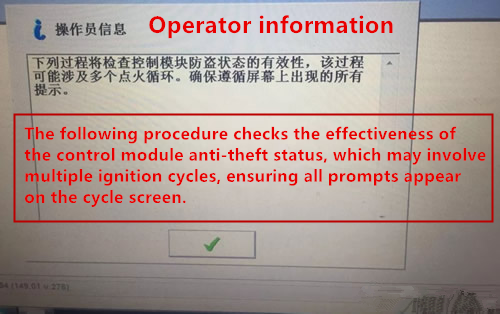

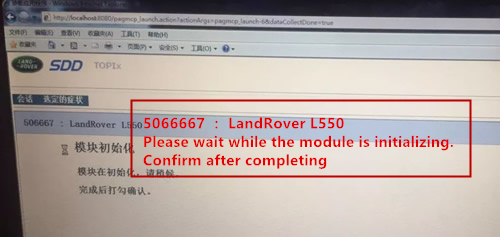

Go to the keyless vehicle module, the device will prompt to download the file, initialize the module, according to the device prompts.


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI

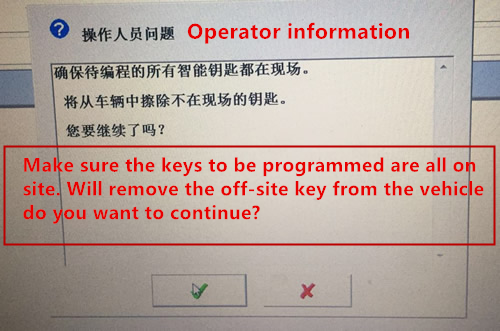

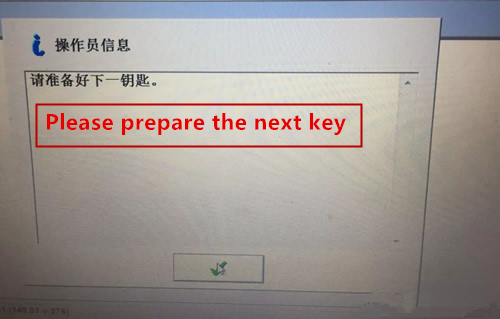

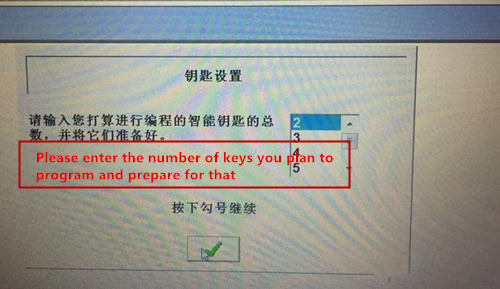

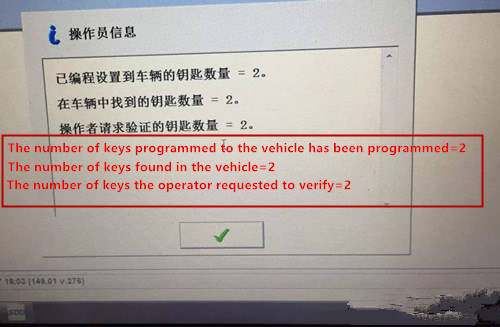

Select the number of keys, and then press the smart card button, the vehicle horn will ring twice, the representative has successfully learned


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI


			How to Program 2016 Land Rover Discovery Sport Key with SDD VCI

Note:  The above method can only add a key.
