How to clone Kawasaki Z800 Motorbike 4D6A key with Keydiy KD-X2?

How-to: Kawasaki Z800 Motorcycle key cloning using Keydiy KD-X2 key copy machine.

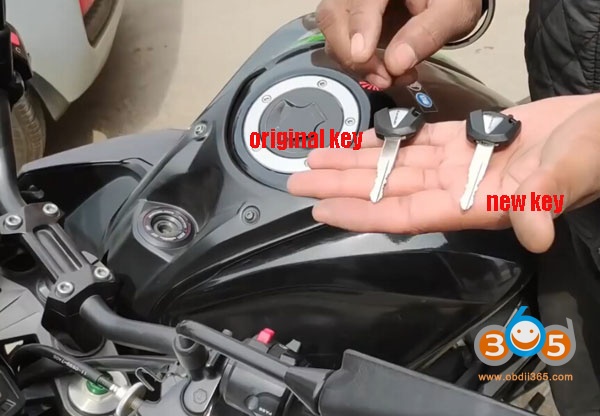

Tools required:

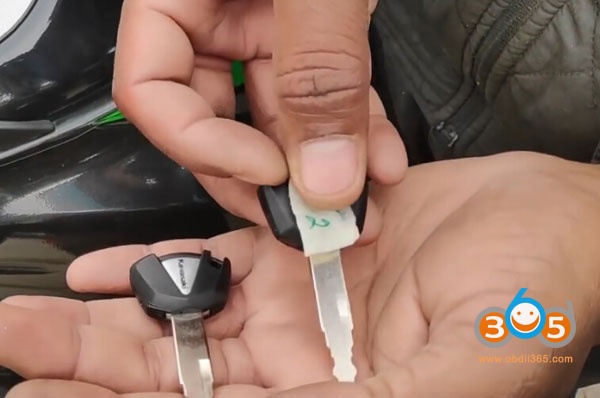

An original key

A new key (or 4D chip and a key blank)

Keydiy KD-X2 key copy machine

Procedure:

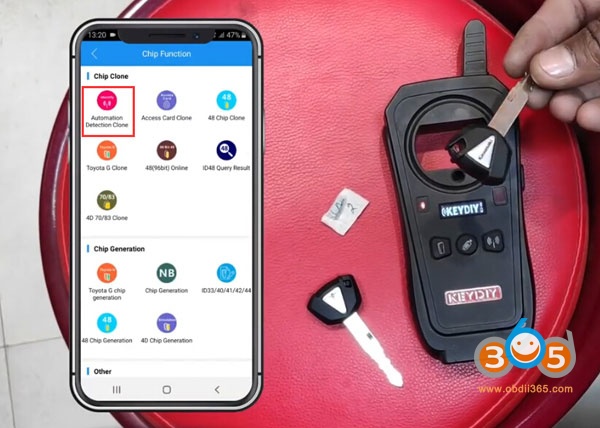

In keydiy app, select Chip Function->Automation detection clone

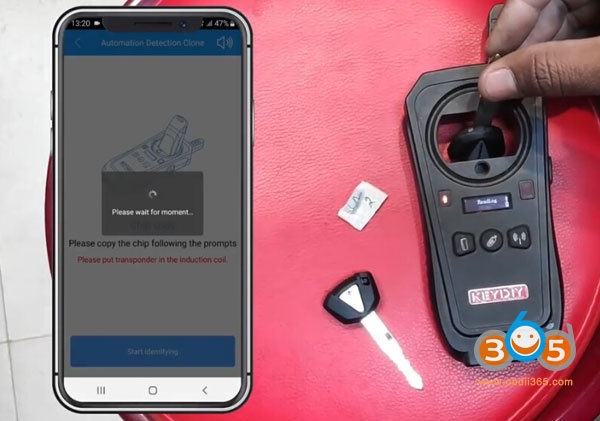

Insert original key into kd x2 detection coil

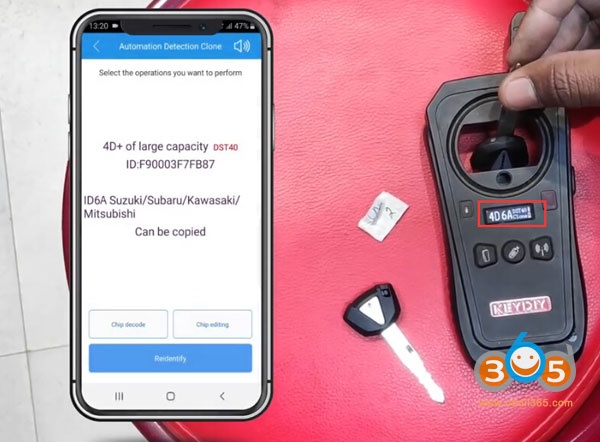

KD-X2 identifies chip type: 4D ID6A DST40

Select Chip Decode

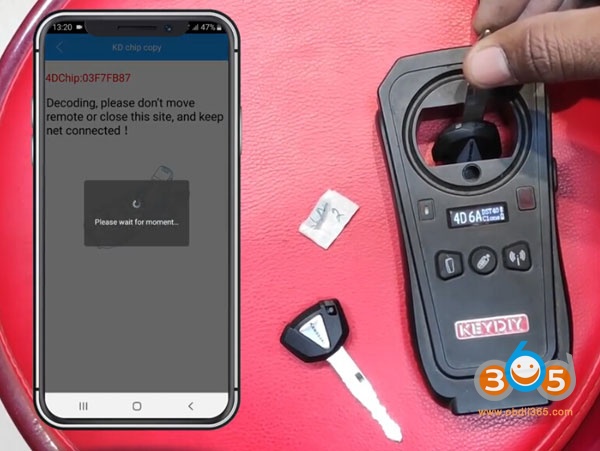

Decoding, don’t remove remote or close the app.  Internet connection should be enabled during decoding progress.

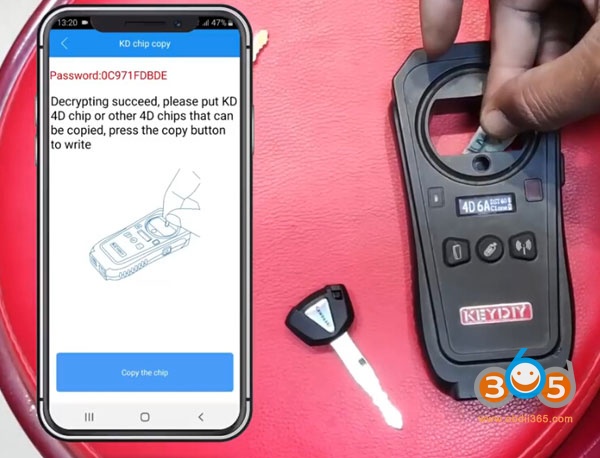

Decrypting succeed. Put KD 4D chip or other common 4D chip into detetcion coil, press Copy the chip to write.

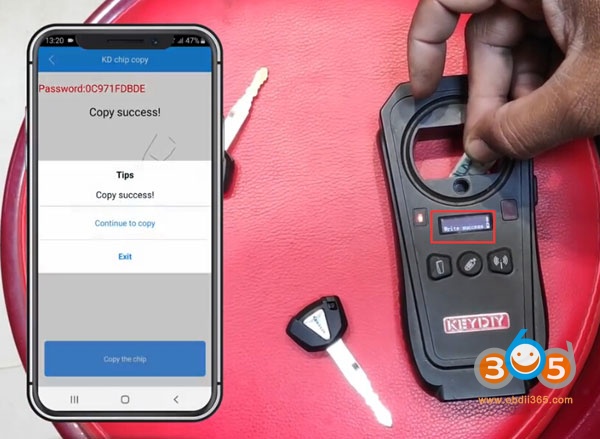

Copy success.

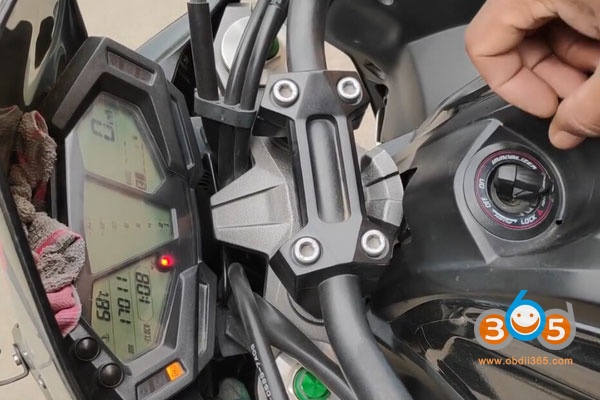

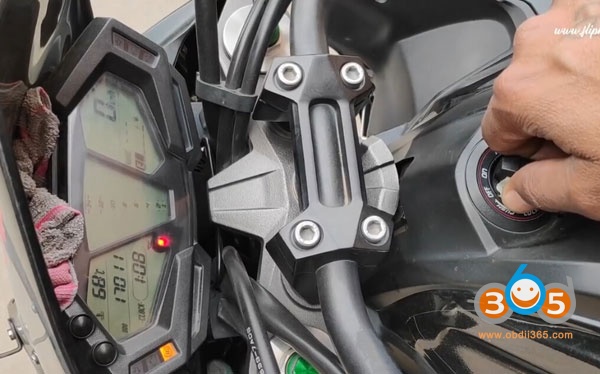

Both keys worked.

Install 4D chip cloned into the new key.

Done.
