Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

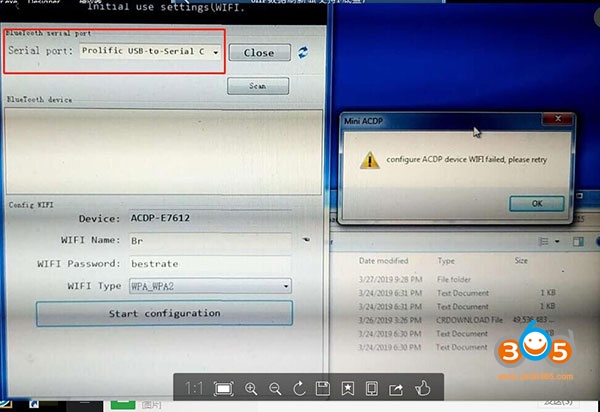

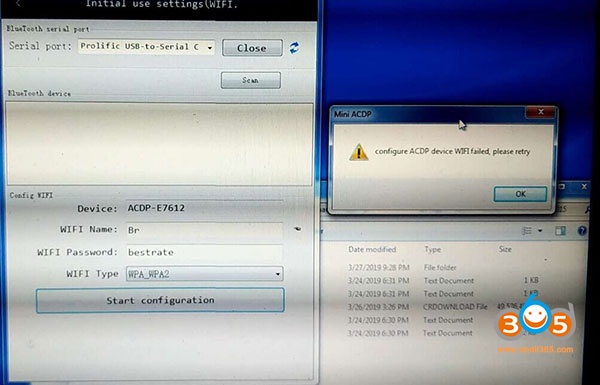

This is obdii365 tech support for Yanhua Mini ACDP with the following error message when connected to the mobile:

Configure ACDP device WIFI failed. Please retry


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

Yanhua ACDP tech support from obdii365.com:

You don’t select the right serial port for your ACDP bluetooth adapter.


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

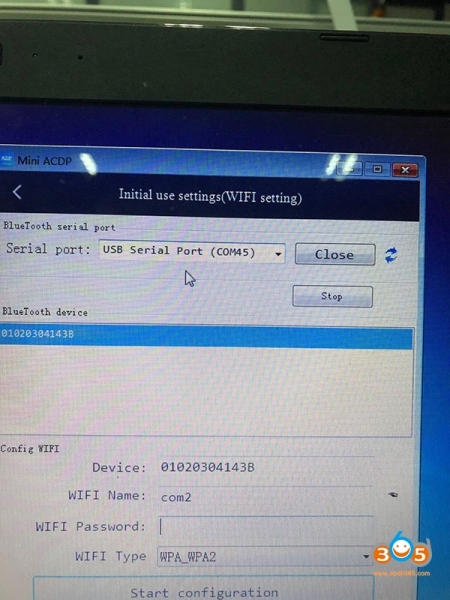

Please select a USB serial port


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

Good to know: ACDP Bluetooth setup instruction

Step 1. Bluetooth adapter connection

Step 2. ACDP initial use setup

Step 3: Device ID binding

in detail…

Step 1. Bluetooth adapter connection

Plug the Bluetooth adapter into the PC USB port ( Make sure the driver is installed) and the PC is connected to WIFI

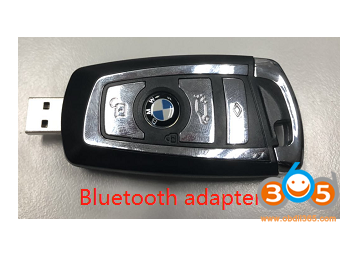

This is the Bluetooth adapter


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

source: http://www.obdii365.com/wholesale/yanhua-mini-acdp-bluetooth-adapter.html



Step 2. ACDP initial use setup

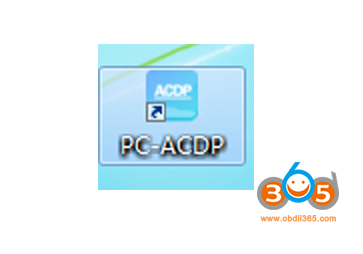

Run ACDP software on the PC desktop


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

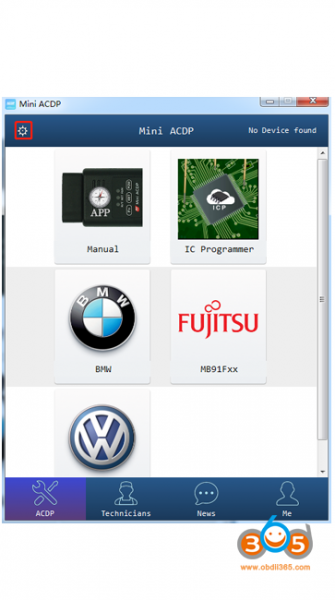

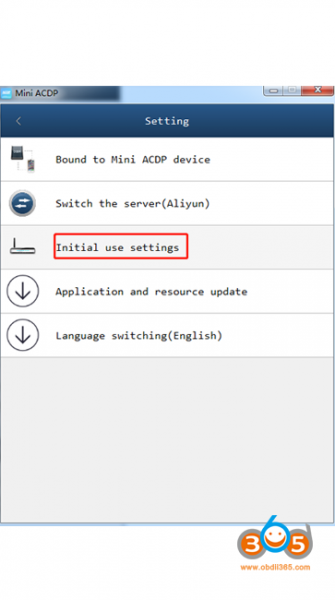

Go to Mini ACDP setting – initial use settings


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

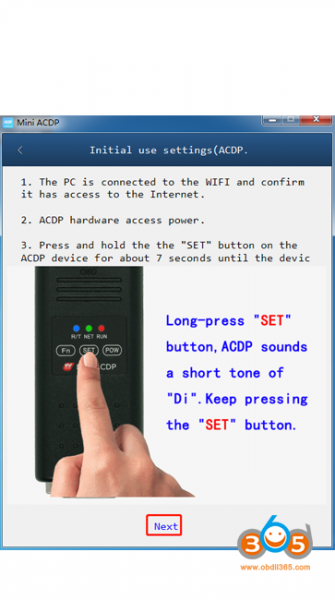

Initial use settings (ACDP)

  1. the pc is connected to the wifi and confirm it has access to the internet
  2. acdp hardware access power adapter
  3. press and hold the “SET” button on the acdp device for about 7 seconds until the device buzzer’s

sounds, then release the “SET” button and click on “Next”


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

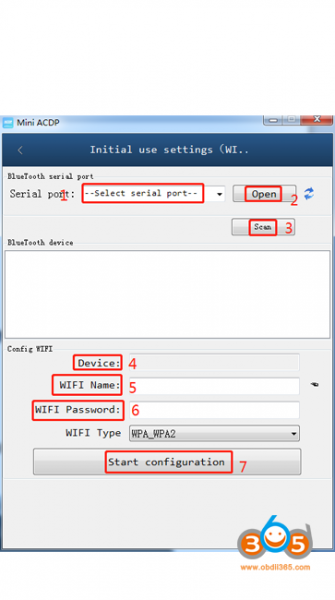

Initial use of settings (WIFI configuration)

If the PC is a laptop with WIFI access function, read [note 1]

If the PC is connected through a WIFI router with wired network, read [note 2]:If the PC with WIFI access function, Connect the PC to WIFI.

If the PC without WIFI access function, Connect the WIFI adapter with the PC USB, Connect the WIFI

and follow the steps below

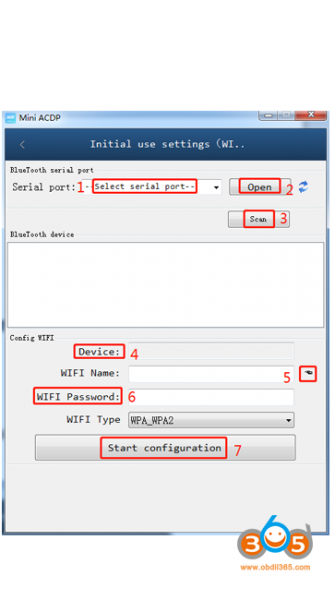

  1. select serial port
  2. open
  3. scan
  4. device
  5. wifi name
  6. wifi password
  7. start configuration


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

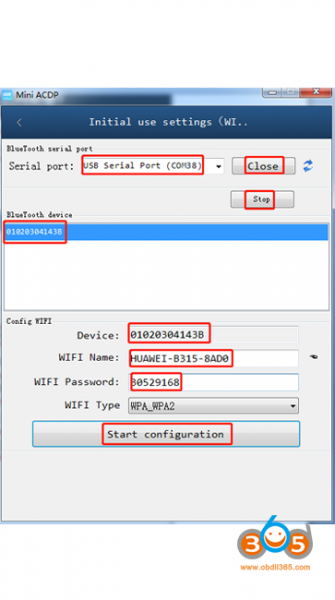

Yanhua ACDP Bluetooth connection success!


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

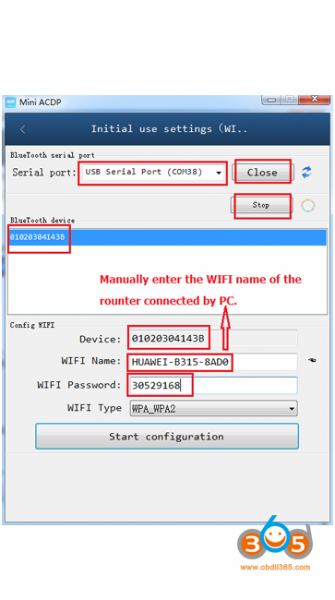

[note 2] If the PC without WIFI access function, the PC is connected through a WIFI router with wired network. Follow the steps shown as below.


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

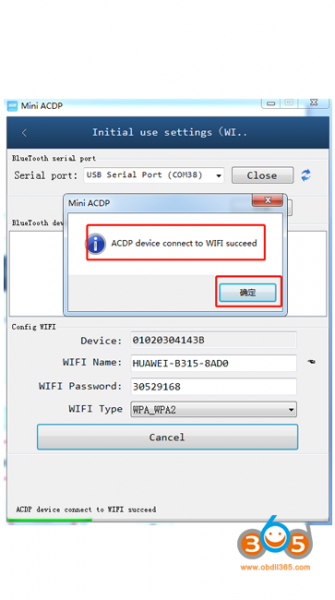

ACDP WIFI connection success!


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

Step 3: Device ID binding

Go to id binding after wifi connection is done


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

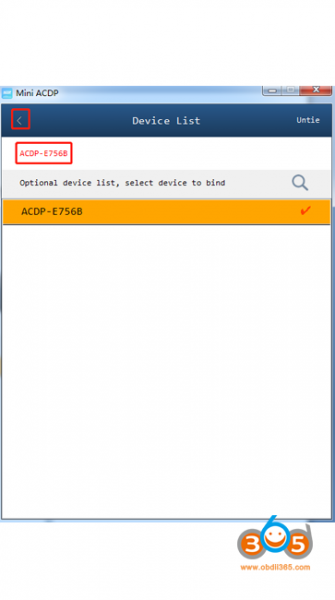

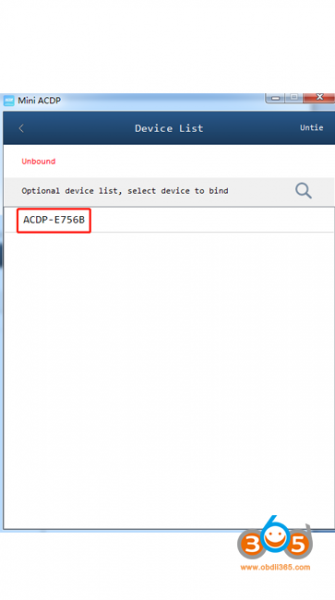

Select device ID to bind


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

Confirm the device id and back


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

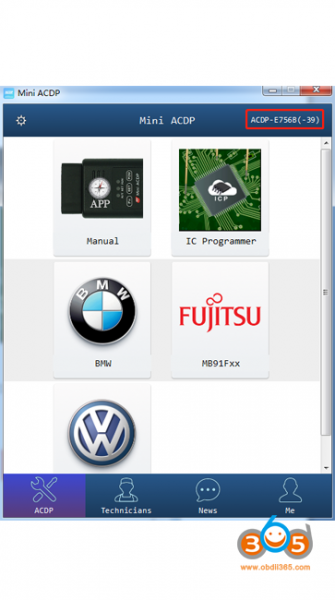

Confirm the device is bound and connected successfully


			Yanhua Mini ACDP “Configure ACDP device WIFI failed” Error Solution

Job’s done!

That’s all about ACDP bluetooth setup.

For more details, pls watch the Youtube video

ACDP tech support: http://www.obdii365.com/producttags/yanhua-acdp.html
