How to Add Land rover KVM XEP100 Key with CG Pro?

CG Pro 9S12 programmer adds Jaguar/Land rover KVM key programming (no need other devices) in previous software upgrade.  Here’s a demo guide on adding a new key to Land rover KVM XEP100.

Step 1: Read KVM data

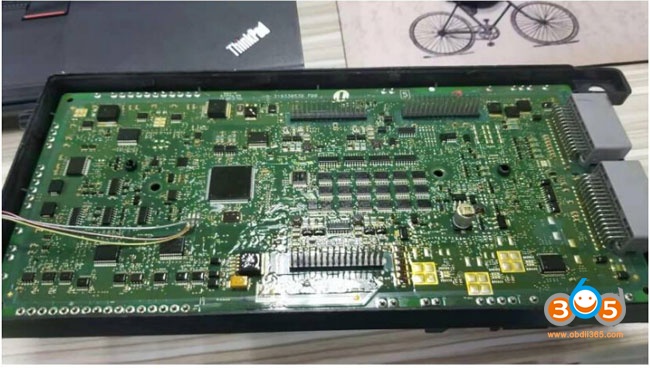

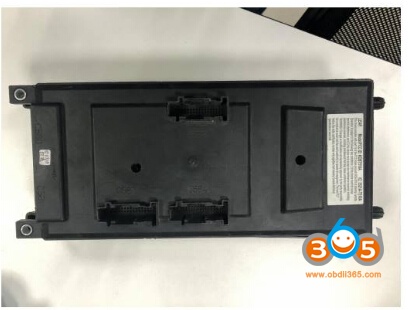

BCM computer

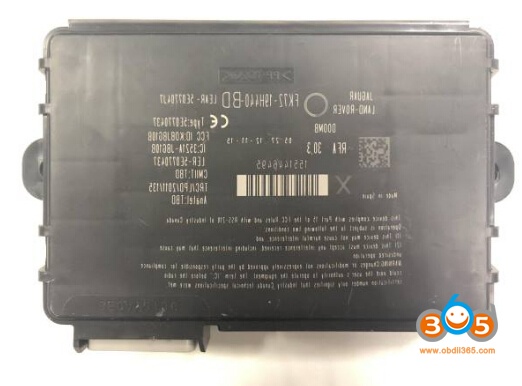

RFA computer XEP100

Remove the BCM and RFA computer from the vehicle

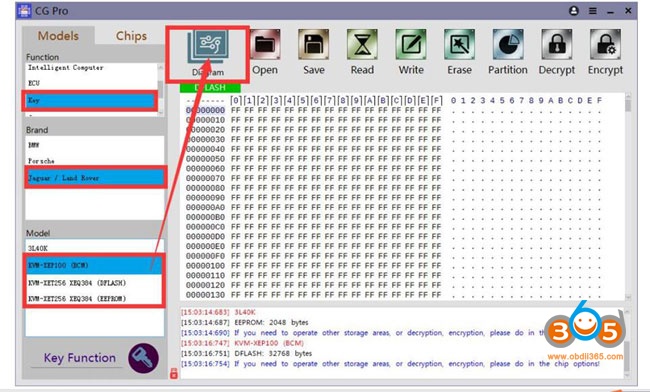

Check the wiring diagram in CG-Pro software

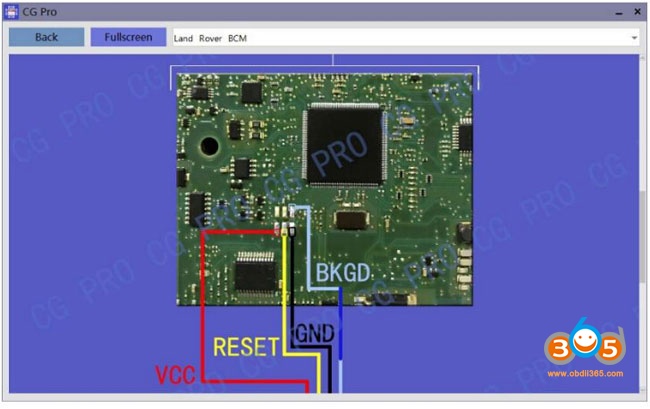

wiring to BCM

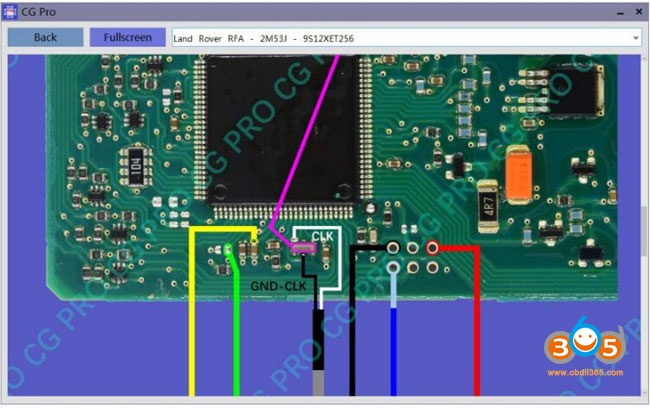

wiring to RFA 2m53j  9S12XET256

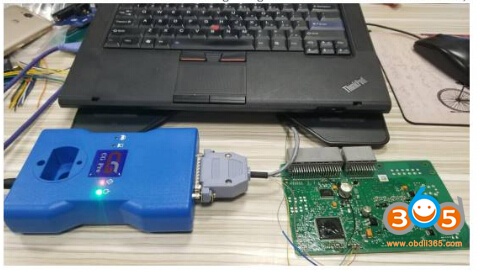

Connect CG Pro programmer following the wiring diagram
Select Key->Jaguar/ Land rover->KVM-KEP100 (BCM) to read BCM data

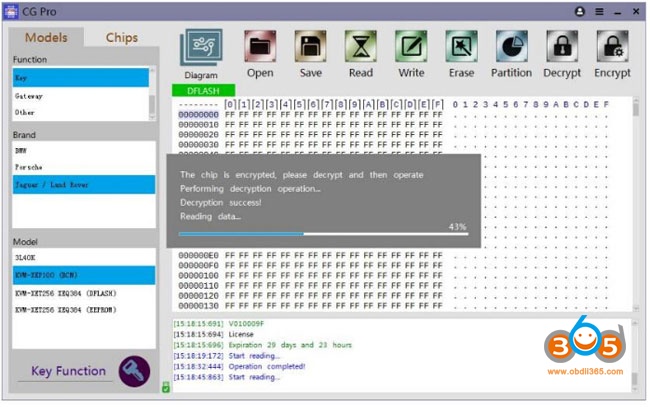

Then read KVM-XET256 DFLASH and EEPROM data one by one

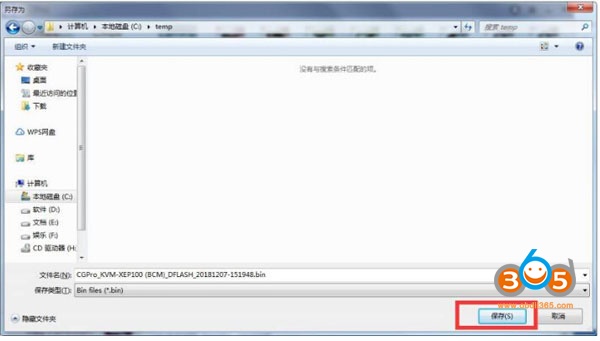

Save BCM, DFLASH and eeprom data
Don’t remove the wiring. We need to write data later after write key.

Step 2: Write Key

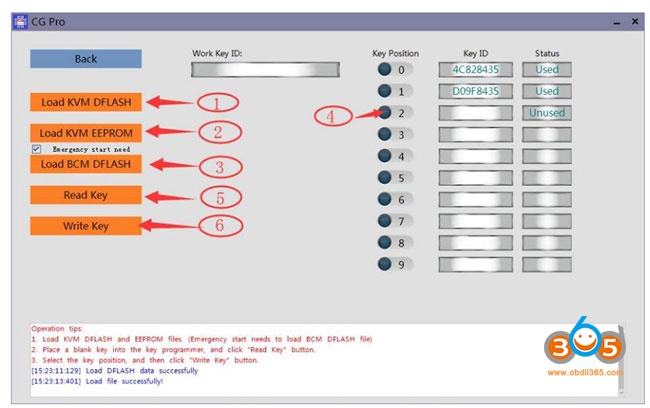

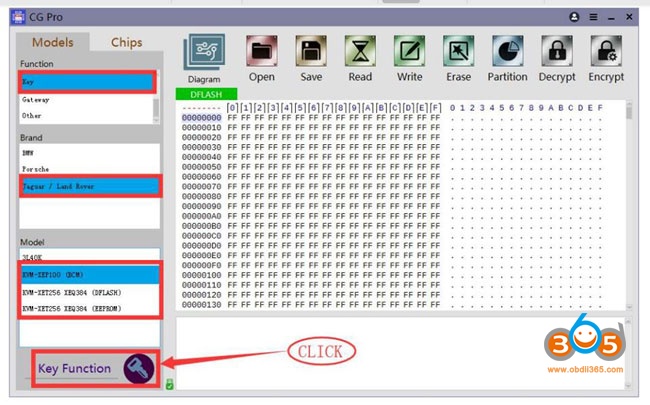

In CG-Pro software, select Key Match->Jaguar Land rover, select corresponding KVM model, click on the key function to program key

Load KVM DFLASH
Load KVM EEPROM

Load BCM EEPROM
If your vehicle equipped with emergency start, you have to tick the 3rd option and load BCM data
Select a key location
Click Write Key

Write key success

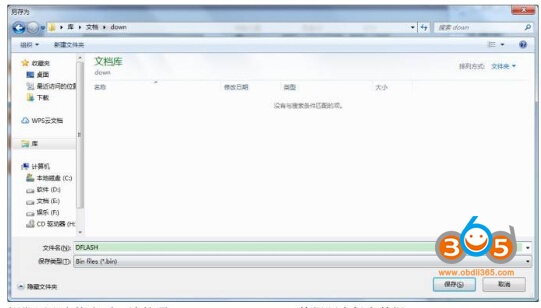

Save new key data after write key.

Step 3: Write data back

Go back to CG Pro software

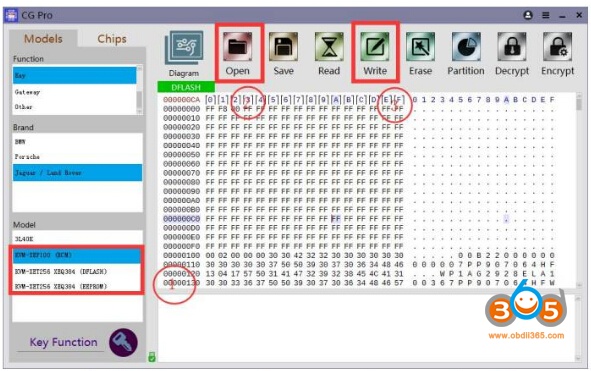

Open new key data just saved
Write data

Done.
