    How to Read and Replace Benz W169 EIS with CG Pro?

    Illustration for How to Read and Replace Benz W169 EIS with CG Pro?
    Key To Key Programmer
    — (0)

    Model: Mercedes Benz B200

    Chassis: W169

    Year: 2010

    Module: EIS

    Number: 1699051500

    Chip: 9S12DT128-1L59W

    Device to read and replace: CG Pro 9S12 Programmer



    Procedure:

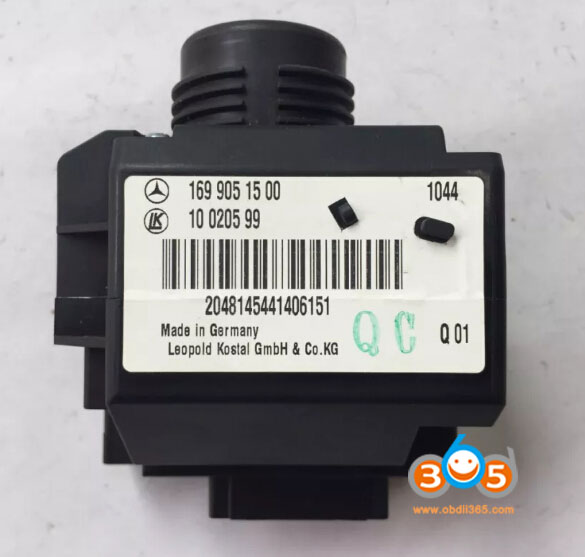

    cg-pro-replace-w169-eis-1

    Check EIS number

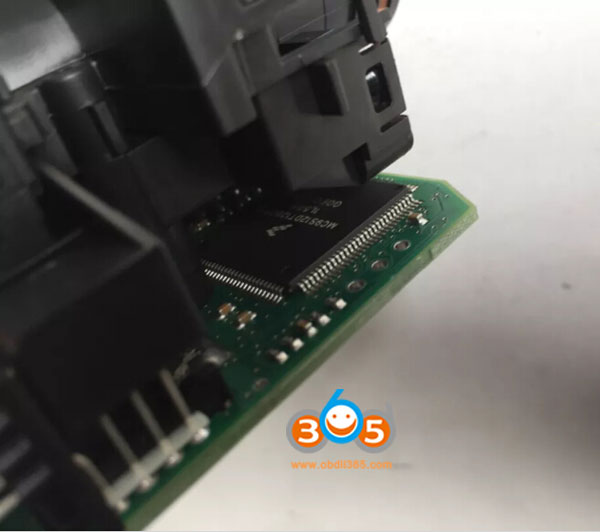

    cg-pro-replace-w169-eis-2

    Open the EIS

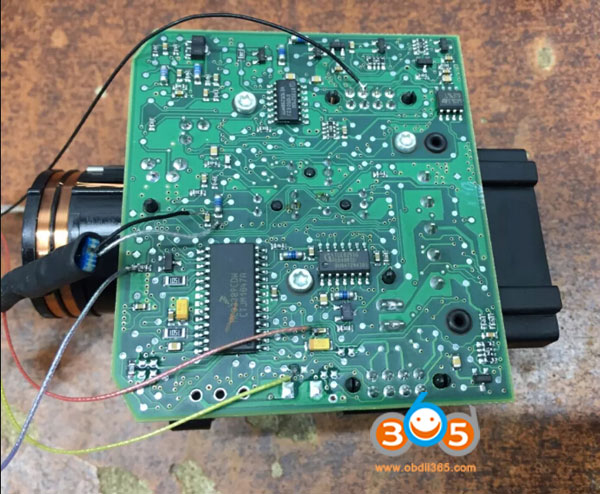

    cg-pro-replace-w169-eis-3

    Open CG-Pro software, check the wiring connection. Connect CG Pro with EIS via DB25 connector

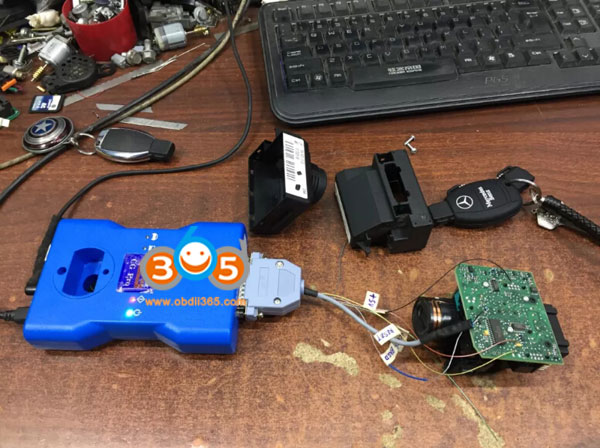

    cg-pro-replace-w169-eis-4

    Make a connection.

    Connect CGPro with computer

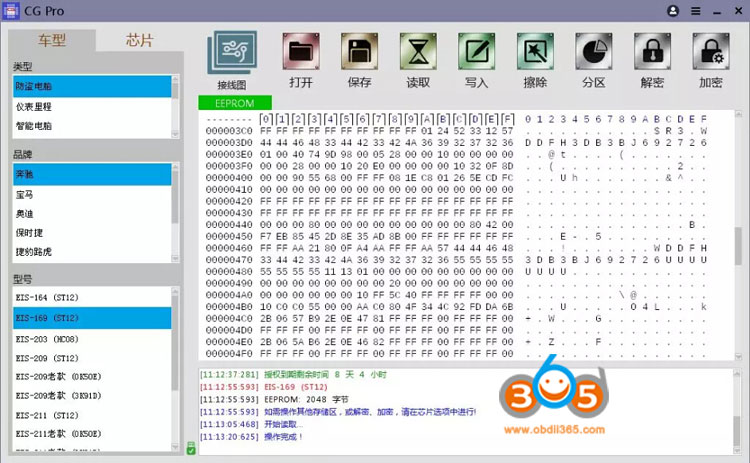

    cg-pro-replace-w169-eis-5

    Select Immobilizer->Benz->EIS-169 ST12

    Read and save data

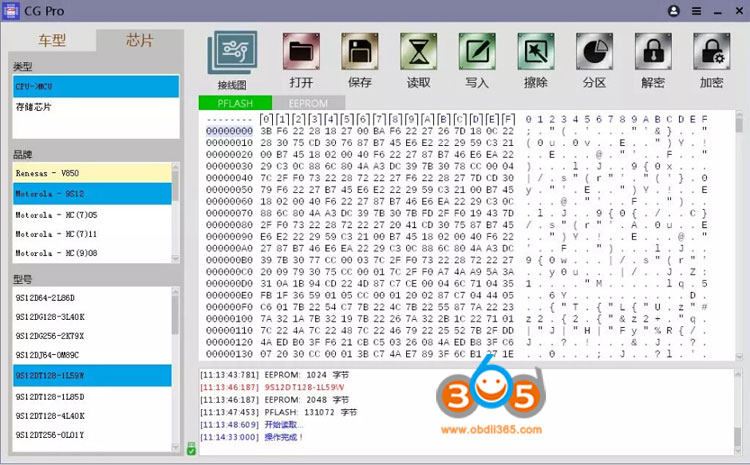

    cg-pro-replace-w169-eis-6

    Select Chip->Motorola 9S12->9S12D7128-1L59W

    Read and save data
