Auro OtoSys IM600 Program Audi A6 2011 All Keys Lost on Bench
Car model: Audi A6 3.0 TDI 2011
Key type: 8E chip transponder
Purpose: program dealer key when all keys lost
Method: on the bench
Devices used:
8E transponder and key blank
Auro OtoSys IM600/ Autel MaxiIM IM608 key programmer
Major progress:
1.Read EZS
2.Load EZS
3.Make dealer key
4.Learn key
Procedure:
1.Read IMMO data from EZS

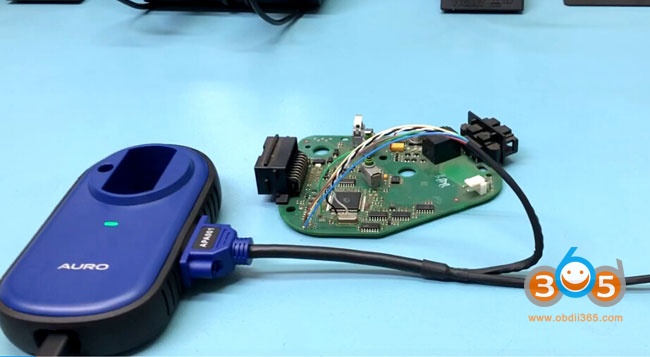

Connect UP400 eeprom programmer with EZS follow the wiring diagram (you can check the wiring in IM600/IM608 menu)

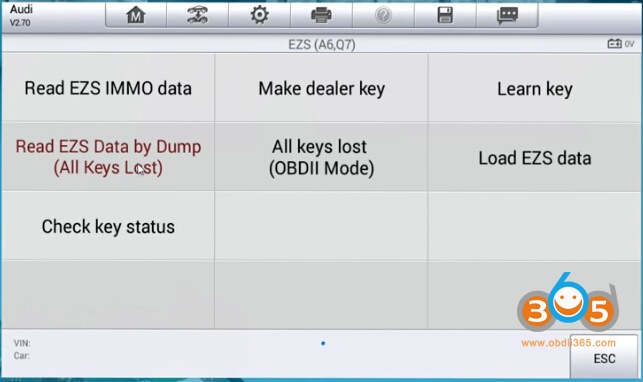

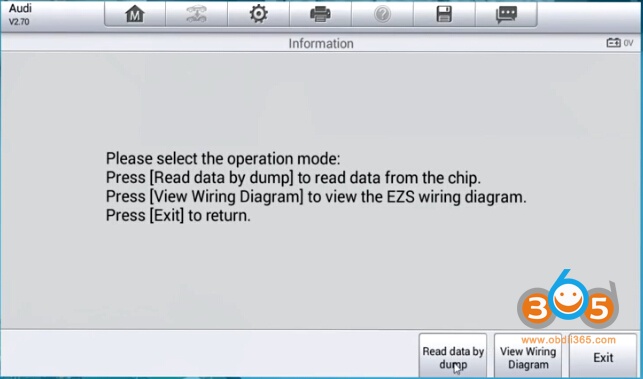

Select Read EZS data by dump (All key lost)-> Read data by dump

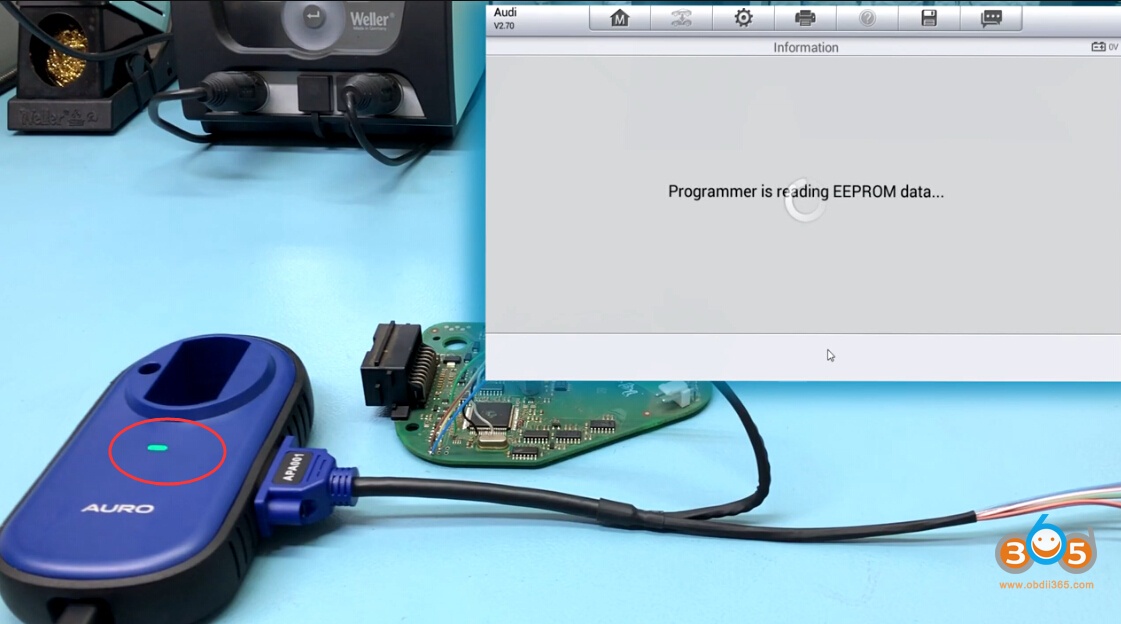

Reading EZS dump in process, the green indicator on up400 programmer will turn on

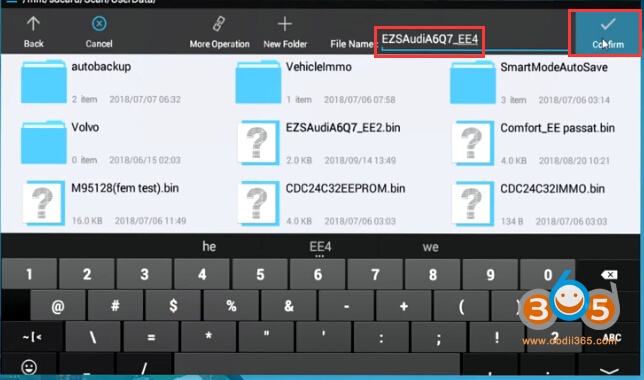

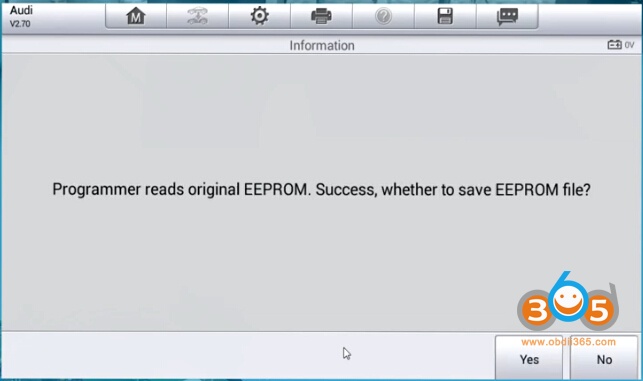

Read EEPROM from EZS success. Save data

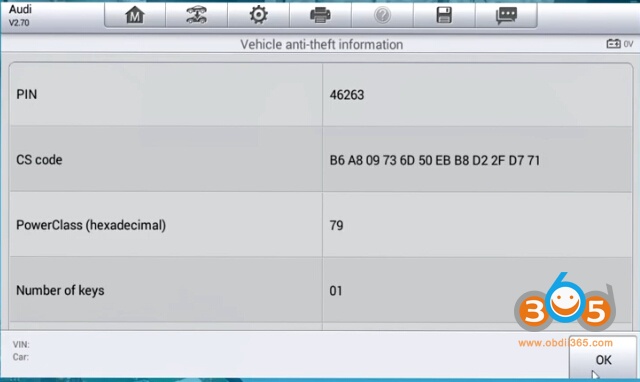

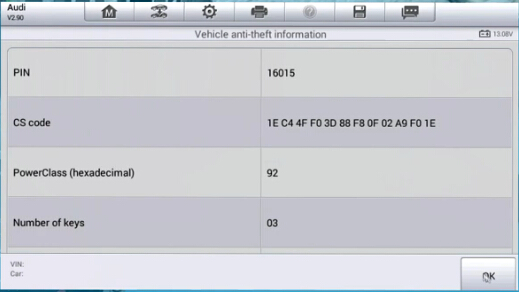

Save data success. Display vehicle information, PIN, CS, key number etc
2. Load EZS Data

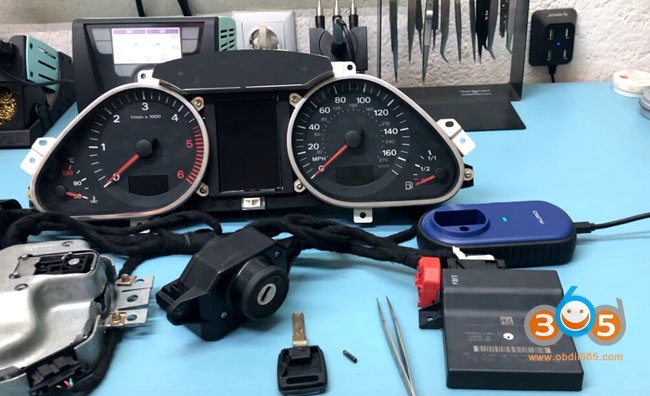

set up bench connection

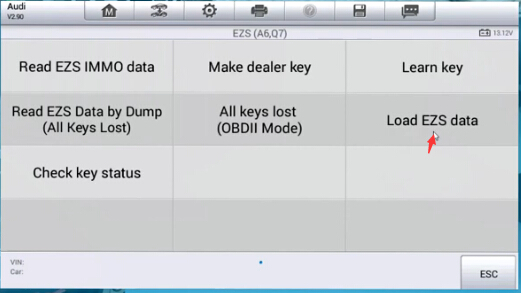

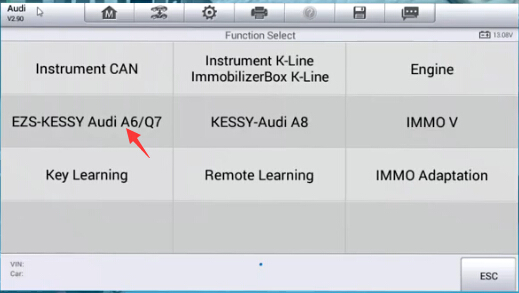

Select EZS-Kessy AUDI A6/Q7->Load EZS data

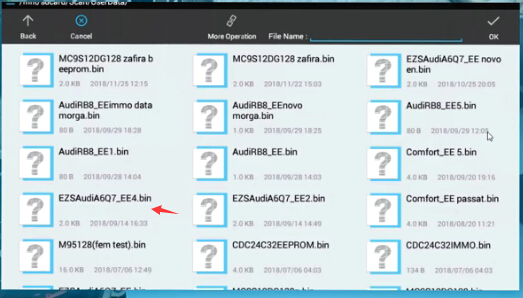

Load data saved in step 1 and confirm vehicle information
3.Make dealer key

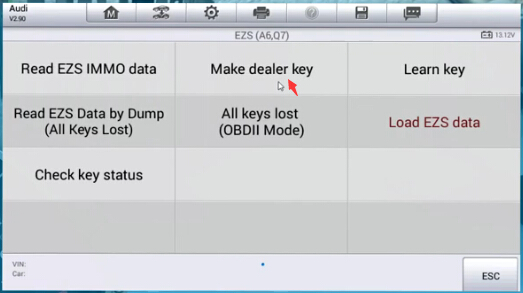

Select Make dealer key

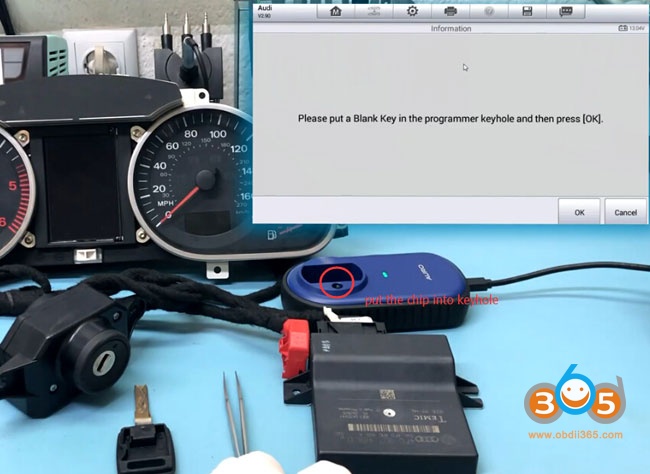

Put a blank key or chip into Autel IM608 xp400/ IM600 up400 programmer keyhole and press OK to continue
Communication

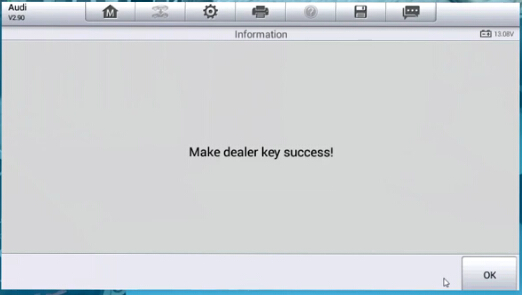

Make dealer key success
4. Learn key

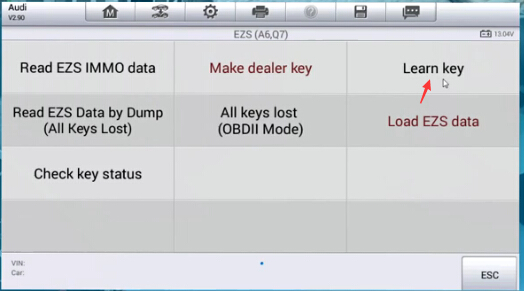

Select Learn key
Remove key chip form keyhole

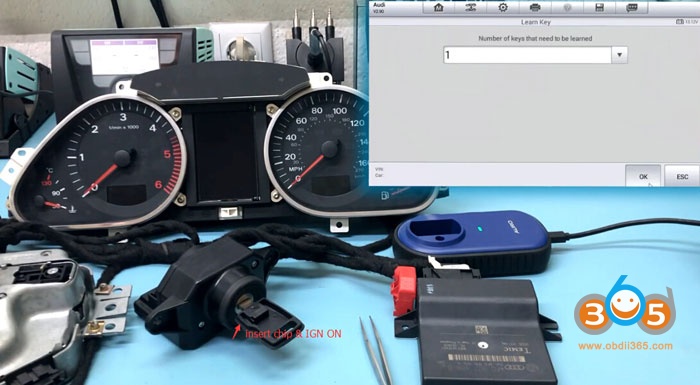

Insert chip into key blank and turn on ignition
Select number of keys need to learn

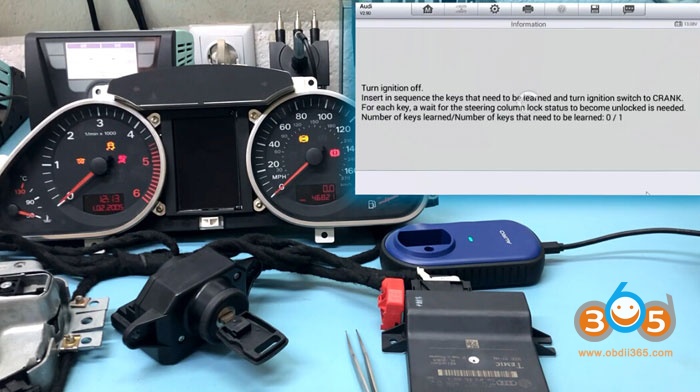

Turn ignition OFF
Insert the sequence keys that need to be learned and turn ignition switch to CRANK.
For each key, wait for the steering column lock status to become unlocked is need.

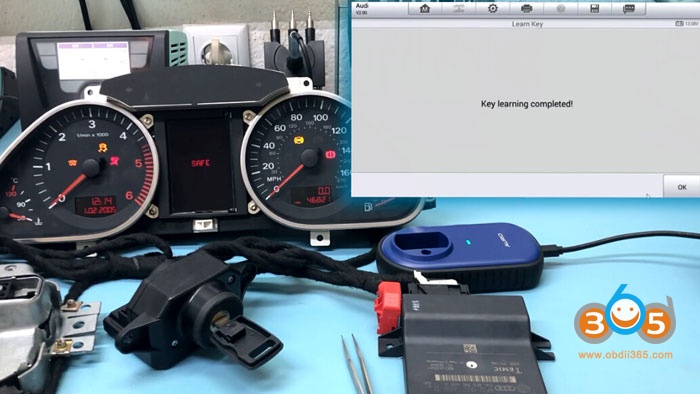

Key learning completed.
Done.
