Read Pin Code and Program Lacetti 2014 Smart Key with OBDSTAR X300 DP PLUS

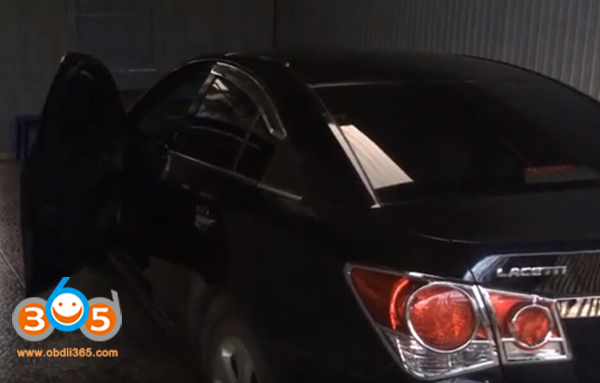

As titled,  here’s the guide to read pin code and program smart key on a Chevrolet Lacetti 2014 (Daewoo Lacetti 2014) by OBDSTAR X300 DP PLUS via OBD.

Step 1: Read Pin Code

Connect X300 DP with vehicle via OBD

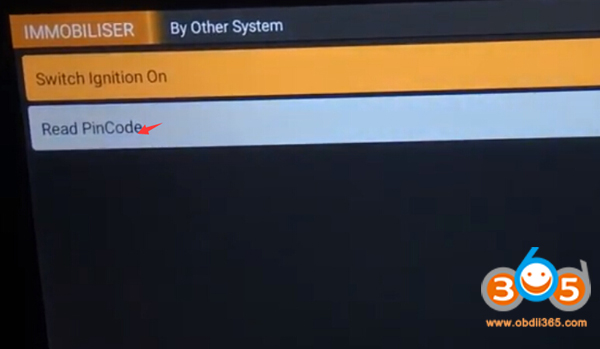

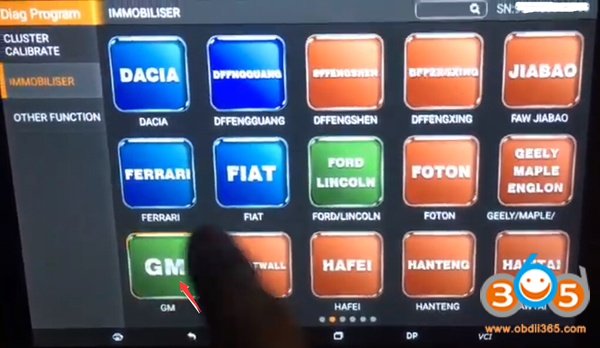

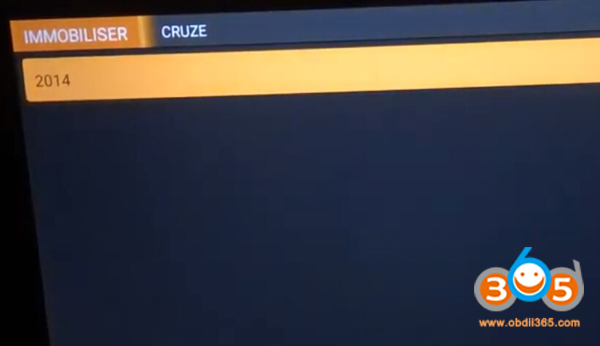

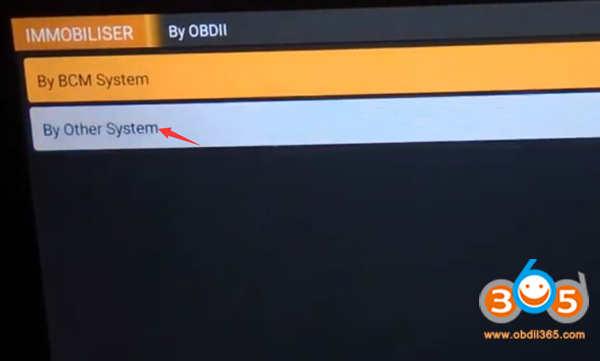

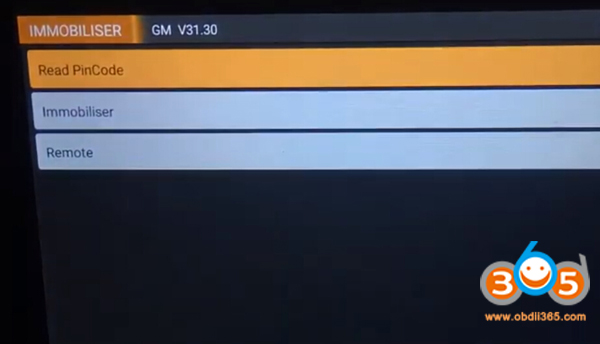

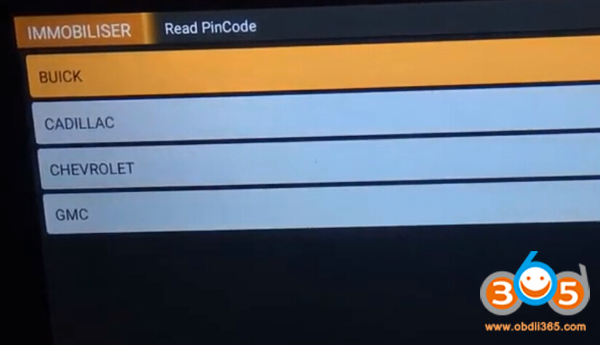

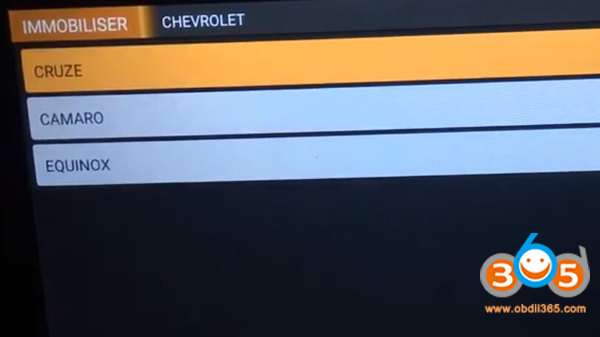

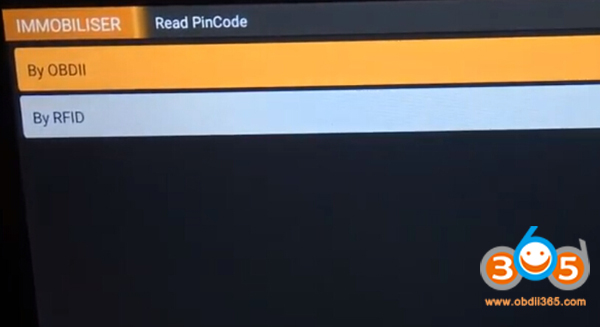

Select Diag Program->Immobilizer->GM->GM V31.30->Read Pin Code->By OBDII->By Other System->Read PinCode->Chevrolet->Cruze->2014

Turn on ignition switch

Communicating

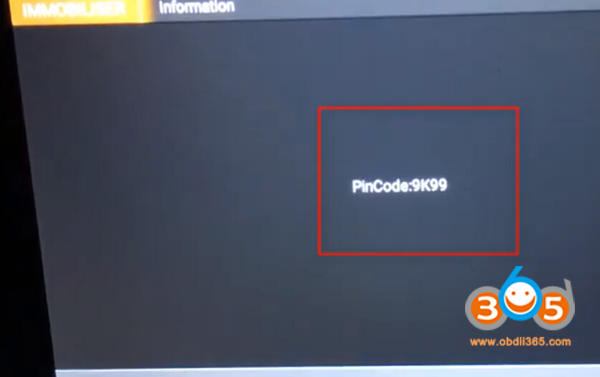

Read 4-digit Pin Code success





Step 2: Program smart key

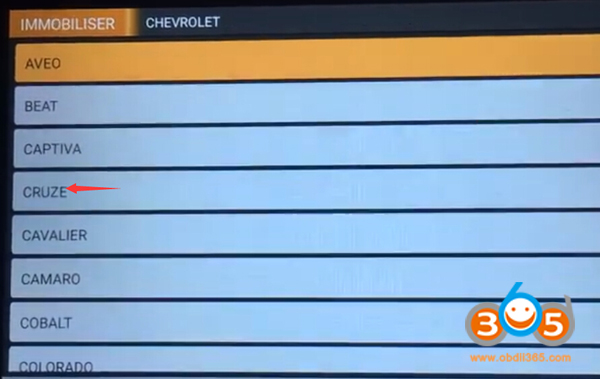

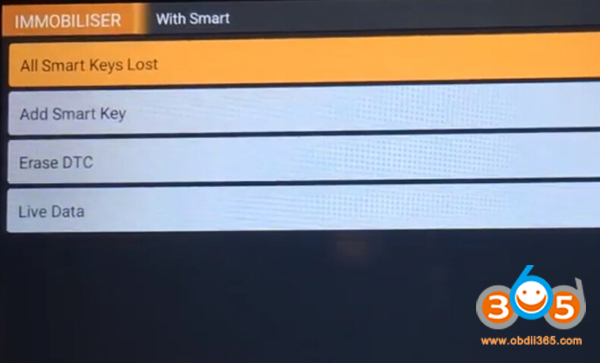

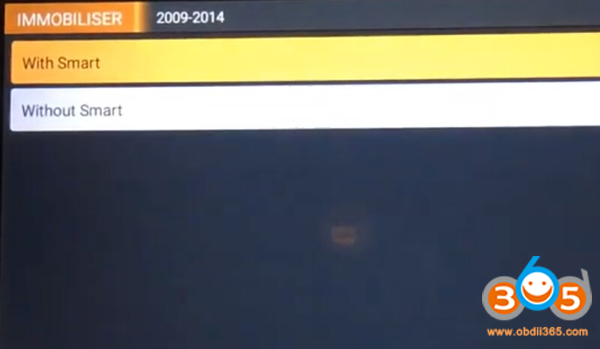

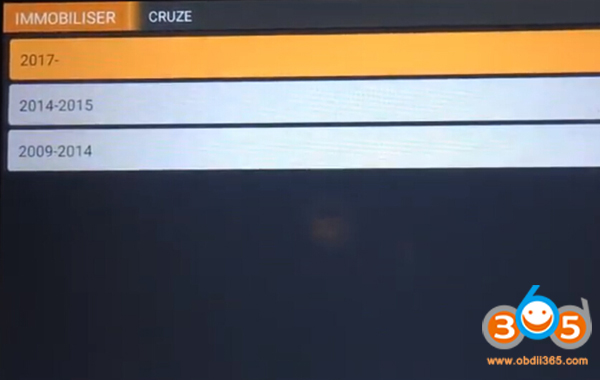

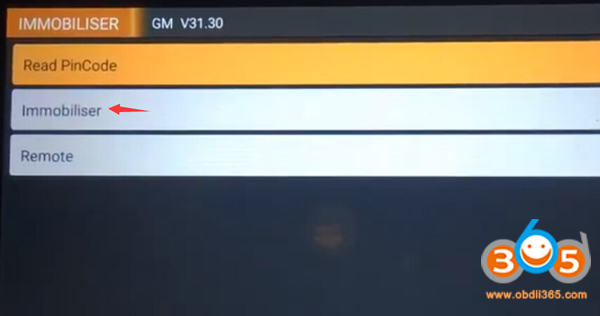

In X300 DP PLUS GM menu, select Immobilizer->Select from vehicle-> Chevrolet->Cruze->2009-2014->With Smart->All smart keys lost

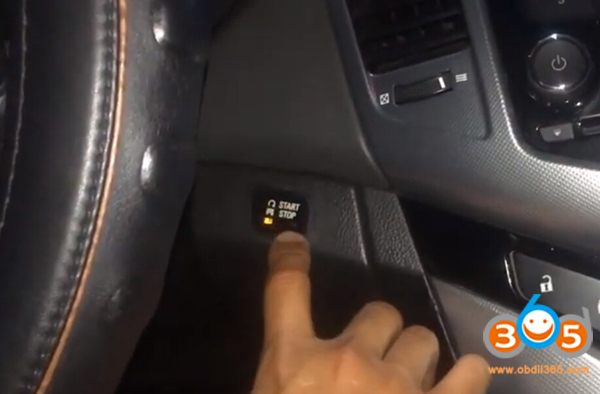

Press Start button

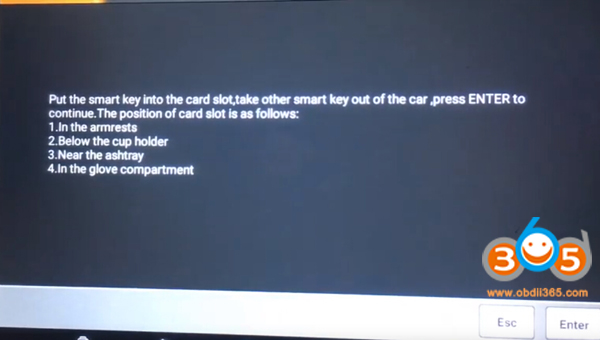

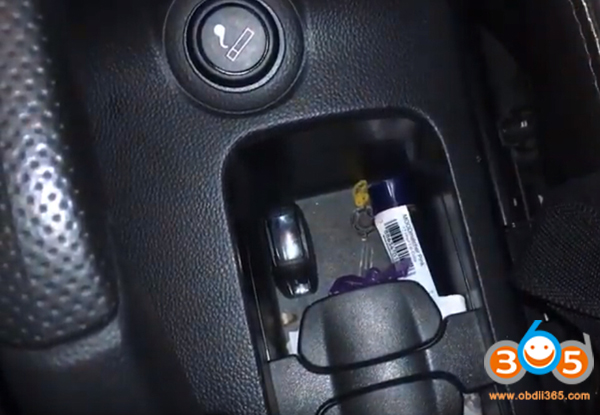

Put the smart key into the card slot (here below the cup holder). Take other smart keys out of car.

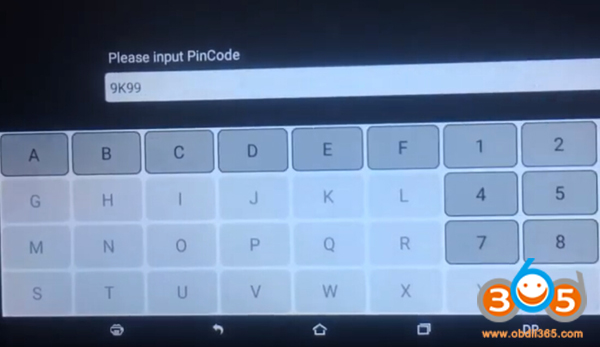

OBDSTAR X300 DP PLUS require to enter 4-digit pin code to access

Enter Pin read in Step 1 and confirm

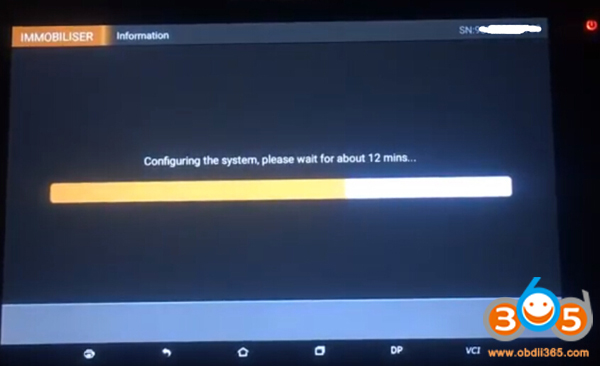

Configuring system, wait for 12 minutes

Press the Start button once

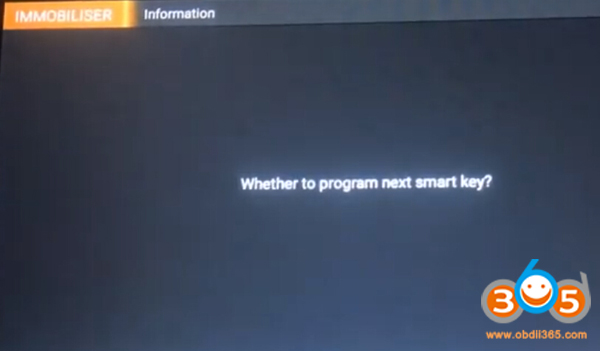

Press ENTER to program next smart key

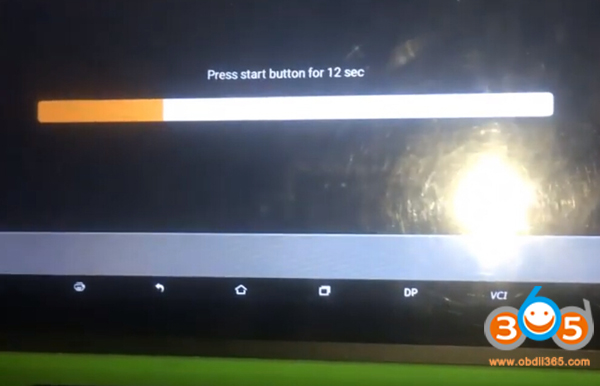

Press Start button for 12s

Release Start button and wait for 5s, press ENTER to continue

Press Start button to turn on ignition

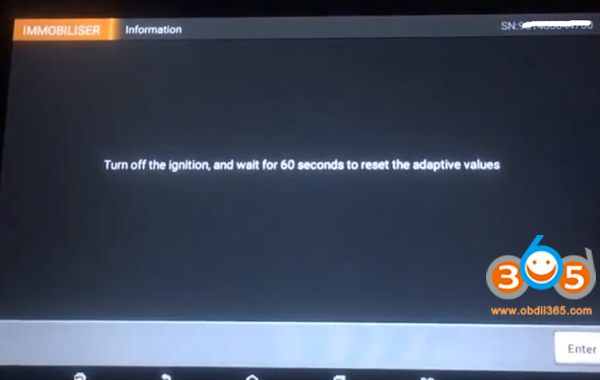

Turn ignition off. Wait for 60s to reset the adaptive values

Press Start button to turn off ignition.

Configuring the system, wait for 30s

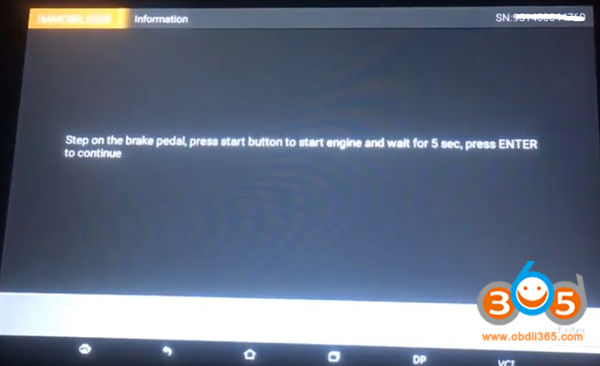

Press the brake pedal, press Start button to start engine and wait for 5s, press ENTER to continue

Stop engine

Press Start button to turn off ignition

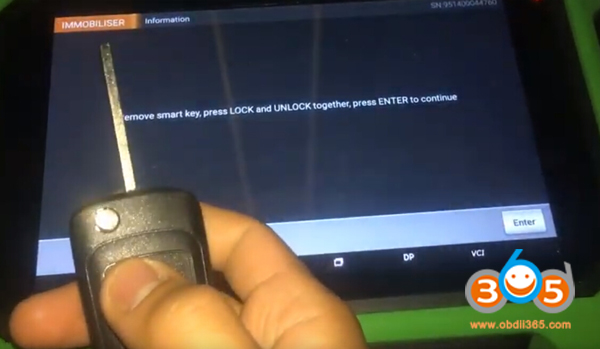

Remove smart key, press LOCK and UNLOCK button

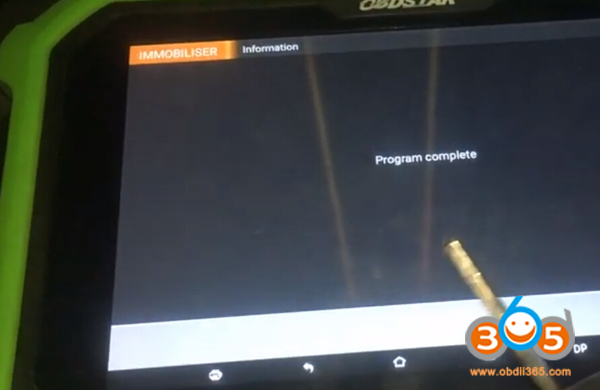

Program completed.

Remote control will automatically programmed

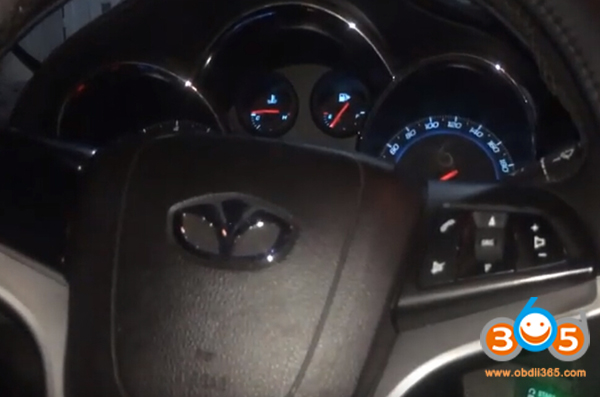

Test remote control and start vehicle.

Done.
