OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

How-to: read pin code and add a remote key on a Fiat Panda 169 with OBDSTAR X300 DP PLUS via OBD. Remote control is automatically programmed after program the key.

Procedure:

Got to IMMO-Fiat-select from type-SIEMENS/Continental 9S12DG128 (ID46)

Read EERPOM (9S12DG128)

Save eeprom data


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

Show Immo info by select saved eeprom bin


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

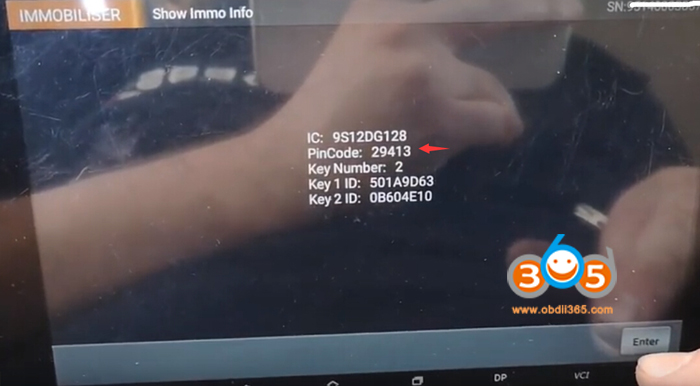

x300 dp plus displays Immo Info, 5-digit pin code, key number and key ID

Select Program Keys function


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

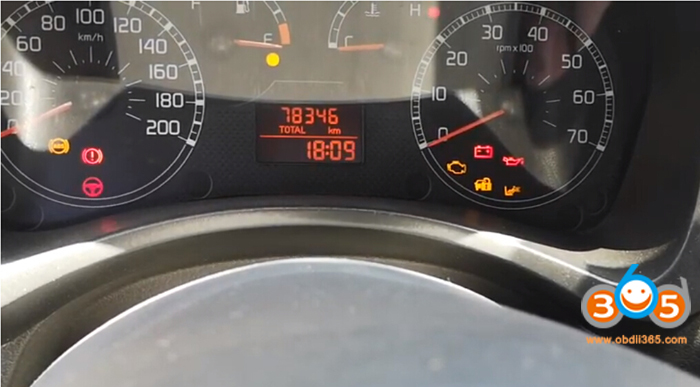

Turn on ignition switch


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

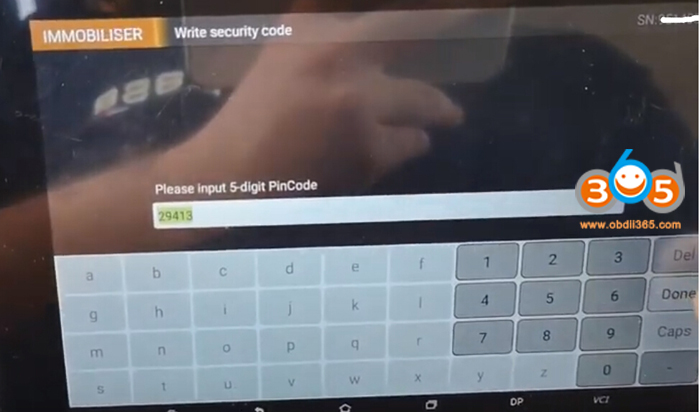

Automatically  fill in pin code to access


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

Communicating

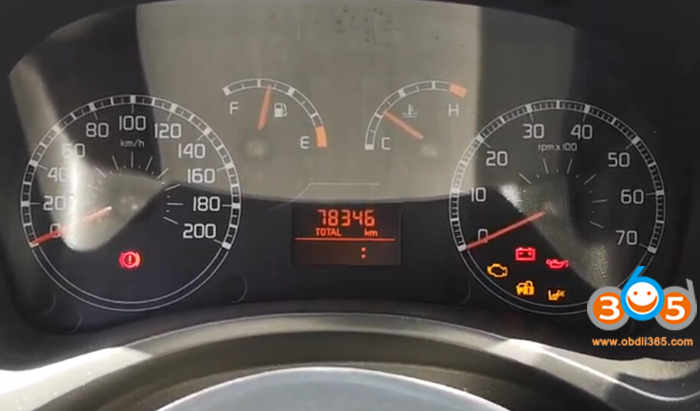

Turn off ignition

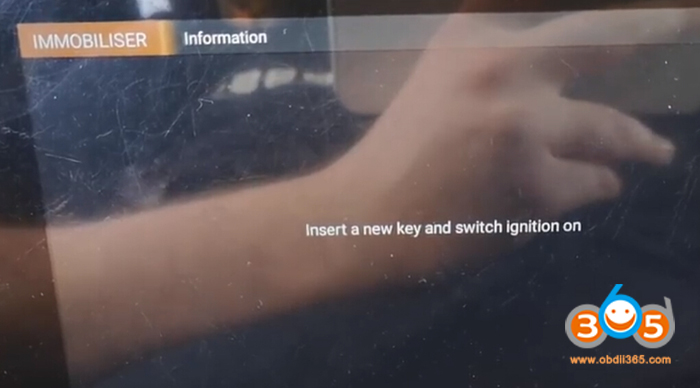

Insert a new key and turn on ignition switch


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

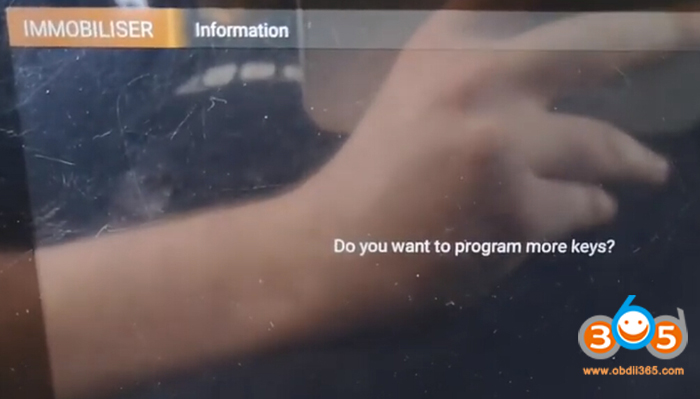

choose to program more key or quit


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

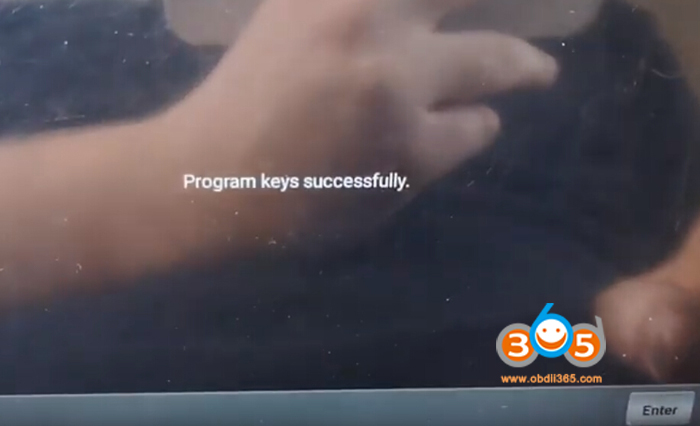

Program key successfully


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

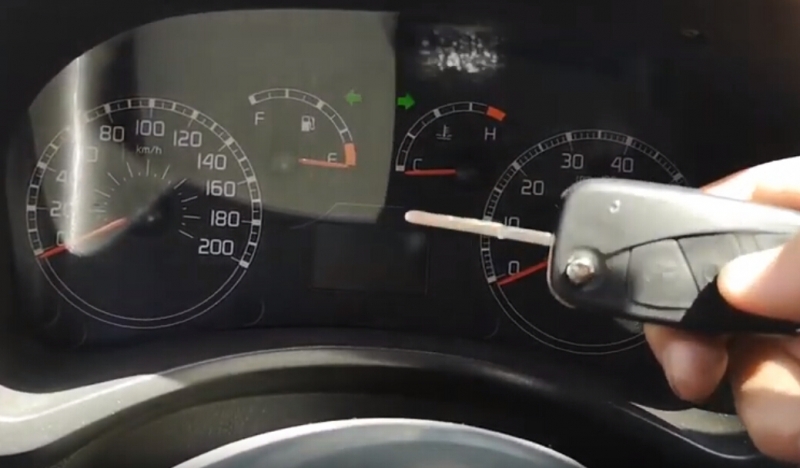

Start engine with new key and test remote control


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key


			OBDSTAR X300 DP PLUS Program Fiat Panda 169 Remote Key

Done.
