How to Generate and Program remote to Hyundai I20 Elite?

It is very simple to generate and program a remote to Hyundai i20 elite.



Here, will show you the how-to’s

All will be done with

VVDI mini key tool (generation)

Xtool x100 pad (programming)



Steps:



Step 1: generate Hyundai remote using mini key tool

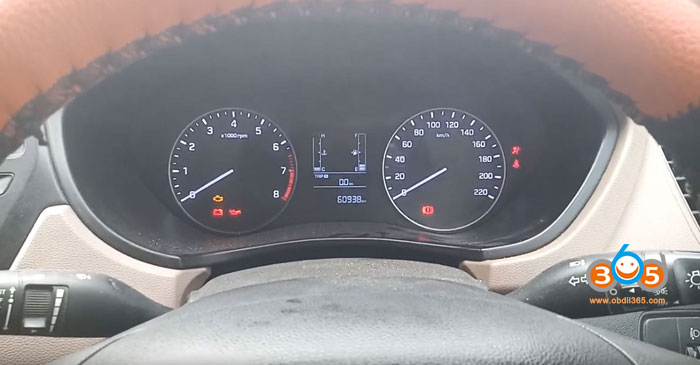

the dashboard status

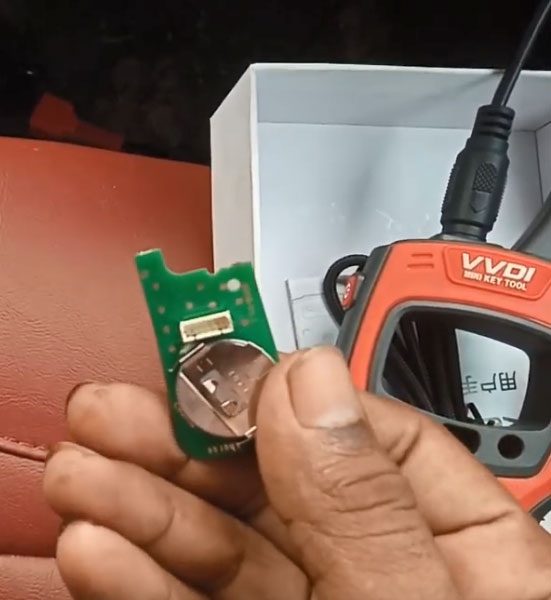

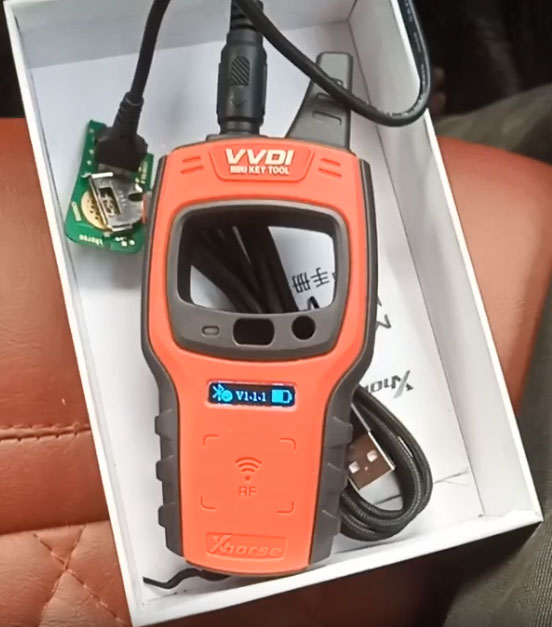

remote board is connected with mini key tool

run the mini key tool app

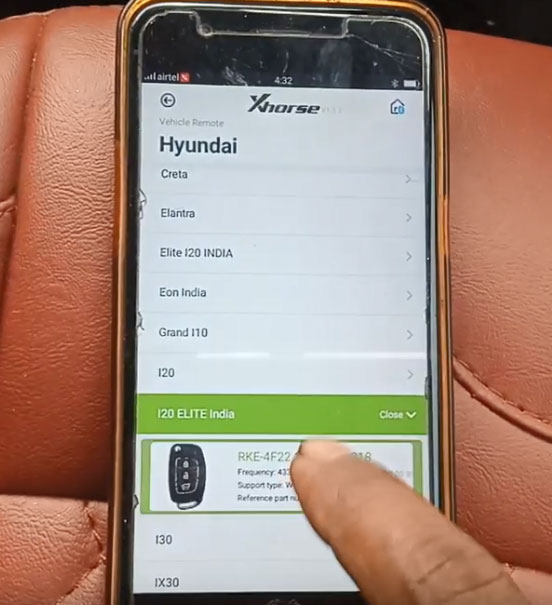

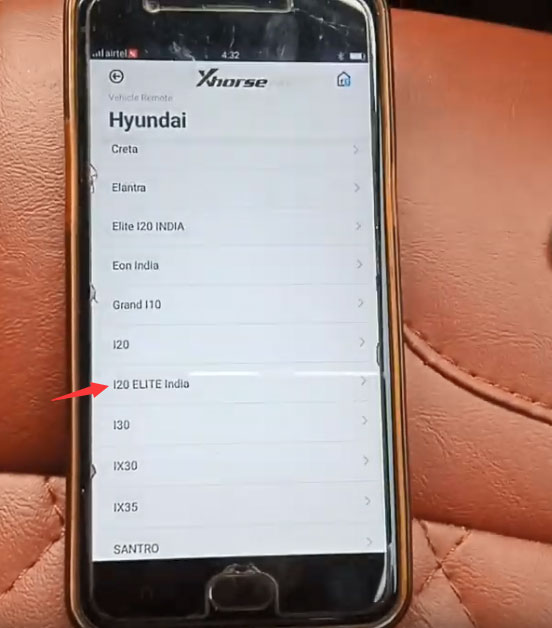

select a car model: Hyundai I20 Elite India

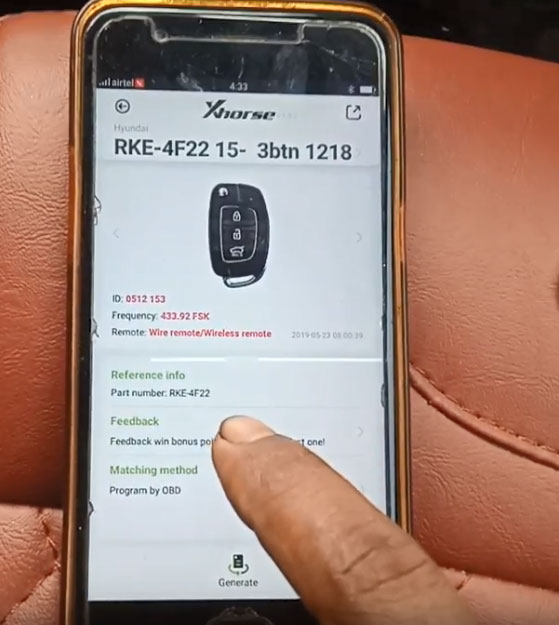

the remote info: RKE-4F22 15- 3BTN 1218

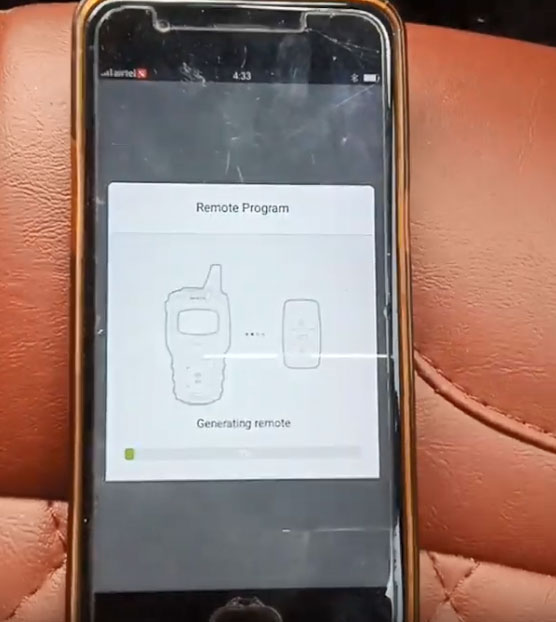

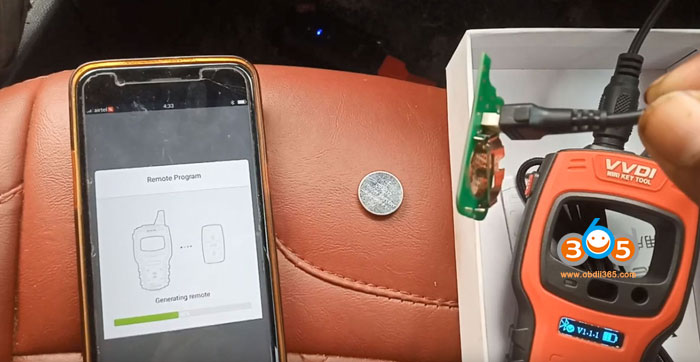

mini key tool starts to generate remote

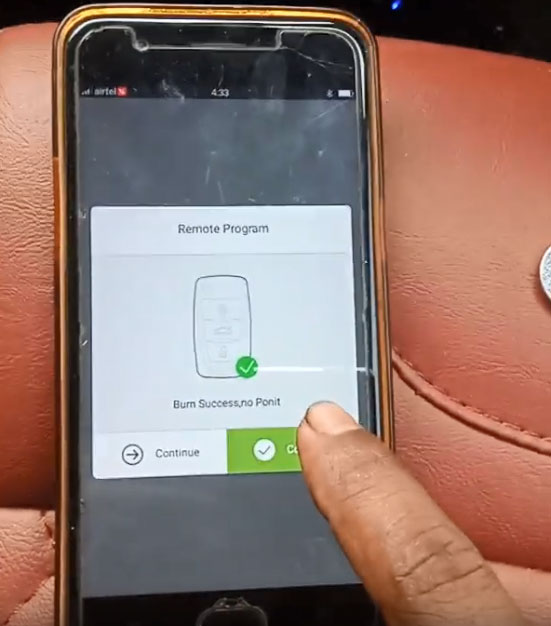

programmed the remote successfully

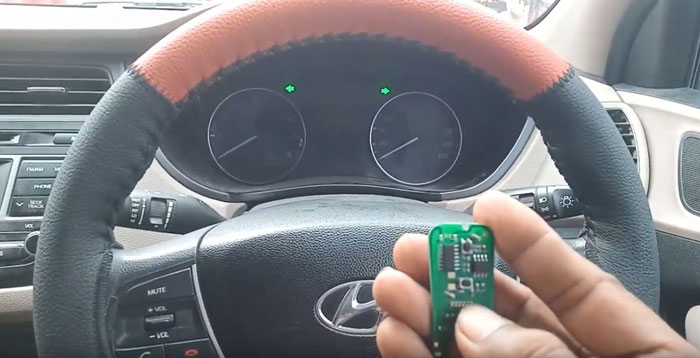

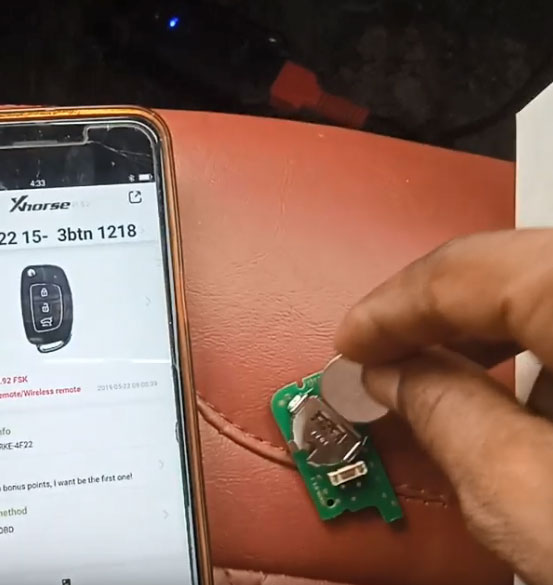

put the battery inside remote and test it

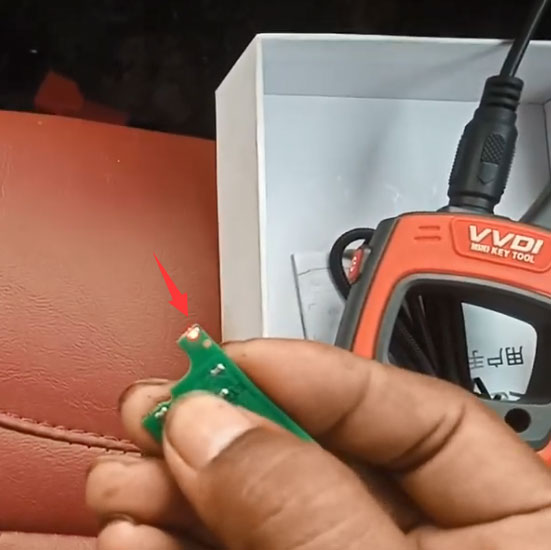

works good!



Step 2: program Hyundai remote using Xtool X100 Pad

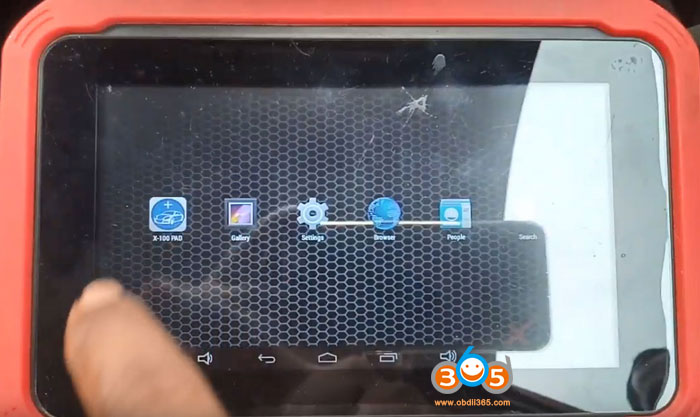

go to X100 PAD

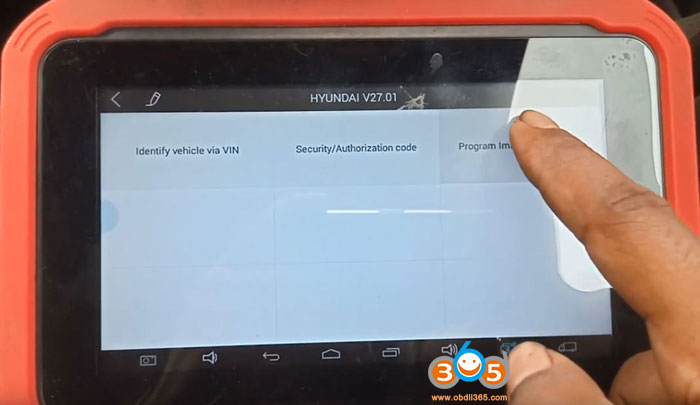

program immobilizer

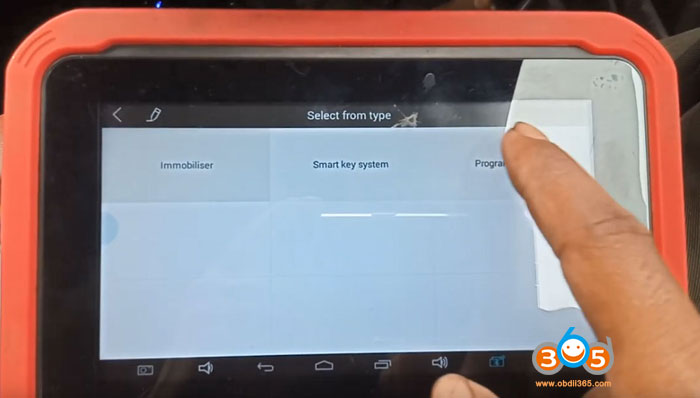

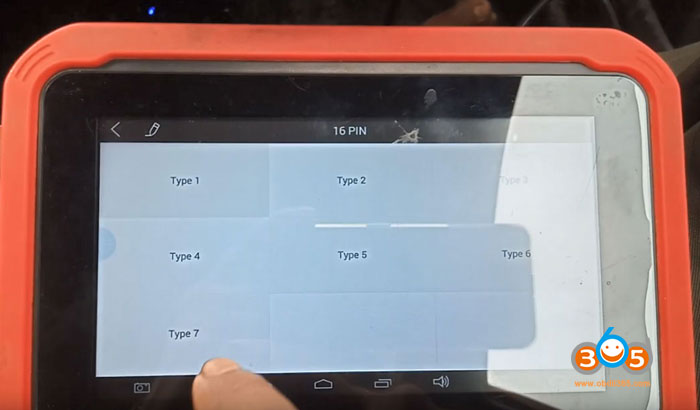

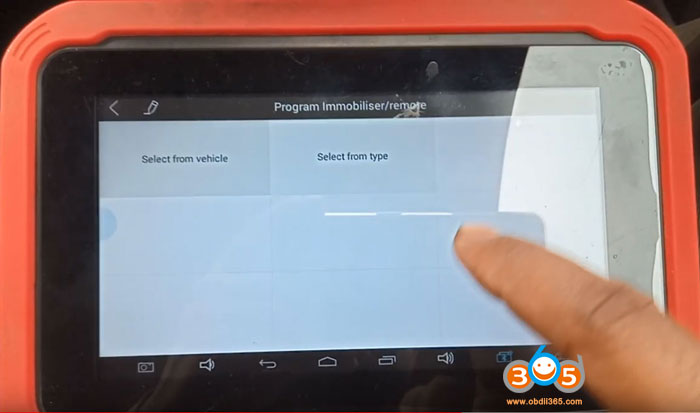

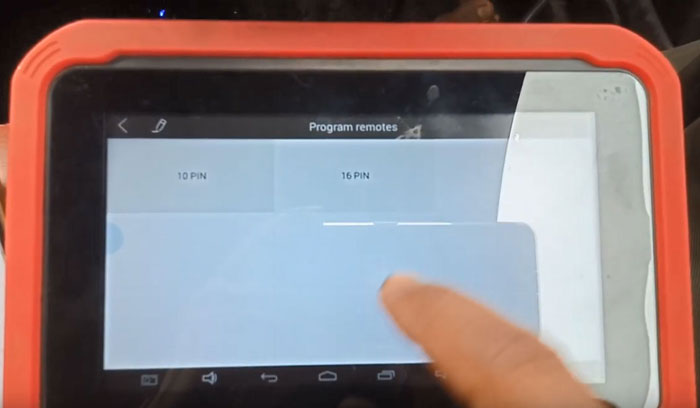

select from type – program remote – 16 pin – type 1

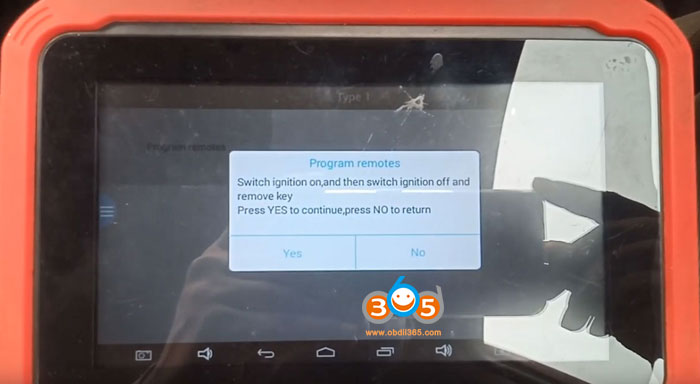

note: switch ignition on and then off and remove the key

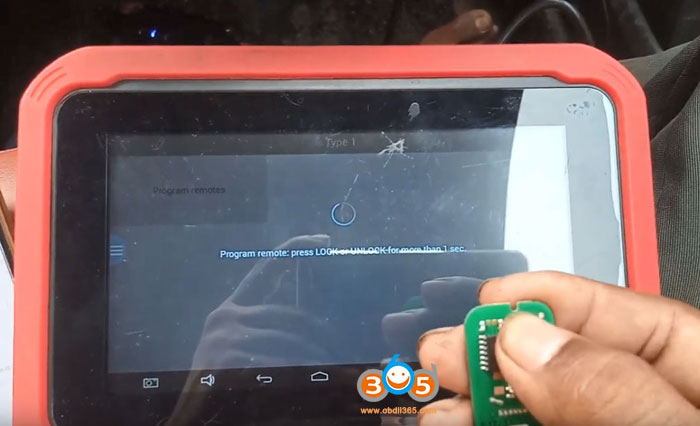

program remote: press lock and unlock for more than 1s

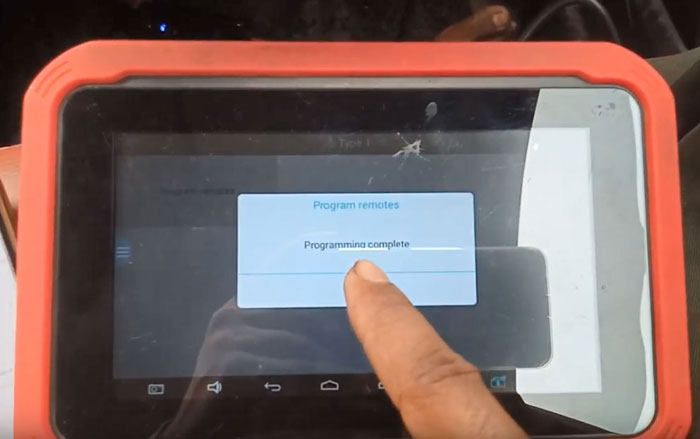

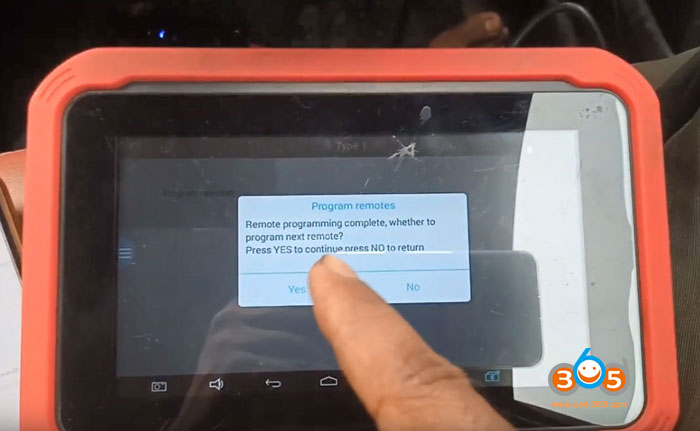

remote programming is complete

test the remote

the functionality is good! success
