How to use Autel APB112 Simulator to Generate Toyota Smart key?

How-to: program Toyota Camry all smart keys lost, generate simulator and add new smart key with Autel MaxiIM IM508and APB112 simulator.

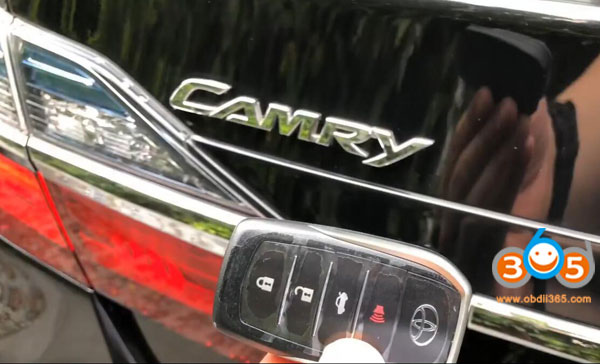

Vehicle Model: Toyota Camry 2016 hybrid

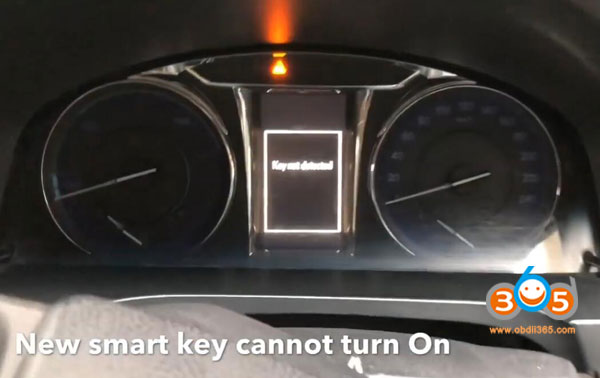

Lost all keys, new smart key cannot turn on
key not detected and remote do not function

Autel IM508/IM608

XP400 Adapter

A new smart key

1. Read IMMO data

2.Generate Simulator Key

3. Add Smart Key

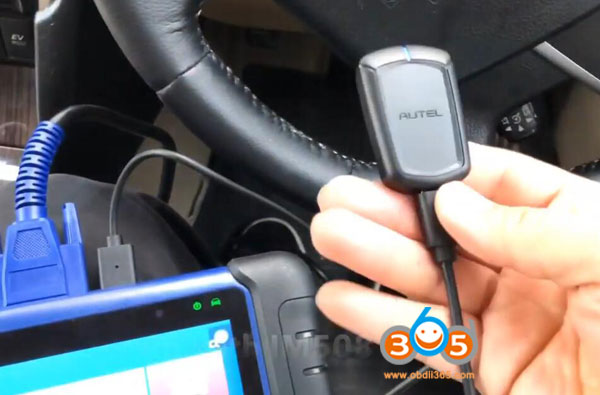

Connect APB112 with IM508 via USB cable

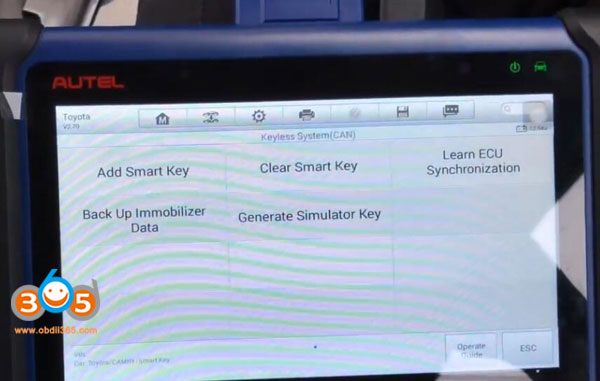

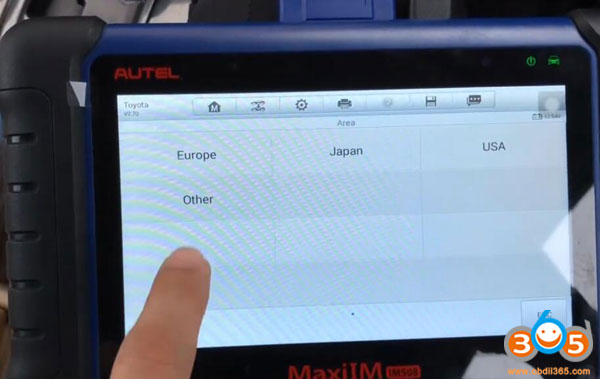

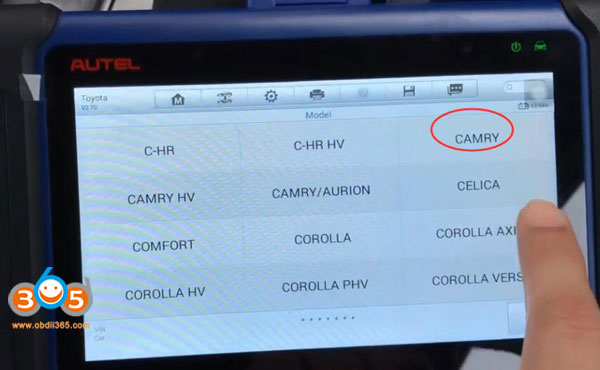

Select IMMO->Toyota->Manual Selection->Other->Camry->Smart key->Keyless System (CAN)

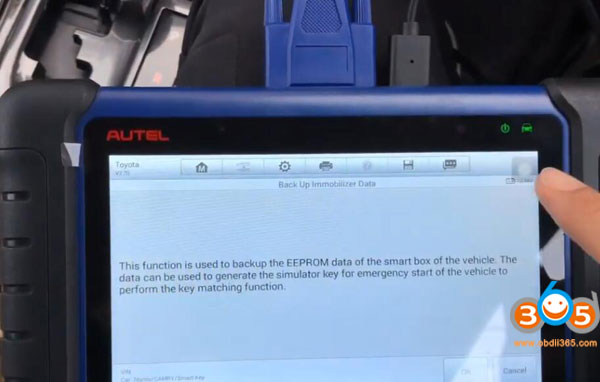

1. Back up Immobilizer Data
This function is use to back up the EEPROM data of the smart box.
The data can be used to generate the simulator key for emergency start of the vehicle to perform the key programming function.

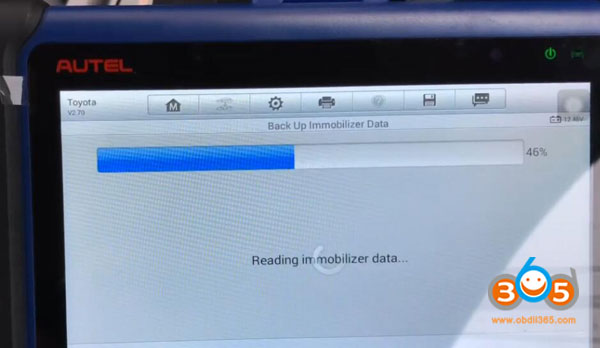

Reading immobilizer data

Connecting network. Need stable WiFi network

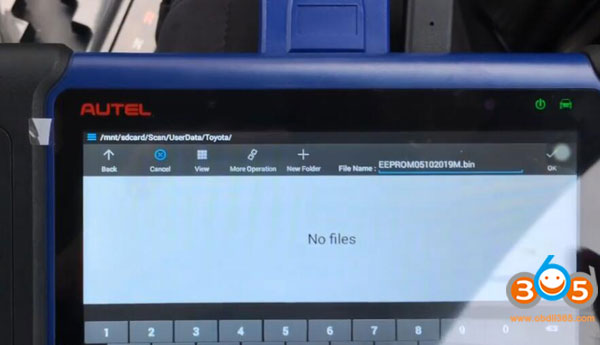

Write name file and press OK to save dump

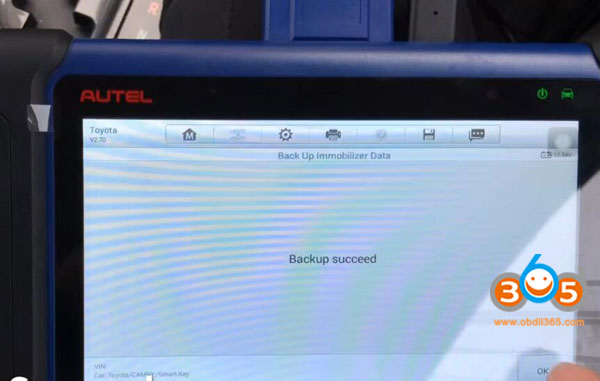

Backup succeed

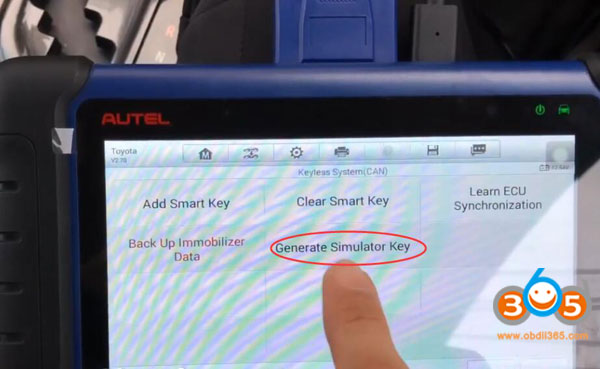

Select Generate Simulator Key

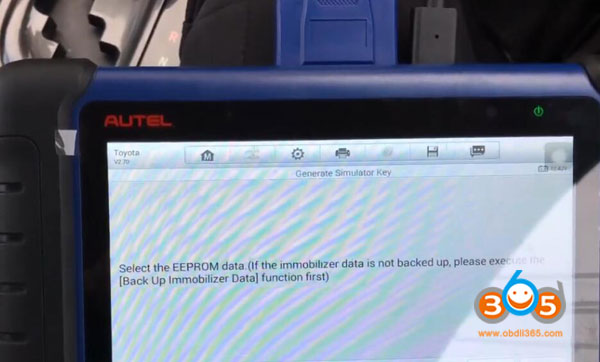

Select the EEPROM data
Choose backup file

Retrieving critical data
Generate simulator key in process

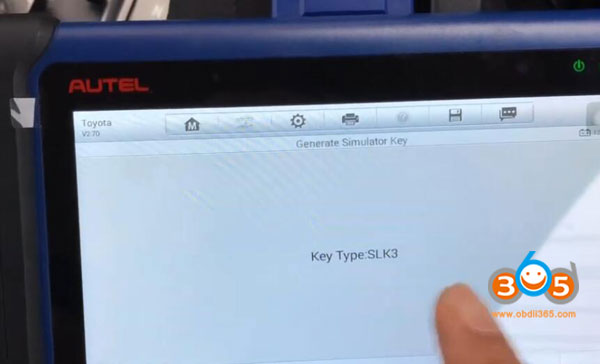

Show key type SLK03
Connect APB112 key simulator

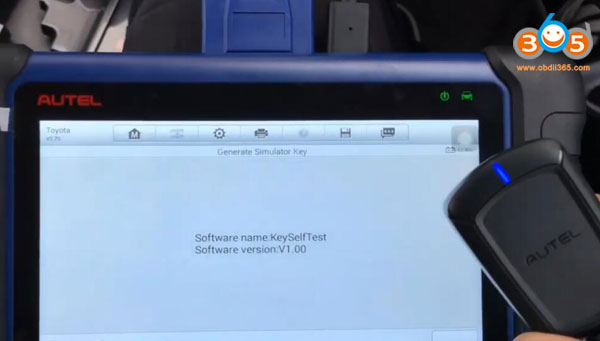

Obtain software name and version

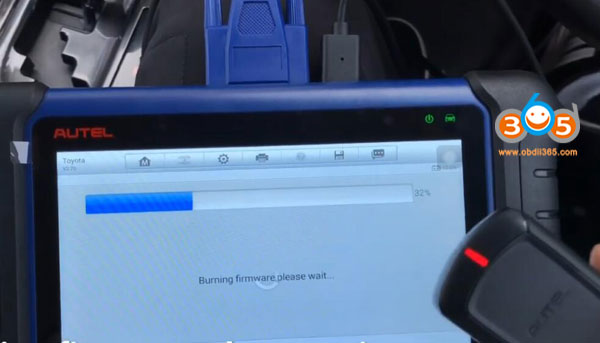

Burning firmware until succeed

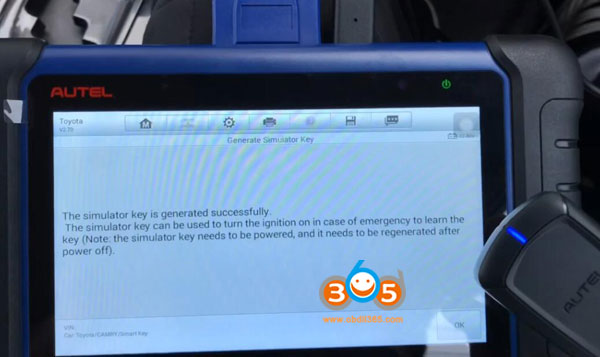

The simulator key is generated successfully
The simulator key can be used to turn the ignition on in case of emergency to learn the key

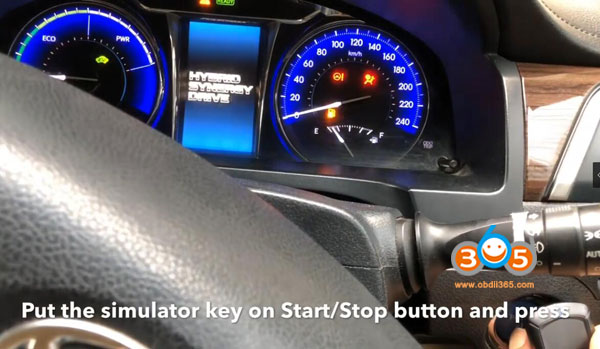

Put the simulator key on Start/Stop button and press

The key can start engine now.

Don’t disconnect USB cable

3. Add smart key
Use the simulator key to turn on ignition

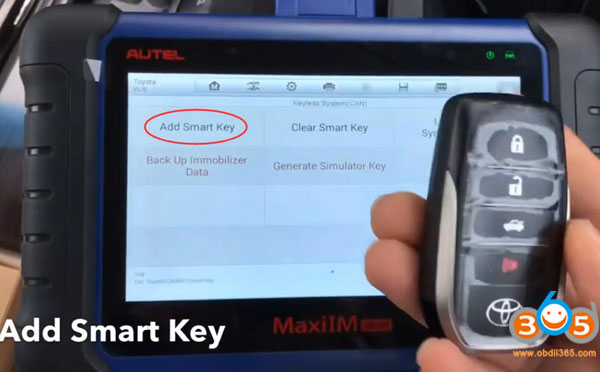

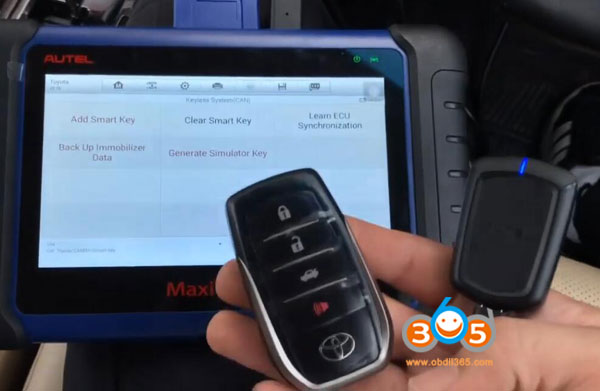

Select Add Smart Key
Confirm to use the simulator key APB112
Each step must be completed within the specified time.

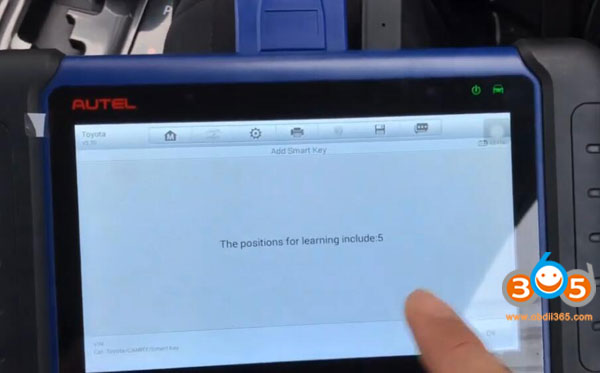

The position for learning: 5

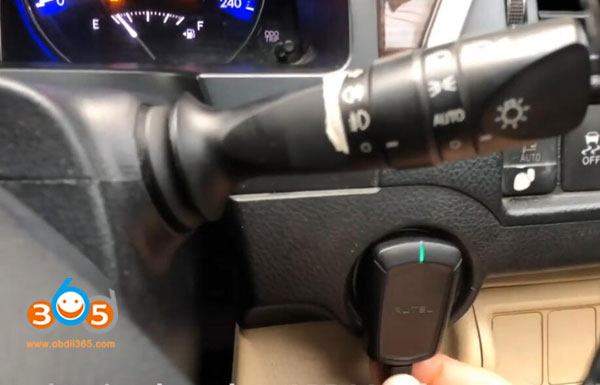

Put the simulator key APB112 close to Start button

You will hear a beep sound

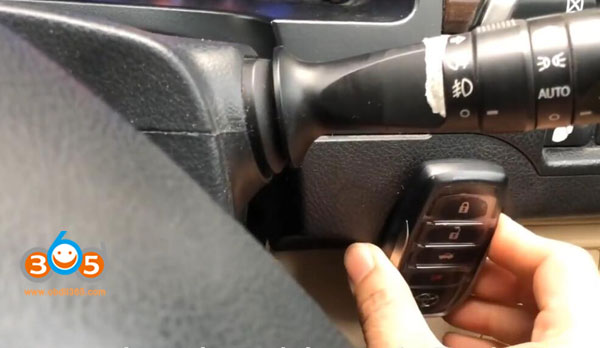

Put the new smart key to learned close to the Start button

beep beep
Registering key in process

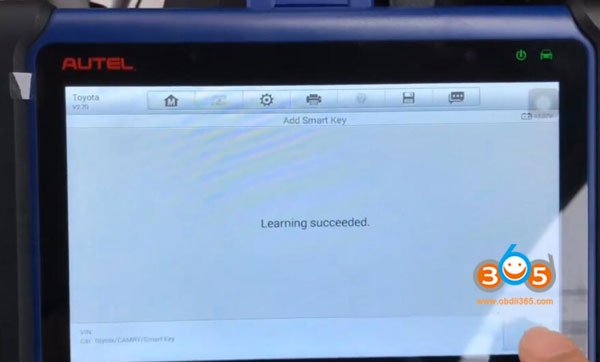

Learning key succeed

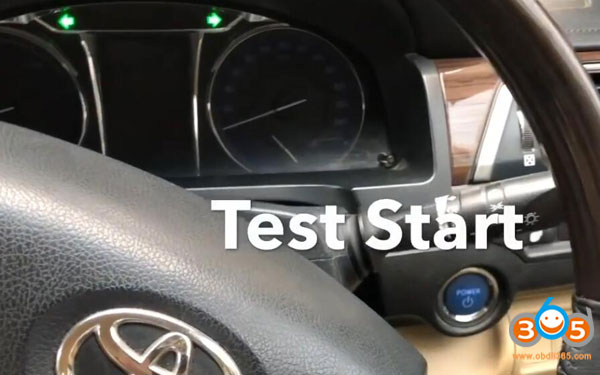

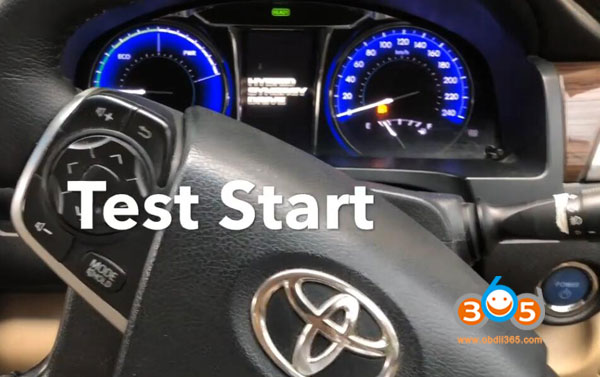

Test remote and star vehicle

Done.

Note: APB112 simulator need to work with XP400 (not  XP200) and compatible with IM608, IM508, MX808IM. It is not only a smart key simulator, but also 46, 4D data collector and ID46 password calculator.
