    Program Mitsubishi Attrage 2016 Remote with OBDSTAR X300 DP Plus

    universal-car-key-programmer
    — (0)
    Program remote on a Mitsubishi Attrage 2016 by OBDSTAR X300 Dp Plus key programmer.
    obdstar-mitsubishi-1

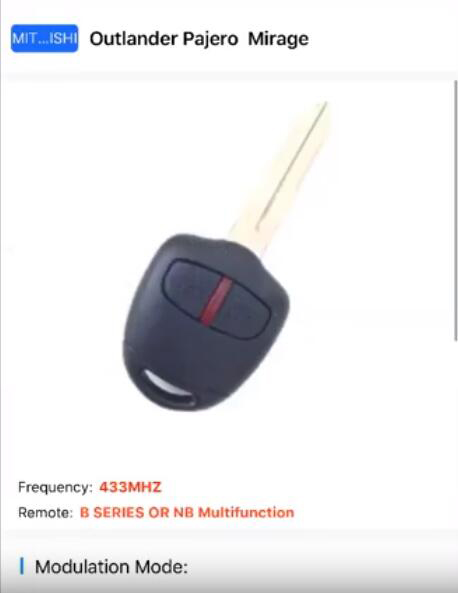

    Frequency 433MHz
    obdstar-mitsubishi-2

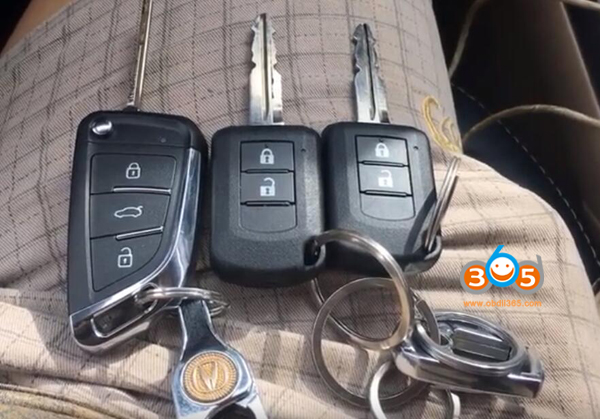

    1 original remote and 2 remote to be programmed

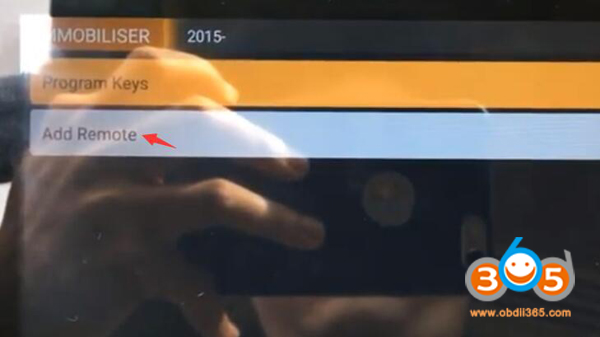

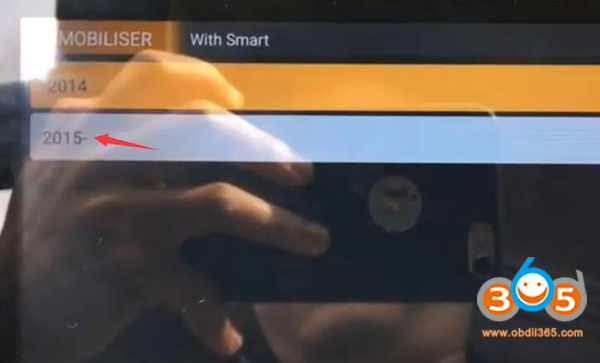

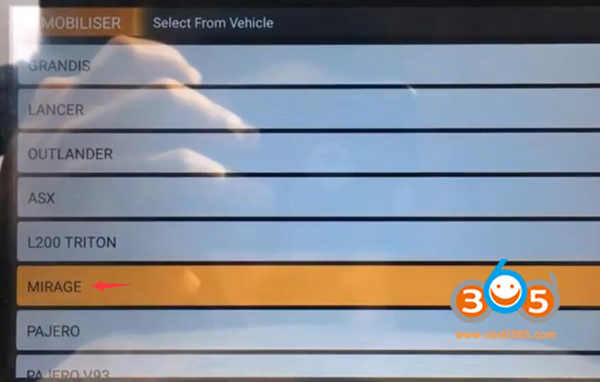

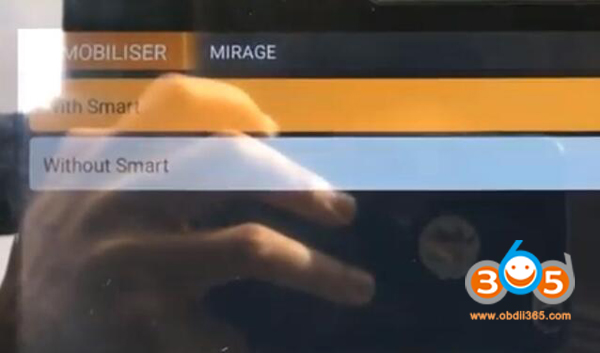

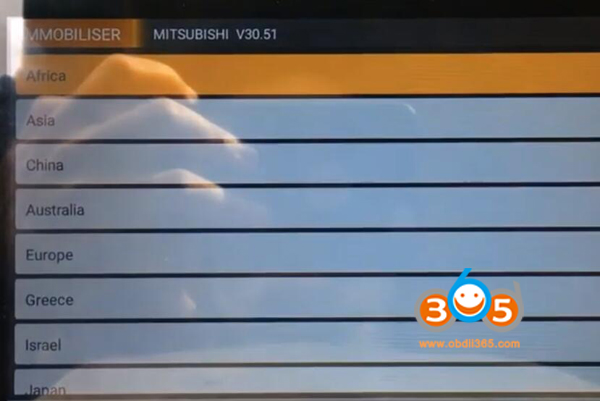

    Go to Immobilizer->Mitsubishi->China->Select from vehicle->Mirage->with Smart->2015 up->Add remote
    obdstar-mitsubishi-4
    obdstar-mitsubishi-6
    obdstar-mitsubishi-7
    obdstar-mitsubishi-8
    obdstar-mitsubishi-9
    Turn on ignition switch
    This function will erase all remotes, up to 4 remotes can be programmed

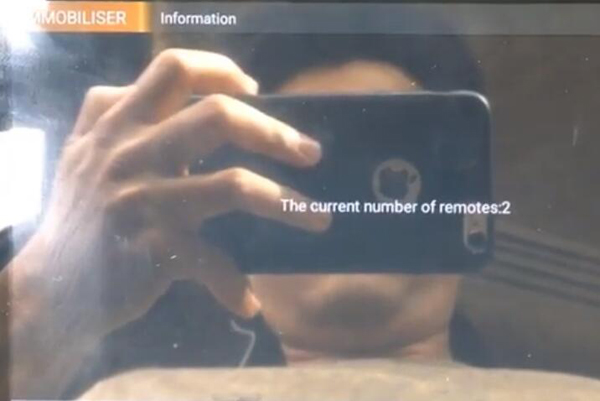

    2 remotes has been programmed
    obdstar-mitsubishi-10

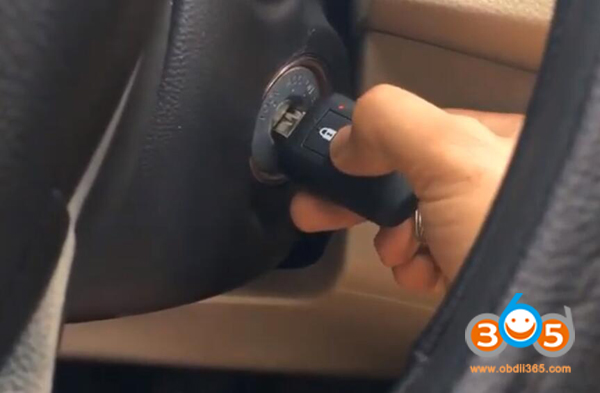

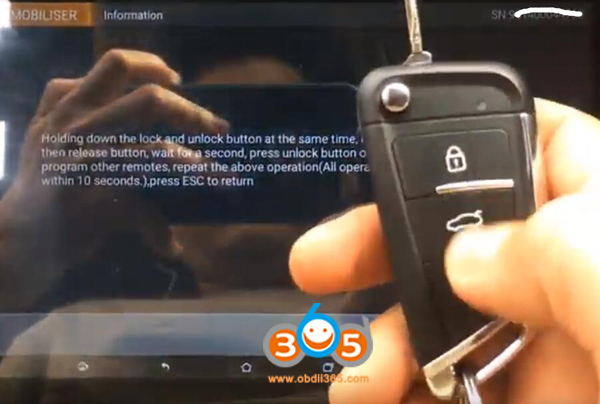

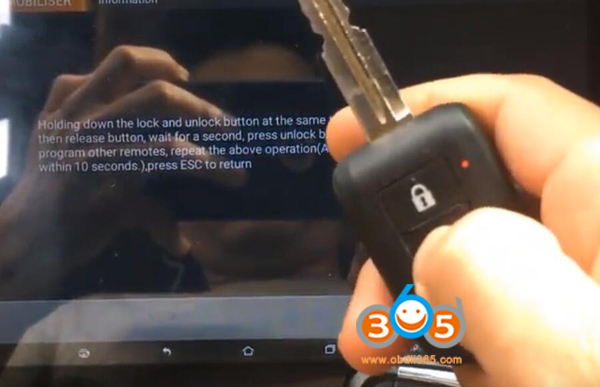

    Holding down the lock and unlock button at the same time, remote lights flash three times, then release button, wait for a second, press unlock button once again, if you want to
    program other remotes, repeat the above operation (all operations must be completed within 10 seconds), press ESC to return.
    obdstar-mitsubishi-11
    obdstar-mitsubishi-12
    obdstar-mitsubishi-13

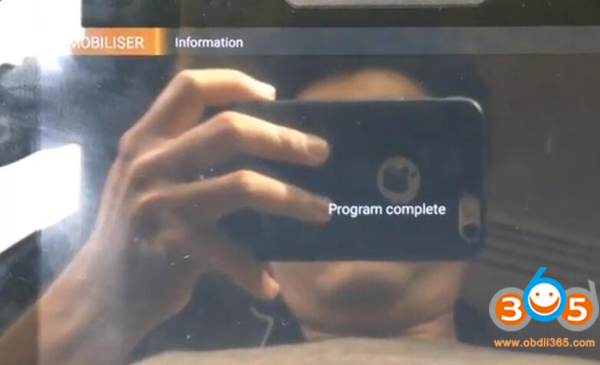

    Program 3 remotes completed
    obdstar-mitsubishi-14

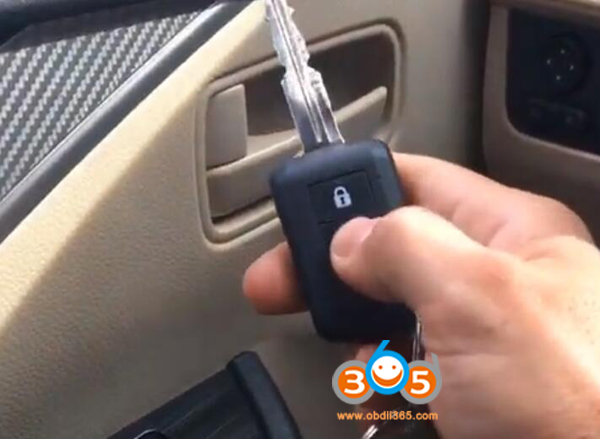

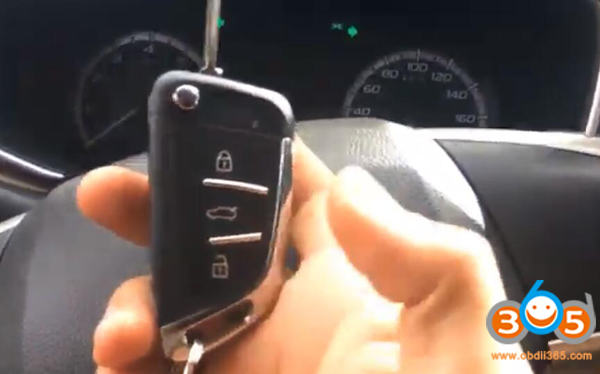

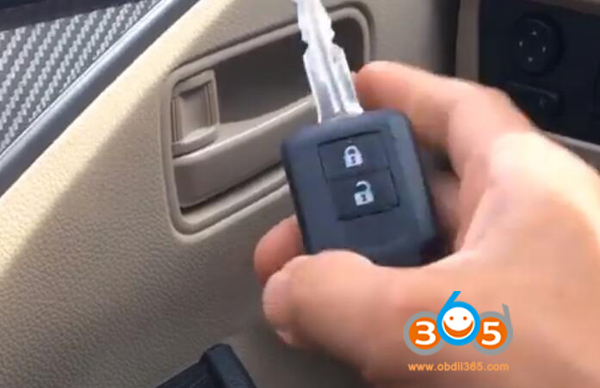

    Test remote control
    obdstar-mitsubishi-15
    obdstar-mitsubishi-16
    obdstar-mitsubishi-17
    All working.
    Done.
