Fiat MARELLI 70F3378 + 95160 Key ID46 Pincode Reading with OBDSTAR

Purpose: Read PIN code from Fiat MARELLI 70F3378 + 95160

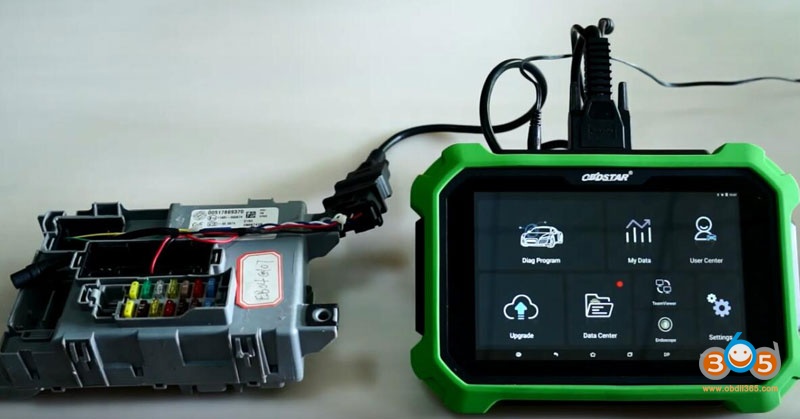

Using OBDSTAR X300 DP PLUS key master



Test:

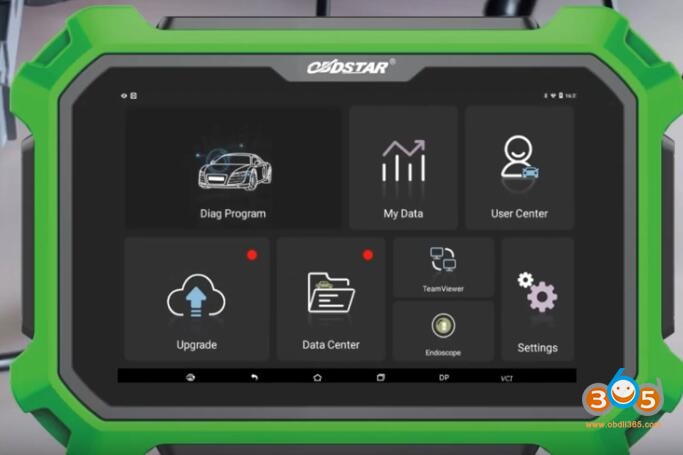

Go to XP300 DP PLUS Diag Program

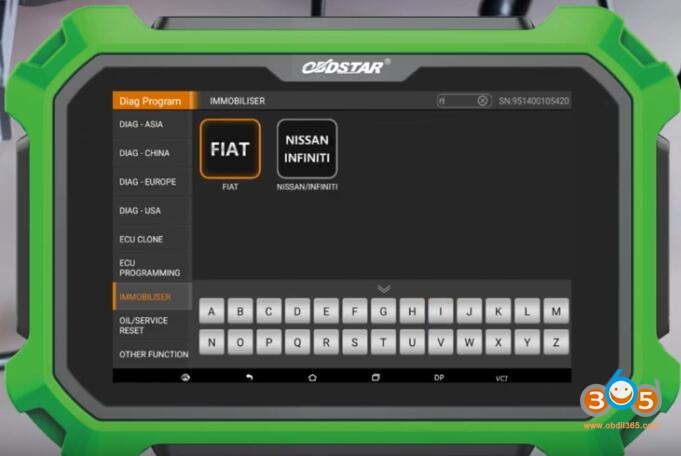

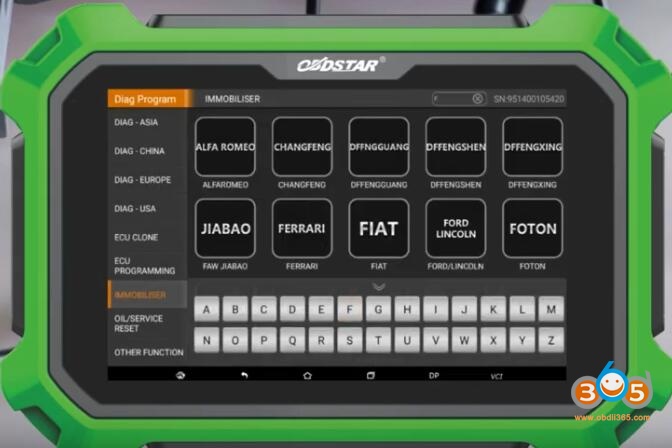

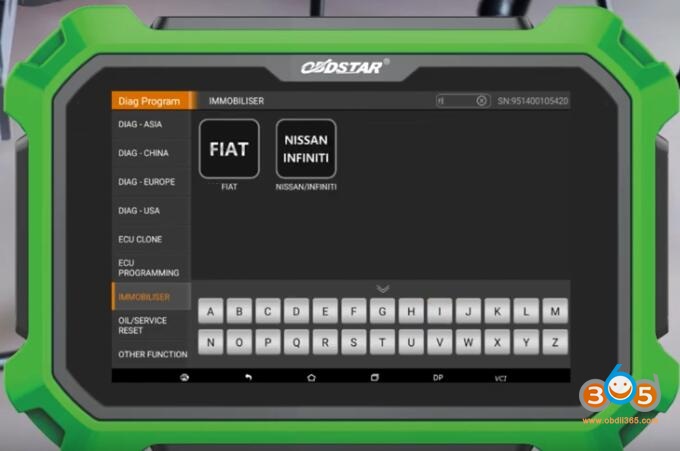

Go to Immobilizer – FIAT

(you can use search function to find out the car make quickly)

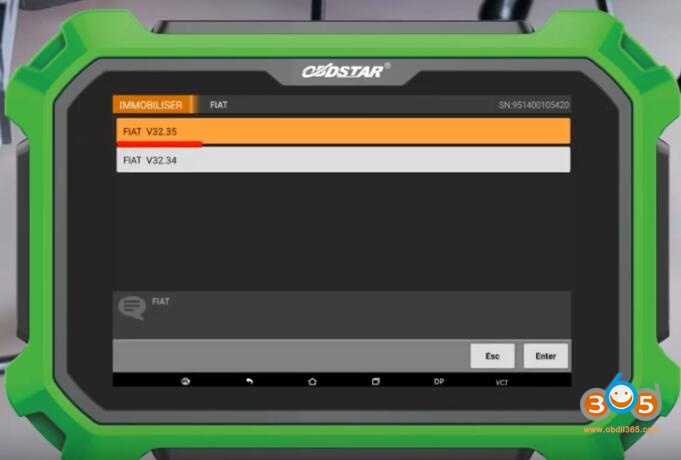

You should use X300DP PLUS FIAT V32.35 software

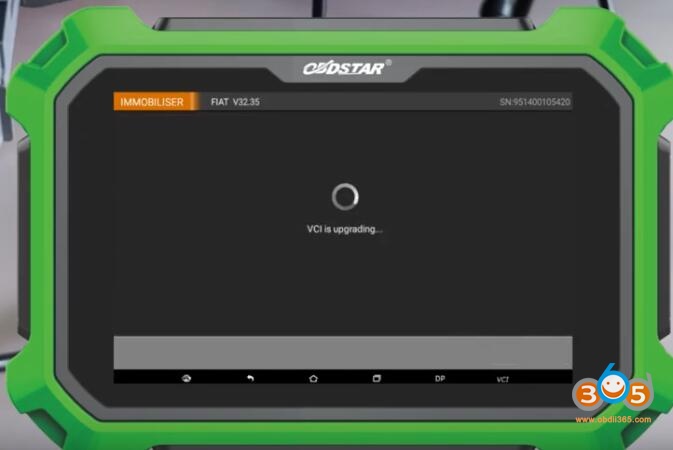

VCI is upgrading…

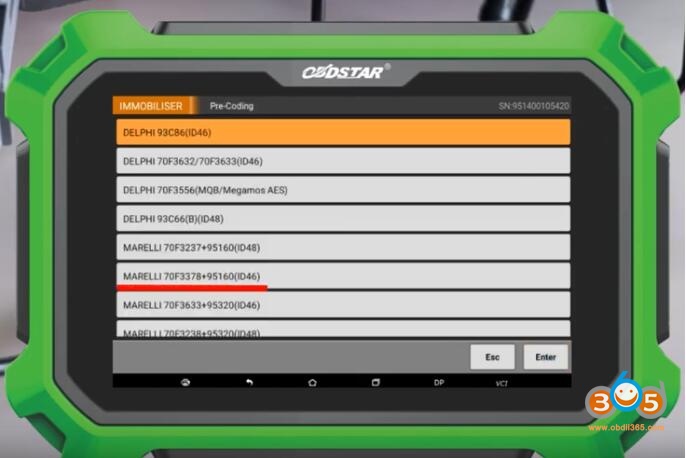

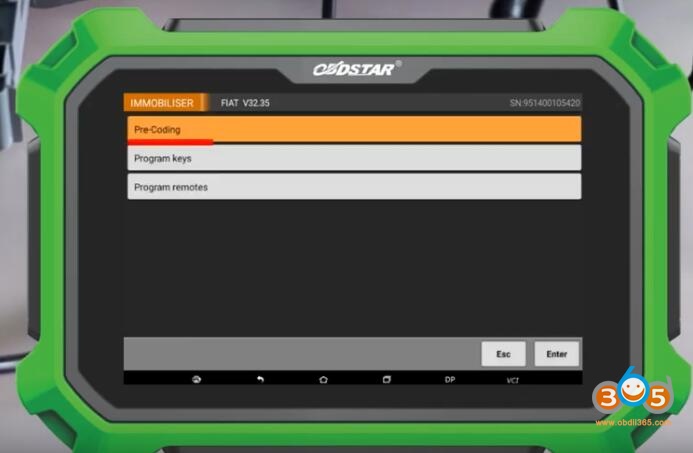

Pre-coding MARELLI 70F3378 + 95160 Key ID46

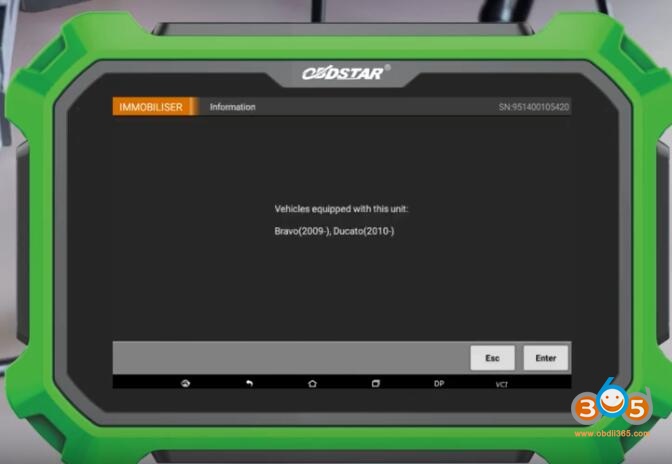

Vehicles equipped with this unit:

Bravo (2009-), Ducato (2010-)

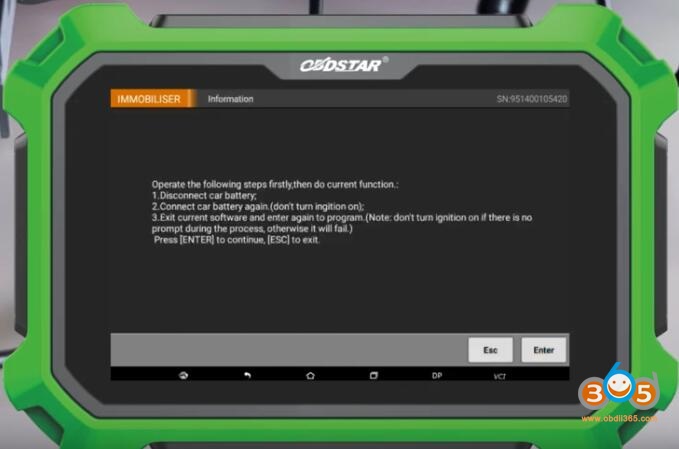

Operate the following steps firstly, then do the current function:

1. disconnect car battery
2. connect car battery again (don’t turn ignition on)
3. exit current software and enter again to program

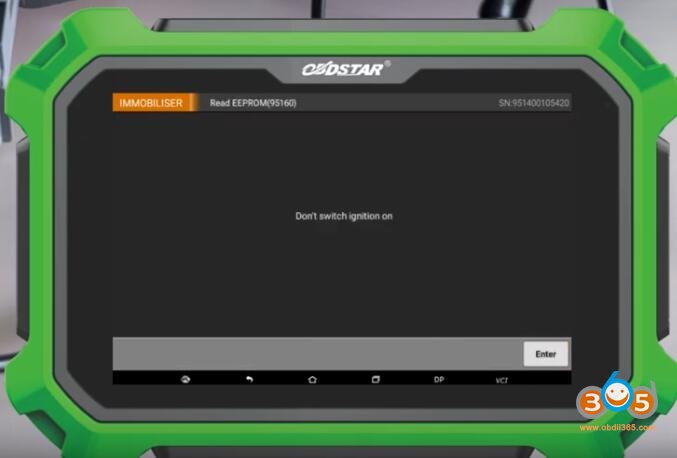

(note: don’t turn ignition on if there is no prompt during the process; otherwise it will fail)

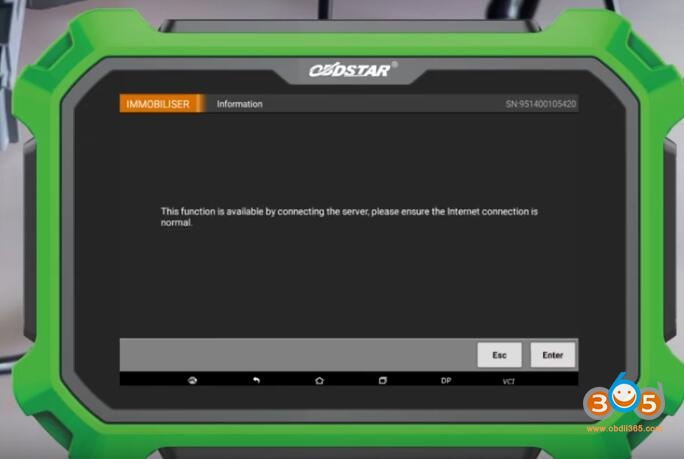

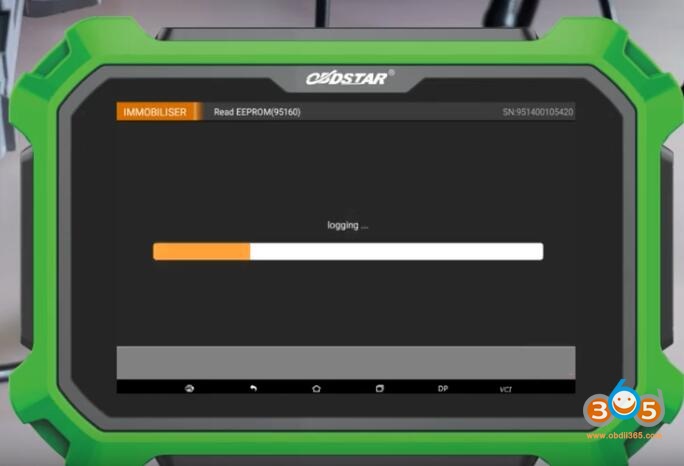

This function is available by connecting the server, pls ensure the internet connection is normal

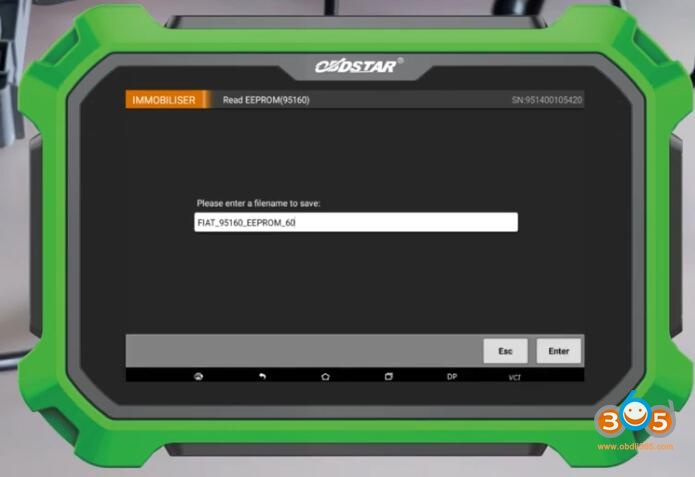

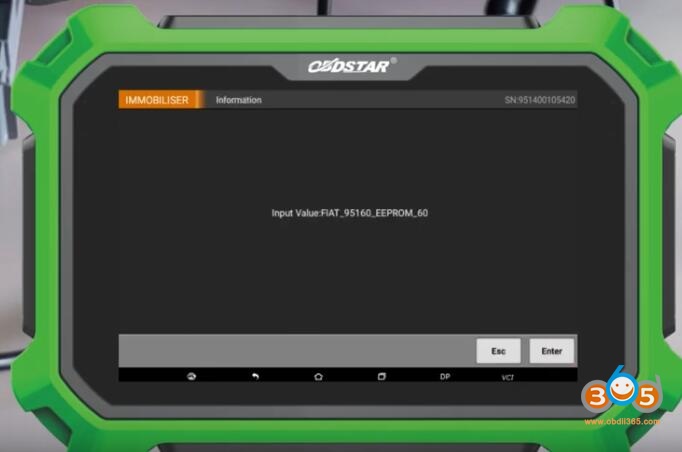

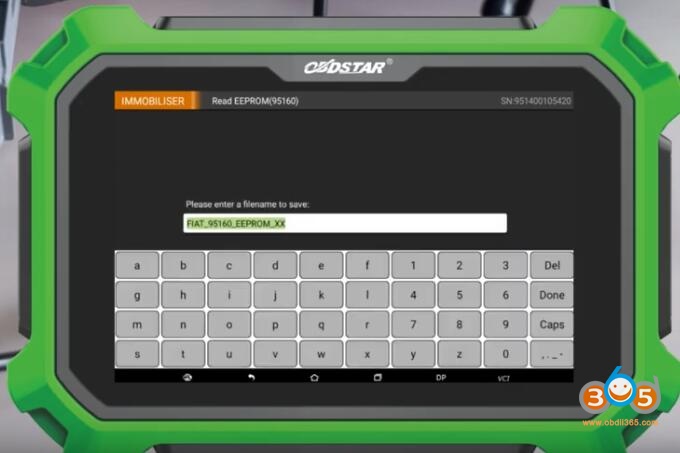

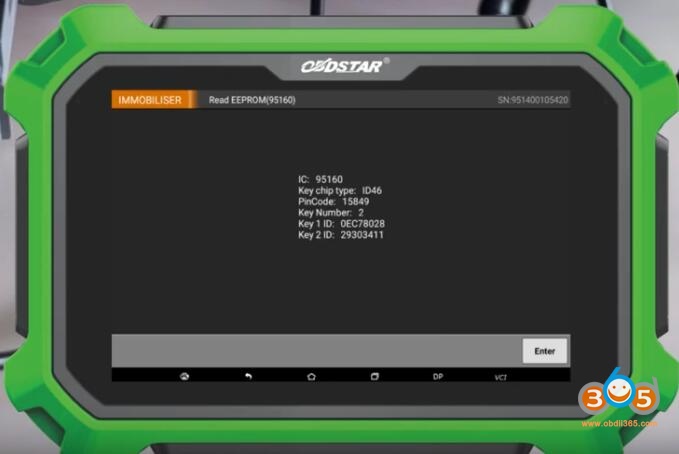

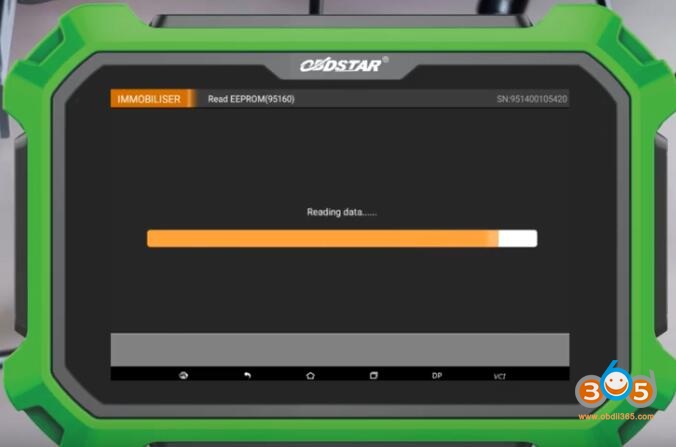

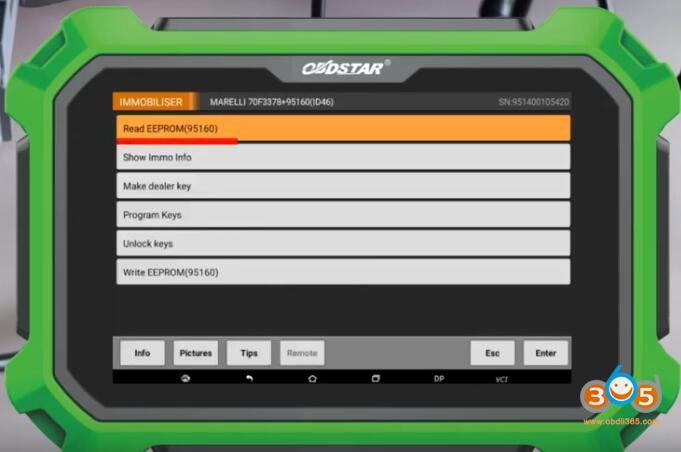

OBDSTAR read eeprom (95160) and save data

Job’s done!
