CGDI MB Program Benz W209 Old Motorola Key on Bench
New experience CGDI Prog + Old Moto key:
Just now make new try with CGDI MB key programmer, add key on bench with old Moto key:
i have spare W209 + original BGA key, i have dump key calculated by CGDI before.

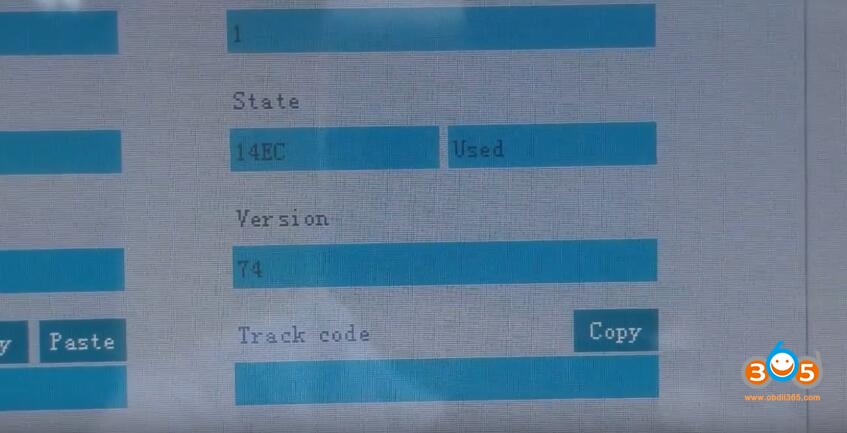

Moto key with Rom read as: 74, use format 051 (MA567.880.051 – 0F82B)

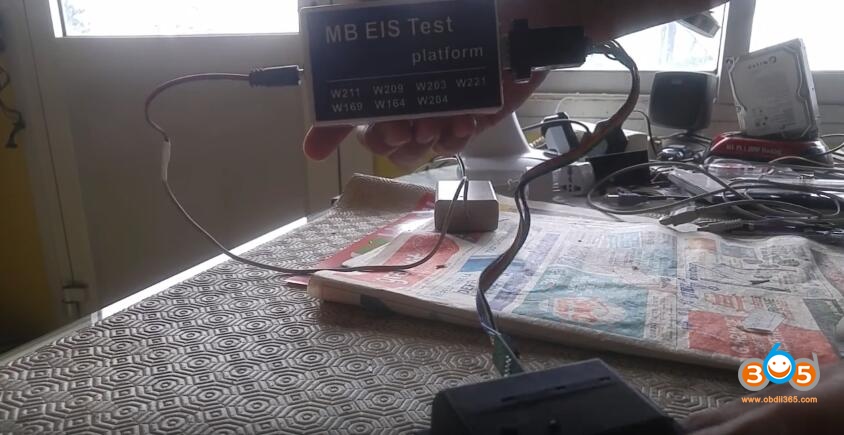

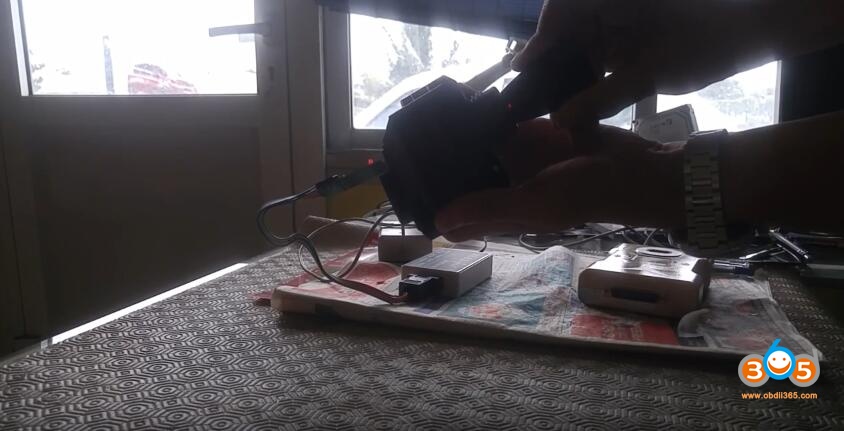

Write dump to Moto and test with EZS, it work and can turning key with chinese EZS tester.

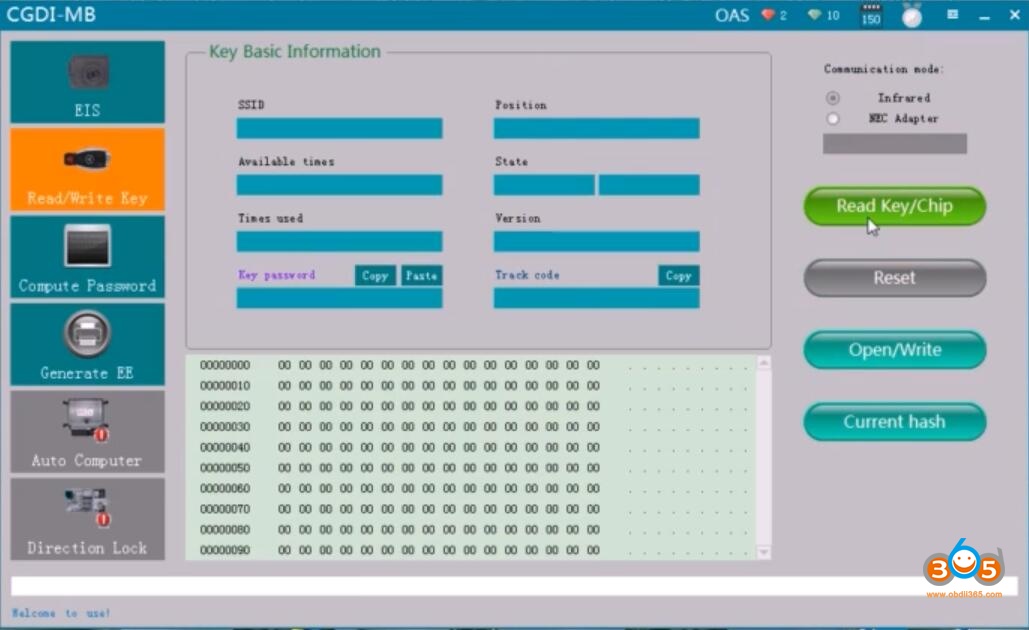

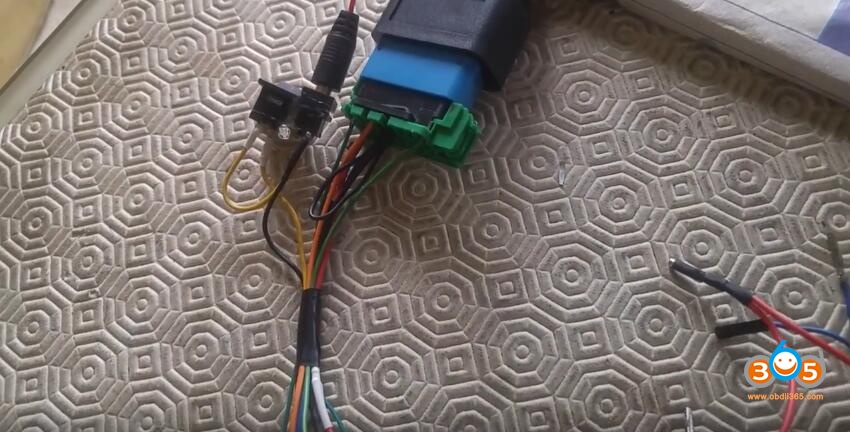

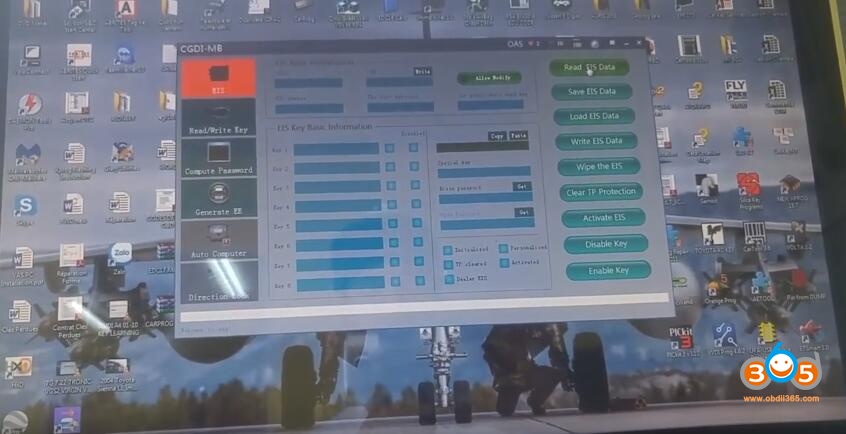

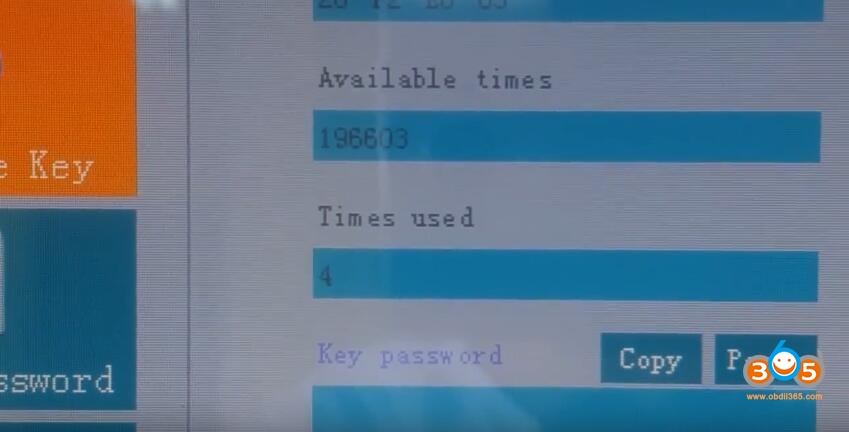

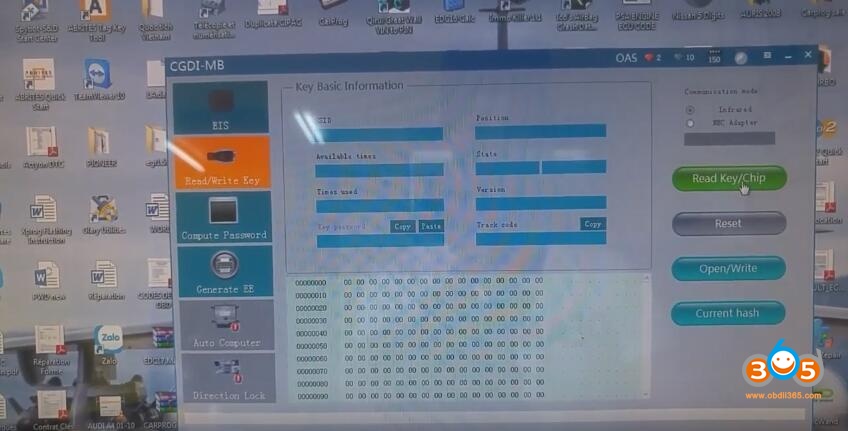

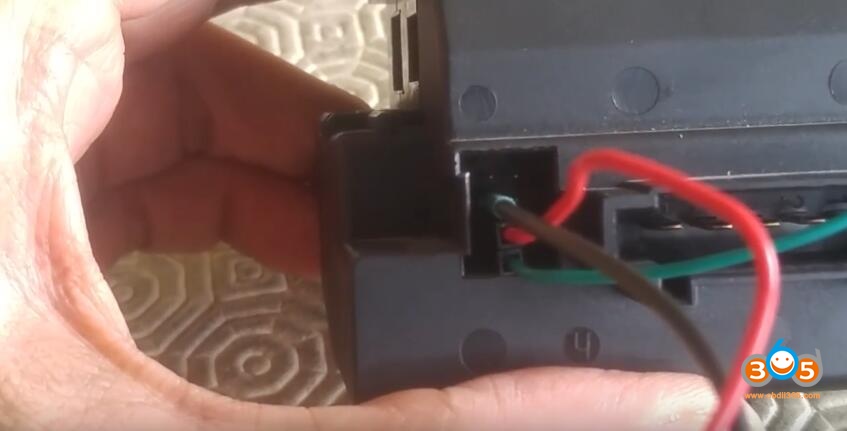

So connect EZS to CGDI-MB, start read EZS and key info. All OK.

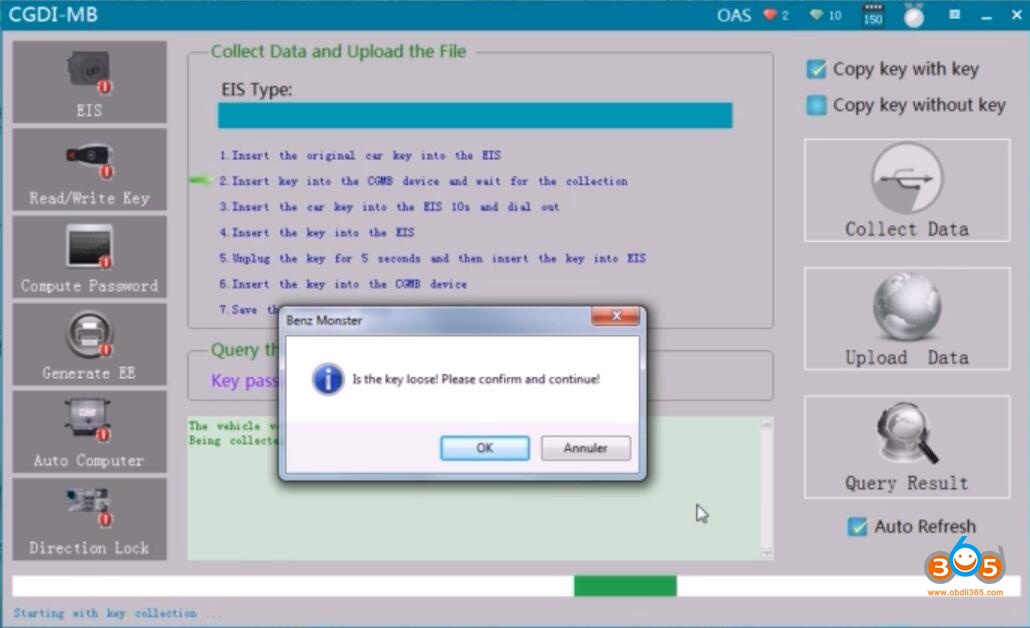

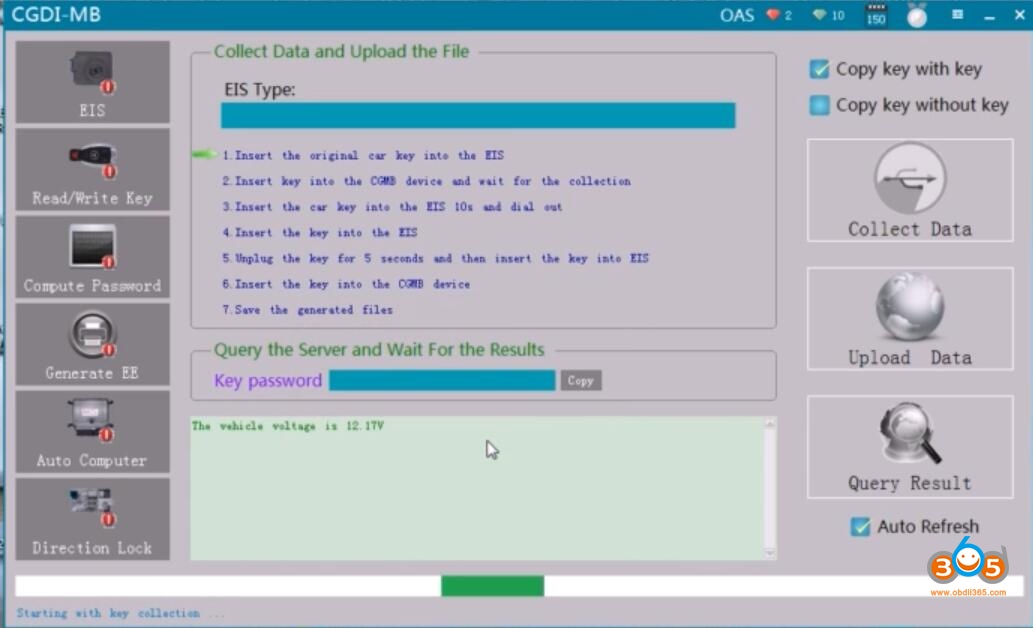

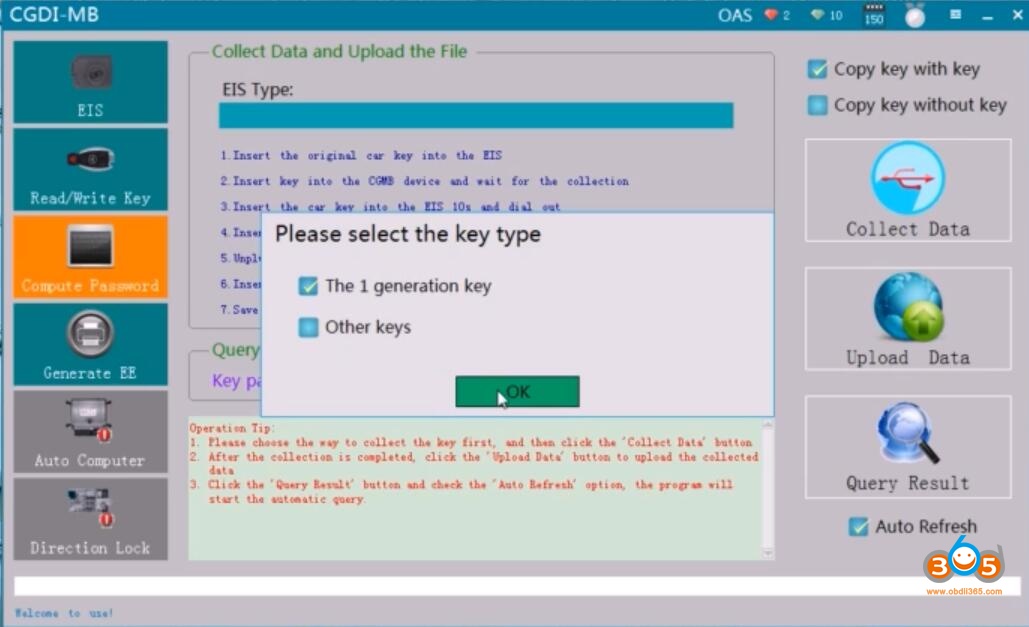

Before starting collect data, software ask if it is old generation key, so YES. Tool running and running after 5mn, ask it the key it’s loose.
If i click No, software stop. If YES, it continue running and the same tip go on.
If i choose other type 051, the same happened.
So conclusion, with Moto key, CGDI MB cannot add key on bench.
Images:

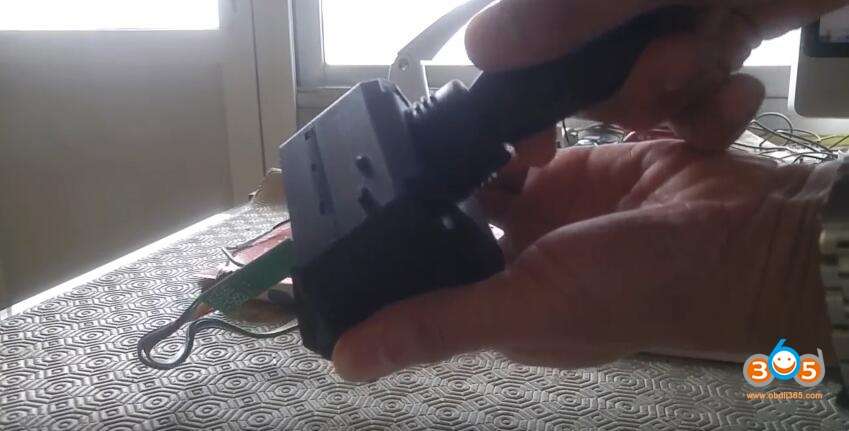

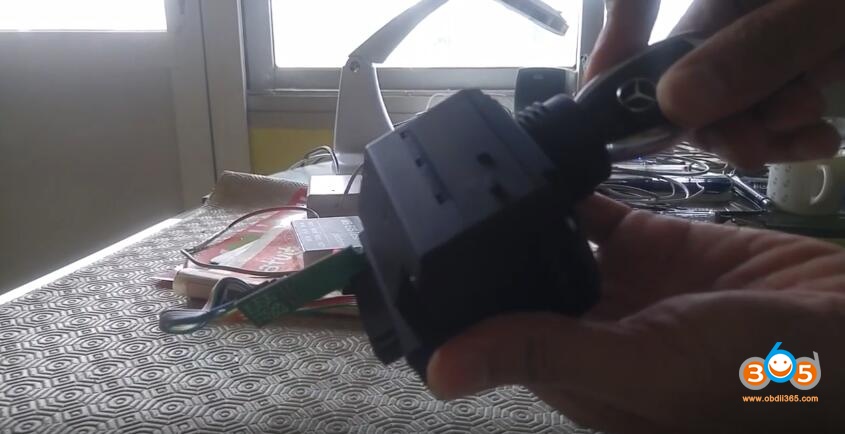

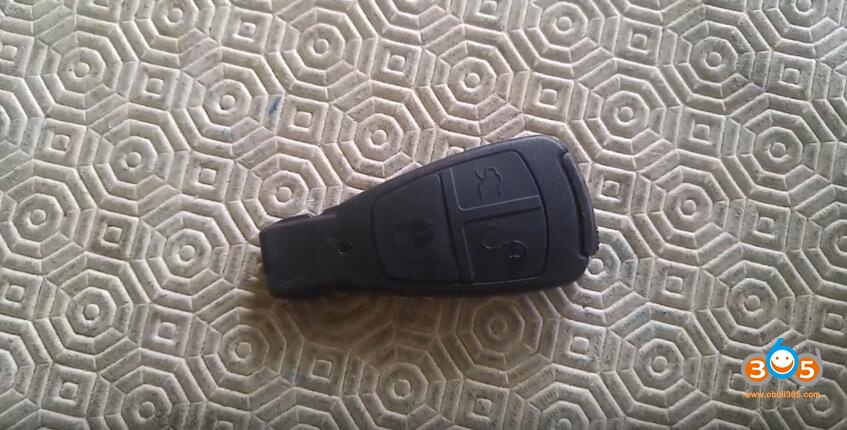

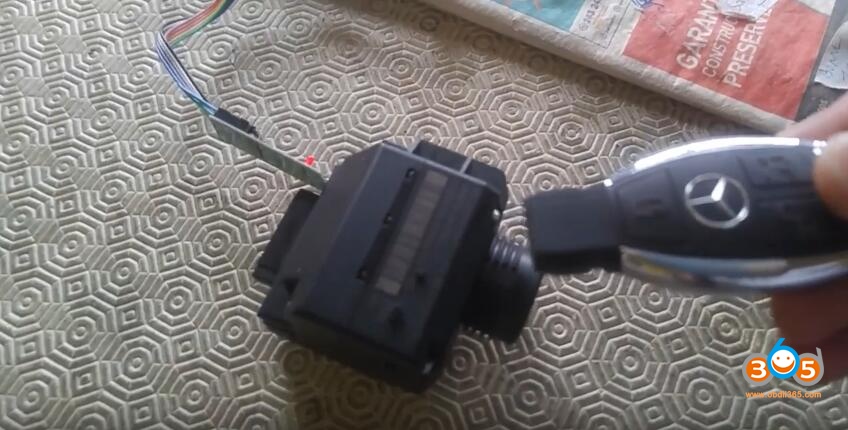

Test the original key and new key to be added

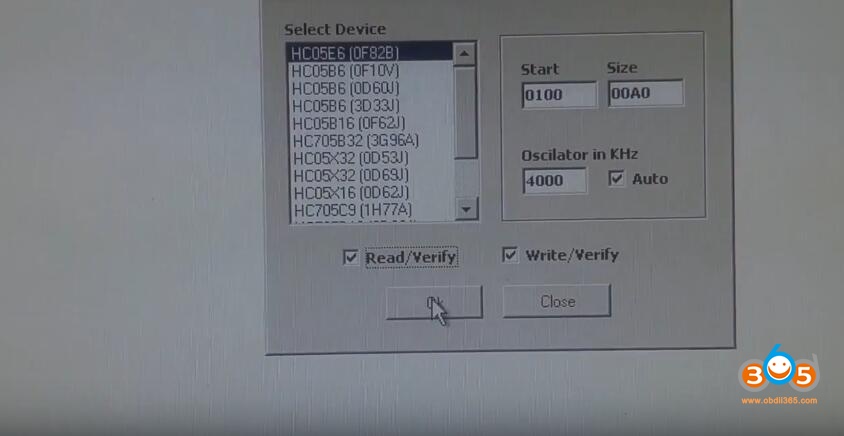

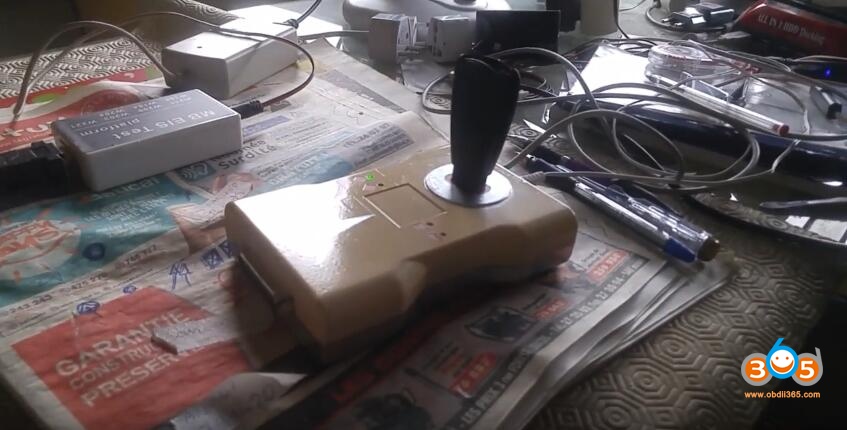

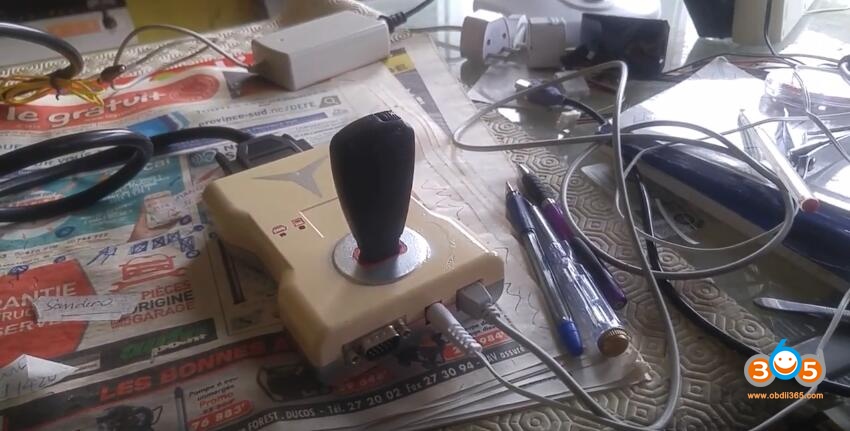

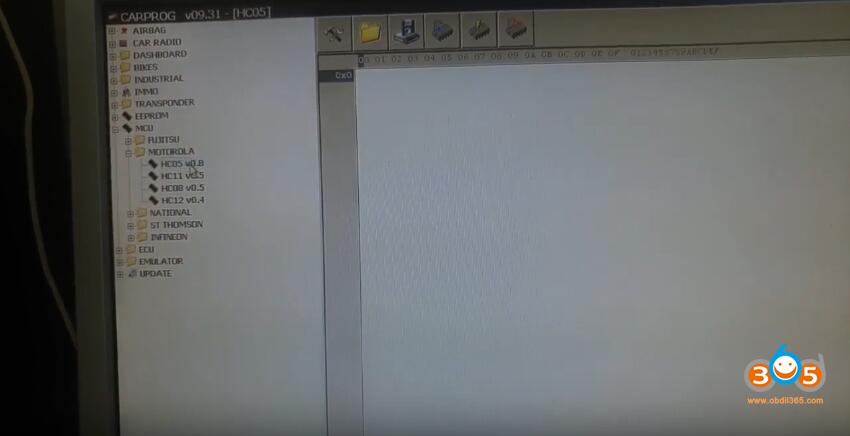

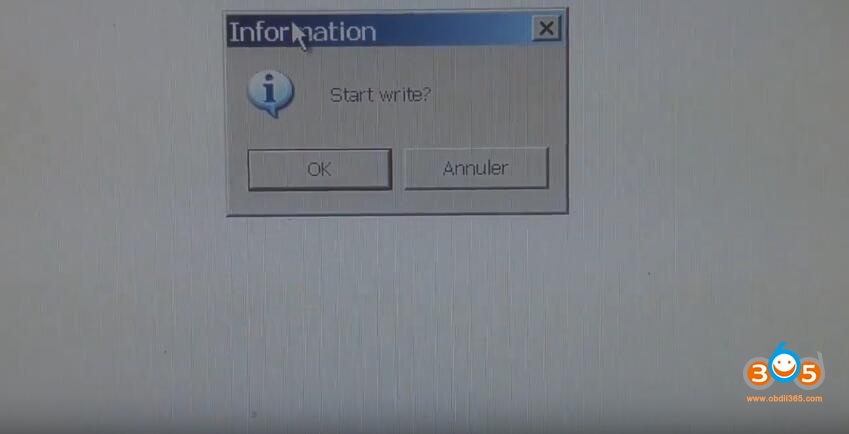

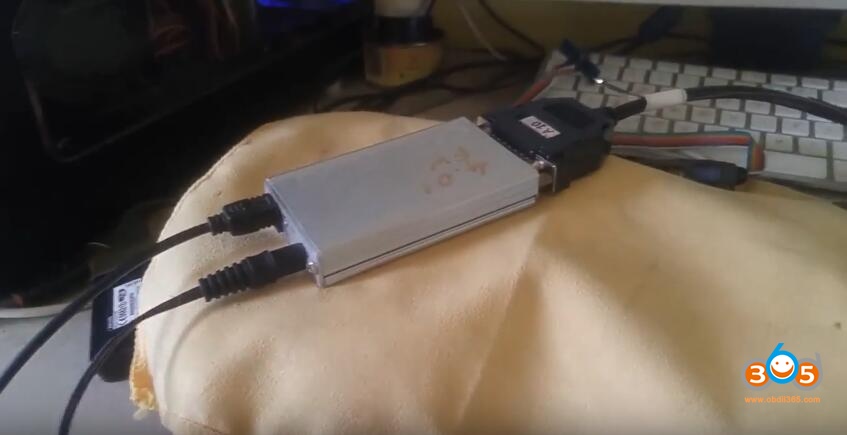

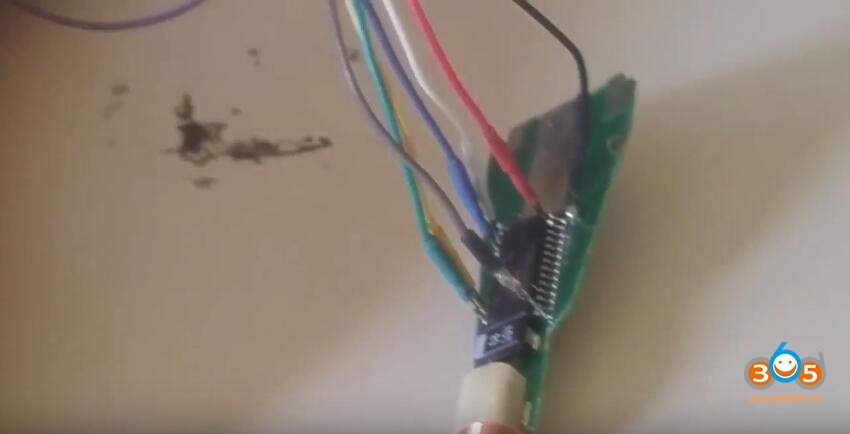

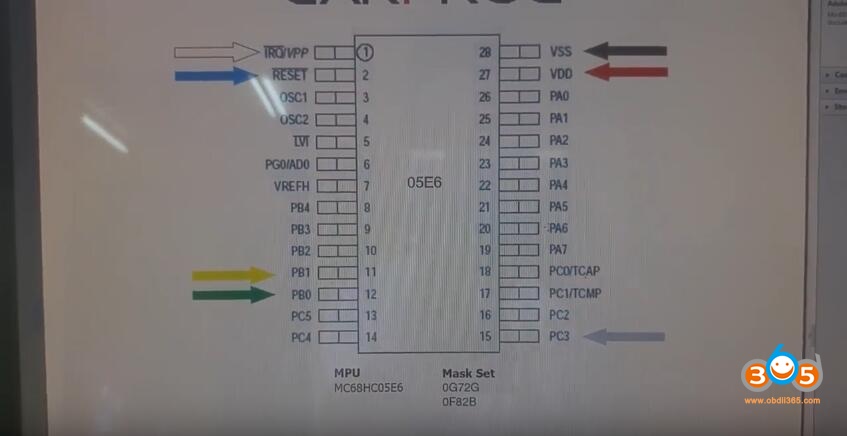

Carprog 9.31 read and wrote data to the new key
