    Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

    jaguarlandrover-key-programmer
    — (0)

    Vehicle model: Land Rover Range Rover Sport 2012
    Scenario: All Keys Lost

    Key type: 5-button smart key

    What you need:
    Autel MaxiIM IM608 and XP400 programmer

    2 smart keys

    Im608 Range Rover Akl 2

    Procedure:

    Im608 Range Rover Akl 1

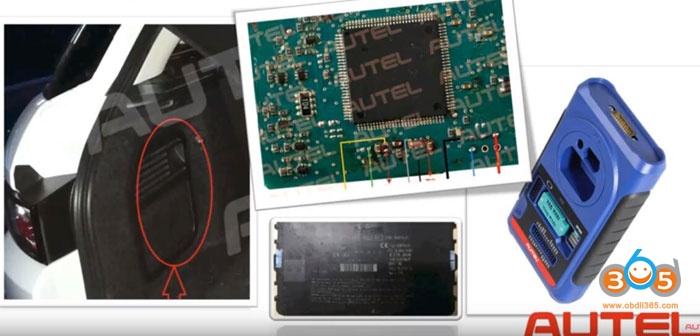

    Read BCM data on bench mode (xp400 is required)

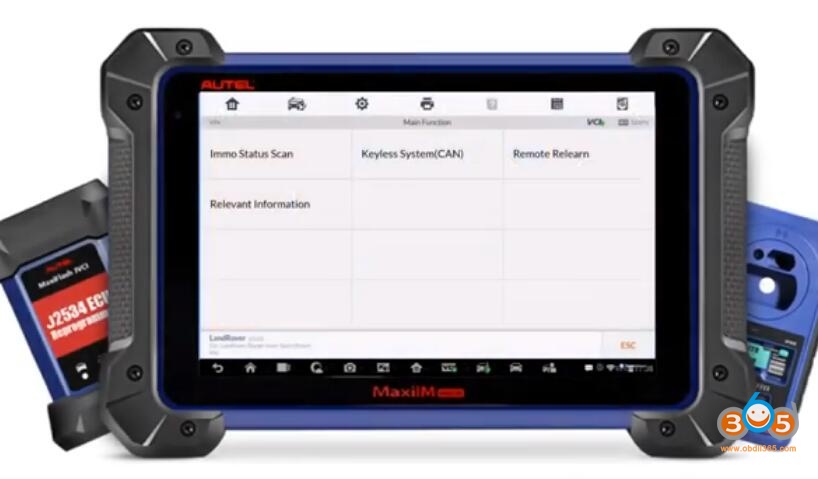

    Select Immo Status Scan

    Im608 Range Rover Akl 3
    Press Start button

    Im608 Range Rover Akl 4

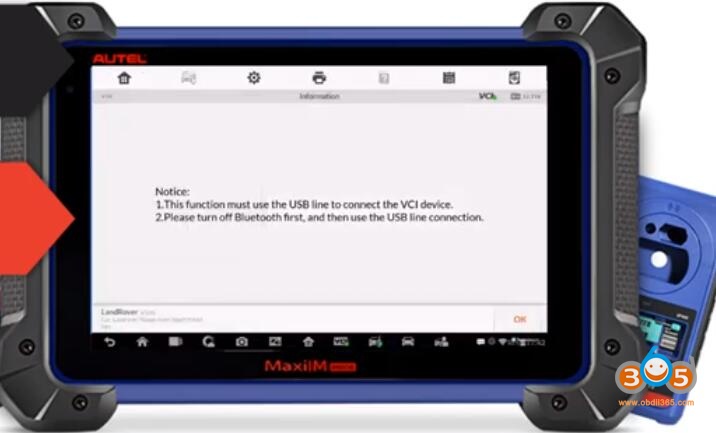

    Connect USB cable and turn off bluetooth

    Im608 Range Rover Akl 5

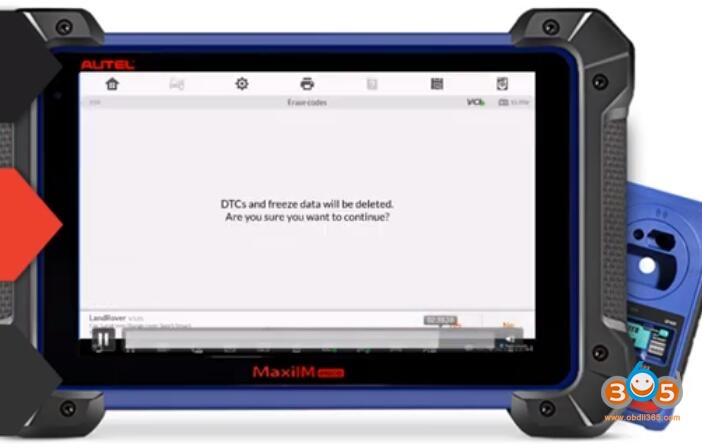

    Read and erase error codes

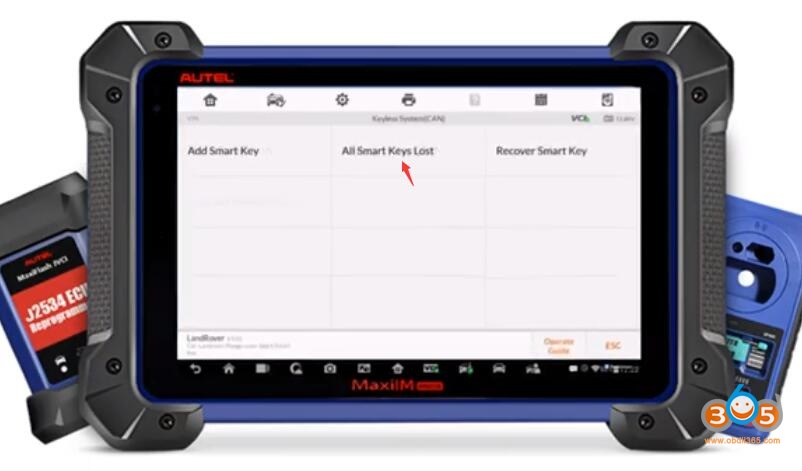

    Click Key Learning “Keyless System (CAN)”->All smart keys lost

    Im608 Range Rover Akl 6
    Press Start button
    Turn ignition off

    Im608 Range Rover Akl 7

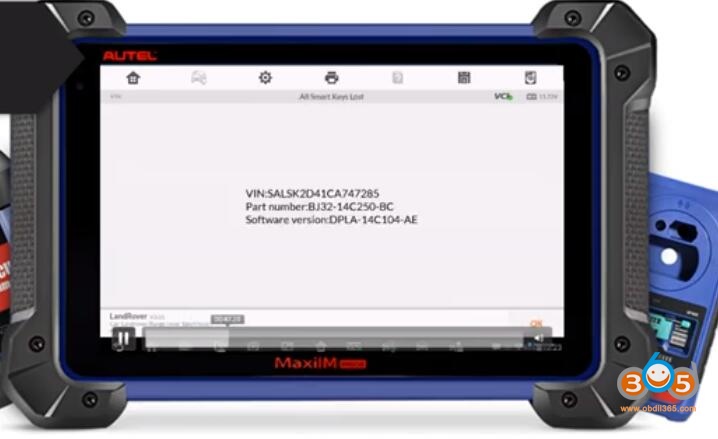

    Identify vehicle information

    Im608 Range Rover Akl 8

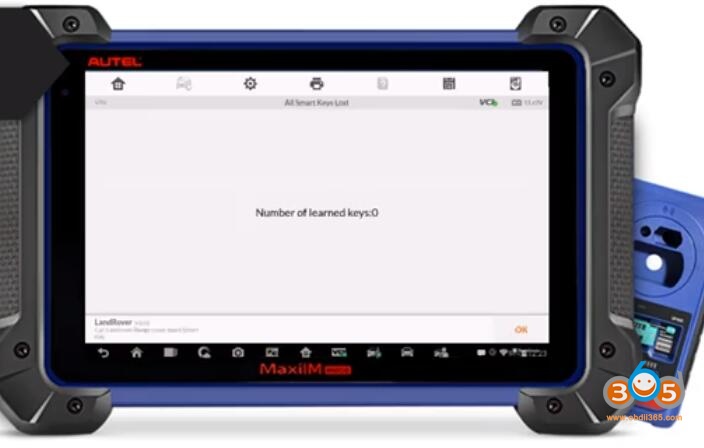

    Identify 00 number of key

    Im608 Range Rover Akl 9

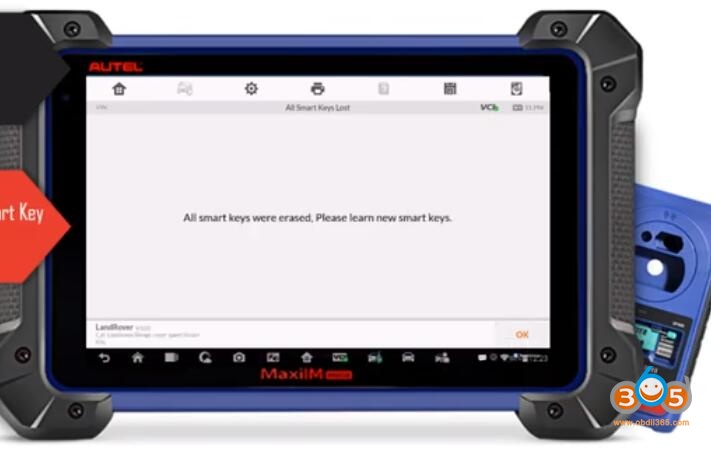

    All smart keys were erased. Follow prompts to learn new smart keys.

    Put the learning smart key on your hand

    Im608 Range Rover Akl 10

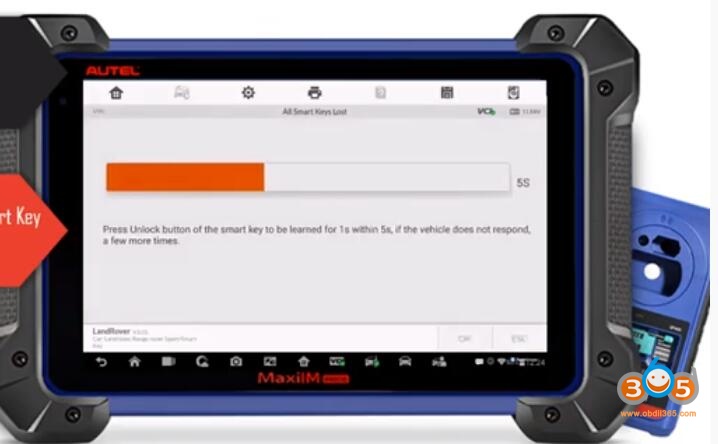

    Press Unlock button of the smart key be learned for 1s within 5s. if the vehicle does not respond,  try a few more times

    Im608 Range Rover Akl 11

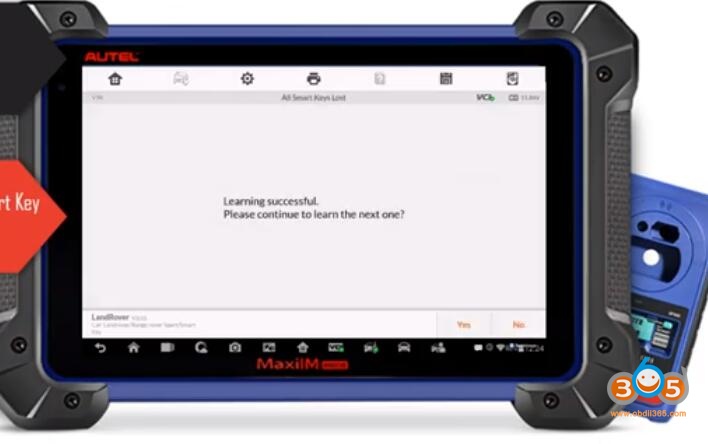

    Learn 1st key succeed, learn next key
    Repeat process with second key
    Then click Finish.

    Test new smart keys.

    Done.
