Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

Vehicle model: Land Rover Range Rover Sport 2012
Scenario: All Keys Lost

Key type: 5-button smart key

What you need:
Autel MaxiIM IM608 and XP400 programmer

2 smart keys


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

Procedure:


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

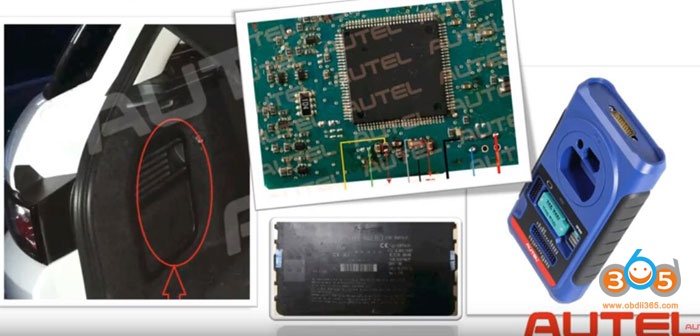

Read BCM data on bench mode (xp400 is required)

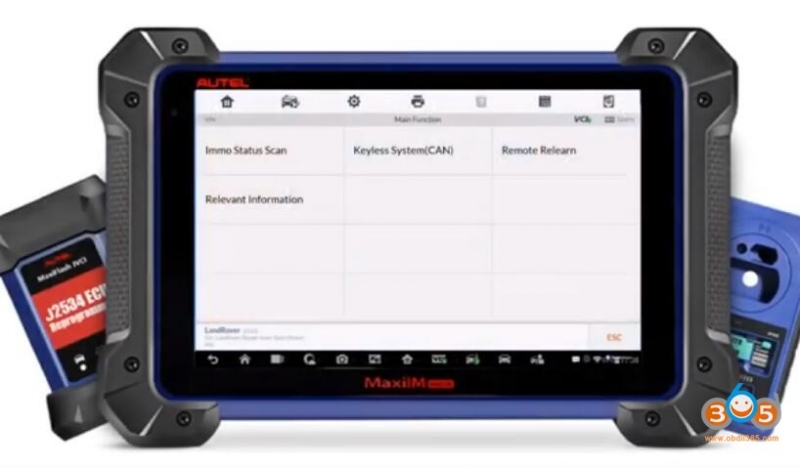

Select Immo Status Scan


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

Press Start button


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

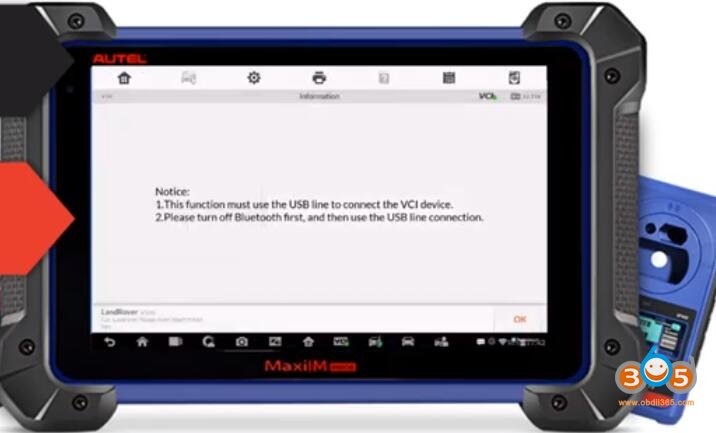

Connect USB cable and turn off bluetooth


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

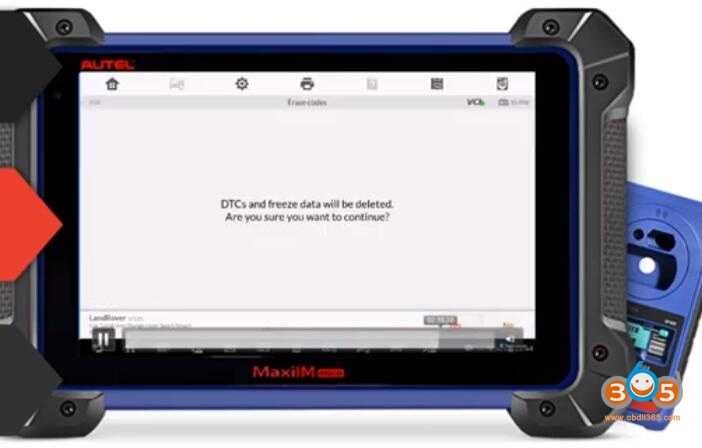

Read and erase error codes

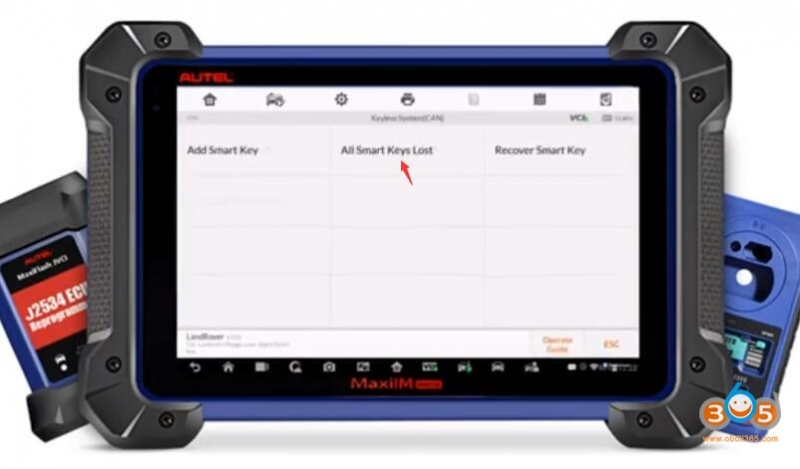

Click Key Learning “Keyless System (CAN)”->All smart keys lost


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

Press Start button
Turn ignition off


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

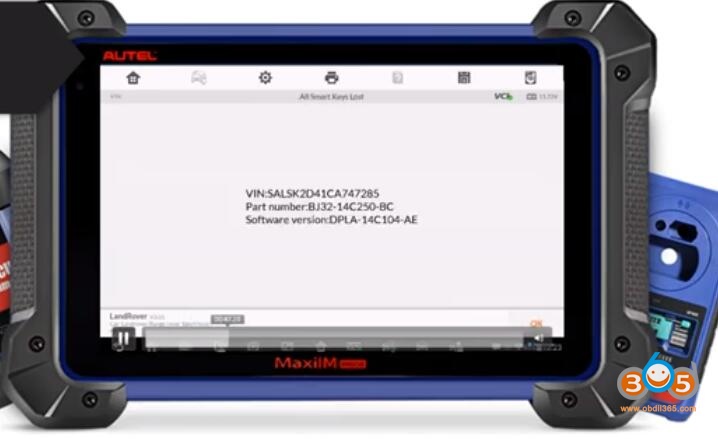

Identify vehicle information


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

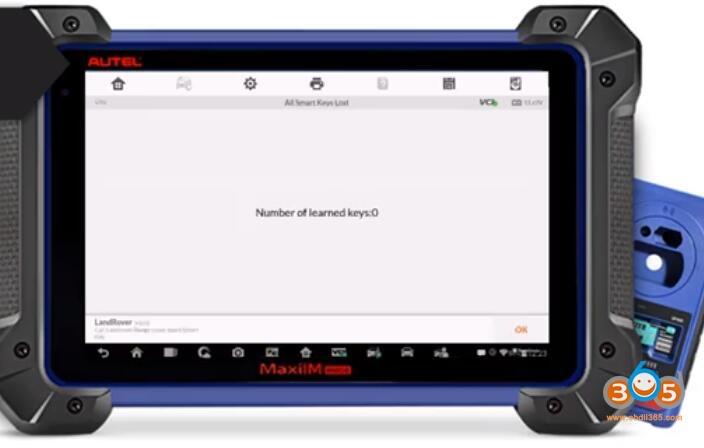

Identify 00 number of key


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

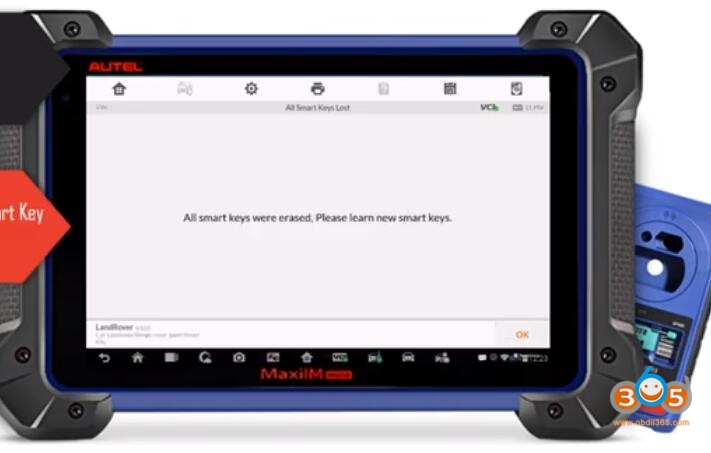

All smart keys were erased. Follow prompts to learn new smart keys.

Put the learning smart key on your hand


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

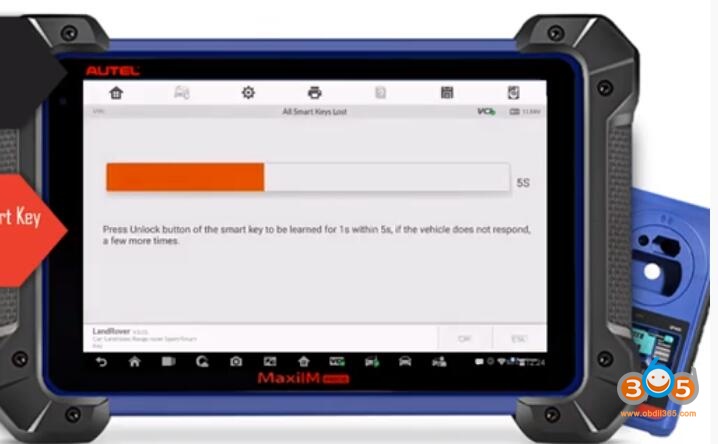

Press Unlock button of the smart key be learned for 1s within 5s. if the vehicle does not respond,  try a few more times


			Program Range Rover Sport 2012 All Smart Keys Lost with Autel IM608

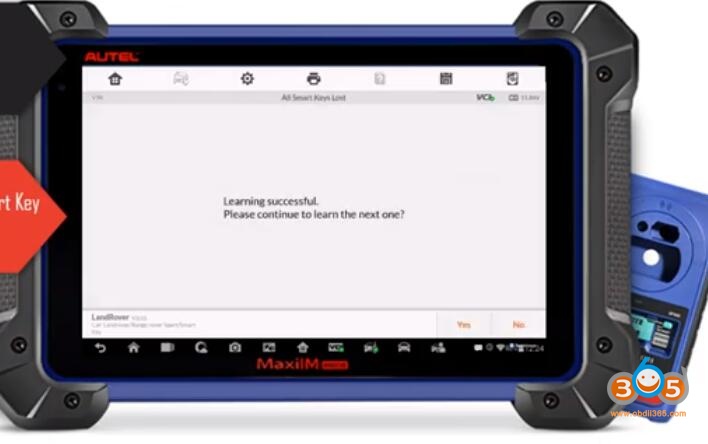

Learn 1st key succeed, learn next key
Repeat process with second key
Then click Finish.

Test new smart keys.

Done.
