    Program 2004 Honda S2000 Key with CK100 Key Programmer

    japantoyota-key-programmer
    — (0)

    Vehicle Model: 2004 Honda S2000

    Situation: Got the used car which has only 1 key.

    Device to program: CK100 (CK-100+) key programmer



    For the S2000, the CK-100 erases all the keys stored in your ECU and then adds in all the ones you want. You must have all keys present when you use it. There are other programmers (Honda dealer) that can just add 1 key without having to erase all the keys in the ECU, but the CK-100 is not one of them (for S2000 anyways).

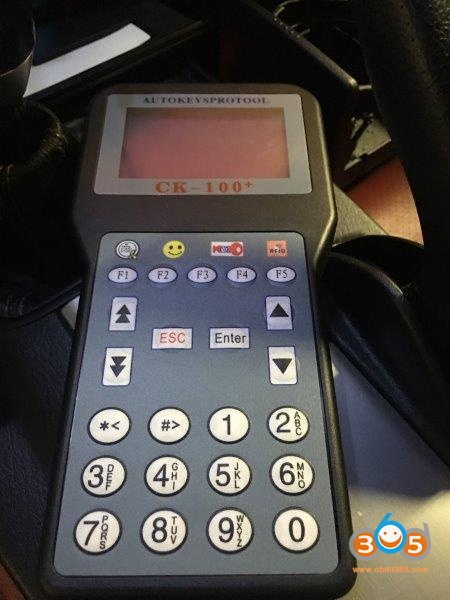

    CK-100 programmer. Attaches to your OBD-2 port and powers via standard 110V outlet.

    Ck100 Honda 2004 S2000 Add Key 1

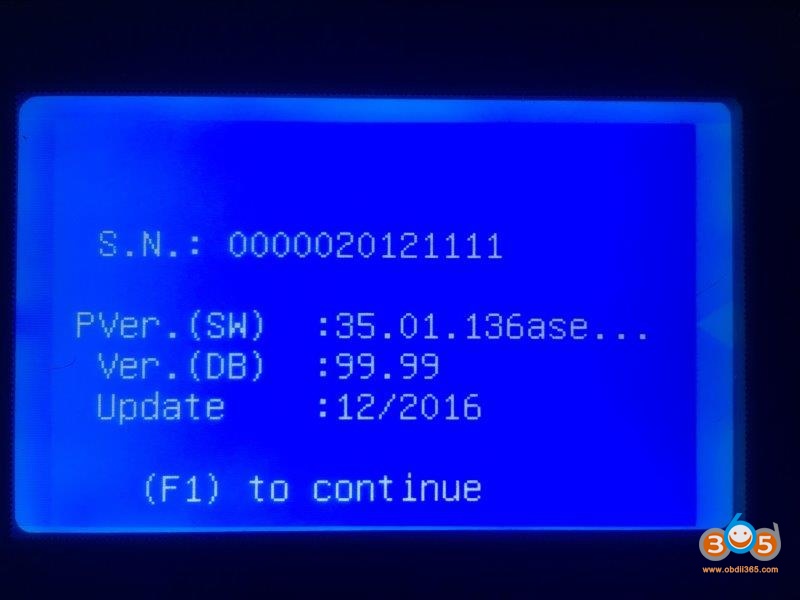

    This is the software version on my unit. v99.99 is the most current version as of Feb 2017.

    Ck100 Honda 2004 S2000 Add Key 2

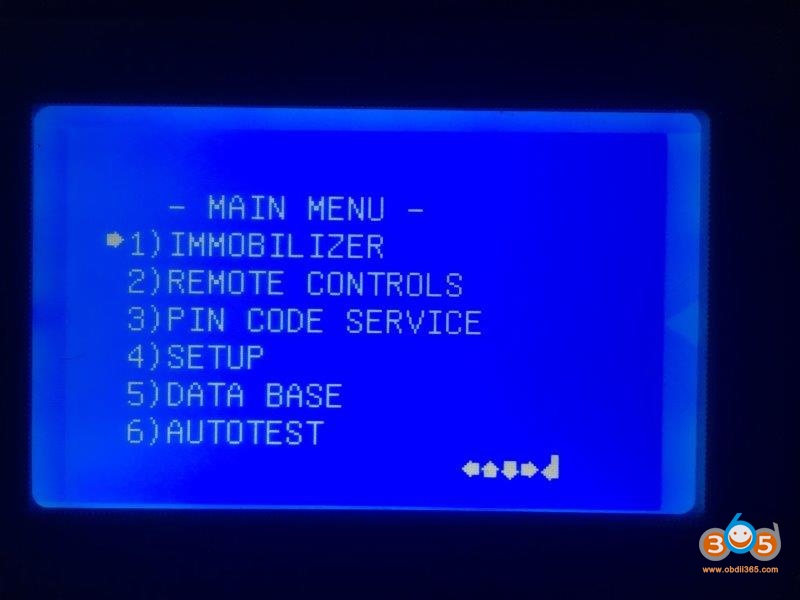

    Choose Immobilizer from the first menu to program your keys to the ECU

    Ck100 Honda 2004 S2000 Add Key 3

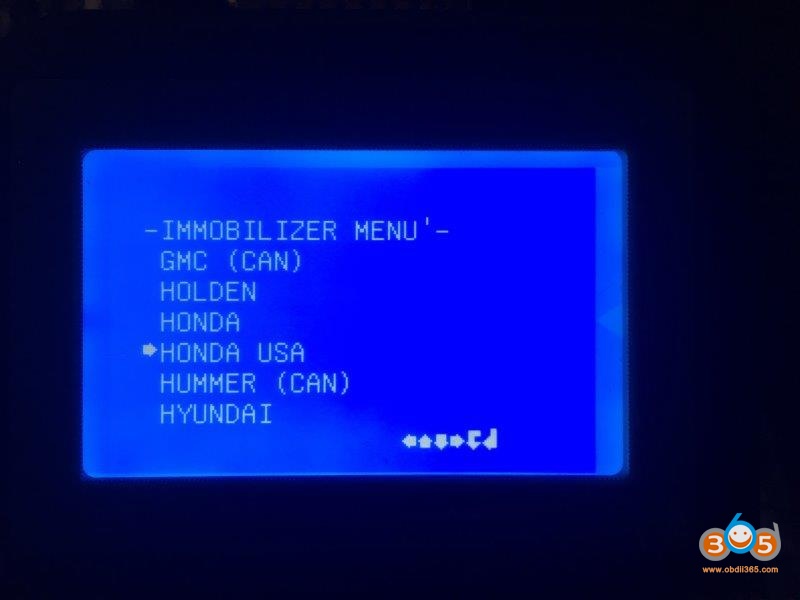

    Choose Honda USA

    Ck100 Honda 2004 S2000 Add Key 4

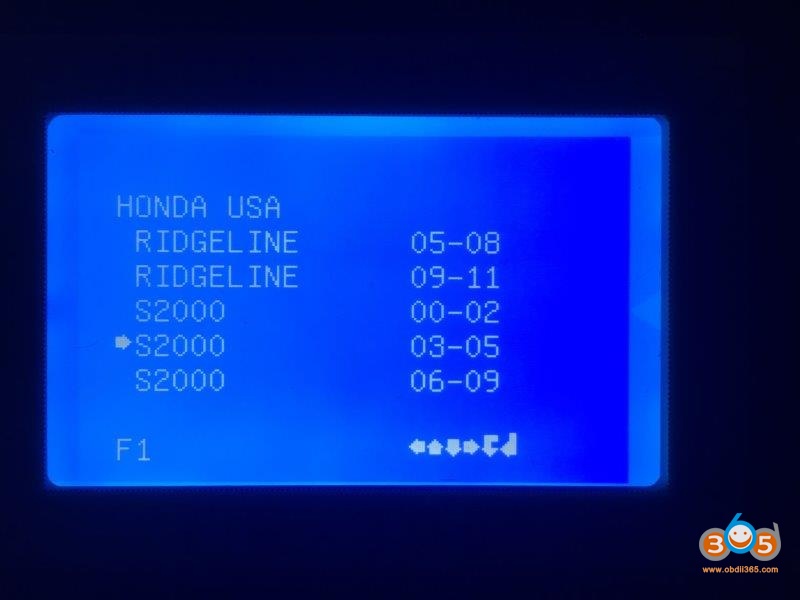

    Select your year S2000, I chose 03-05 since I have an 04

    Ck100 Honda 2004 S2000 Add Key 5

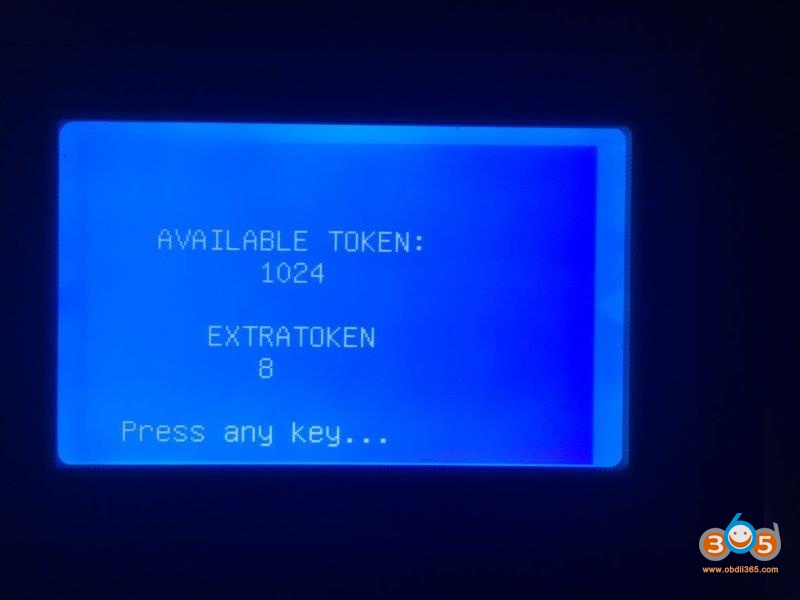

    The CK-100 operates on a “token” system. Basically, you can use the CK-100 till you run out of tokens. Each task you perform with the unit costs a certain amount of tokens. After that, you need to buy a new CK-100 chip for new tokens. A new CK-100 comes with 1024 tokens. I think this screen is saying that it will cost me 8 tokens to program the S2000 ECU. However, it actually only used 1 as you’ll see later. I’ve read that it cost 8 tokens each key for a Ford Explorer so it definitely varies by vehicle.

    Ck100 Honda 2004 S2000 Add Key 6

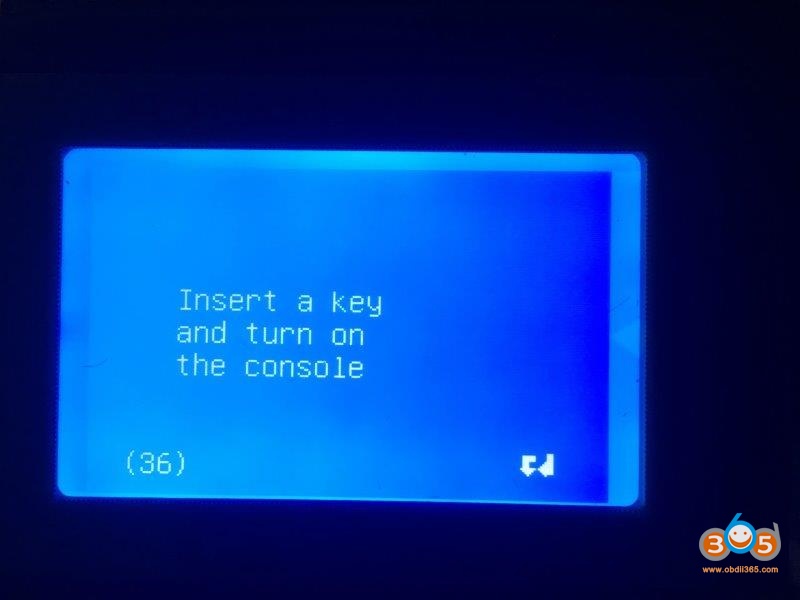

    Not sure if you need an existing working key for this but I would assume so. I used my existing working key.

    Ck100 Honda 2004 S2000 Add Key 7

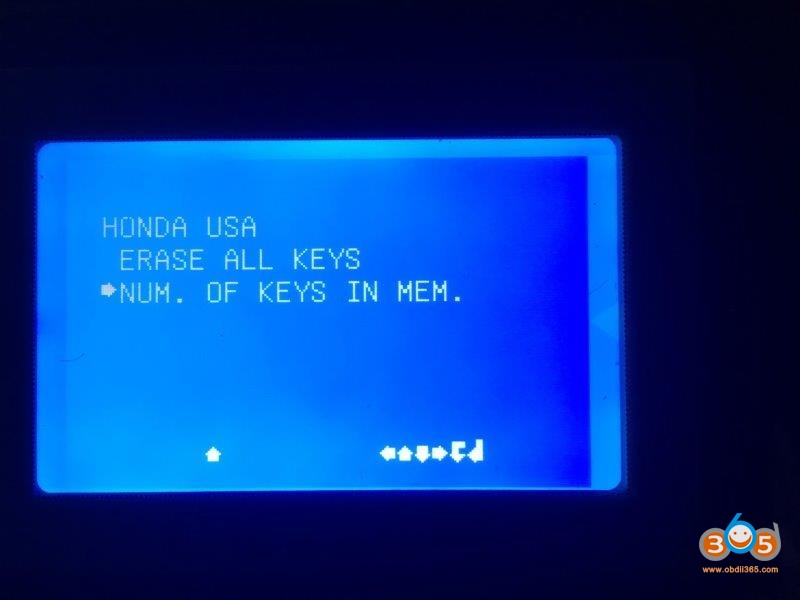

    I chose to see how many keys were in my ECU before I erased it.

    Ck100 Honda 2004 S2000 Add Key 8

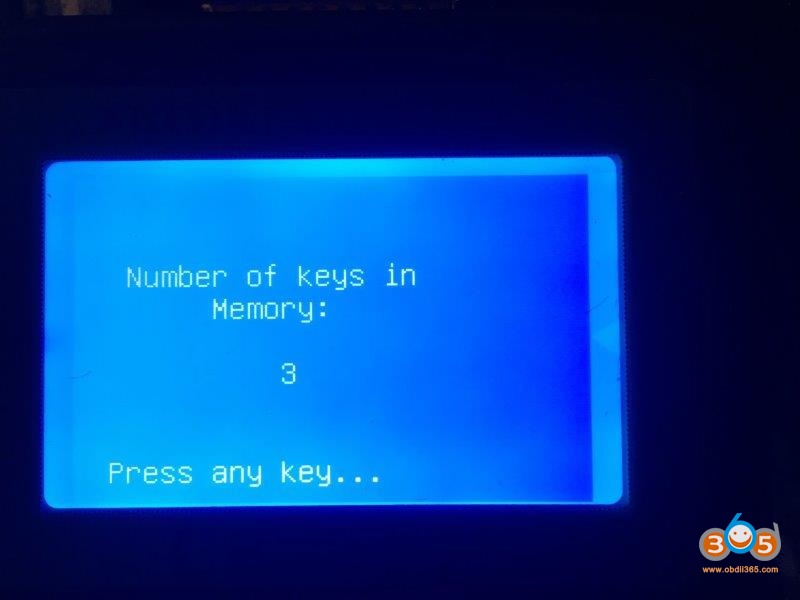

    3 keys in the ECU, yet I only have 1 of them.

    Ck100 Honda 2004 S2000 Add Key 9

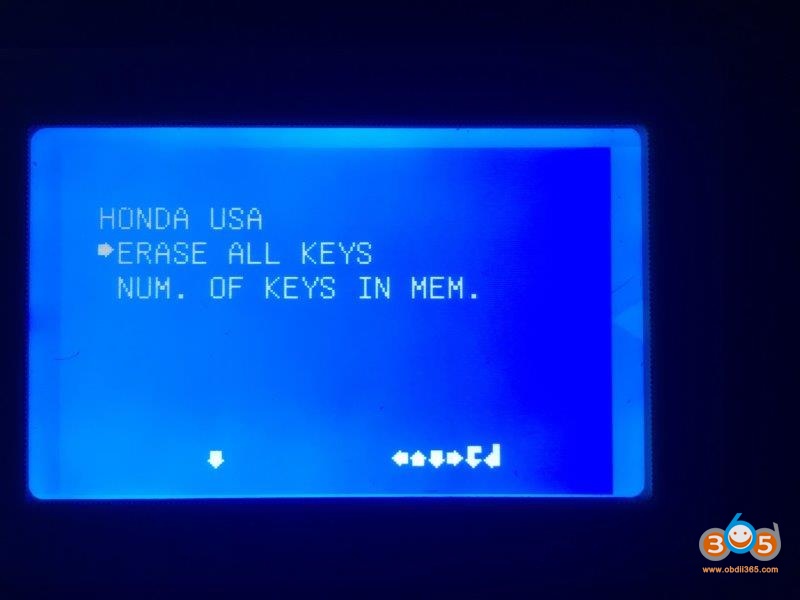

    Choose Erase All Keys to start the process

    Ck100 Honda 2004 S2000 Add Key 10

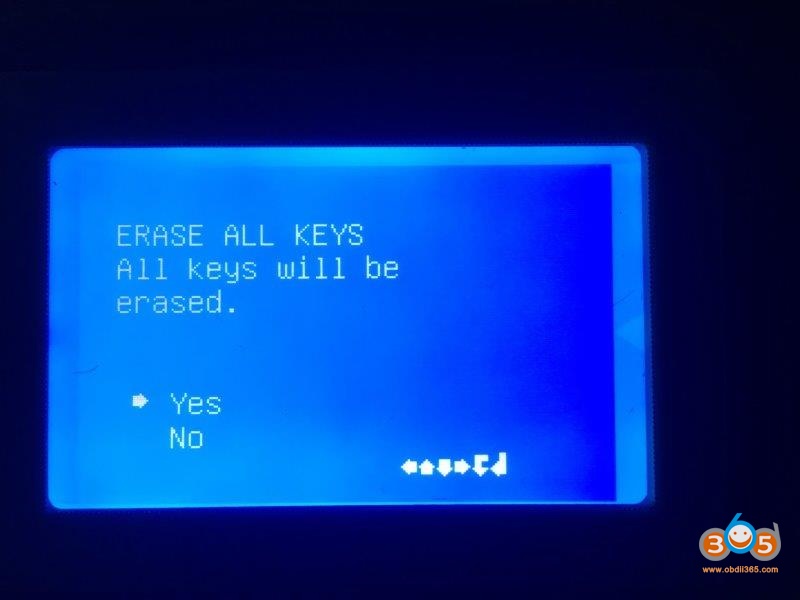

    Select Yes to confirm

    Ck100 Honda 2004 S2000 Add Key 11

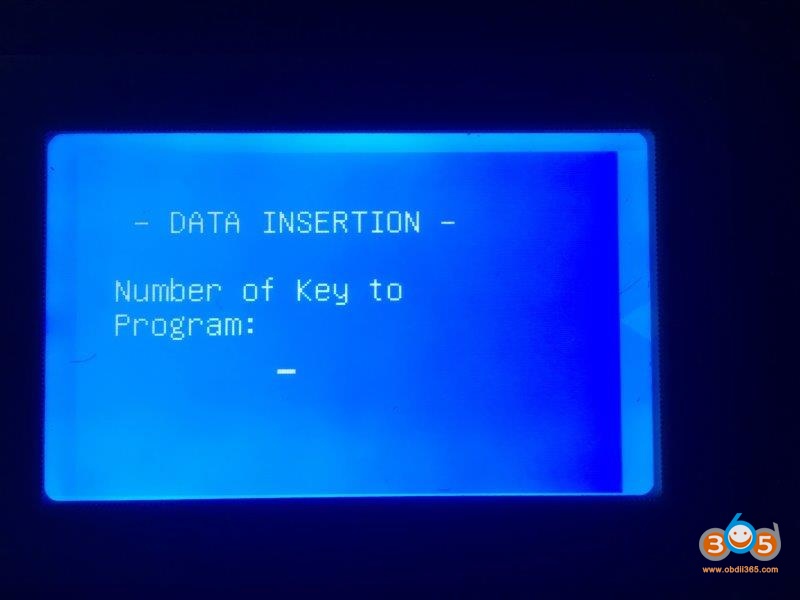

    Enter the number of keys you want to program into your ECU

    Ck100 Honda 2004 S2000 Add Key 12

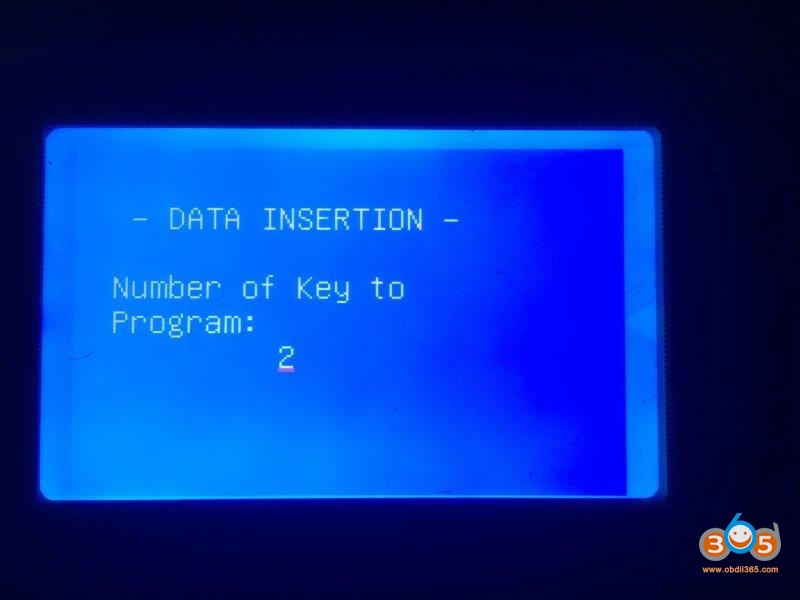

    I entered 2 since I only have 2 keys on hand

    Ck100 Honda 2004 S2000 Add Key 13

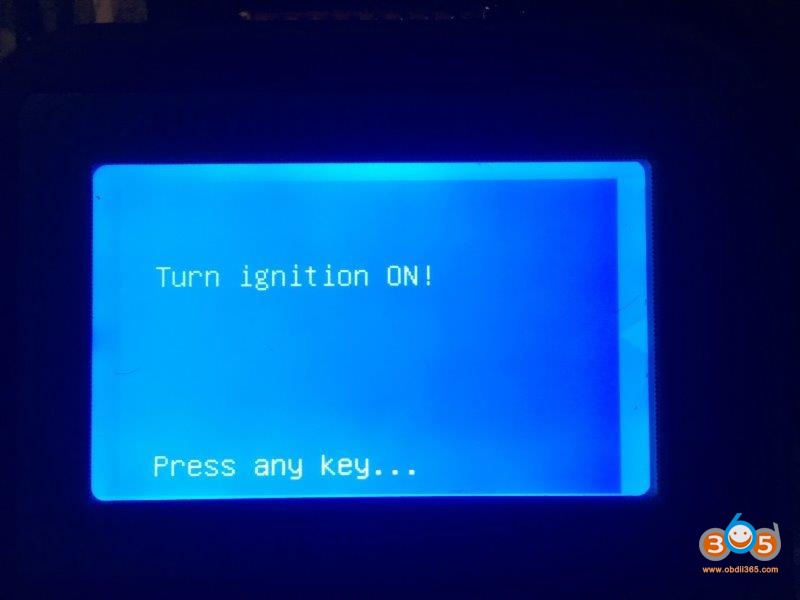

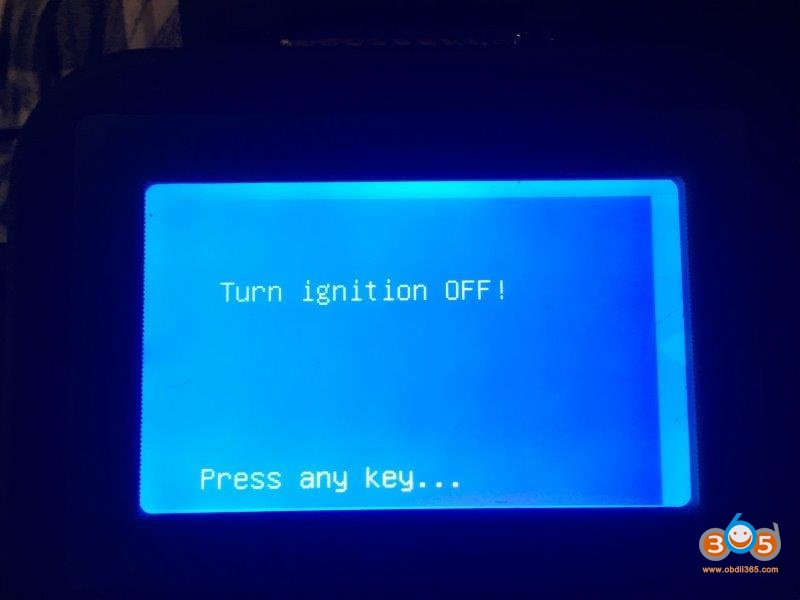

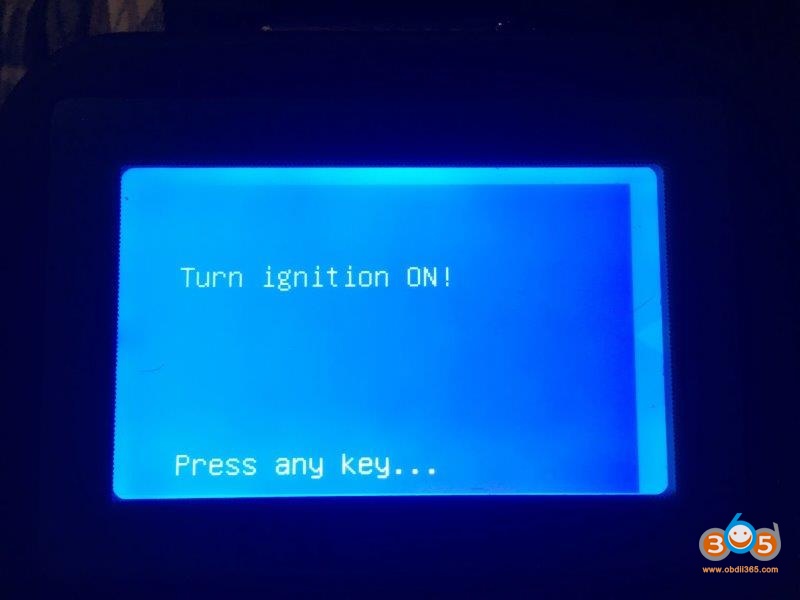

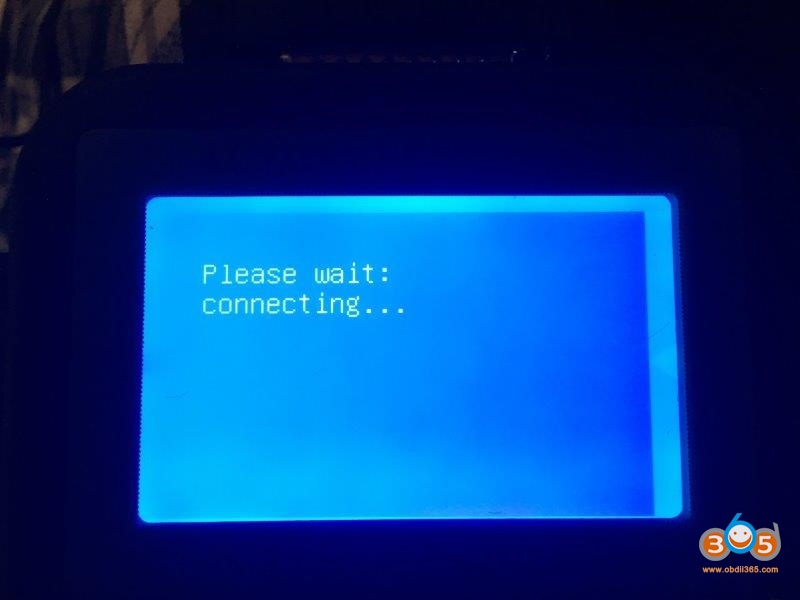

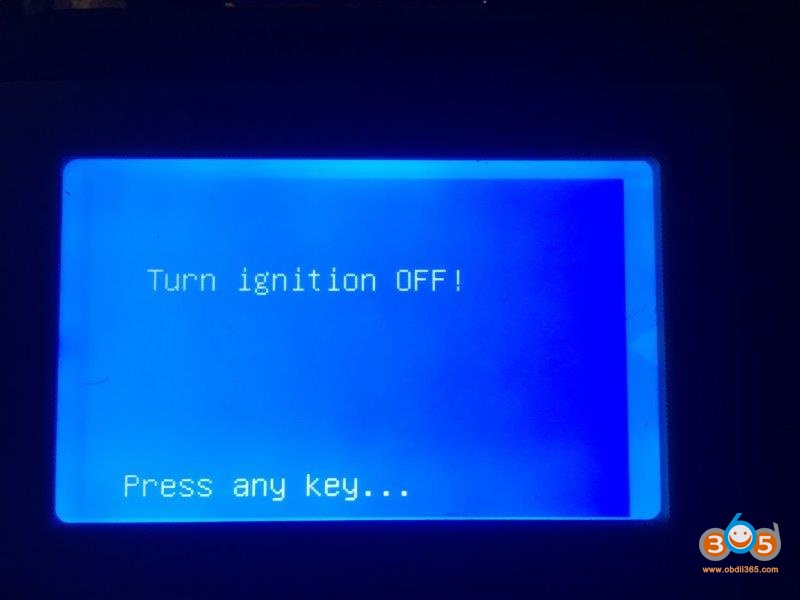

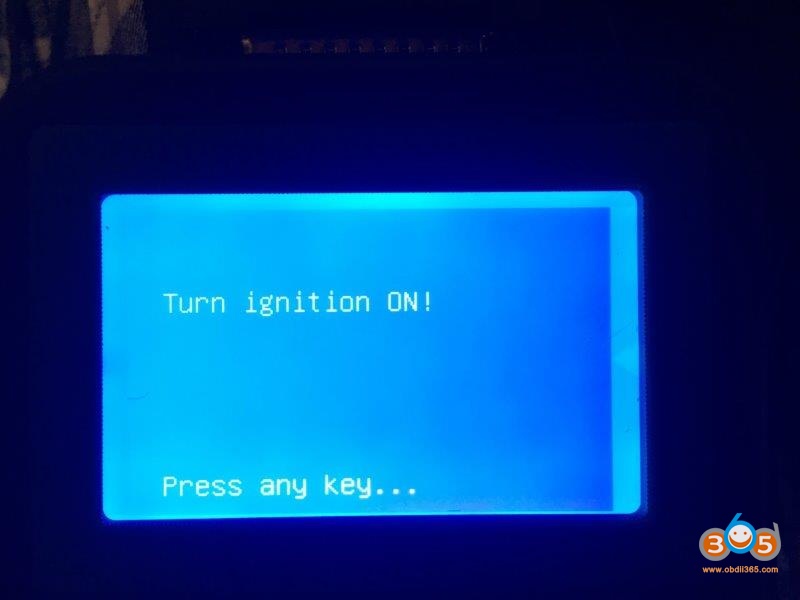

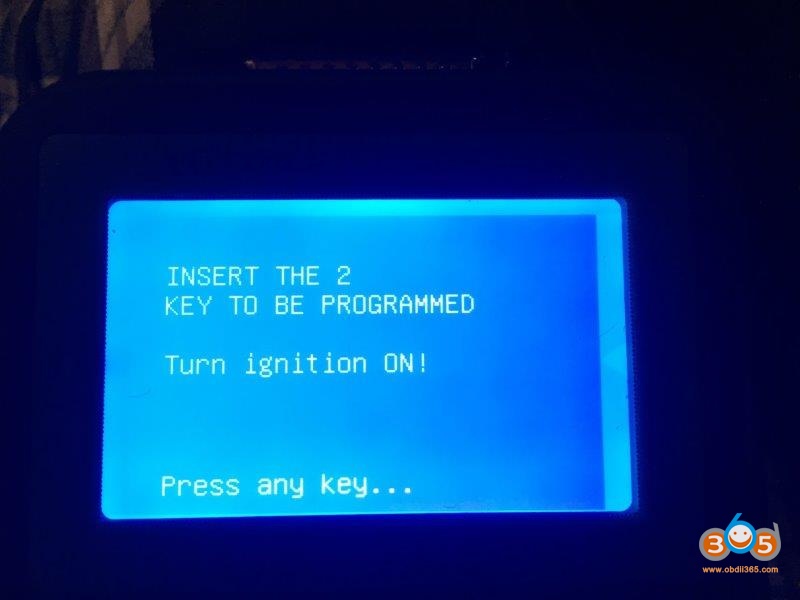

    From here on just follow the steps as you see on screen.

    Ck100 Honda 2004 S2000 Add Key 14

    Ck100 Honda 2004 S2000 Add Key 15

    Ck100 Honda 2004 S2000 Add Key 16

    Ck100 Honda 2004 S2000 Add Key 17

    Ck100 Honda 2004 S2000 Add Key 18

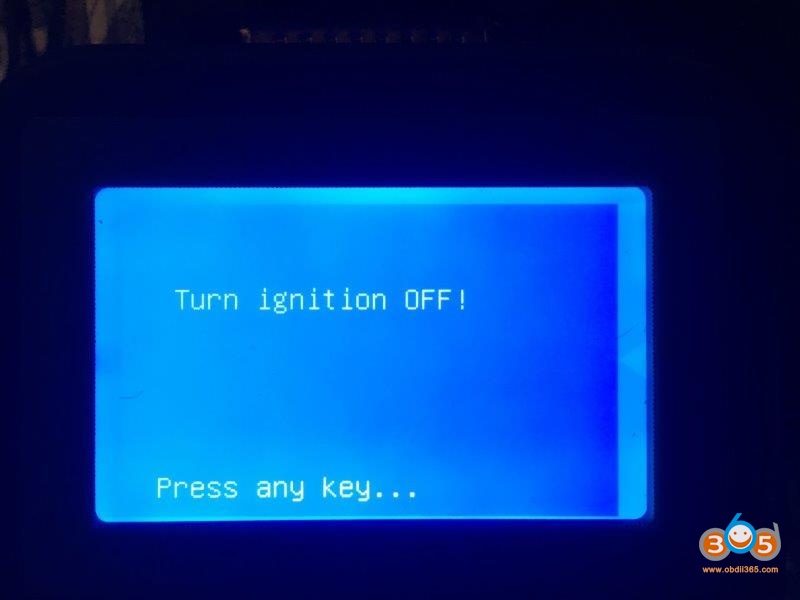

    Ck100 Honda 2004 S2000 Add Key 19

    Ck100 Honda 2004 S2000 Add Key 20

    Ck100 Honda 2004 S2000 Add Key 22

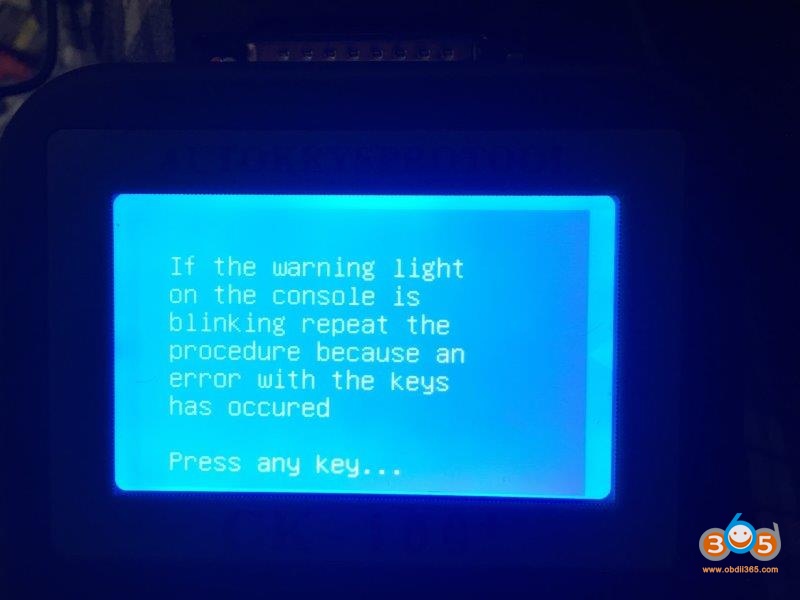

    Here you need to look at your dash and see if the green key light is blinking or not. If it is blinking, it didn’t finish correctly. Mine did not finish correctly the first time. I think I was too slow since I was taking photos. If the green key does not show at all, you are good to go.

    Ck100 Honda 2004 S2000 Add Key 23

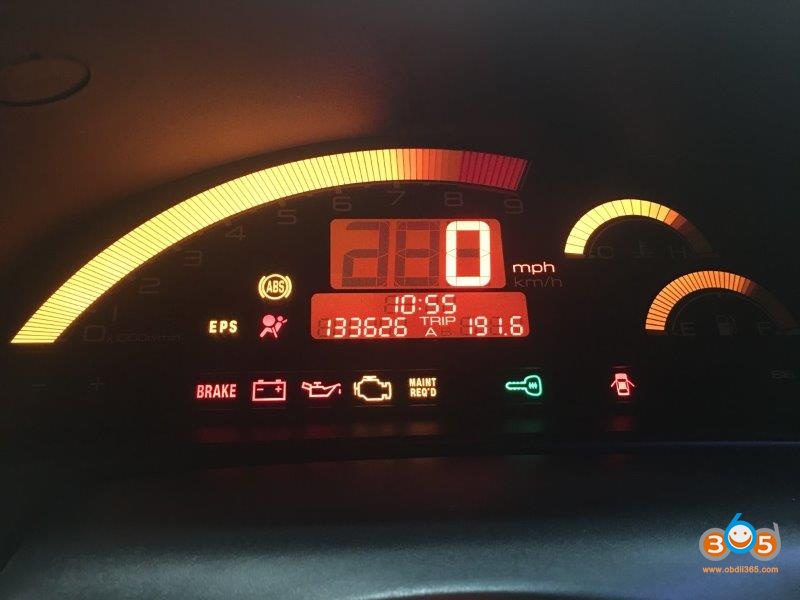

    Notice green key at bottom. (this photo was taken a day later to show the green key icon)

    Ck100 Honda 2004 S2000 Add Key 24

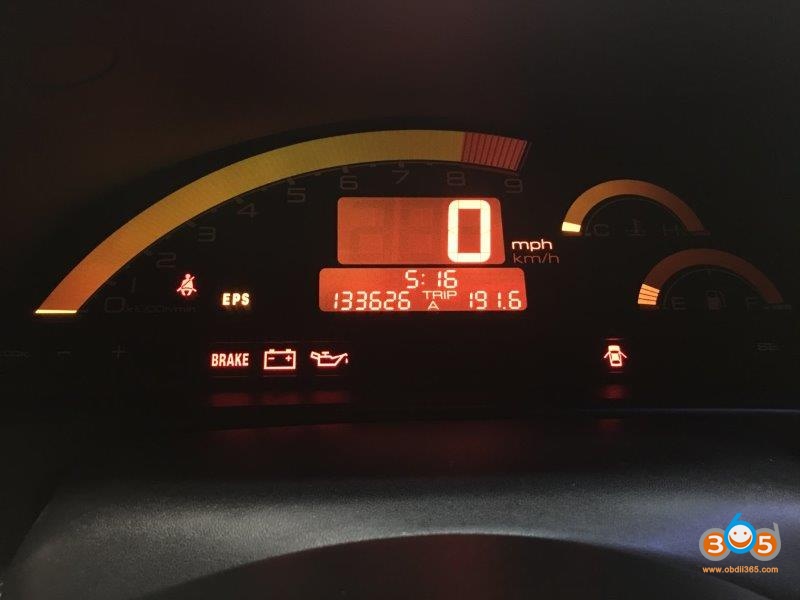

    No green icon. Success!

    Ck100 Honda 2004 S2000 Add Key 25

    If the procedure did not complete (Green key icon blinks), select No. You have 3 tries before it consumes your token. Select Yes once your are successful.

    Ck100 Honda 2004 S2000 Add Key 26

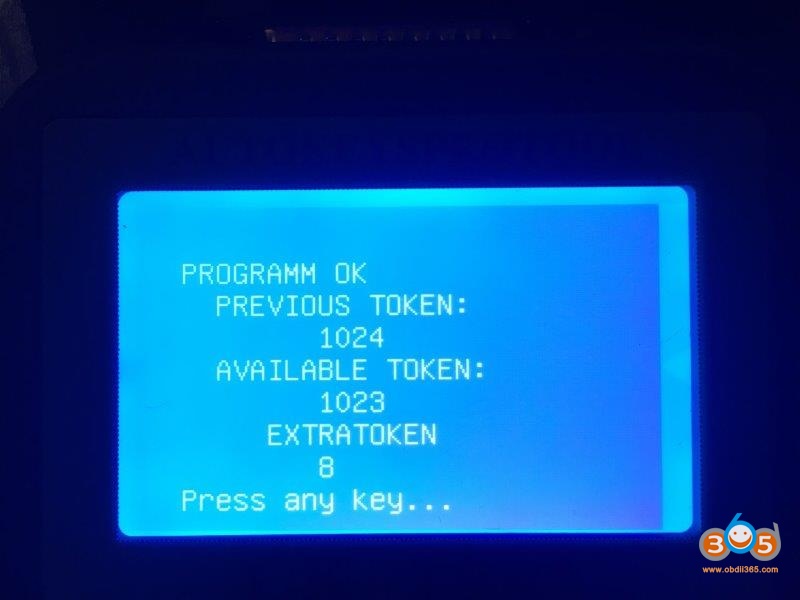

    Only took 1 token from me to perform this procedure.

    And that’s it. I now have 2 working keys and a programmer to use on other cars in the future if I need it. Sure it cost more than the $50 at my local locksmith/dealer but it was more fun to do it myself. Assuming you use 1 token each time and pay $100 for the CK-100, this ends up costing you 9.8 cents each S2000 you program.
