    Program Lexus CT200h AKL with Autel IM508 and APB112 Simulator

    japantoyota-key-programmer
    — (0)

    How to: program Toyota/Lexus AKL (all keys lost) with Autel MaxiIM IM508 and APB112 Key Simulator.



    “Lexus CT200h AKL. A little help if you are not familiar with Toyota/Lexus AKL with autel im508 and emulator key.

    The steps:

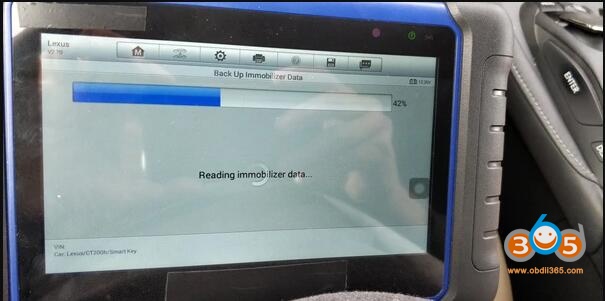

    • try to read the immo data via obd, if not working take ot the smart box and dump the eep. After that upload to the autel
    • you will need good net connection

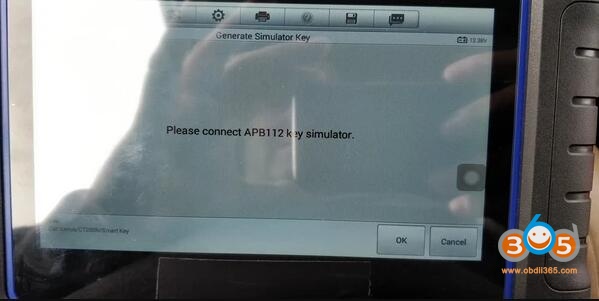

    • connect the emulator key to the autel usb port the emulator led will be blue (USB-A–> micro usb cable)

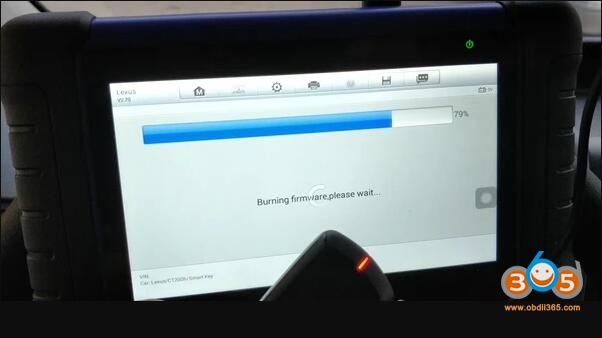

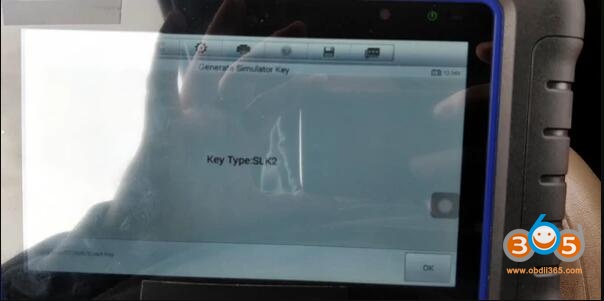

    • make emulator key from the eep dump
    • DO NOT disconnect the emu from the autel
    • add key menu the autel asking if you want using the emulator

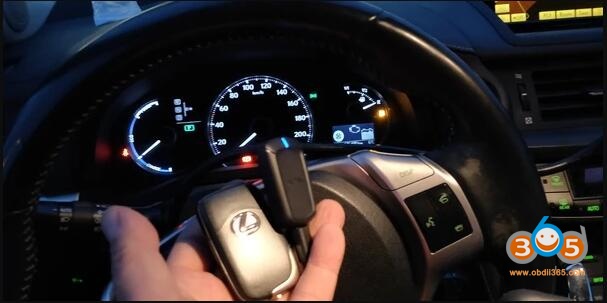

    • put the emulator to the start button
    • after that normal toyota key learning
    • Always follow the instructions on the screen..”

    Autel Im608 Toyota Akl 1 Autel Im608 Toyota Akl 2 Autel Im608 Toyota Akl 3 Autel Im608 Toyota Akl 4 Autel Im608 Toyota Akl 6

    If need step-by-step guide, check here:

    Program Toyota Sienta 2016+ All Smart Key Lost with Autel IM608 via OBD
