How to use Yanhua MINI ACDP Mercedes BENZ DME Clone

Update! Yanhua Mini ACDP adds module 15 to perform Mercedes Benz DME clone, no need to open DME shell, no need to drill hole on DME, no need to plug wire. The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.



Yanhua Mini ACDP Mercedes Benz DME clone coverage:

MB-DME-ADAPTER XI supports DME clone of Mercedes-Benz 152/157/274/276/278

(MED17.7.3), 272/276 (MED17.7.3.1), 276/278 (MED17.7.1), etc,



MB-DME-ADAPTER X2 supports DME clone of Mercedes-Benz 133/270/274

(MED17.7.2), etc.



MB-DME-ADAPTER X3 supports DME clone of Mercedes-Benz 260/264 (MED17.7 7),etc.

MB-DME-ADAPTER X4 supports DME clone of Mercedes-Benz diesel vehicle 642 (EDC17CP01), 642/651 (EDC17CP46), 626/622/651 (EDC17C66),

651/642(EDC17CP57), 651/642(EDC17CP10),etc.



MB-DME-ADAPTER X5 supports DME clone of Mercedes-Benz 272/279 (ME17.7),etc



MB-DME-ADAPTER X6 supports DME clone of Mercedes-Benz diesel vehicle 642/654 (MD1CP001),etc.



MB-DME-ADAPTER X7 supports DME done of Mercedes-Benz 177/178 (MED17.7.5)，etc.



MB-DME-ADAPTER X8 supports DME clone of Mercedes-Benz CLS/GT

(MG1CP002),etc.

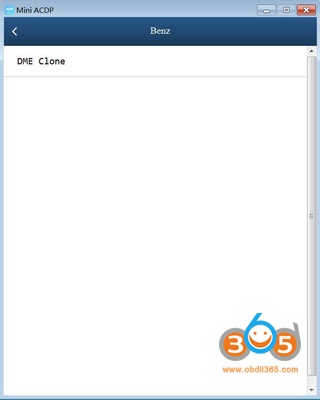

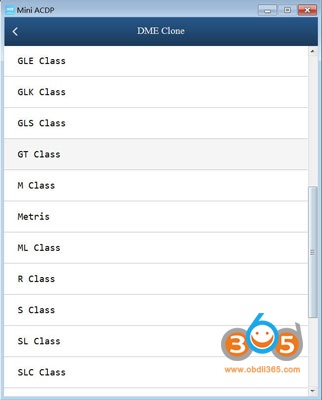

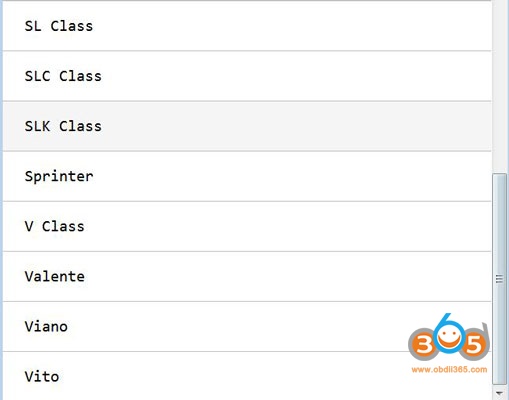

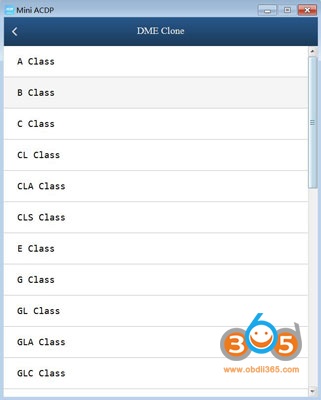

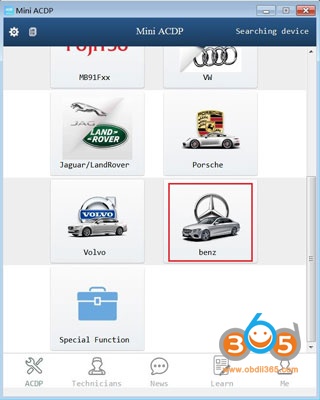

Yanhua Mini ACDP Mercedes Benz DME clone APP screen shoot:



How to connect the adapters before operating Yanhua Mini ACDP Mercedes Benz DME clone?

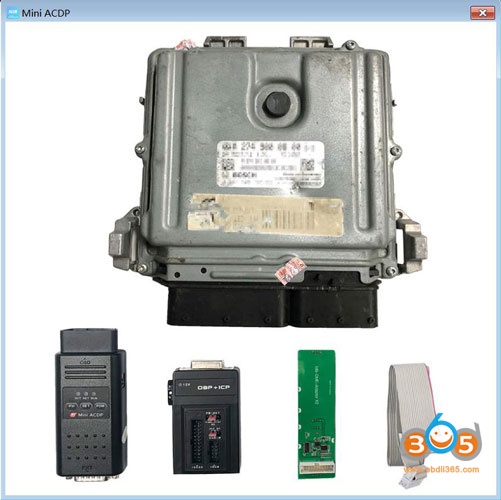

Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and DME.

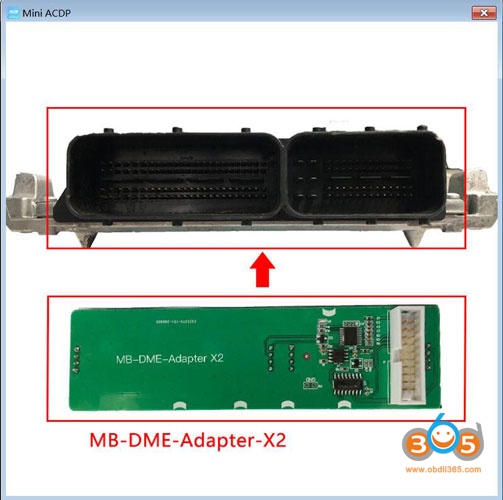

Step 2. Connect the interface board correctly to the DME interface as shown.

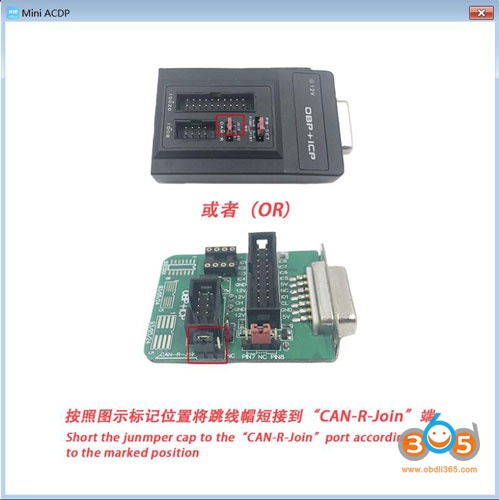

Step 3. Short the CAN resistor on the OBP + ICP adapter to the “CAN-R Join”.

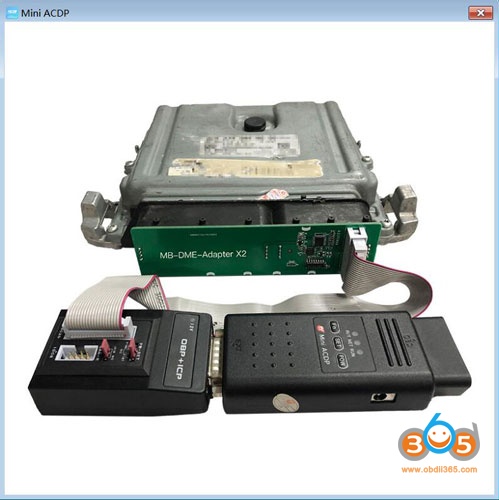

Step 4. Connect ACDP, OBP+ICP adapter, interface board and DME.



Enjoy!
