    Question:

    I had this two errors when trying to read MEV9N46 DME ISN using Yanhua Mini ACDP… and now it does not wanna connect through Bluetooth after I reinstalled the app.

    Reading isn through bench mode using X8 bench interface

    Any idea what’s going on?

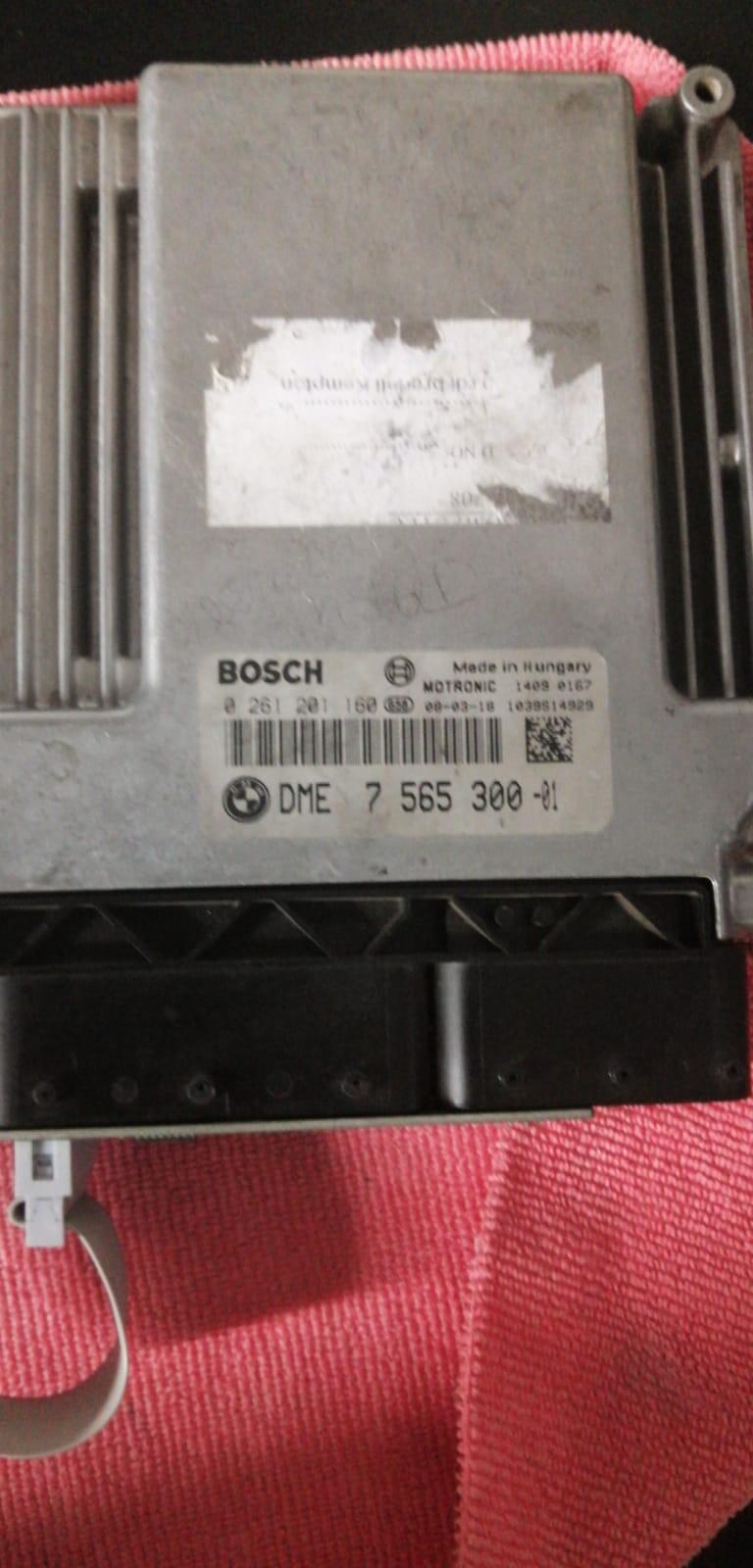

    Yanhua Acdp Read MEV9N46 Isn 1

    This is the image of the N46 DME

    2 errors

    DME communication error

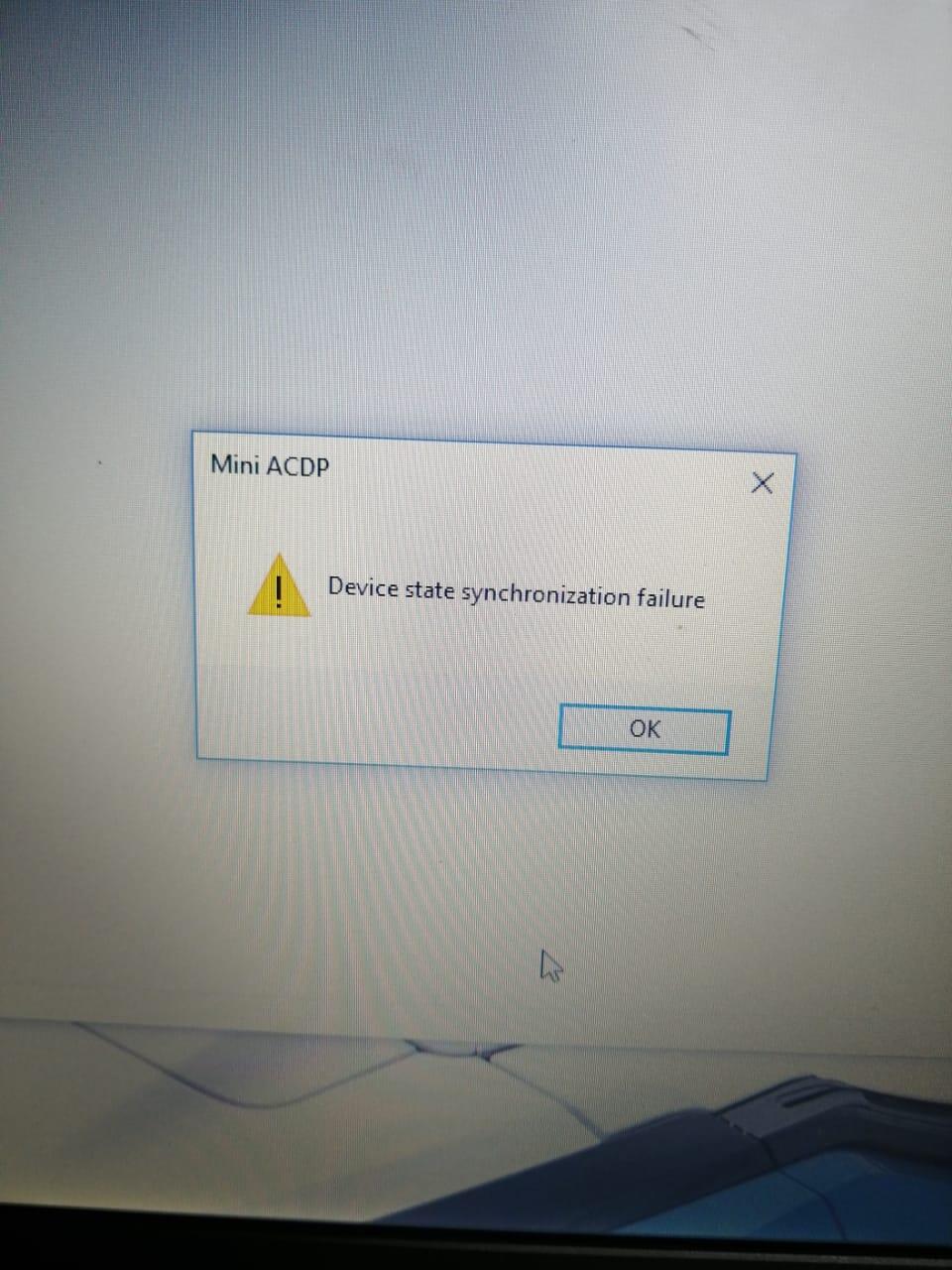

    Yanhua Acdp Read MEV9N46 Isn Failed 1

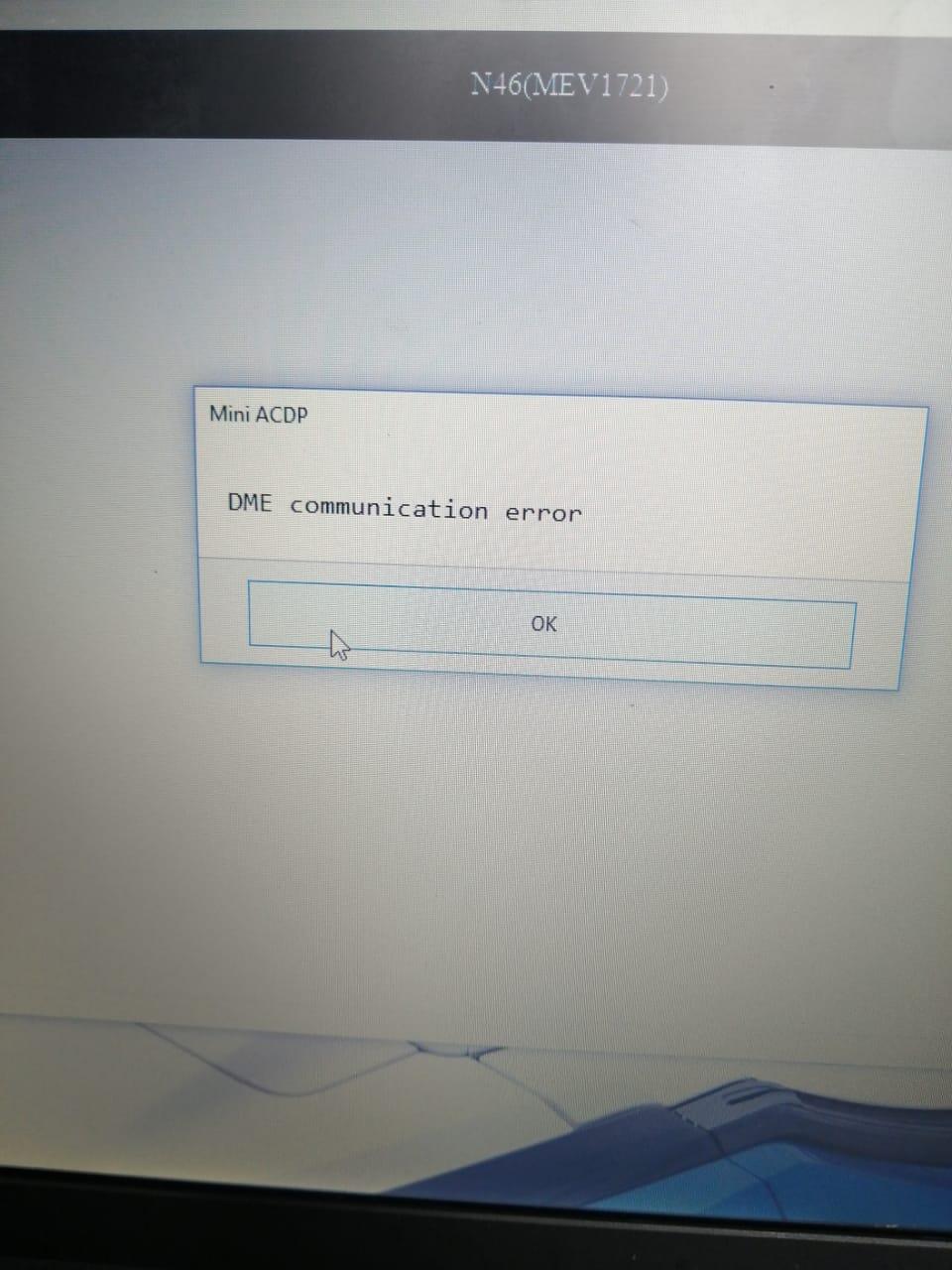

    Yanhua Acdp Read MEV9N46 Isn Failed 2

    Obdii365.com solution:



    This DME has 4 digit ISN code. It can be done via OBP + ICP adpater connection (cable is included in the default package), does not require the N46 X8 interface board.

    Connect DME N46 and Yanhua ACDP as pictures below:

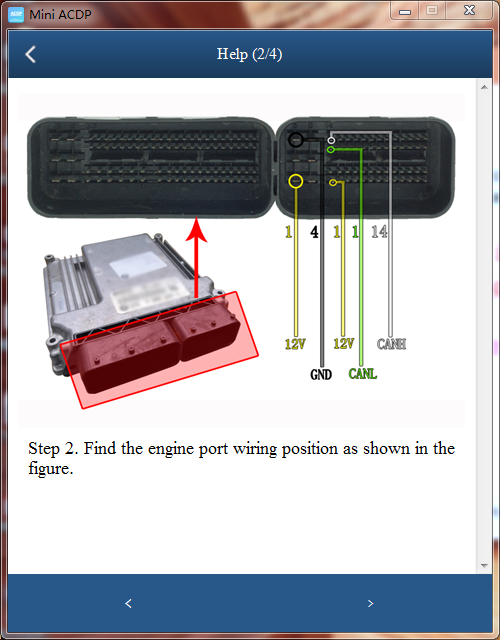

    Yanhua Acdp Read MEV9N46 Isn 2

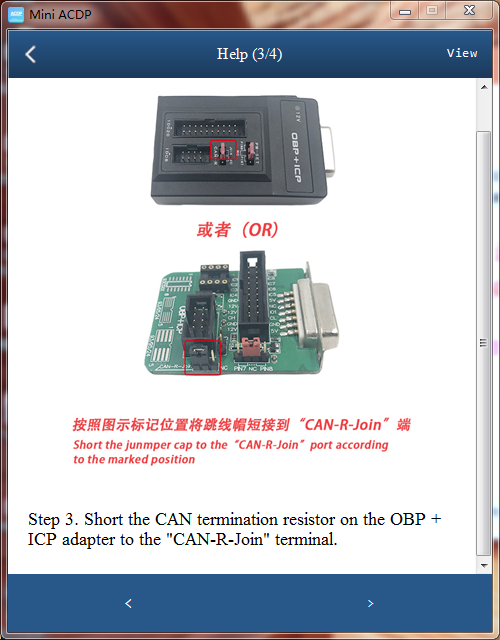

    Yanhua Acdp Read MEV9N46 Isn 3

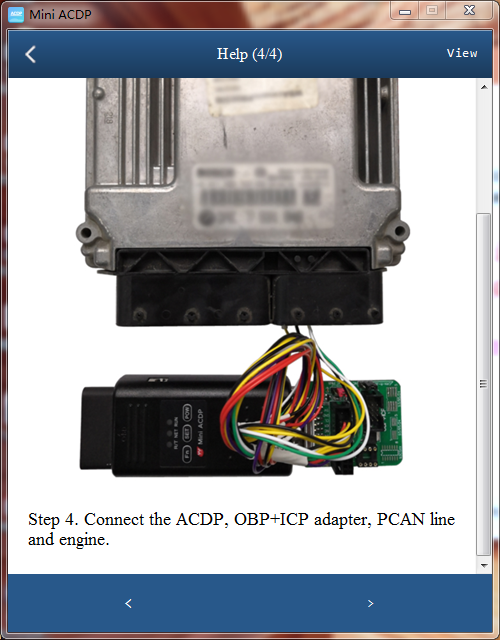

    Yanhua Acdp Read MEV9N46 Isn 4

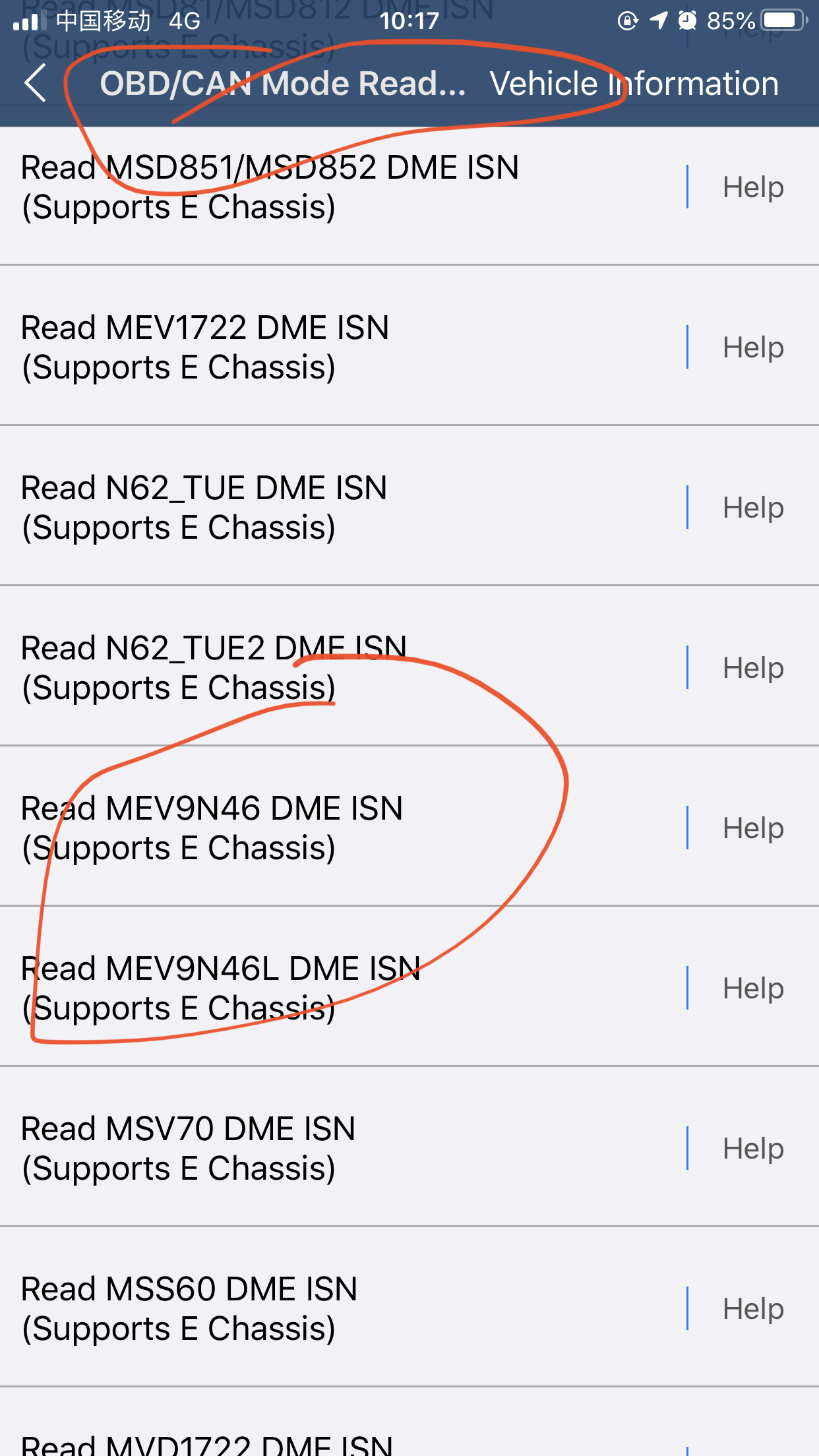

    Select OBD/CAN Mode Read ISN->Read MEV9N46 DME ISN or MEV9N46L DME ISN

    Yanhua Acdp Read MEV9N46 Isn 5

    Then follow ACDP Mini prompts until success.
