How to Customize Key Data in 2M2 Magic Tank Key Cutting Machine?

2M2 Magic Tank key cutting machine new app released new function- customize key data. This function allows users to customize new key blank and a new key data by measuring original key size.

We obdii365.com takes an example of Kia laser key inner 2 grooves.

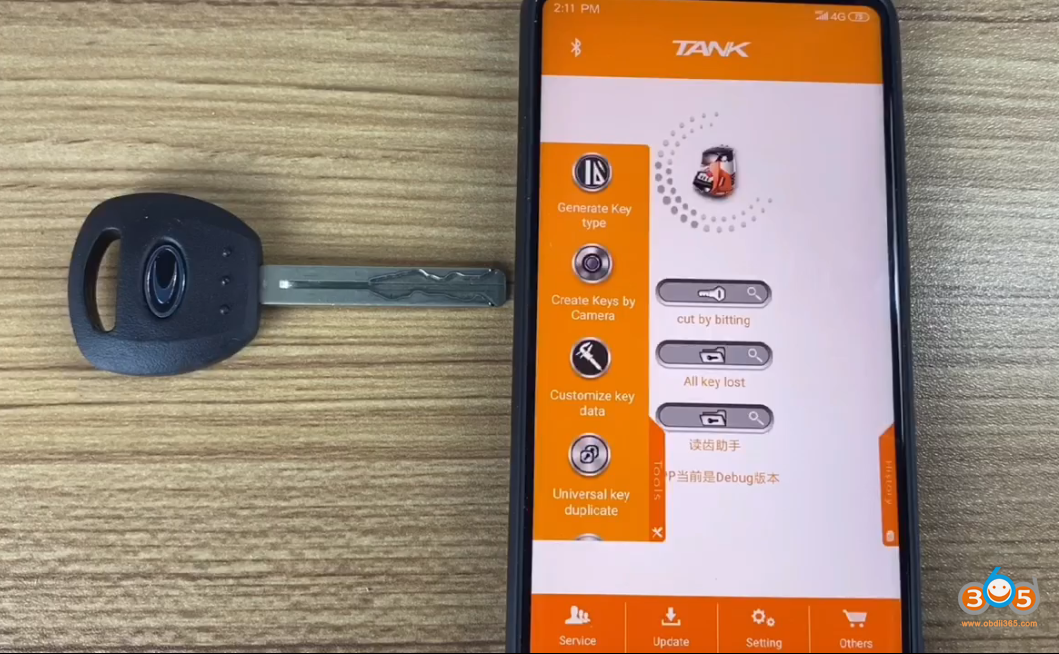

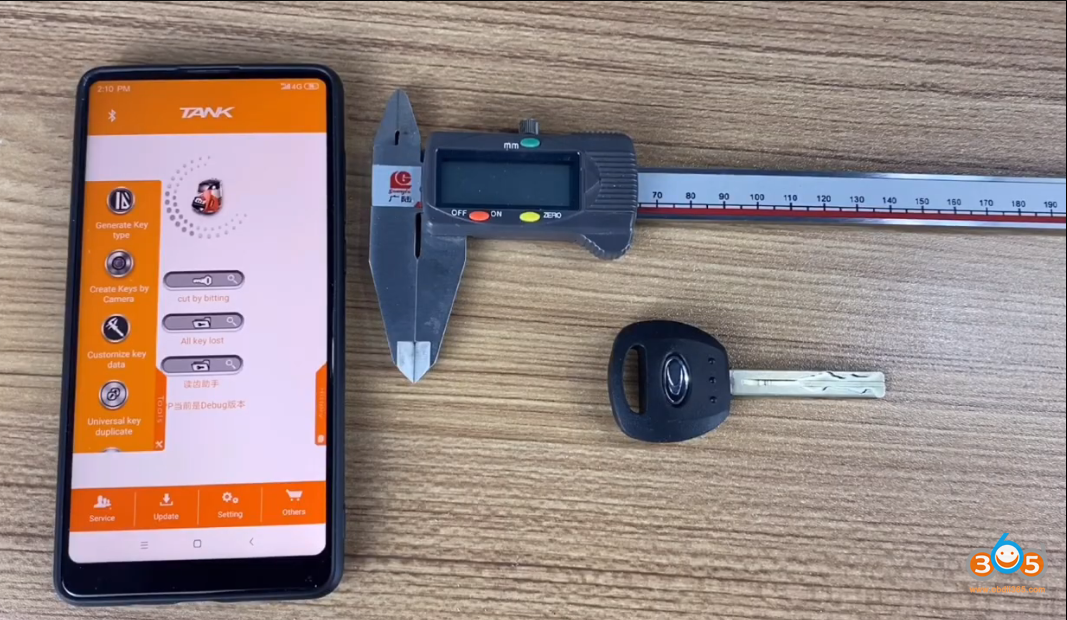

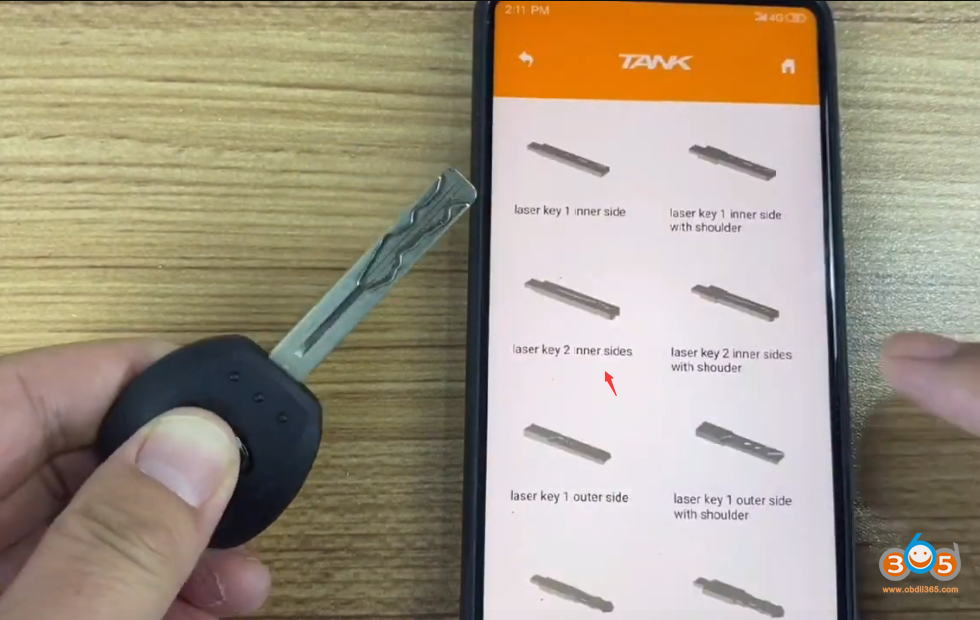

Select Customize Key Data function->Laser key inner 2 grooves

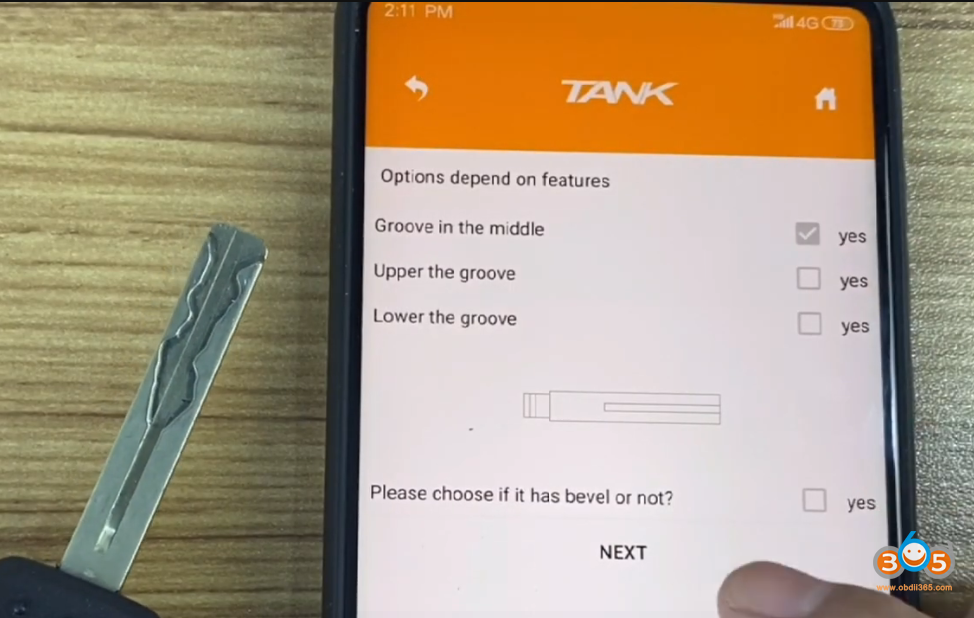

Choose groove type: Groove in the middle and select if it has bevel or not

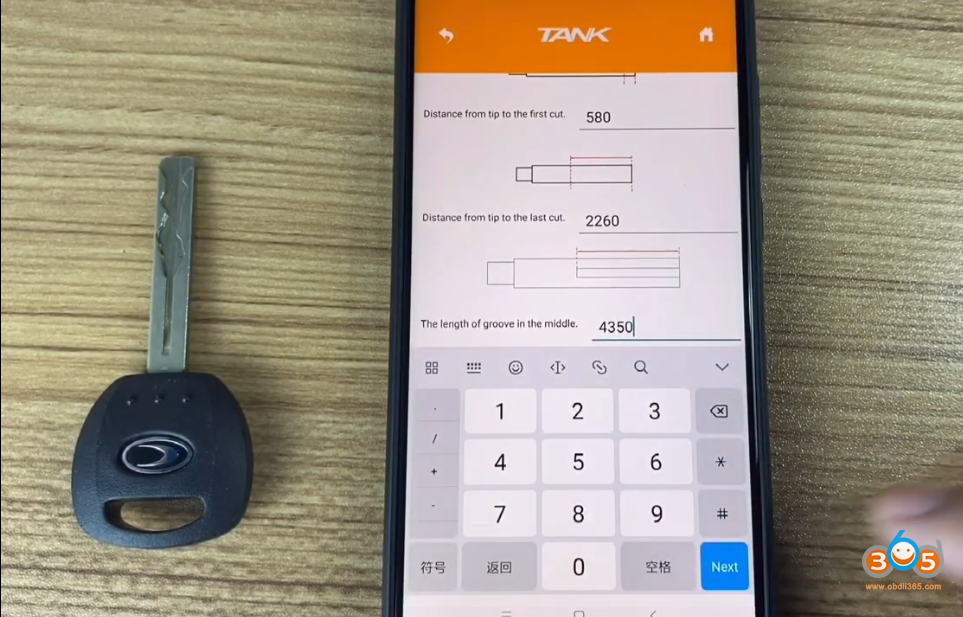

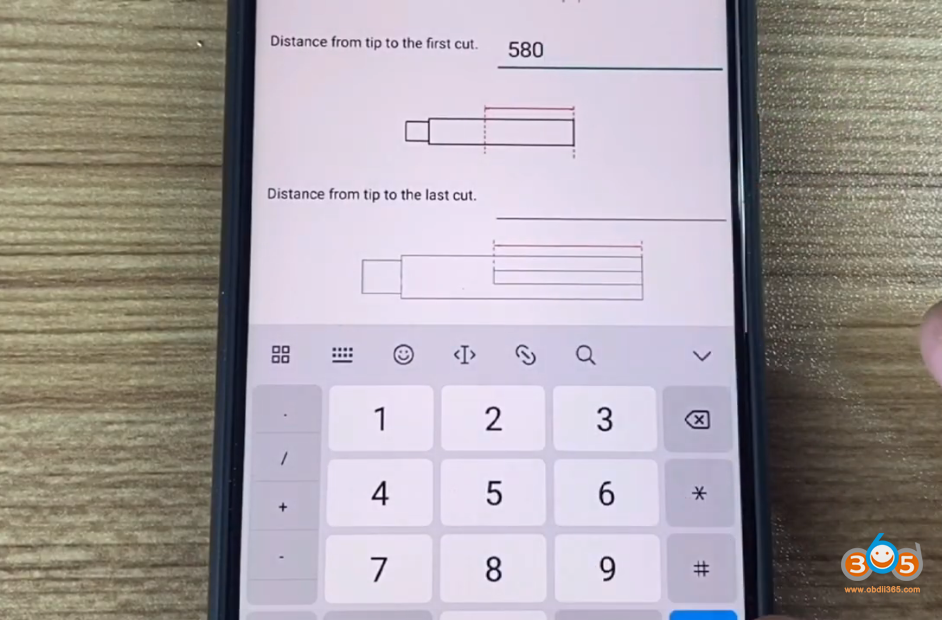

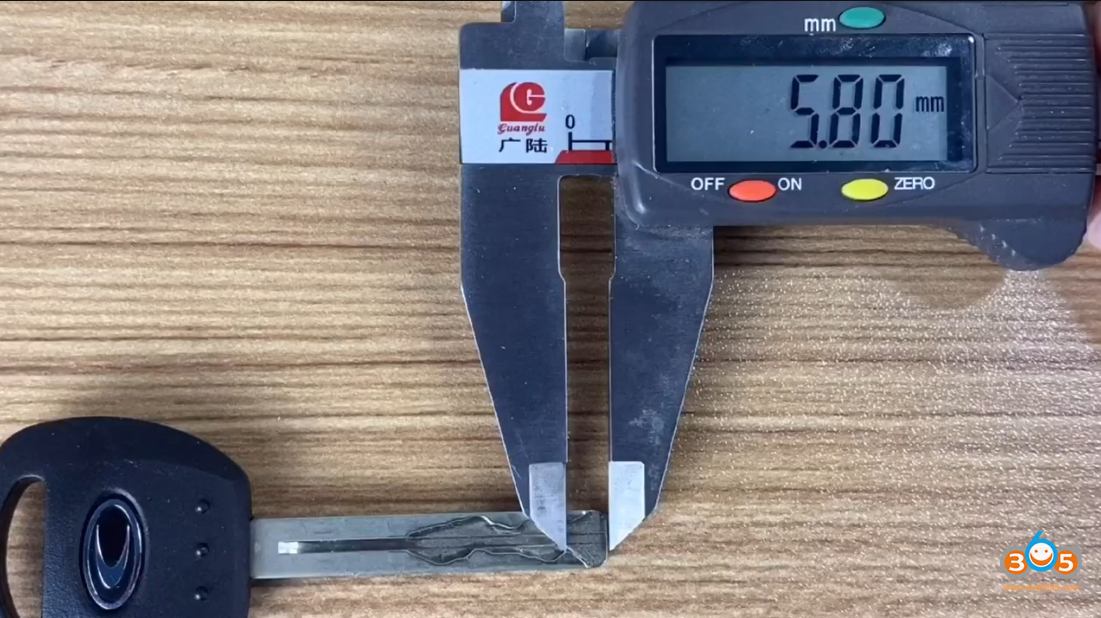

Measure the distance from tip to the first cut and enter the digit

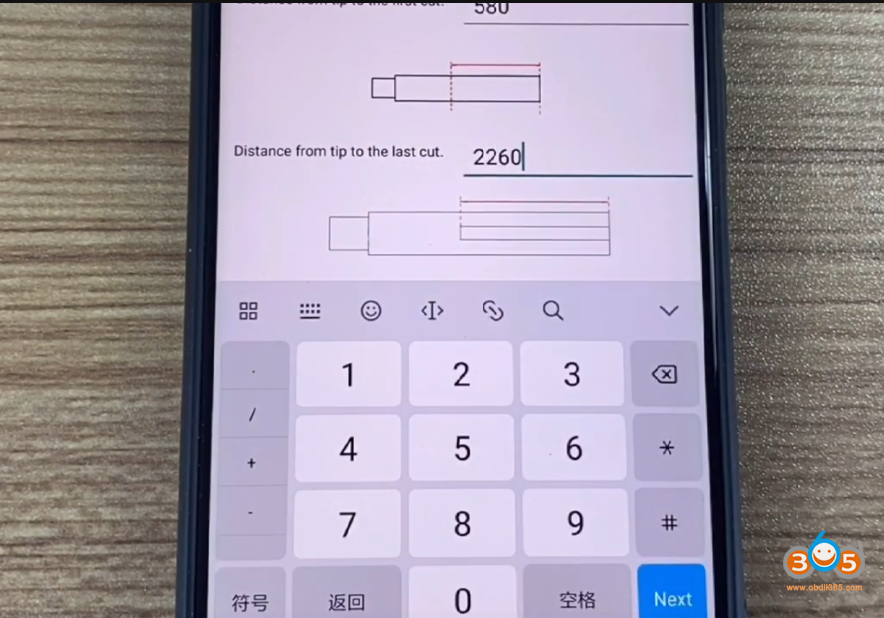

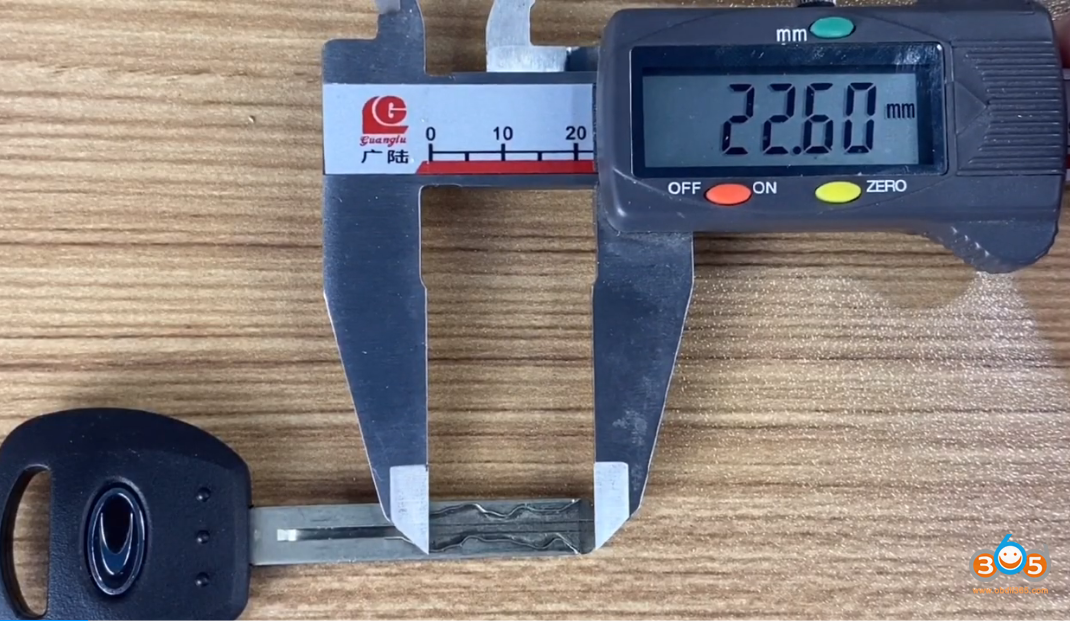

Measure the distance from tip to the last cut and enter the digit

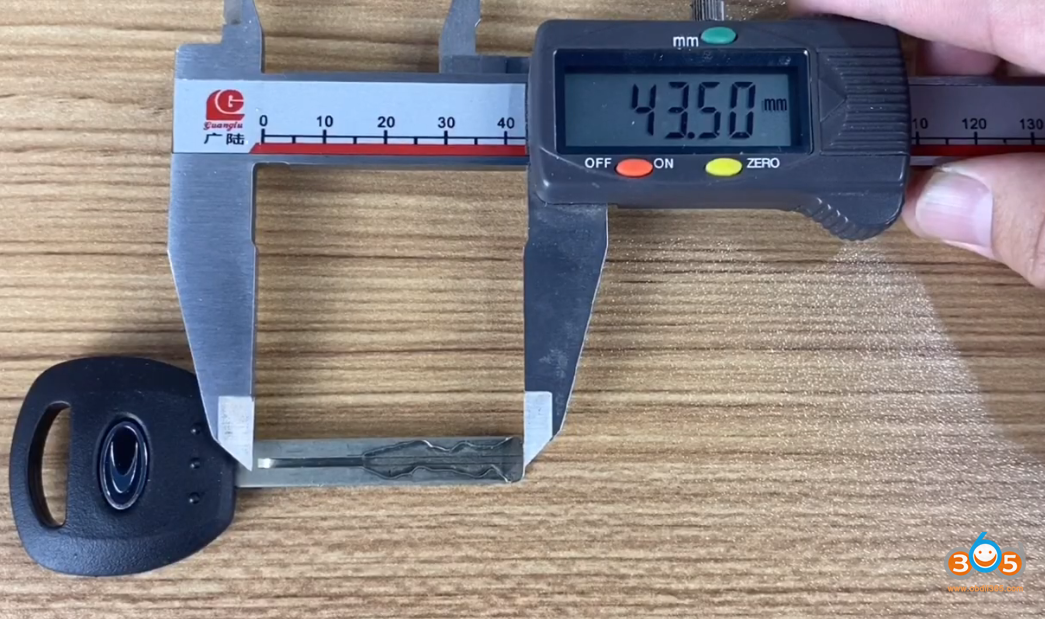

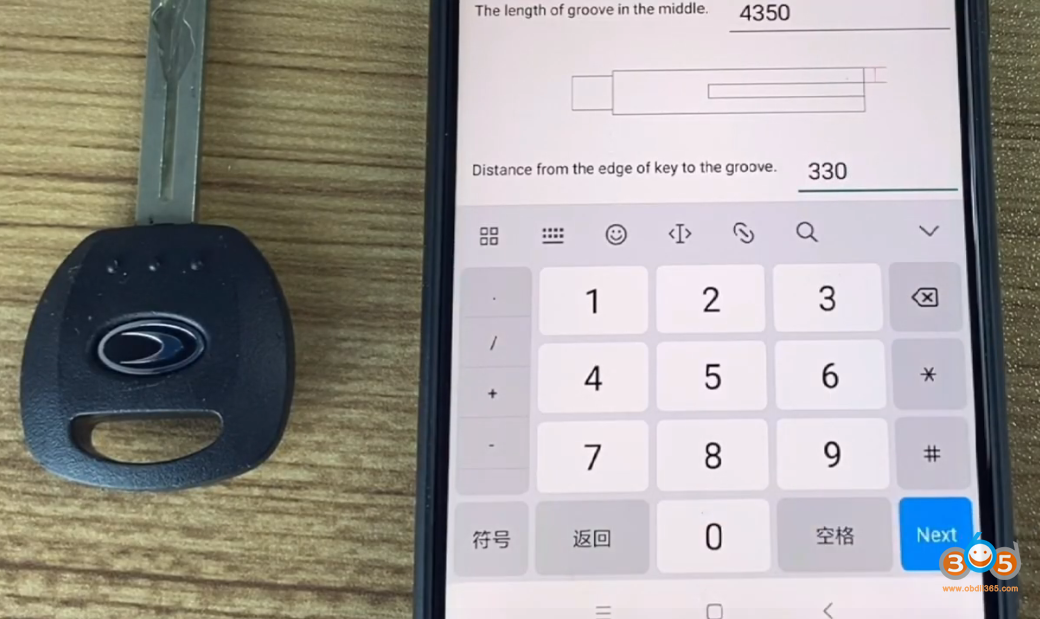

Measure the length of groove in the middle and enter the digit

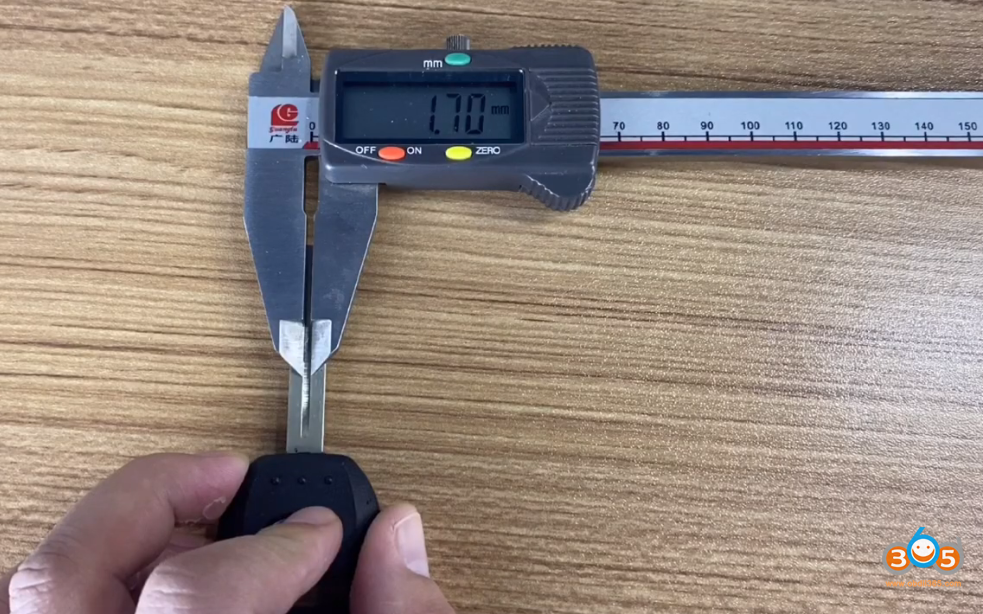

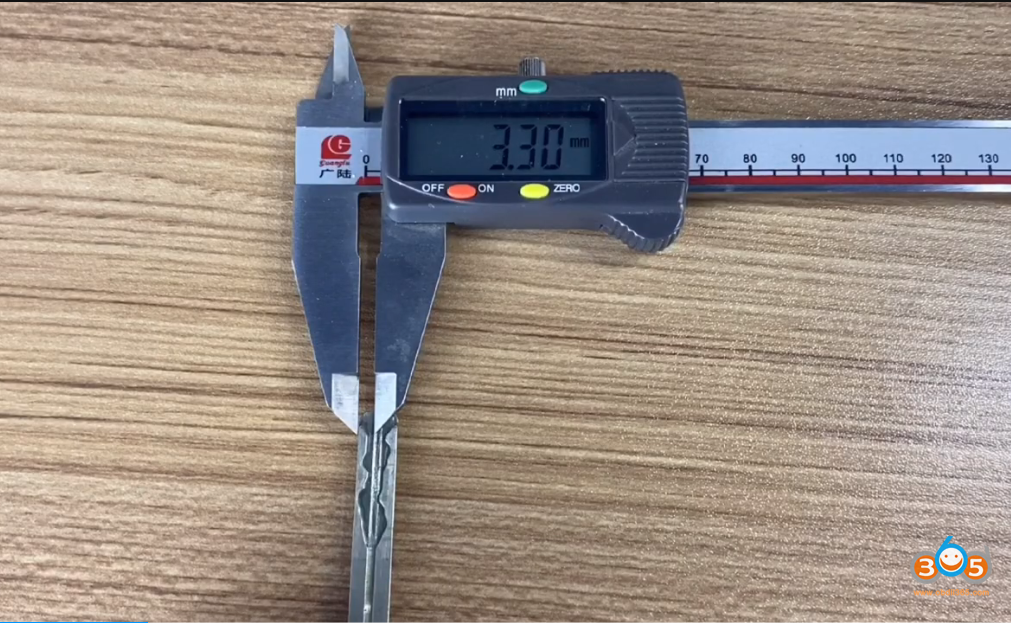

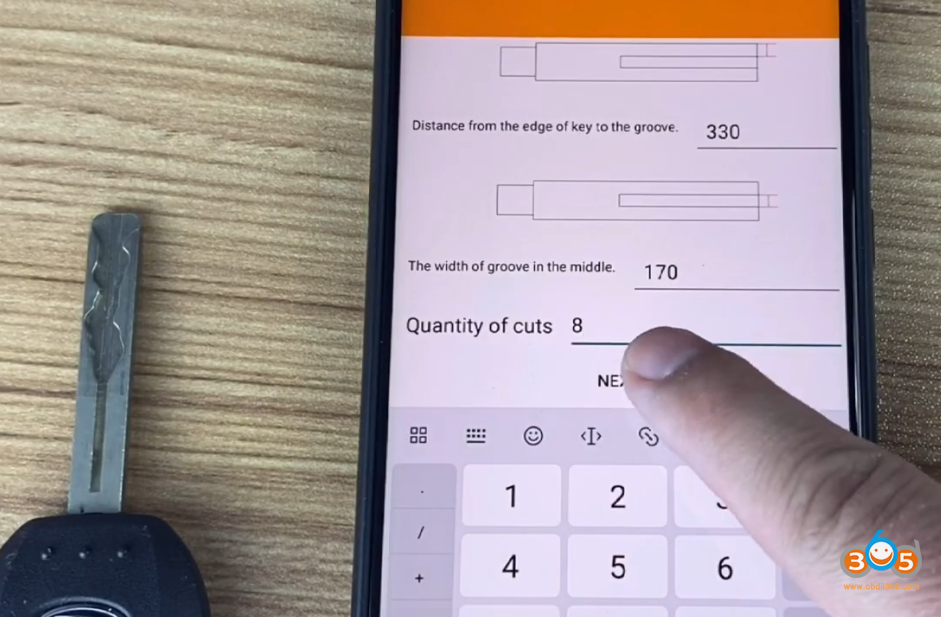

Measure the edge of the key to the groove and enter the digit

Measure the width if the groove in the middle and quantity of cuts (both sides) and enter digits

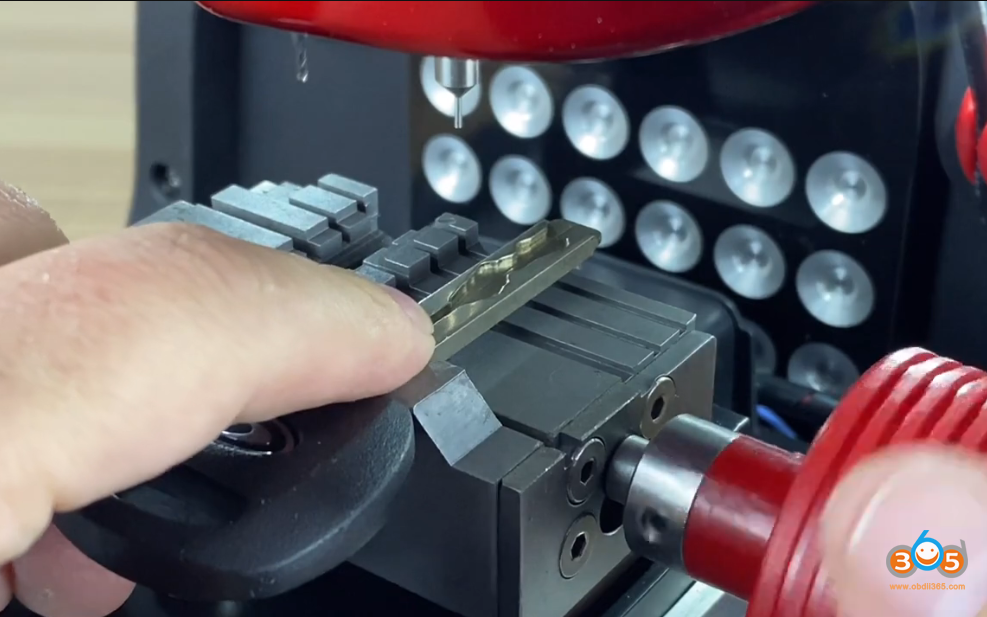

Place original key into key clamp for calibration

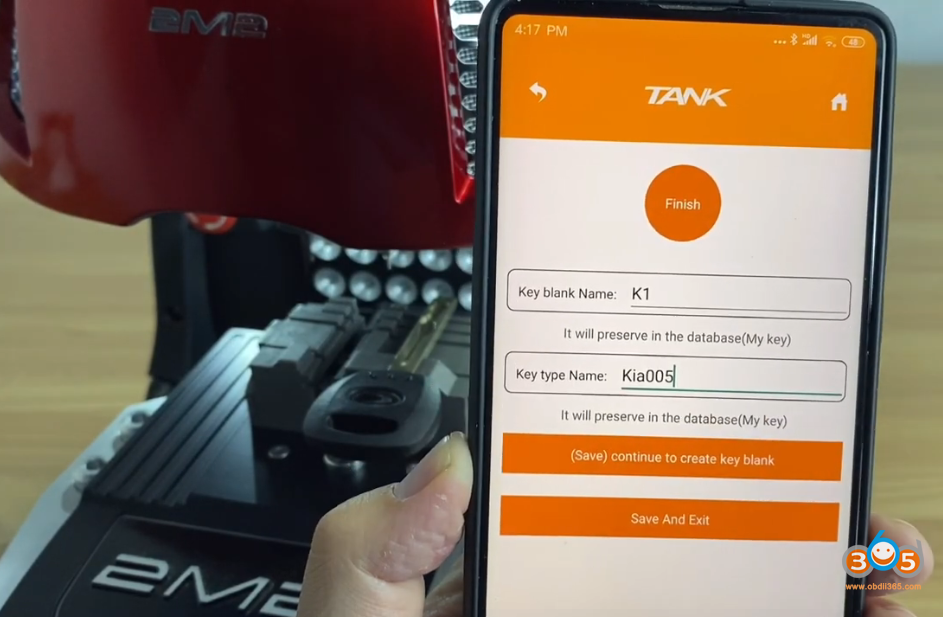

Save new key data, key blank name and key type

Press Save to create key blank

Prepare super key blank

Press Cutter is changed

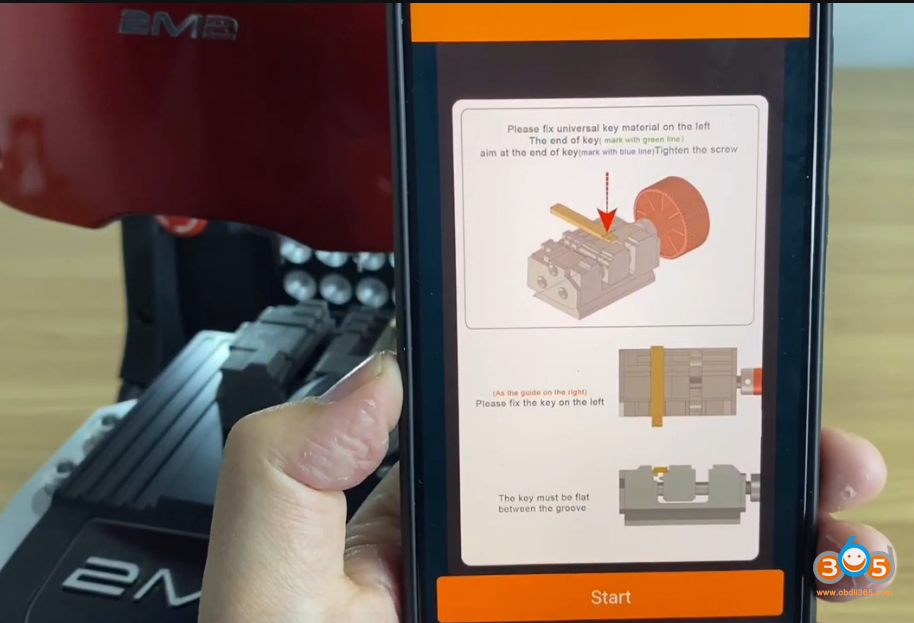

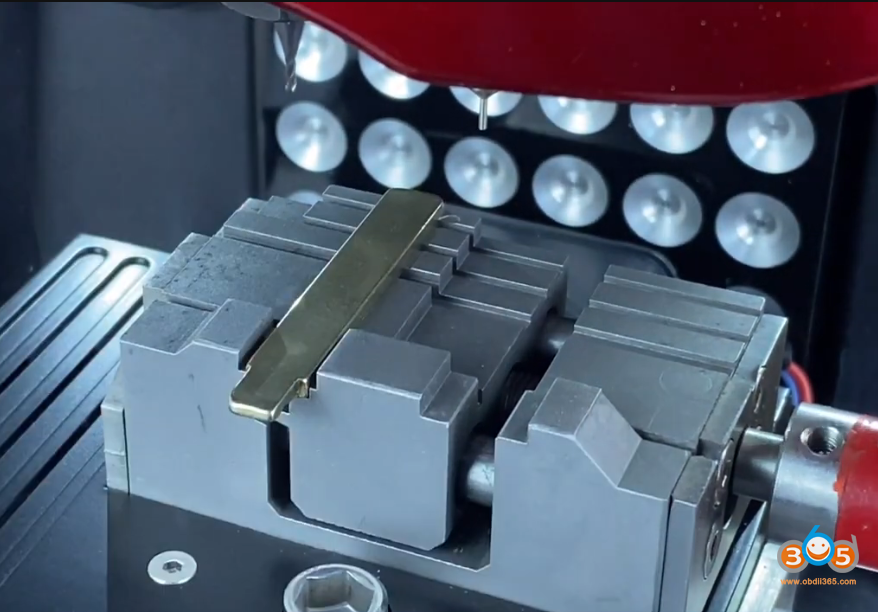

Fix universal key blank on the left.
The key must be flat between the groove.

Tighten the screw.

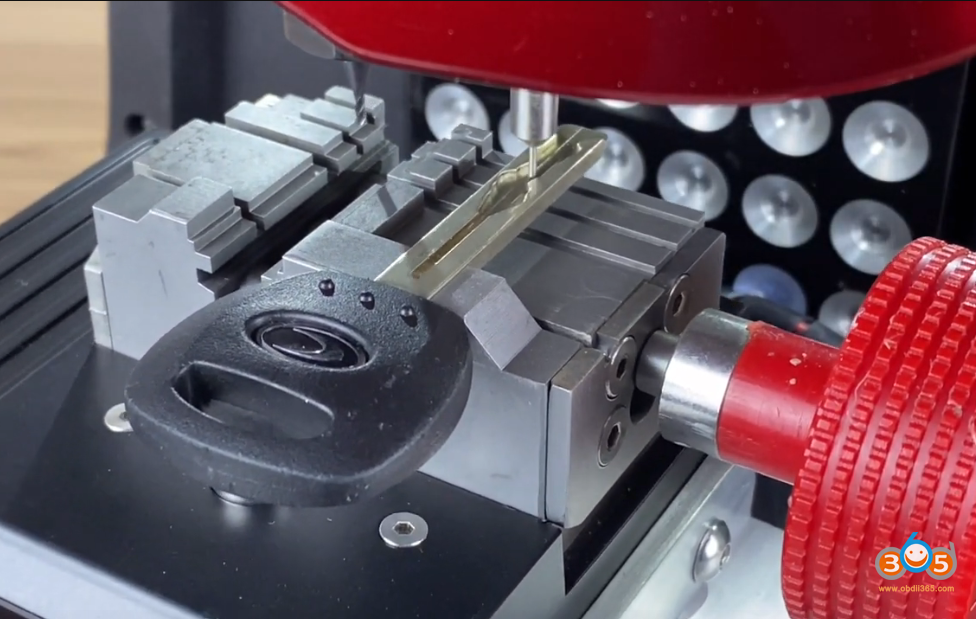

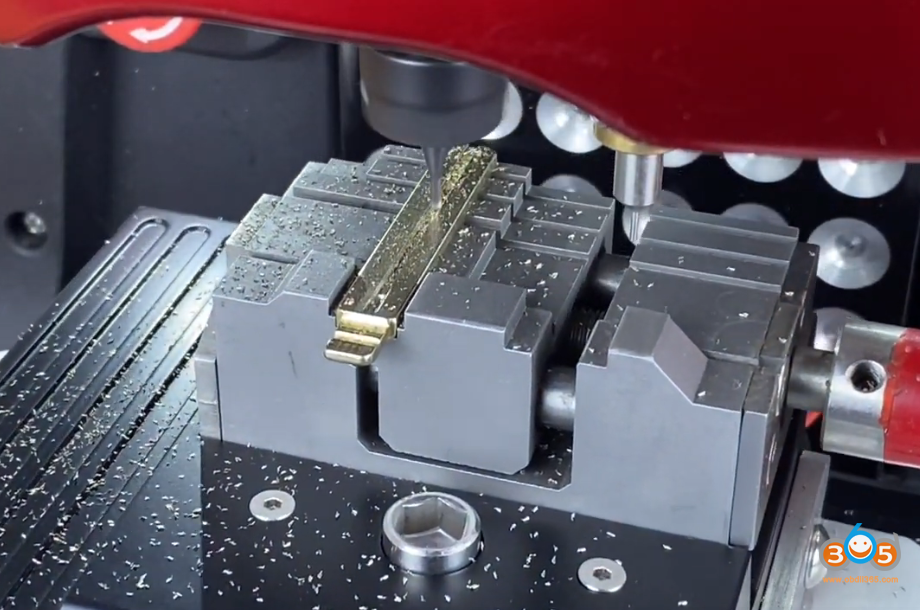

Cut both side of the key blank

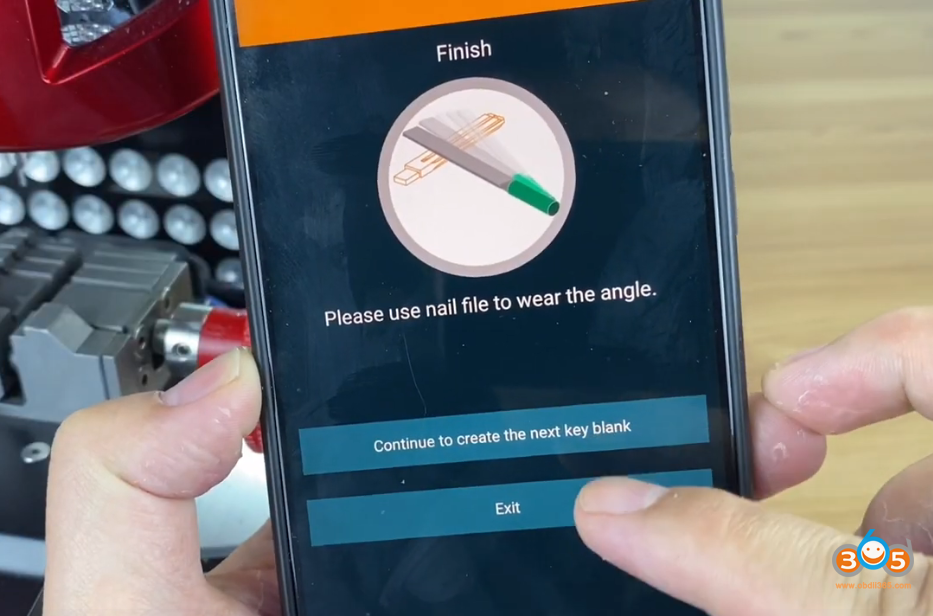

Use nail file to wear the angle.

Exit.

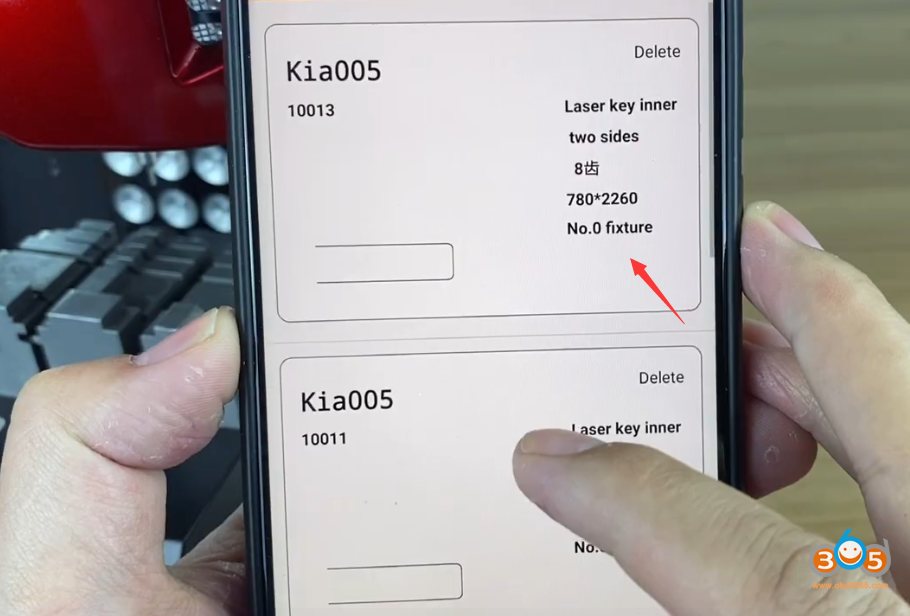

New key data exists.

You can cut Kia Laser key inner 2 grooves with the 2m2 tank key cutting machine.
