Autel IM508+ XP400 Read Mercedes Sprinter W906 Key Password via Dump

Autel IM508 & XP400 could read key password on Mercedes Sprinter EIS W906 via dump or via OBD directly. Here’s the procedure on reading password via dump.

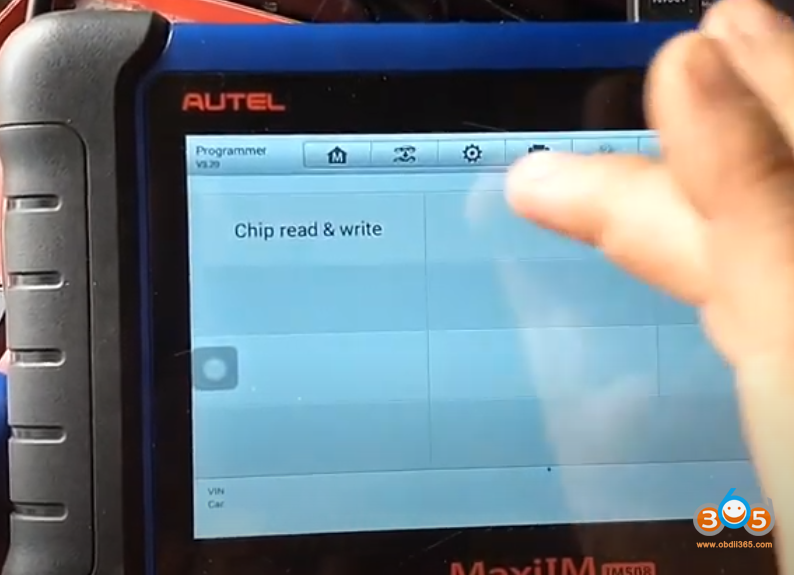

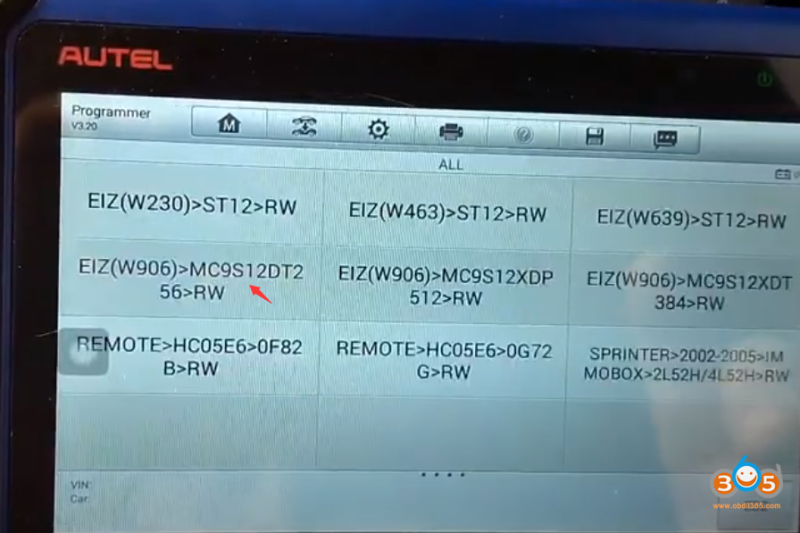

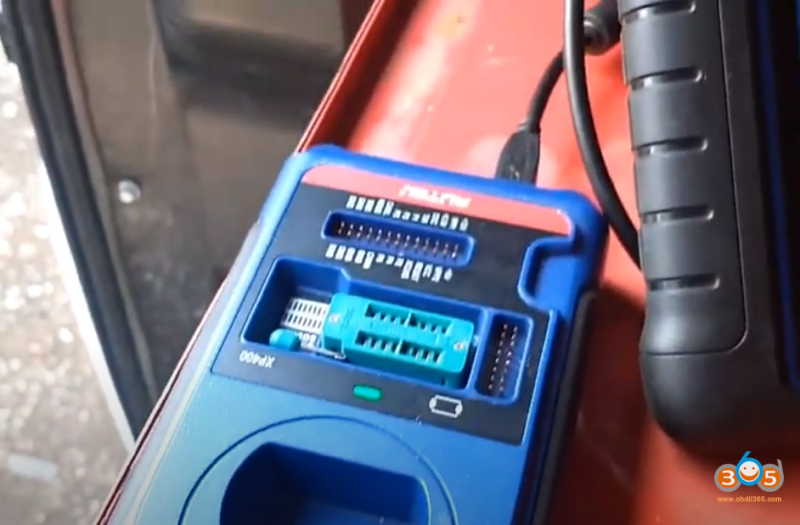

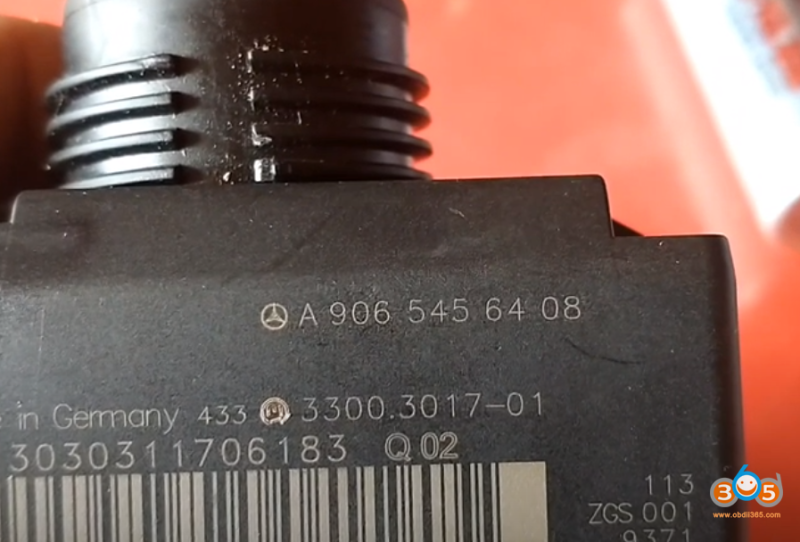

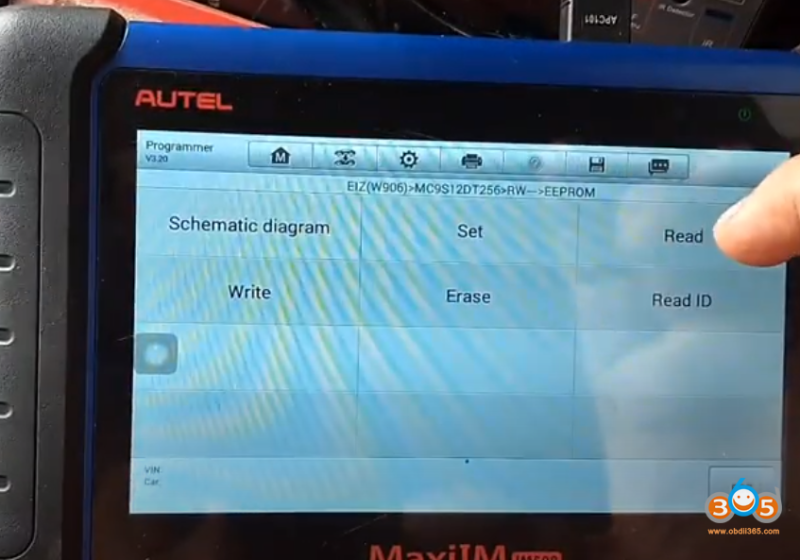

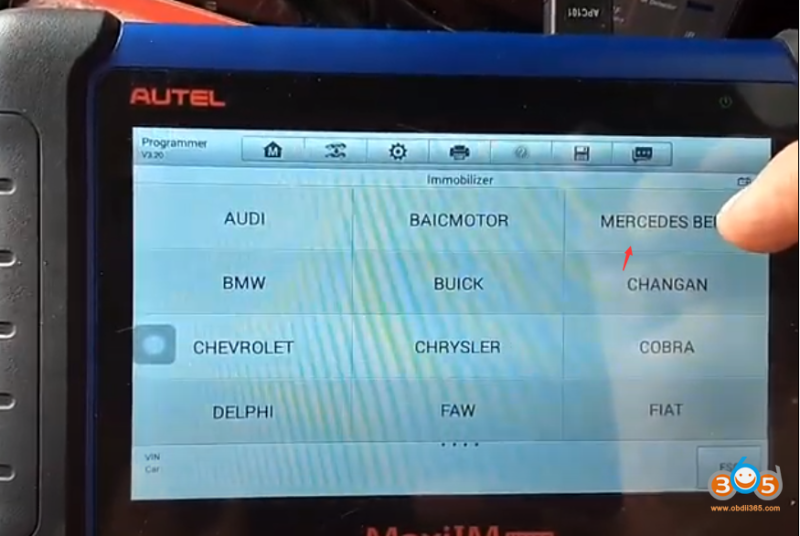

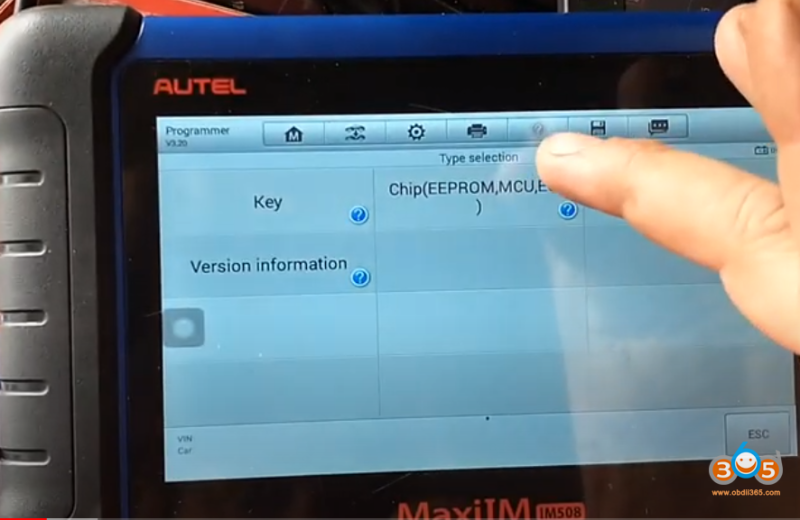

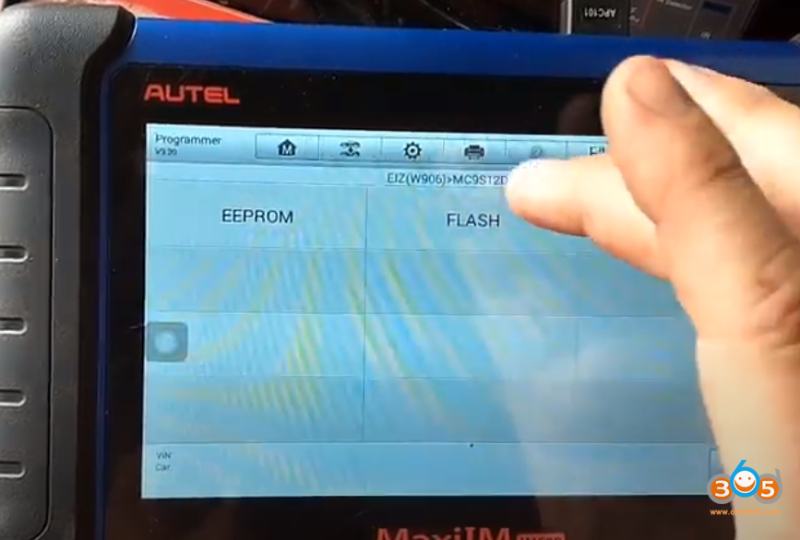

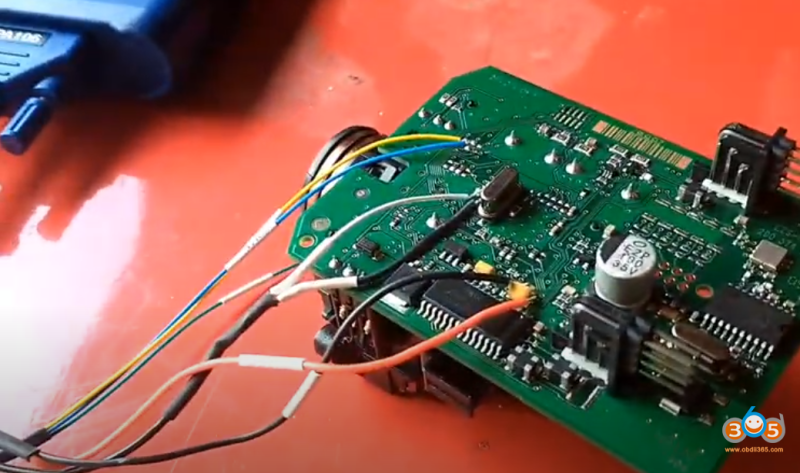

Follow im508 wiring diagram to connect EIS 906 with xp400 programmer Select Programmer function->Chip->Chip read and write->Immobilizer->Mercedes Benz->EIZ(W906)MC9S12DT256->EEPROM->Read

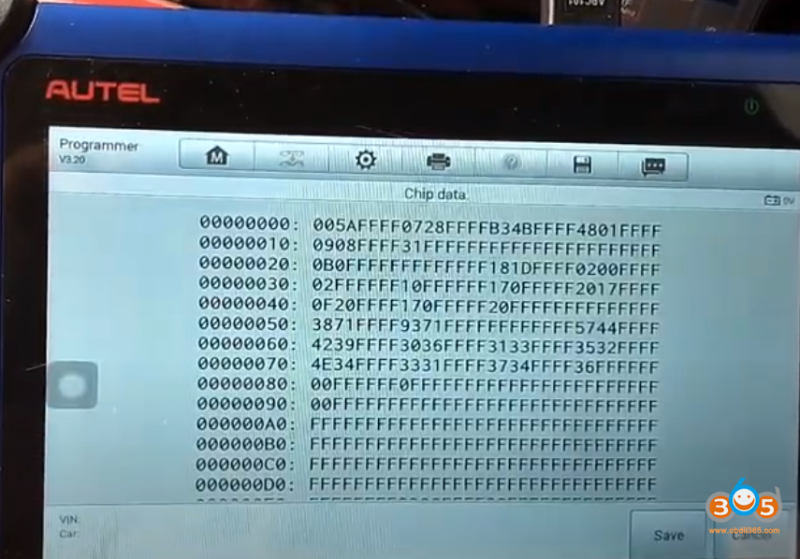

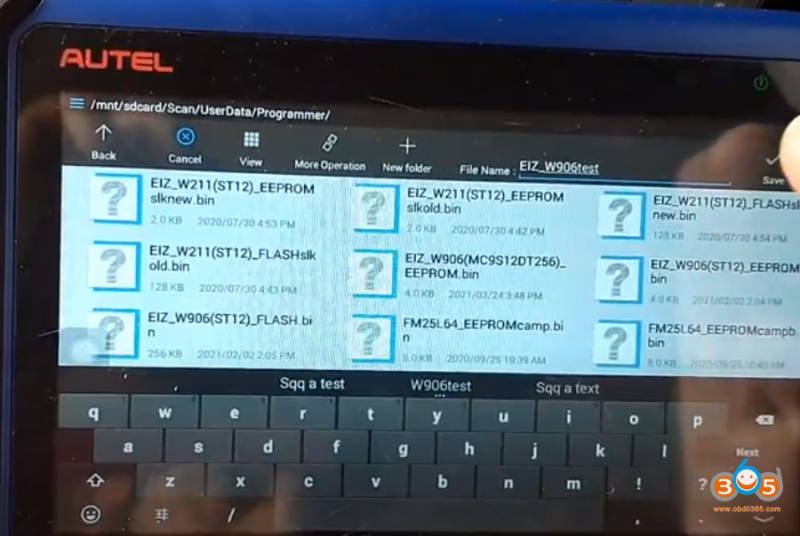

Read data success. Save data.

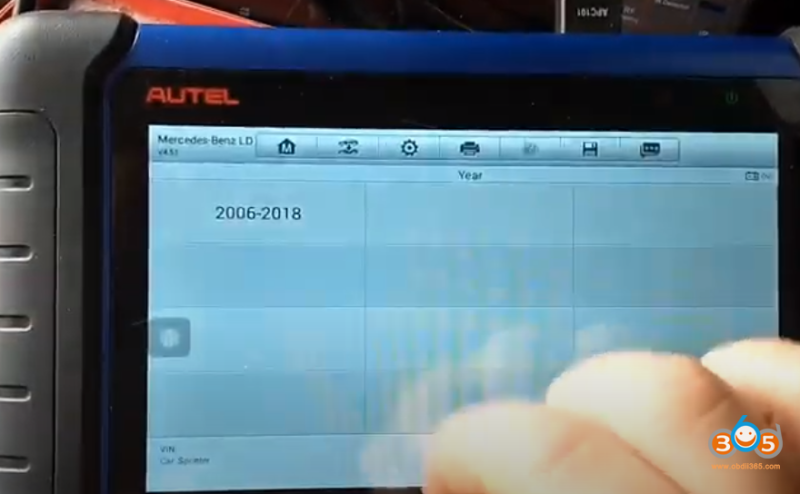

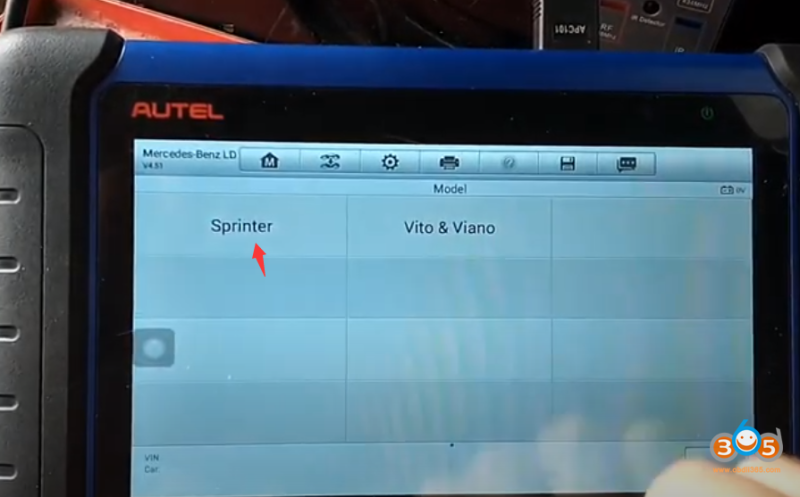

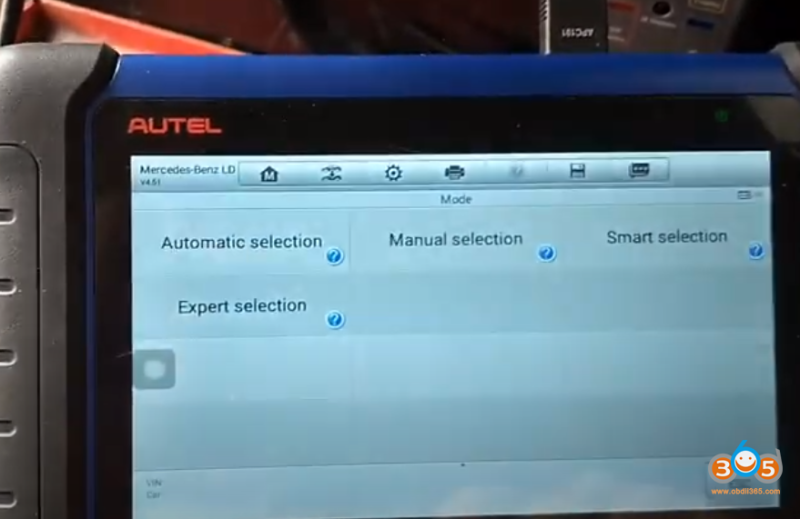

Select Immobilizer function->Mercedes Benz->Manual selection->Sprinter->2006-2018->Fobik key

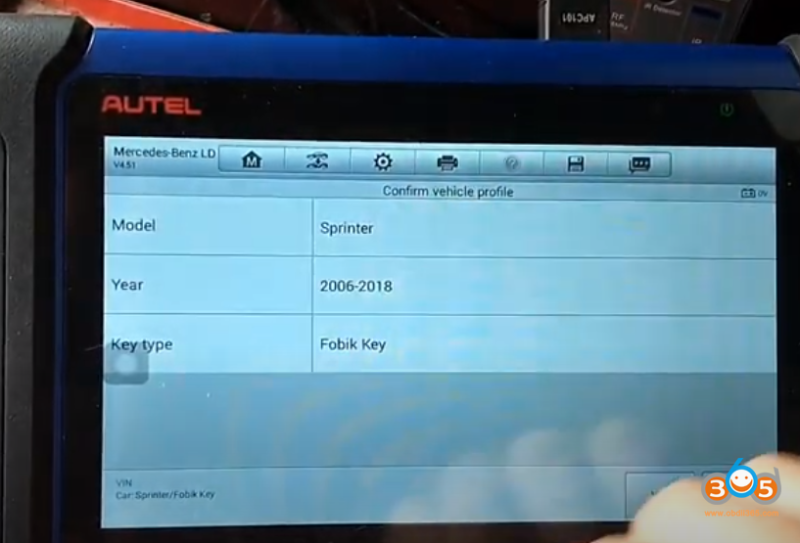

confirm vehicle information

Press Yes to continue

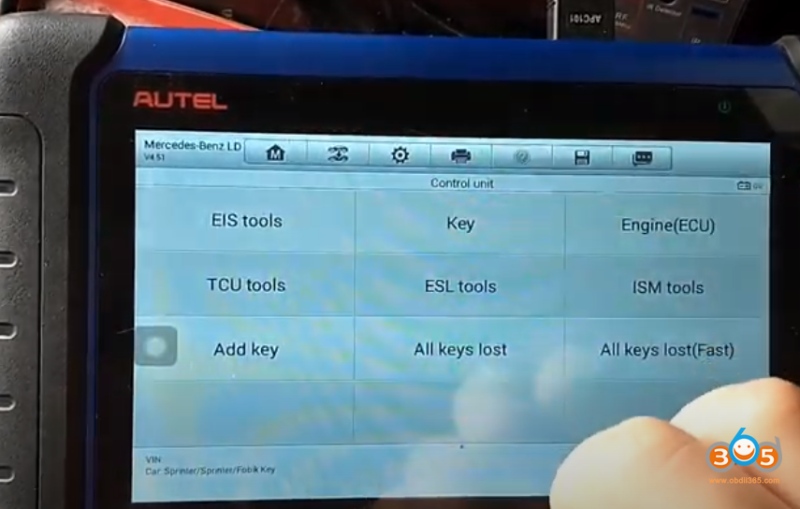

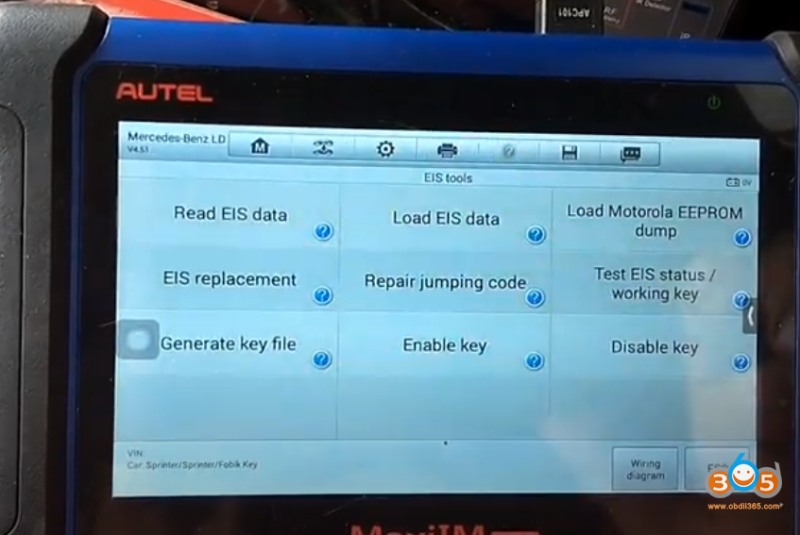

Select Control Unit->EIS tools->Load EIS data

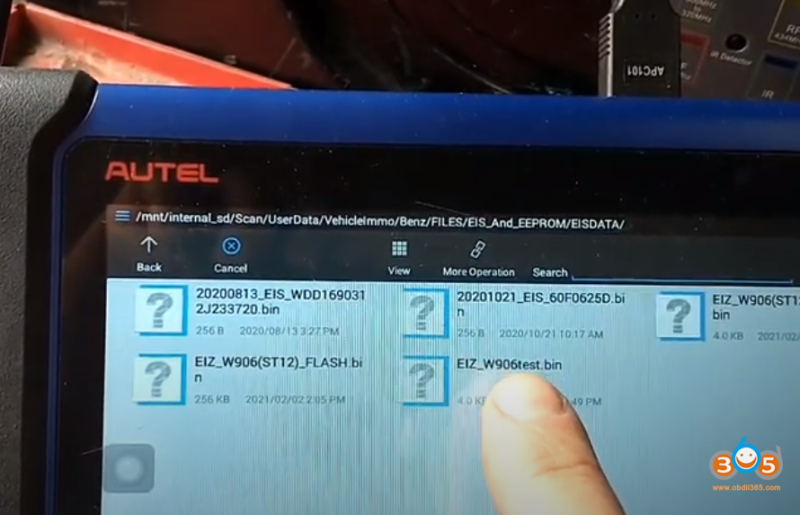

upload data just saved

Loading files

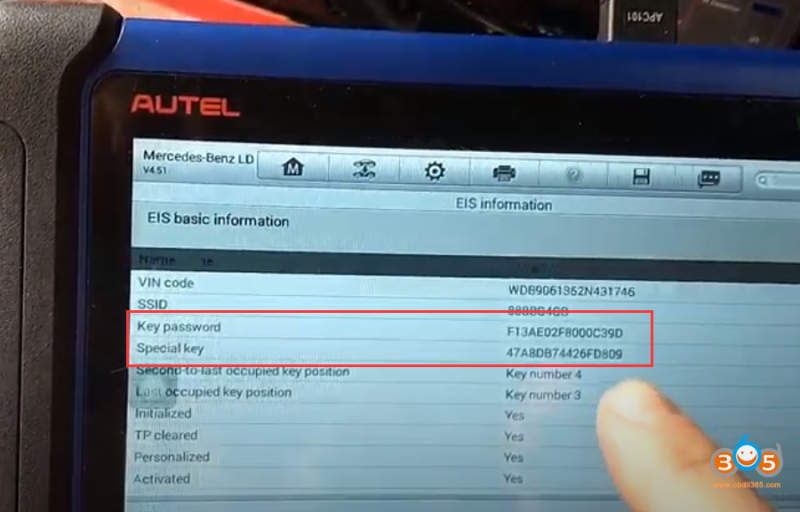

Autel IM508 and XP400 Reading key password success

You can then make a key with it as normal obd but it only takes few minutes.

Then you just use the password to program via obd2? You dont write the key via the dump file? www.obdii365.com
