    OBDSTAR Program Nissan Sylphy B18 2020 Proximity Bypass PIN Code

    japantoyota-key-programmer
    — (0)

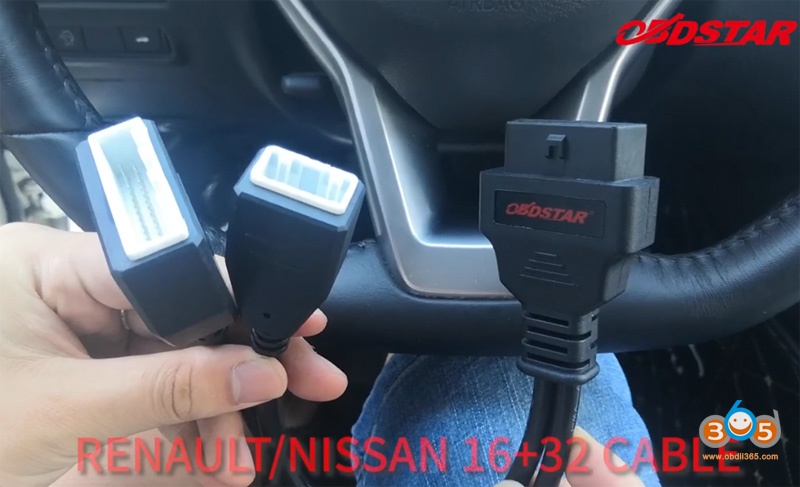

    OBDSTAR X300 DP Plus free updated 2019 up Nissan Sentra Sylphy B18 proximity add key and all keys lost function in Aug. 2021. This function requires a dedicated Nissan 16+32 bypass cable.

    Obdstar Nissan Sylphy B18 Proximity 1

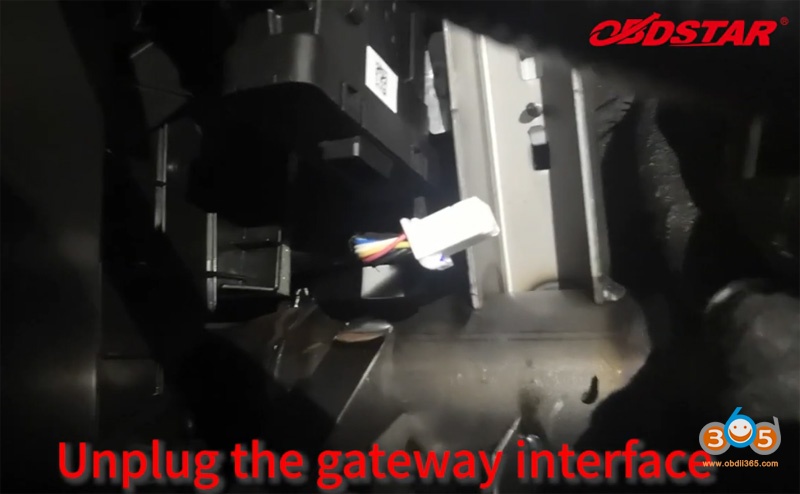

    Obdstar Nissan Sylphy B18 Proximity 2

    Obdstar Nissan Sylphy B18 Proximity 3

    Unplug gateway interface

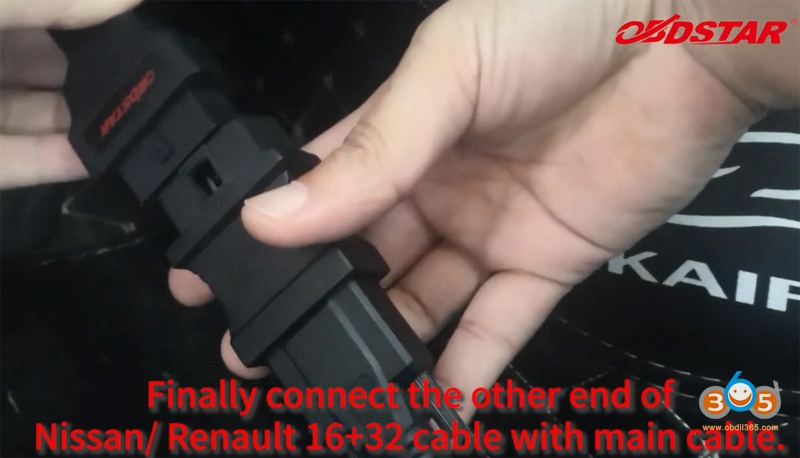

    Connect the Nissan bypass cable with the unplugged gateway adapter

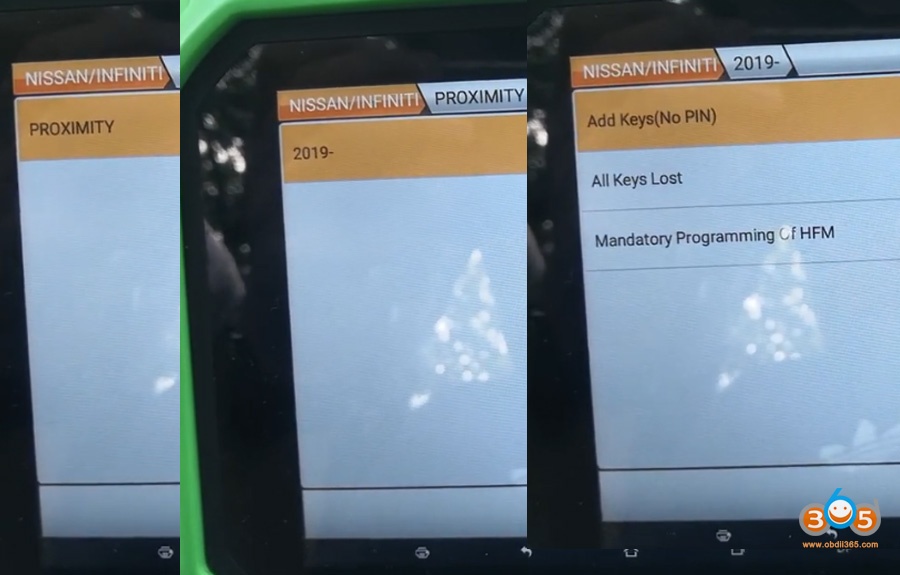

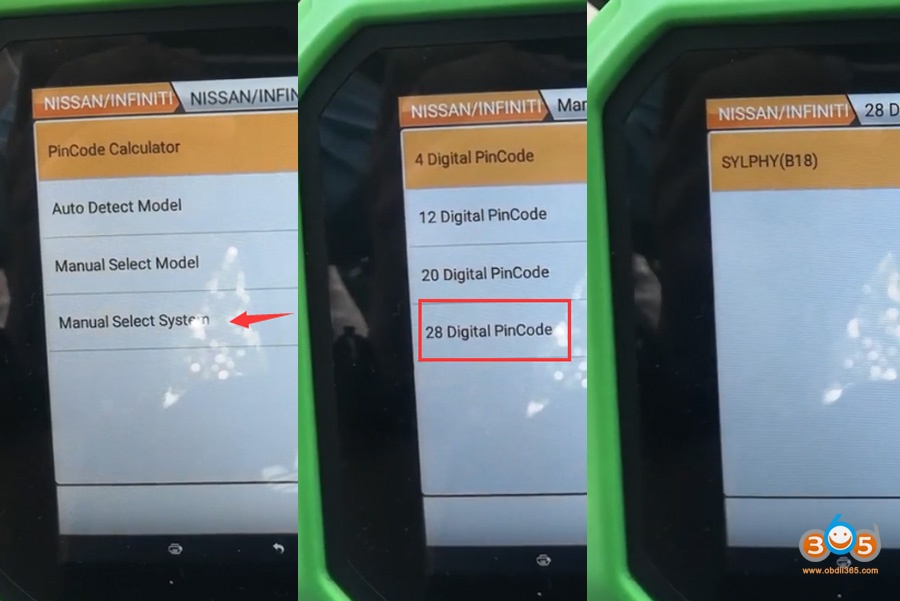

    Go to IMMO, select Nissan Infiniti v32.19 -manual select system – 28 digits pinched – Sylphy (B18) – Proximity – 2019 up – add key (No pin)

    Obdstar Nissan Sylphy B18 Proximity 4

    Obdstar Nissan Sylphy B18 Proximity 5

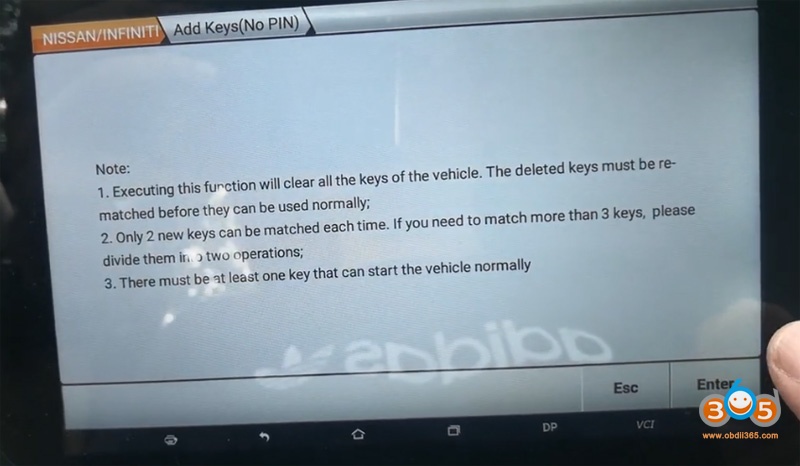

    This function requires network connection.
    Executing this function will delete all keys. Only 2 new keys can be programmed each time.
    Require at least one key that can start the vehicle normally

    Obdstar Nissan Sylphy B18 Proximity 6

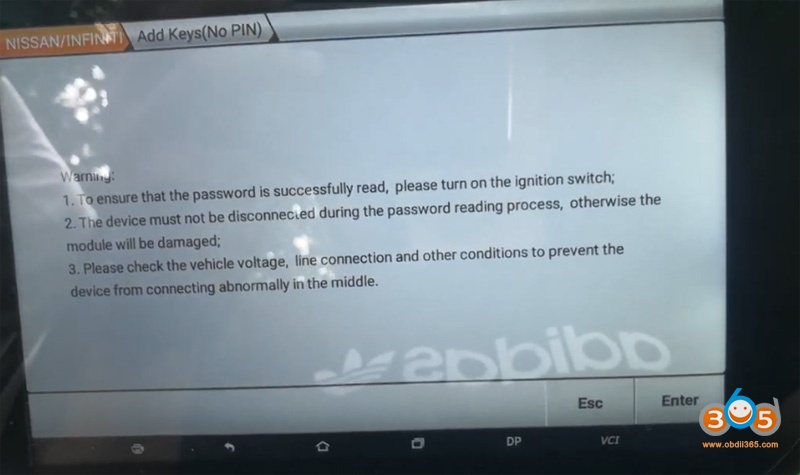

    Obdstar Nissan Sylphy B18 Proximity 7
    Press start button, turn on the ignition switch

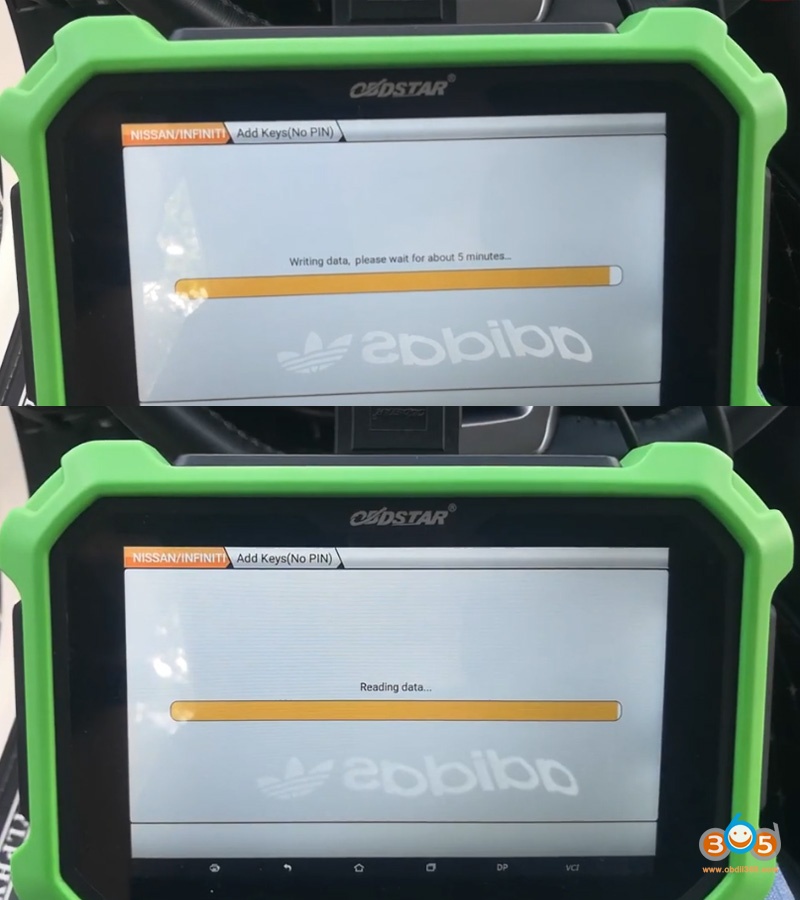

    Writing data
    Reading data

    Obdstar Nissan Sylphy B18 Proximity 8
    Read 28 digit pin code success

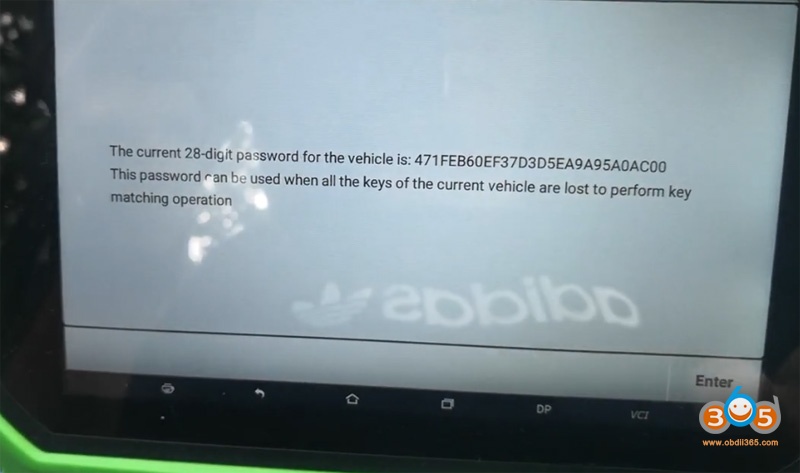

    Obdstar Nissan Sylphy B18 Proximity 9

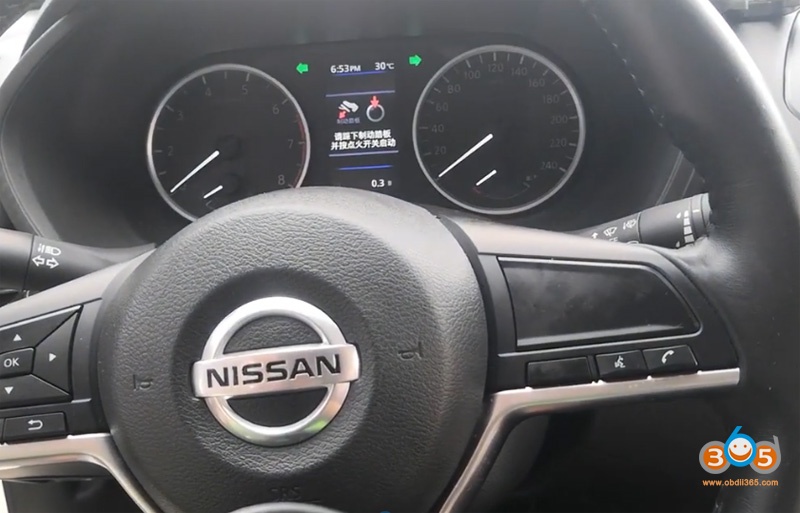

    Turn on the emergency indicator, turn off the ignition switch

    Obdstar Nissan Sylphy B18 Proximity 10
    Turn on the ignition switch
    Long press the start button to turn off the ignition switch
    Turn on the hazard warning lights
    The gear position is in P gear or neutral gear
    The steering column lock is in the unlocked state

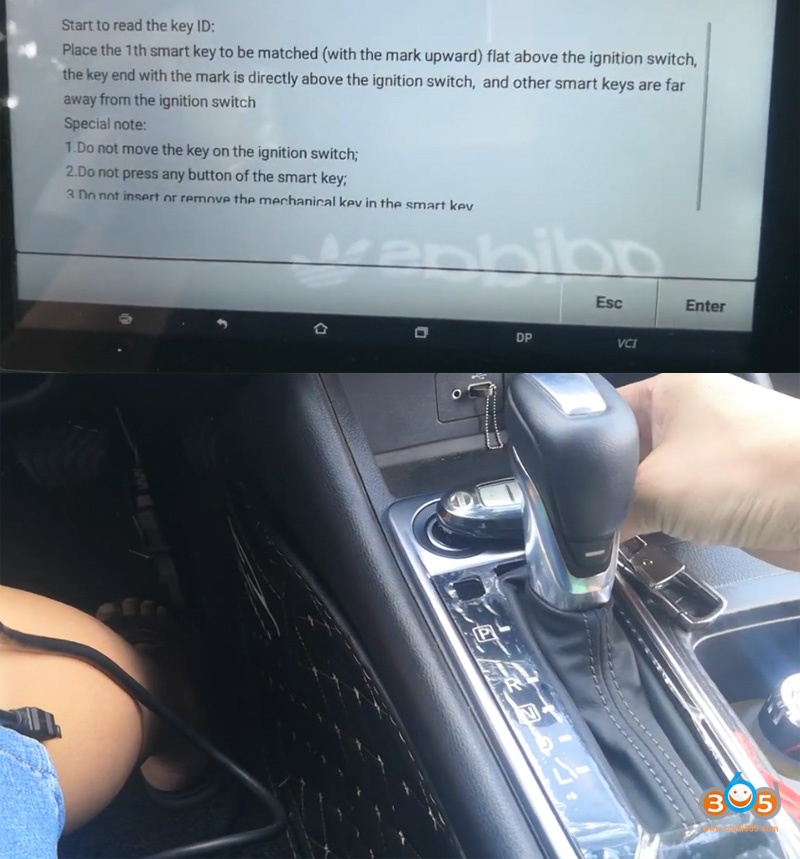

    Obdstar Nissan Sylphy B18 Proximity 11

    Start to read the key id
    Place 1st smart key to be programming horizontally above the ignition switch and put other smart keys are far away from the ignition switch
    Don’t move the key on the ignition switch
    Don’t press any button of the smart key

    Obdstar Nissan Sylphy B18 Proximity 12

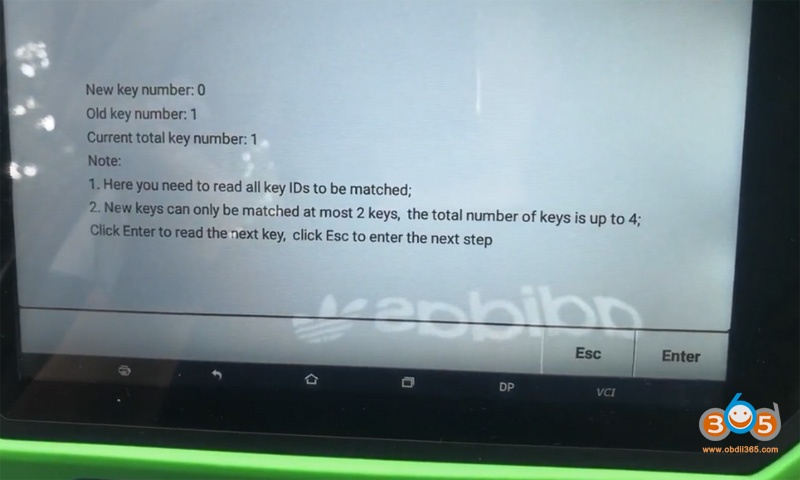

    Read current key information
    Place 2nd key to be programming above the ignition switch
    read key information

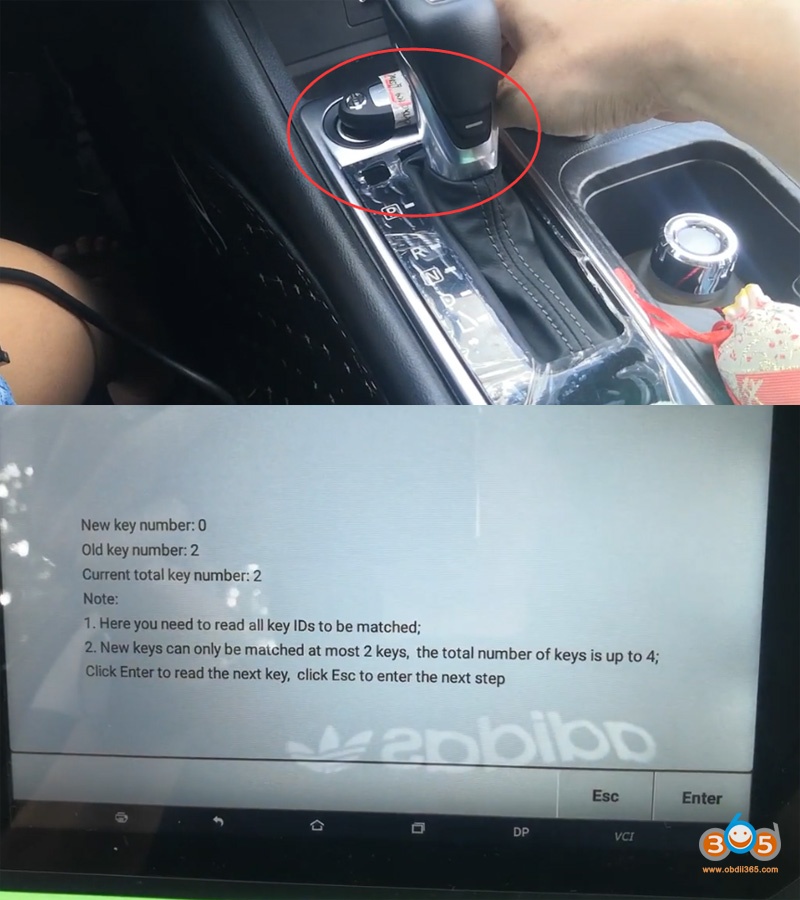

    Obdstar Nissan Sylphy B18 Proximity 13

    Place 1st key above ignition switch again

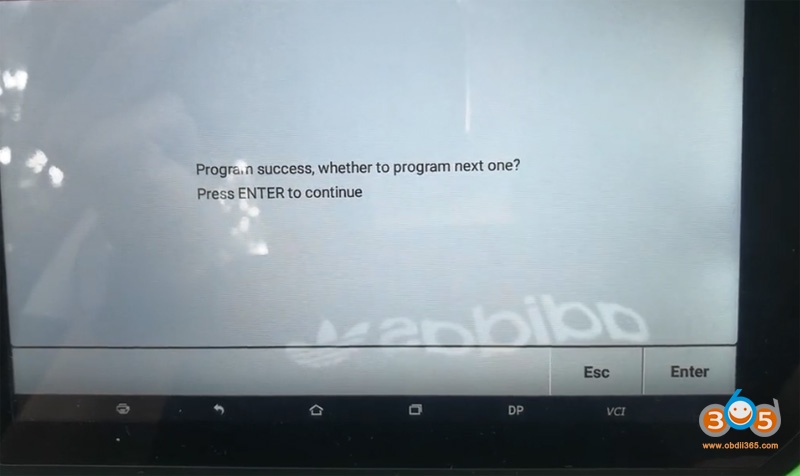

    Progam success

    Obdstar Nissan Sylphy B18 Proximity 14
    Place 2nd key above ignition switch
    Program 2nd key success
    2 keys has been programmed successfully

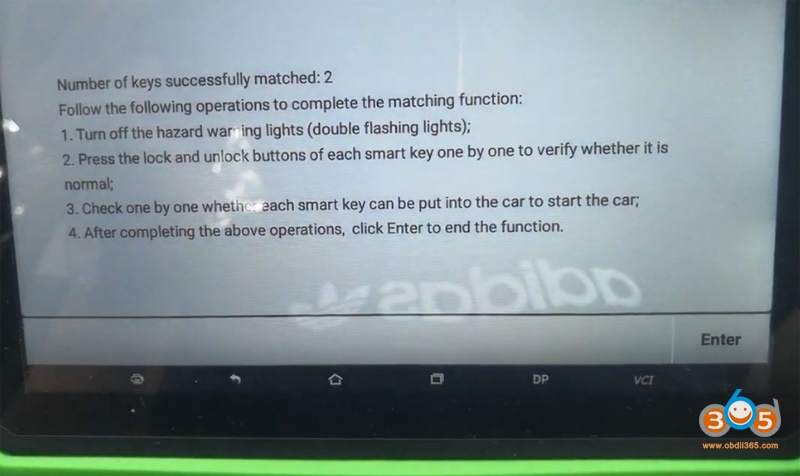

    Obdstar Nissan Sylphy B18 Proximity 15
    Follow procedures below to complete programming:
    Turn off emergency warning lights

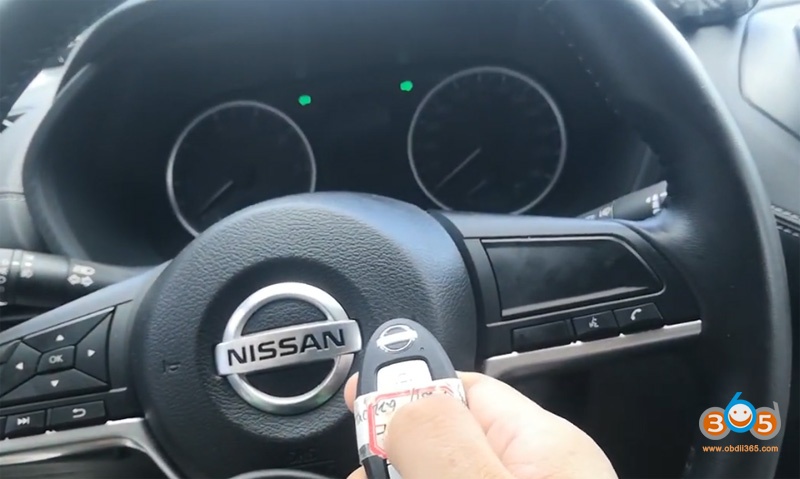

    Press Lock and unlock buttons of each smart key one by one to verify

    Obdstar Nissan Sylphy B18 Proximity 16
    Check one by one whether each smart key can be put into the car to start the car

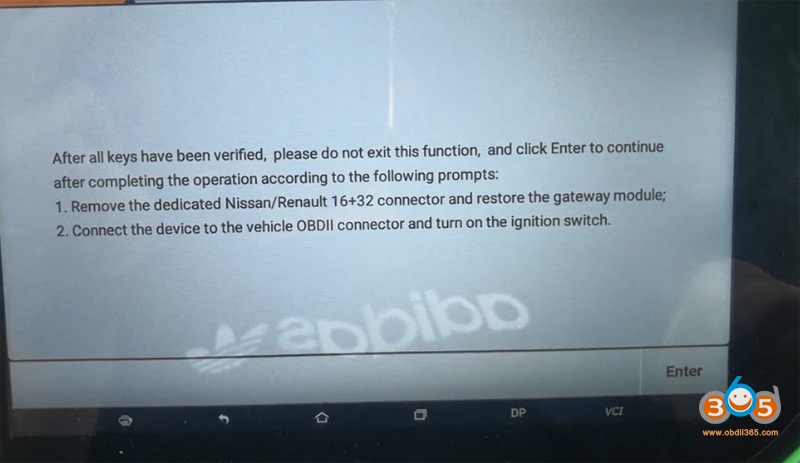

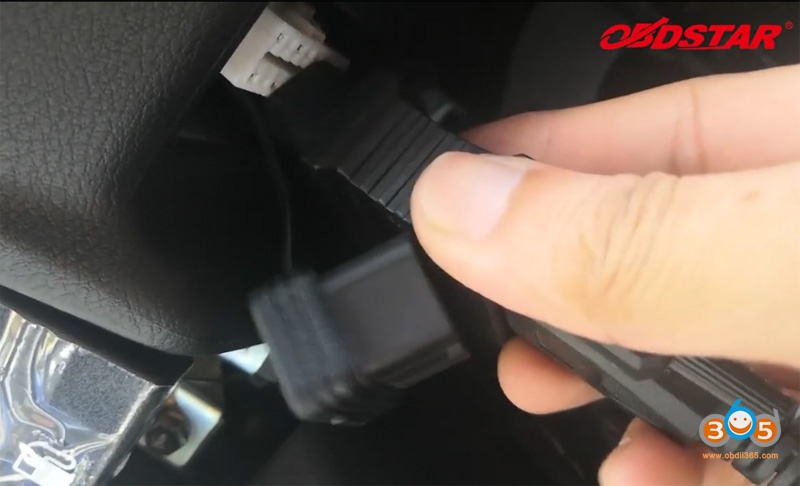

    After all keys have been verified do not exit this function, remove the dedicated Nissan bypass cable and restore the gateway module.

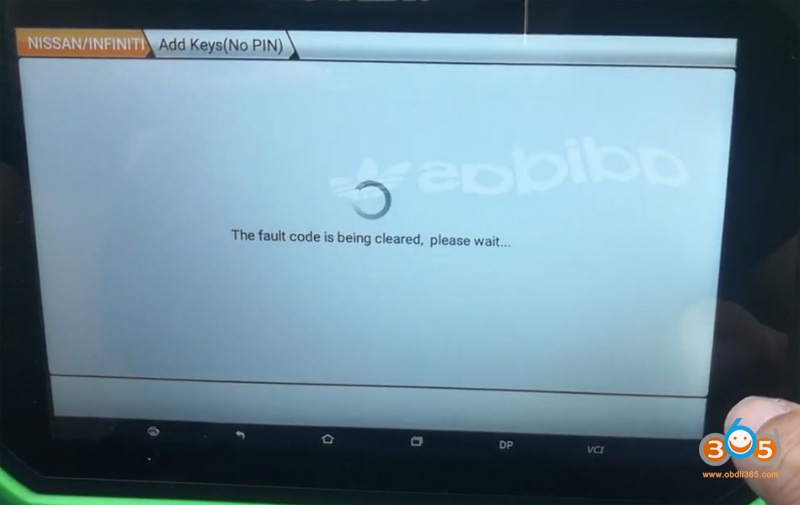

    Connect the x300 dp plus to the vehicle and turn on the ignition switch to clear the fault code.

    Obdstar Nissan Sylphy B18 Proximity 17

    Obdstar Nissan Sylphy B18 Proximity 18

    Obdstar Nissan Sylphy B18 Proximity 19

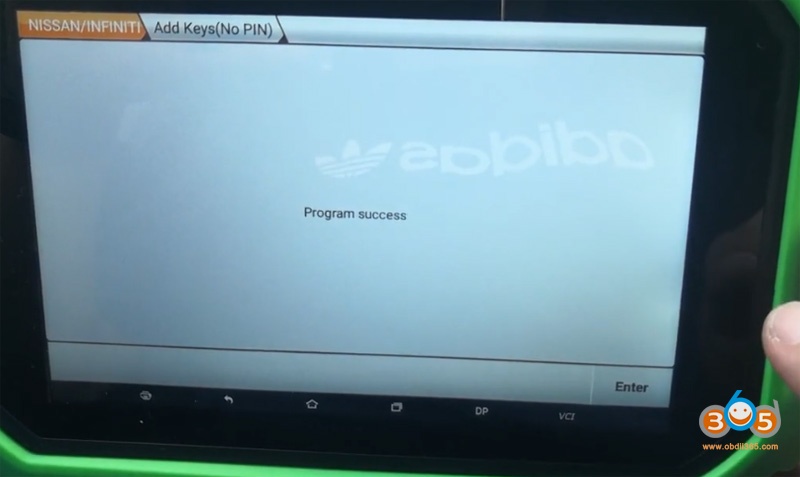

    Program success.

    Obdstar Nissan Sylphy B18 Proximity 20

    Done.
