How to Add Opel Zafira 2009 Key with SVCI 2020?
SVCI 2020 is working OK with Opel 2009. I can extract the PIN code, key cutting code and program the new key without problems. Here is the tip to use SVCI 2020 commander to delete keys and transponder chip in a Vauxhall / Opel Zafira 2009 and program a new remote control car key.
Connect SVCI 2020 with vehicle

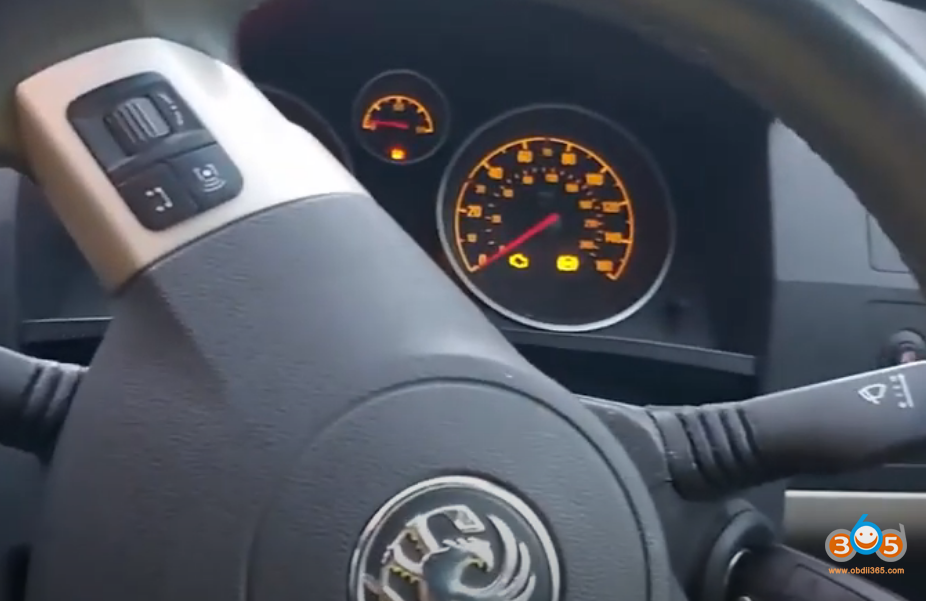

Turn in ignition switch with a working key

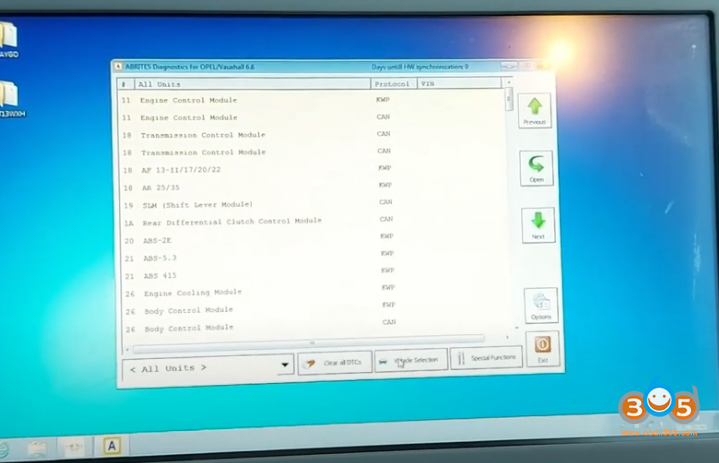

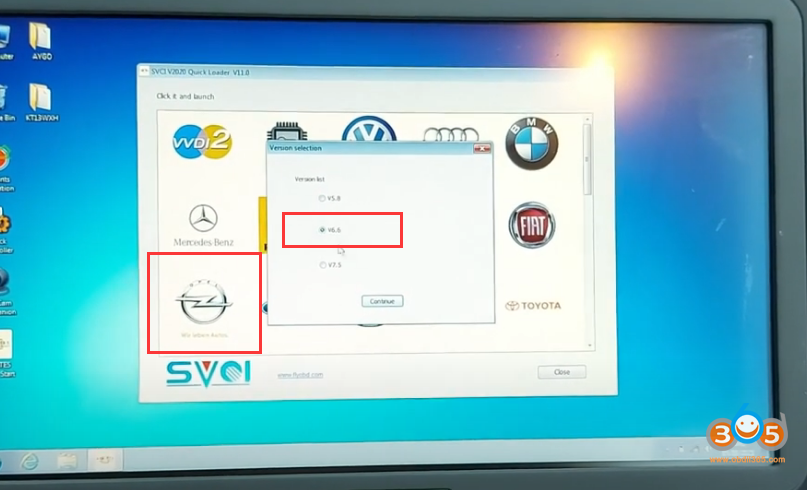

Run Opel software, choose software V6.5

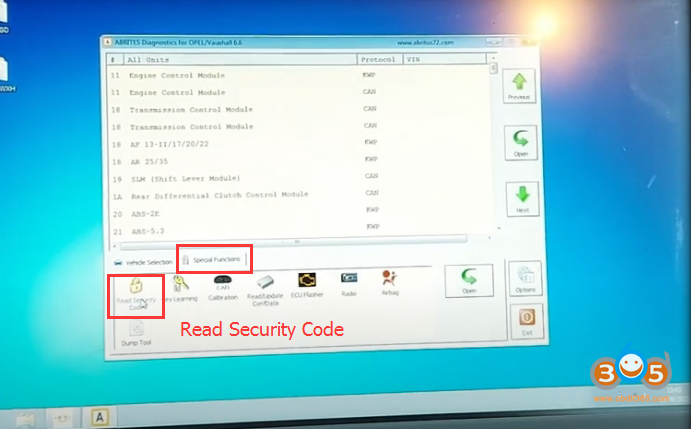

Go to Vehicle Selection -Special Function – Read Security Code

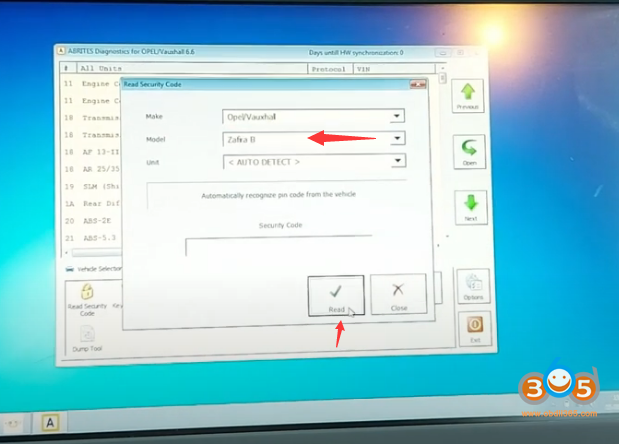

Select vehicle model Zafira B and press Read

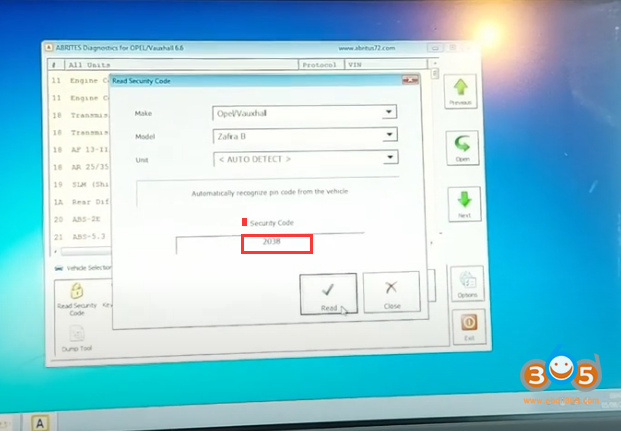

SVCI 2020 Read security PIN code success

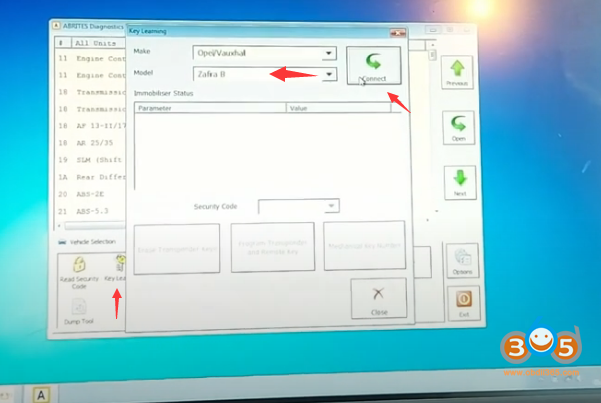

Select Key Learning Function – Zafira B, press Connect

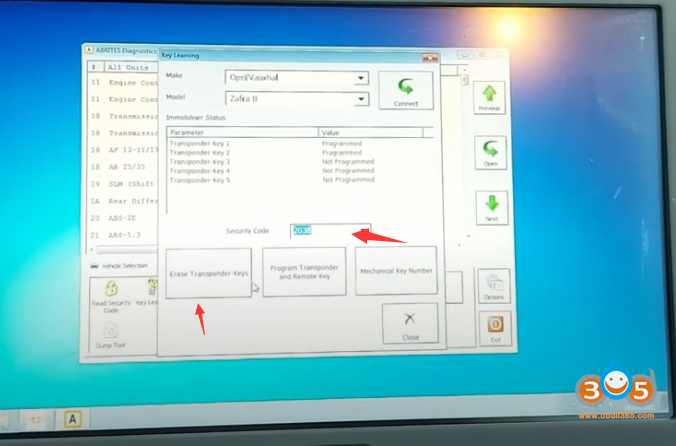

Then input pin code and press Erase Transponder Keys
Turn ignition off

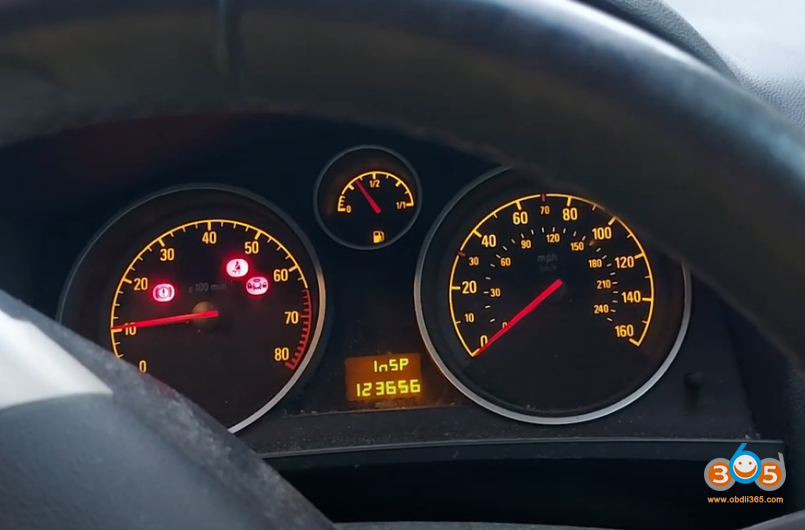

Turn ignition on
Erase key success

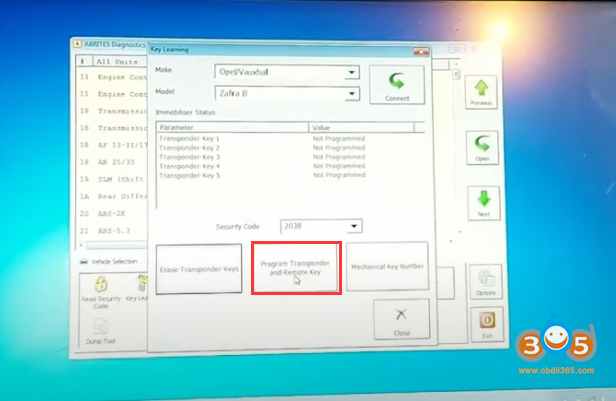

Select Program Transponder and Remote Key
Insert non-programmed transponder key and turn on the ignition
Turn ignition off
Turn ignition on

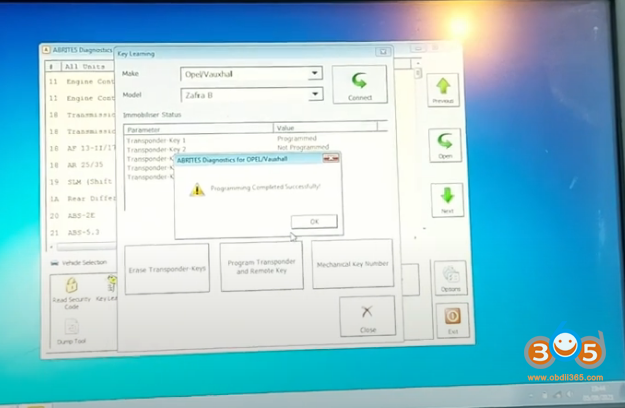

Program completed.
Test the new key. It is working.
