    OBDSTAR Adds Land Rover Sport 05-09 Key via OBD Super Easy

    jaguarlandrover-key-programmer
    — (0)

    Land rover 2005 to 2009 spare key can be easily done by OBDSTAR X300 Pro4 or X300 DP Plus.  Here takes an example of Land rover sport 2007 spare key programming with x300 pro 4.

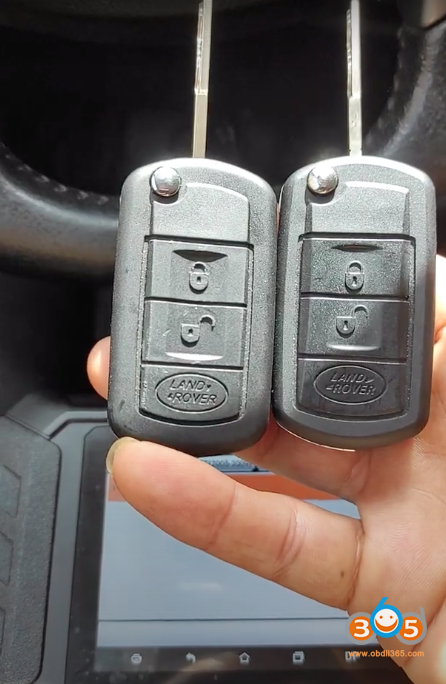

    Obdstar Land Rover 2007 Add Key 1

    Make connection

    Select Immo programming – Land rover – Sport 2005-2009 – Program keys

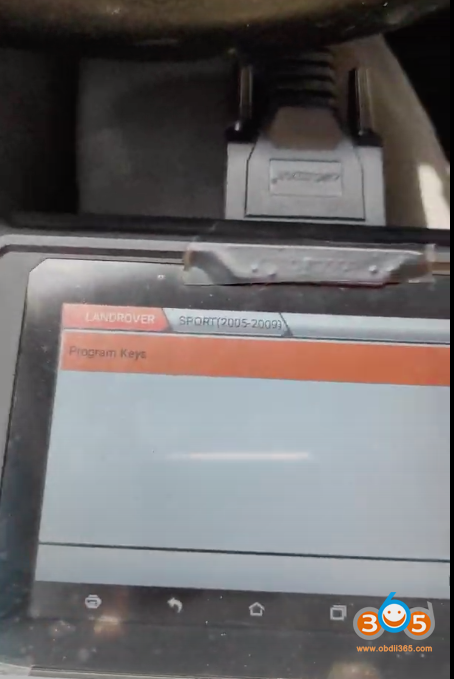

    Obdstar Land Rover 2007 Add Key 2

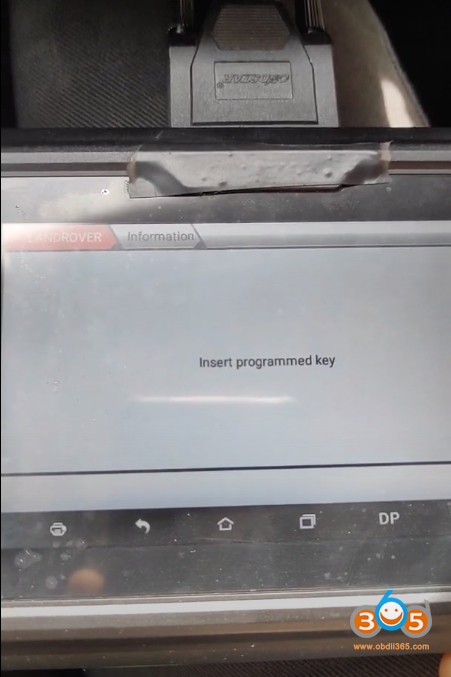

    Obdstar Land Rover 2007 Add Key 3

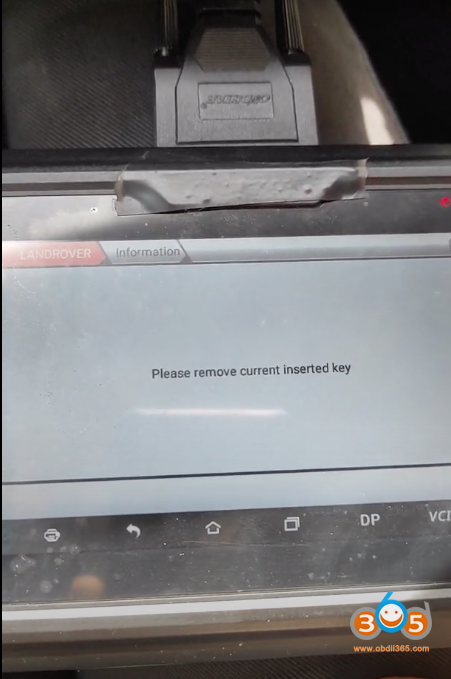

    Obdstar Land Rover 2007 Add Key 4

    Insert working key, switch the ignition off

    Remove the current inserted key

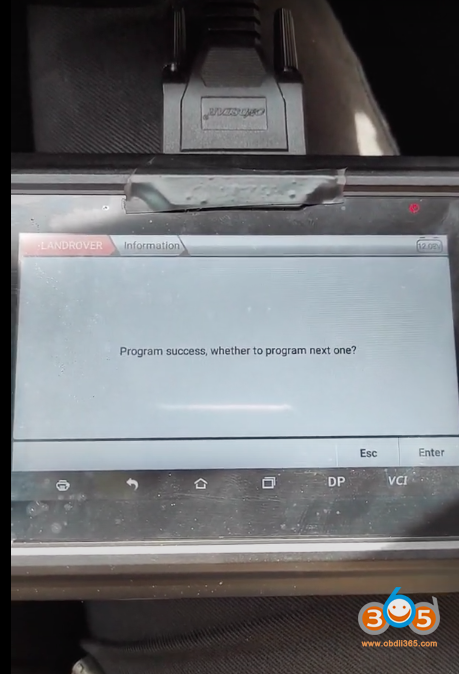

    Obdstar Land Rover 2007 Add Key 5

    Program success. Press Enter to program next key.

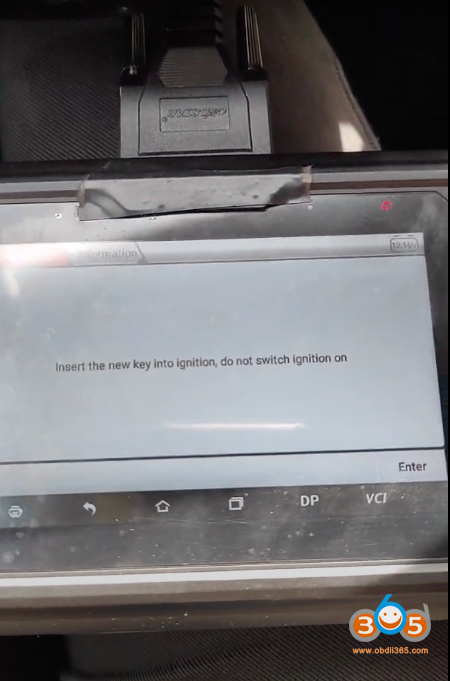

    Obdstar Land Rover 2007 Add Key 6

    Insert new key into ignition, don’t turn on ignition

    Insert the same key, switch ignition on

    switch ignition off

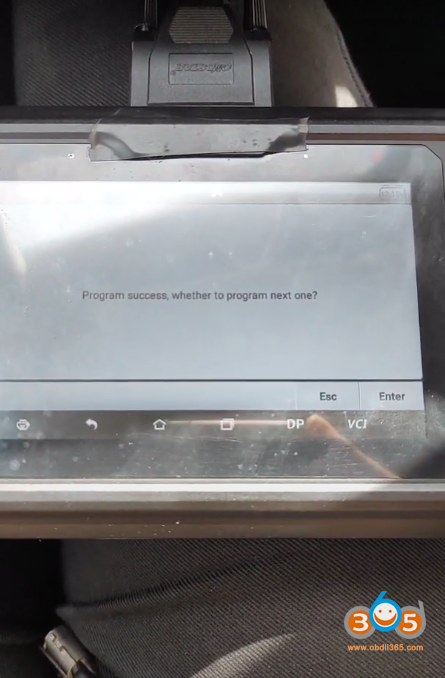

    Obdstar Land Rover 2007 Add Key 7

    Program success.

    Program complete.

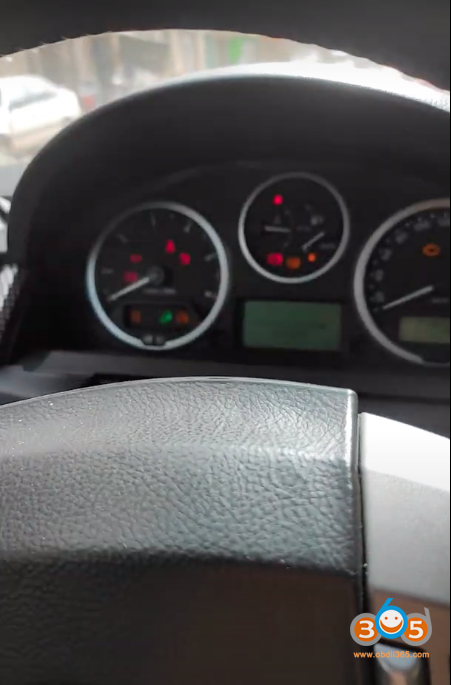

    Obdstar Land Rover 2007 Add Key 9

    Test both keys.



    I also did a 2006 Model Discovery 3 spare key with x300 dp plus.  After you add the key live the car idling for 6 minutes. However skp900 works better.

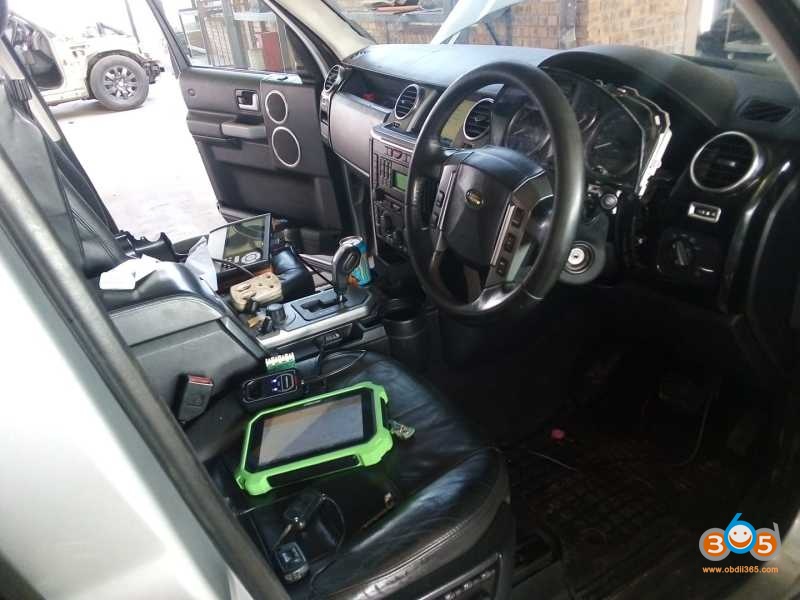

    Discovery 3 2006 Add Key With Obdstar X300 Dp Plus
